55162 Mercury Spring | Genuine Used Part

🔧 Product Description

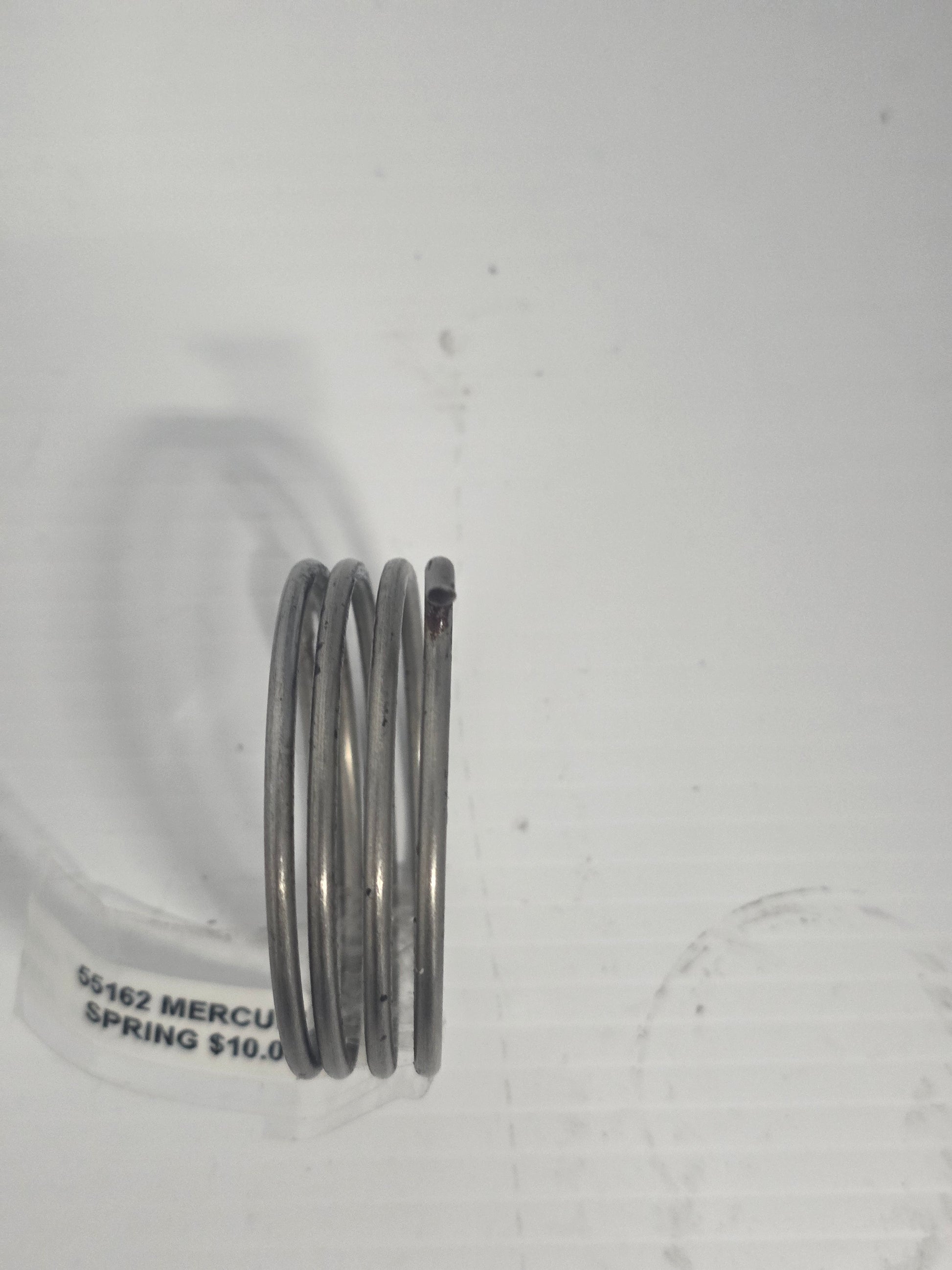

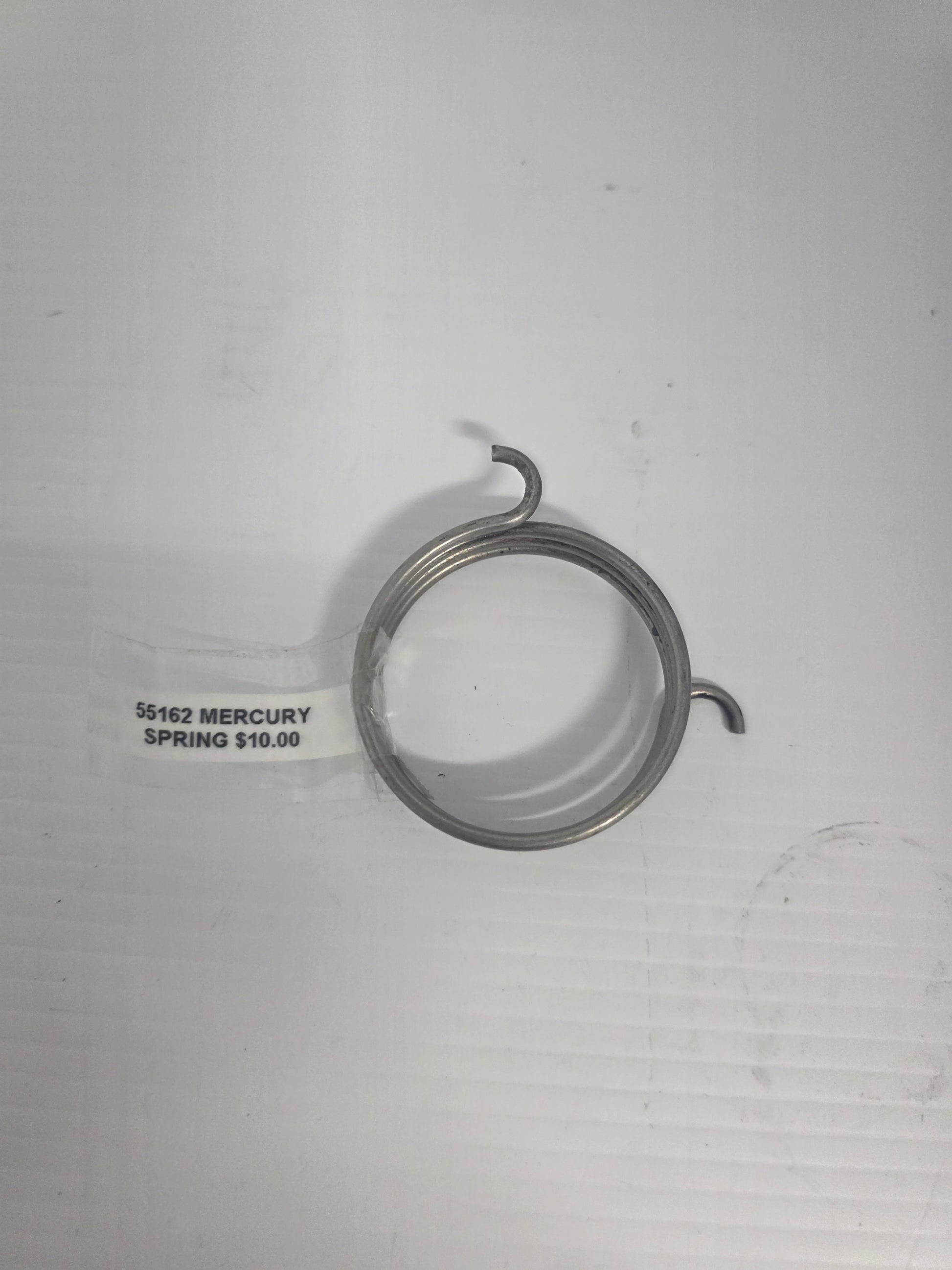

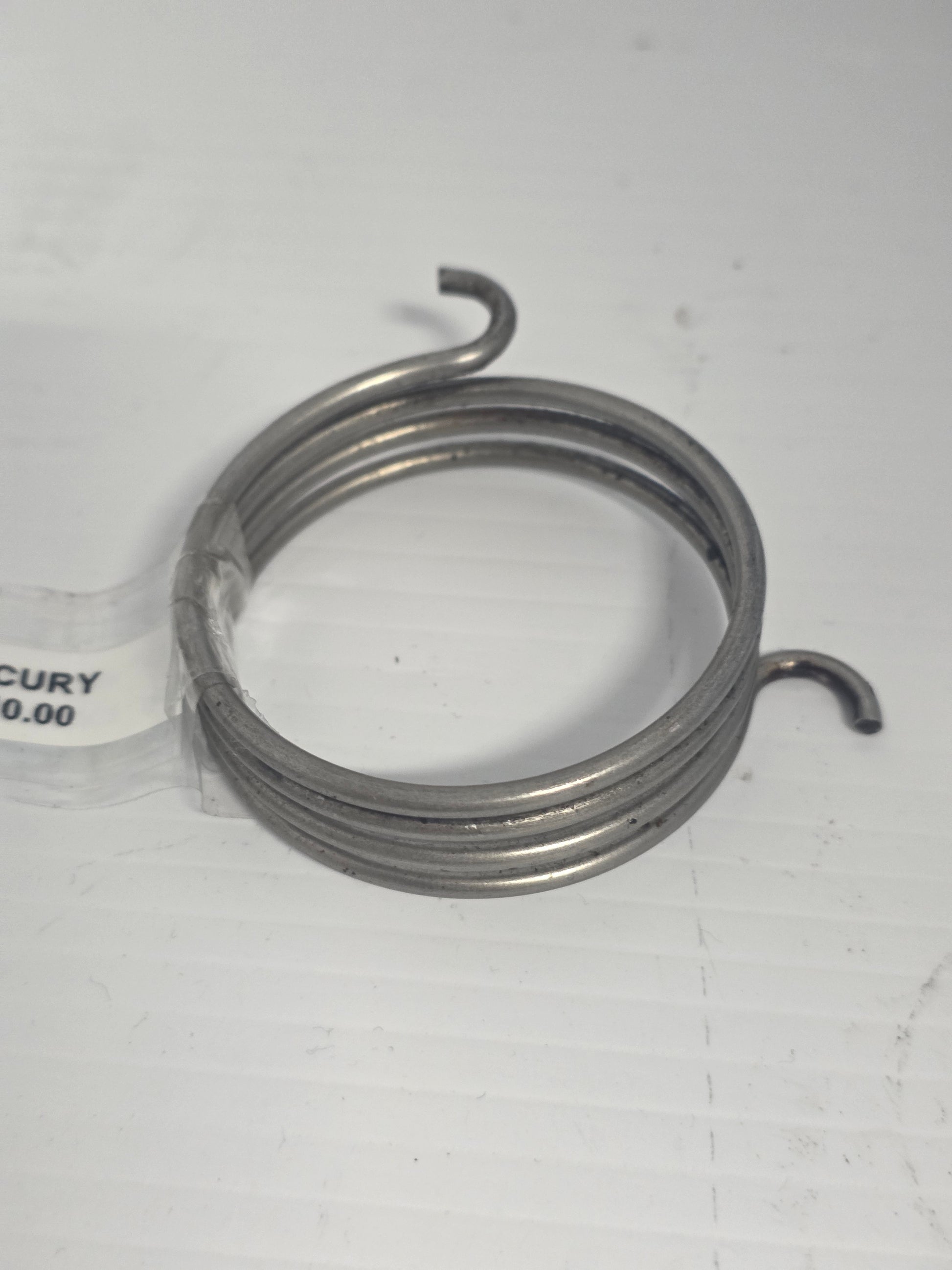

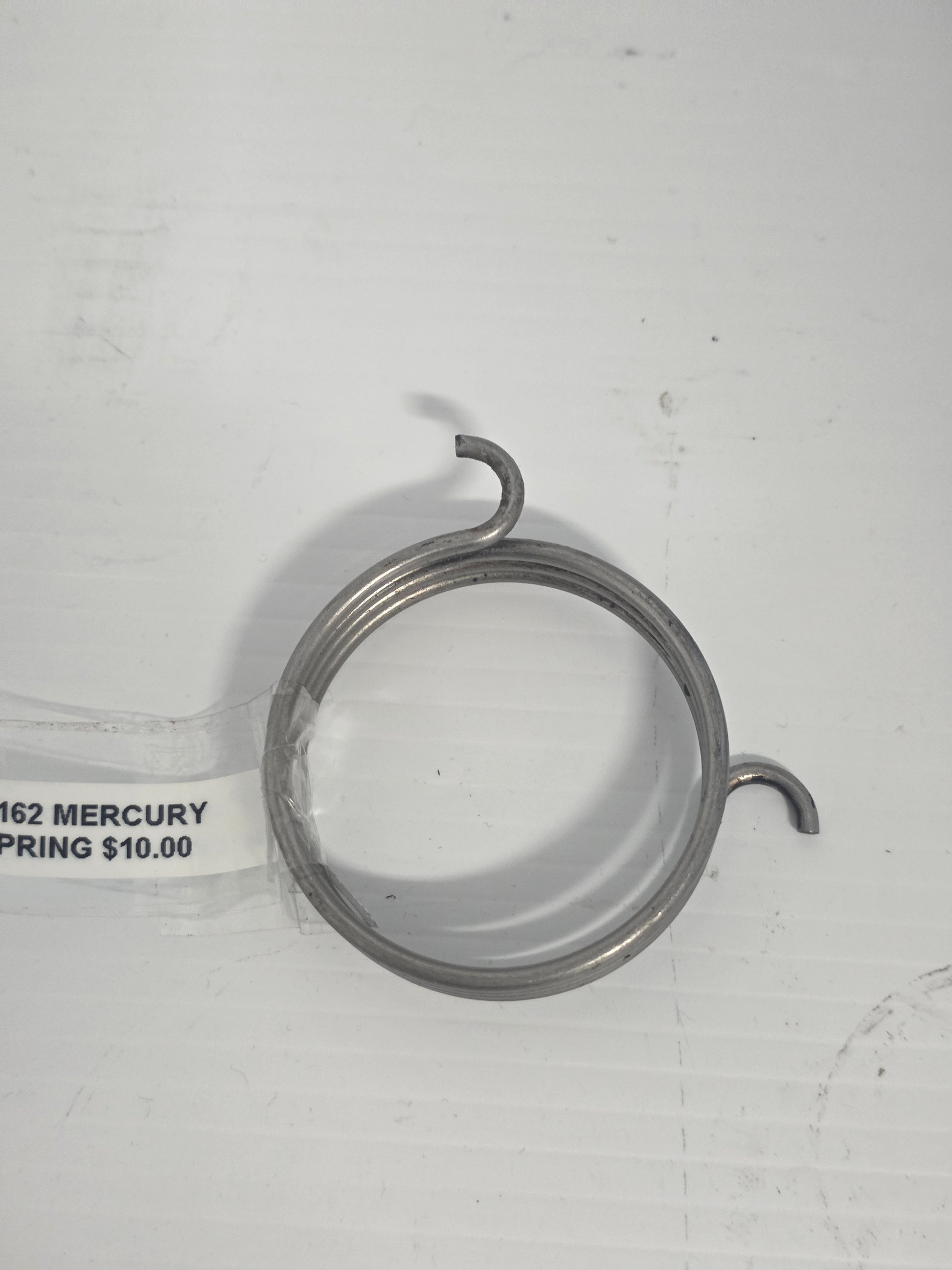

Genuine Mercury Mariner Throttle and Spark-Advance Spring - Part Number: 24-55162

A genuine used Mercury Mariner throttle and spark-advance linkage spring for selected three-cylinder two-stroke outboards.

The spring applies the designed tension within the throttle and timing linkage so the cam, lever and advance mechanism remain seated and return consistently as the control is moved.

⚙️ Key Features

• Genuine Mercury Marine OEM formed linkage spring
• Correct Mercury part number 24-55162
• Used with the 42947 and 42948 throttle / spark-advance components
• Fits selected 65 Jet and 70HP to 90HP three-cylinder engines
• Maintains linkage tension and accurate return movement

🚤 Compatibility

Commonly used on

• Mercury and Mariner three-cylinder throttle and ignition-advance linkage assemblies
• 65 Jet plus 70HP, 75HP, 80HP and 90HP two-stroke outboards

Typically suits

• Engine models:
• Mercury / Mariner 65 Jet - US serial 0D283222 through 1B000001 and above
• Mercury / Mariner 65 Jet - Belgium serial 9793577 to 0P325499
• Mercury / Mariner 70HP and 80HP three-cylinder - US serial 0A996142 to 0C221999
• Mercury / Mariner 70HP and 80HP three-cylinder - Belgium serial 9483121 to 9589038
• Mercury / Mariner 75HP three-cylinder - US serial 0A996142 through 1B000001 and above
• Mercury / Mariner 75HP three-cylinder - Belgium serial 0P325500 and above
• Mercury / Mariner 90HP three-cylinder - US serial 0A996142 through 1B000001 and above
• Mercury / Mariner 90HP three-cylinder - Belgium serial 0P017000 and above
• HP Range: 65 Jet / 70HP - 90HP
• Engine Type: Mercury / Mariner three-cylinder two-stroke outboard
• Year Range: Approximately mid-1980s - 2000s

🔌 Function

The spring keeps the throttle and spark-advance components under controlled tension. It helps the linkage follow the cam accurately and return toward the idle or retarded position when throttle input is reduced.

⚠️ Common Signs of Failure

• Spring is stretched, broken or permanently distorted
• Linkage does not return smoothly to idle
• Throttle or spark-advance lever rattles or has excess free play
• Engine speed remains elevated after the control is reduced
• Corrosion weakens the spring or causes binding

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 24-55162 current Mercury OEM service reference
• 55162 original Mercury base reference

OEM / Related Numbers

• 24-55162
• 55162
• 2455162
• Mercury description: Spring, Throttle / Spark Advance Lever
• 42947 1 related advance lever
• 42948A7 related throttle cam

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
