55320-94900 Suzuki DF60A Anode | Genuine Used Part

🔧 Product Description

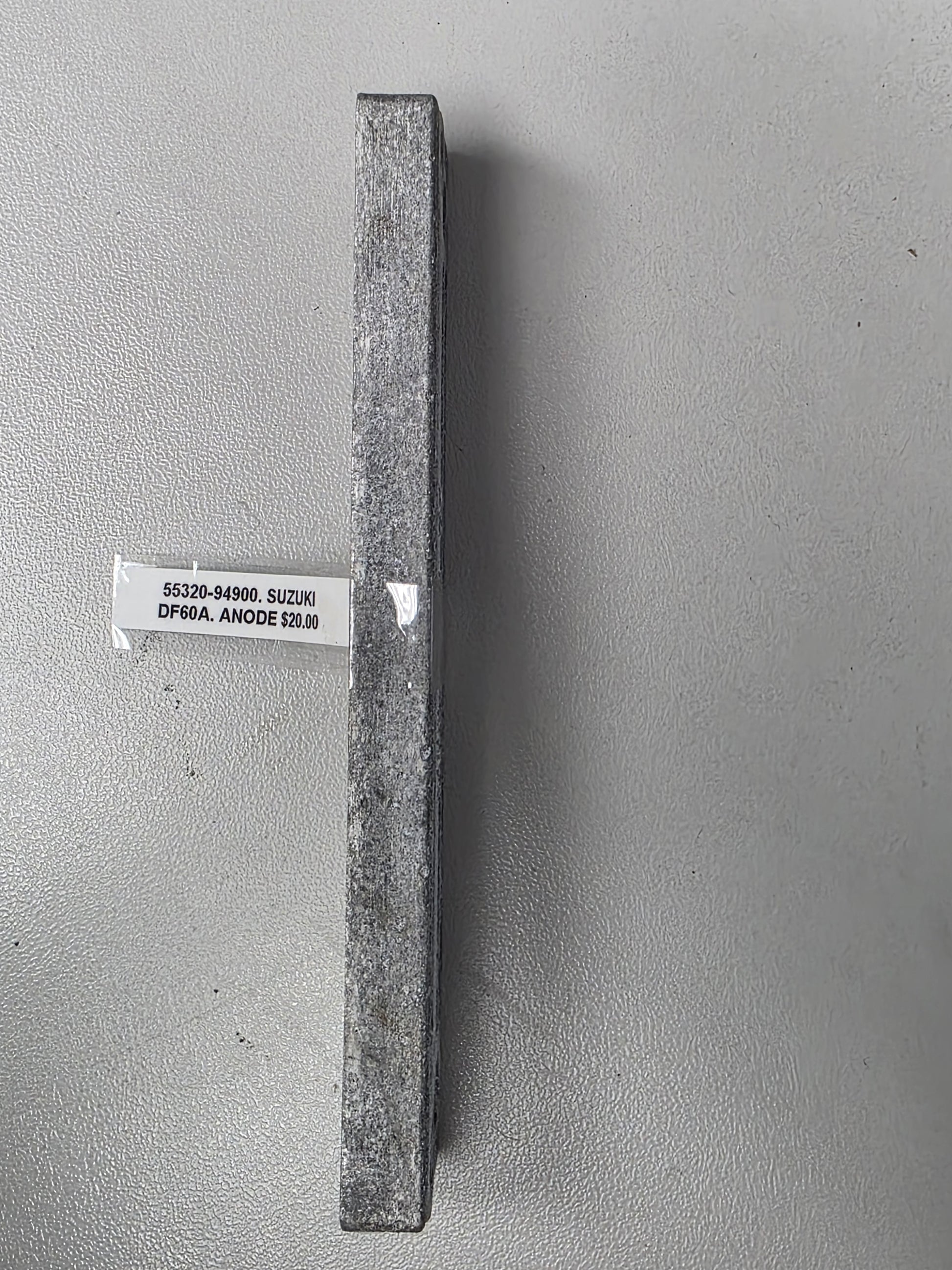

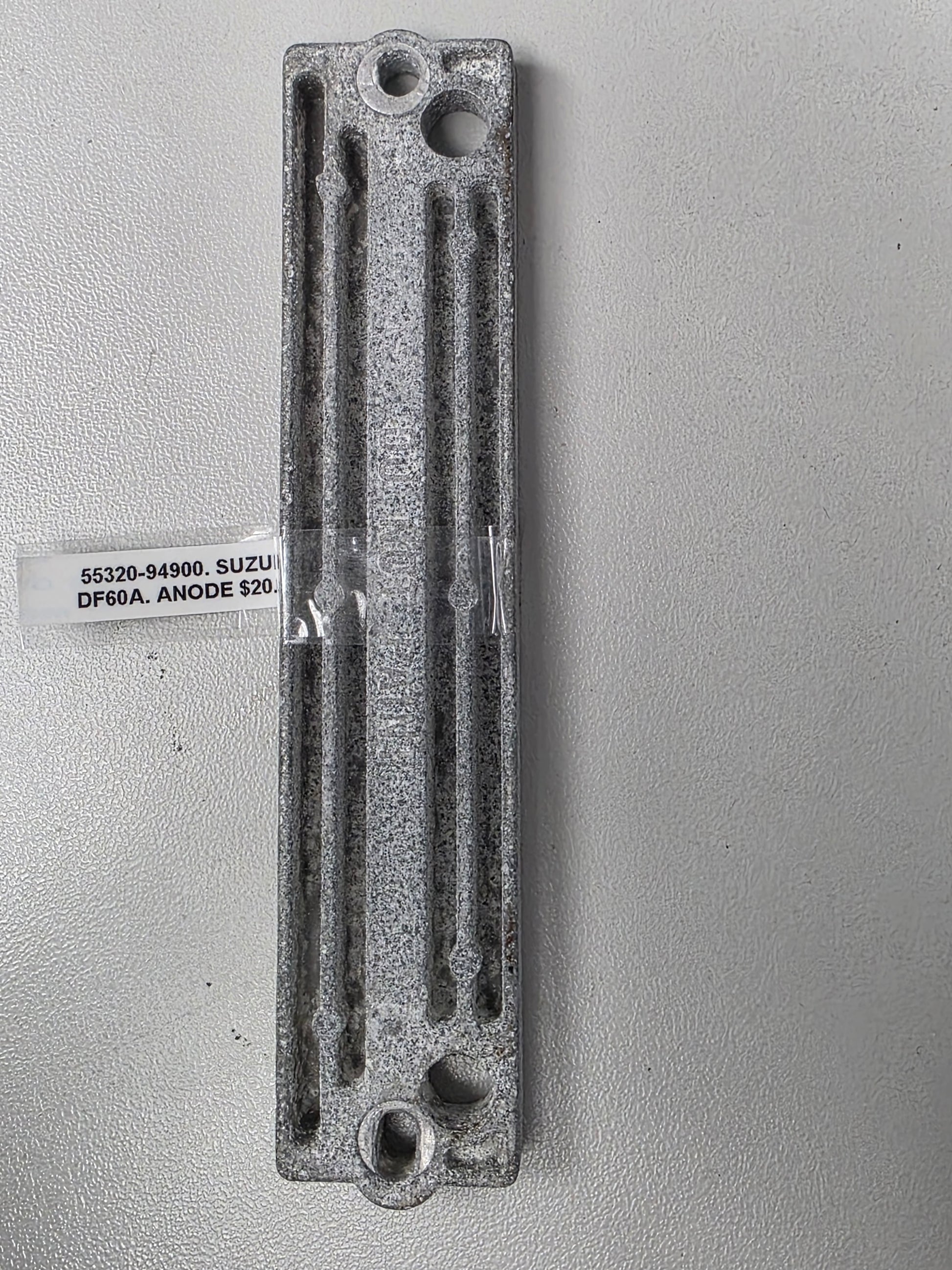

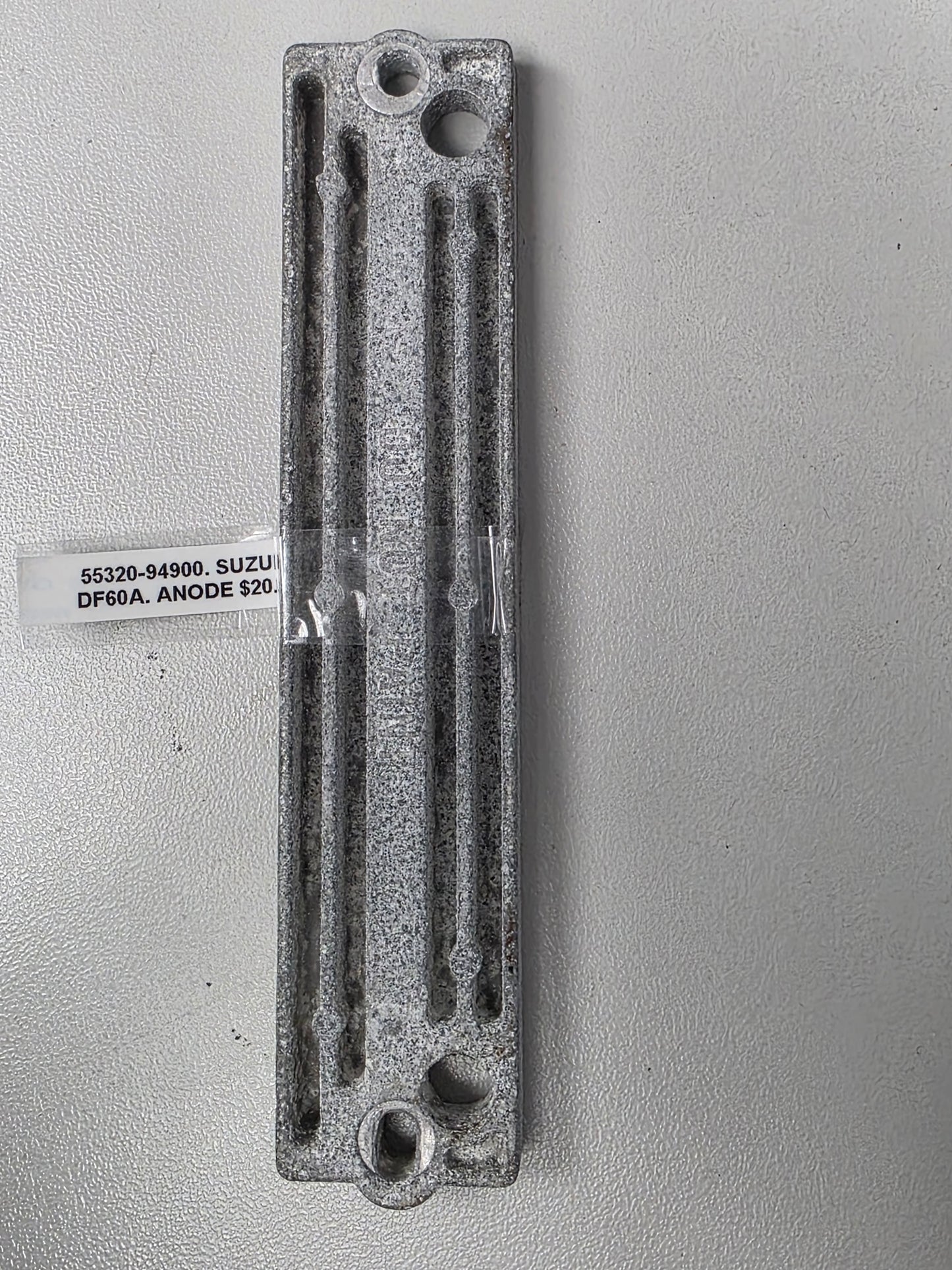

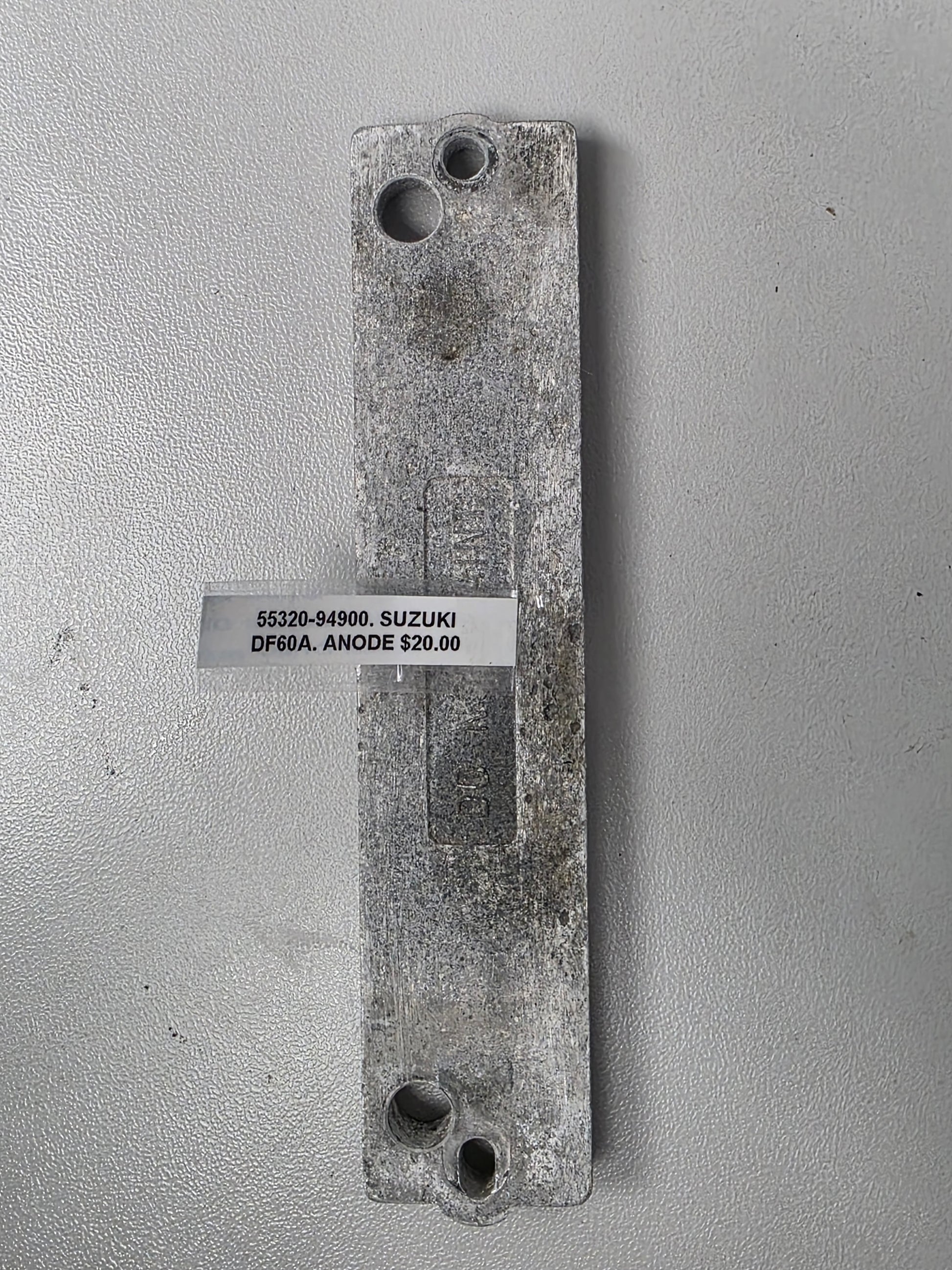

Genuine Suzuki Clamp-Bracket Sacrificial Anode Set - Part Number: 55320-94900

A genuine used Suzuki clamp-bracket anode designed to protect the outboard mounting and swivel-bracket assembly from galvanic corrosion. The anode is mounted to the clamp or transom bracket and sacrifices itself before the aluminium bracket casting is attacked.

⚙️ Key Features

• Genuine Suzuki Marine clamp-bracket anode
• Correct part number 55320-94900
• Protects aluminium mounting and swivel components
• Used across a broad Suzuki four-stroke horsepower range
• Direct replacement for the matching clamp-bracket anode position

🚤 Compatibility

Commonly used on

• Suzuki clamp-bracket and swivel-bracket assemblies
• Suzuki DF60A through DF350A applications where 55320-94900 is specified
• Selected DF90-DF140 anode kits and larger V6 mounting systems

Typically suits

• Suzuki DF60A / DF70A / DF80A / DF90A
• Suzuki DF100 / DF115 / DF140 and A-series variants
• Suzuki DF150 / DF175 / DF200 / DF225 / DF250 / DF300 / DF325 / DF350 where listed
• Verify the exact quantity and mounting location because additional internal and external anodes are used
• HP Range: Approximately 60HP - 350HP
• Material: Genuine sacrificial alloy; aftermarket aluminium or zinc options
• Engine Type: Suzuki four-stroke outboard
• Service Requirement: Replace when approximately half consumed or heavily oxidised

🔌 Function

The anode corrodes preferentially to protect the clamp bracket, swivel bracket and nearby aluminium components from electrolysis and galvanic attack.

⚠️ Common Signs of Failure

• Anode is more than half consumed
• Heavy white oxidation prevents effective contact
• Mounting surface is painted or insulated
• Anode is loose or missing
• Rapid bracket corrosion caused by an incorrect anode material

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 55320-94900 established Suzuki clamp-bracket anode reference
• No confirmed later OEM supersession
• Part may also be supplied with an extended suffix such as 55320-94900-000

OEM / Related Numbers

• 55320-94900
• 55320-94900-000
• 5532094900
• 55321-87J00 and 55321-87J01 related bracket anodes
• 55321-90J01 related engine-bracket anode
• 8315ZK2 related multi-anode service kit reference

Aftermarket / Verified Equivalents

• Recmar / replacement aluminium anode: REC55320-94900AL
• Zinc anode kit: 8315ZK2, containing a 55320-94900-equivalent anode
• Aftermarket aluminium and zinc versions are available for fresh, brackish or saltwater selection
• Use aluminium for mixed-water use and zinc only where appropriate for saltwater

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
