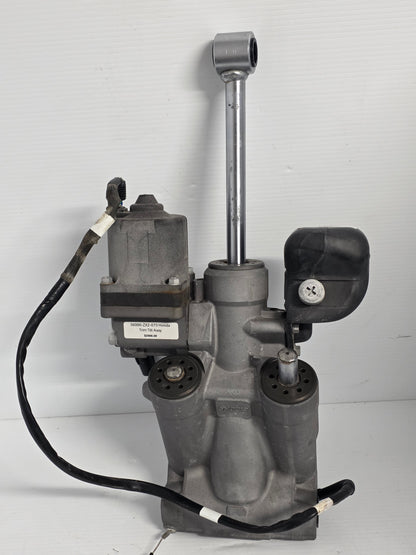

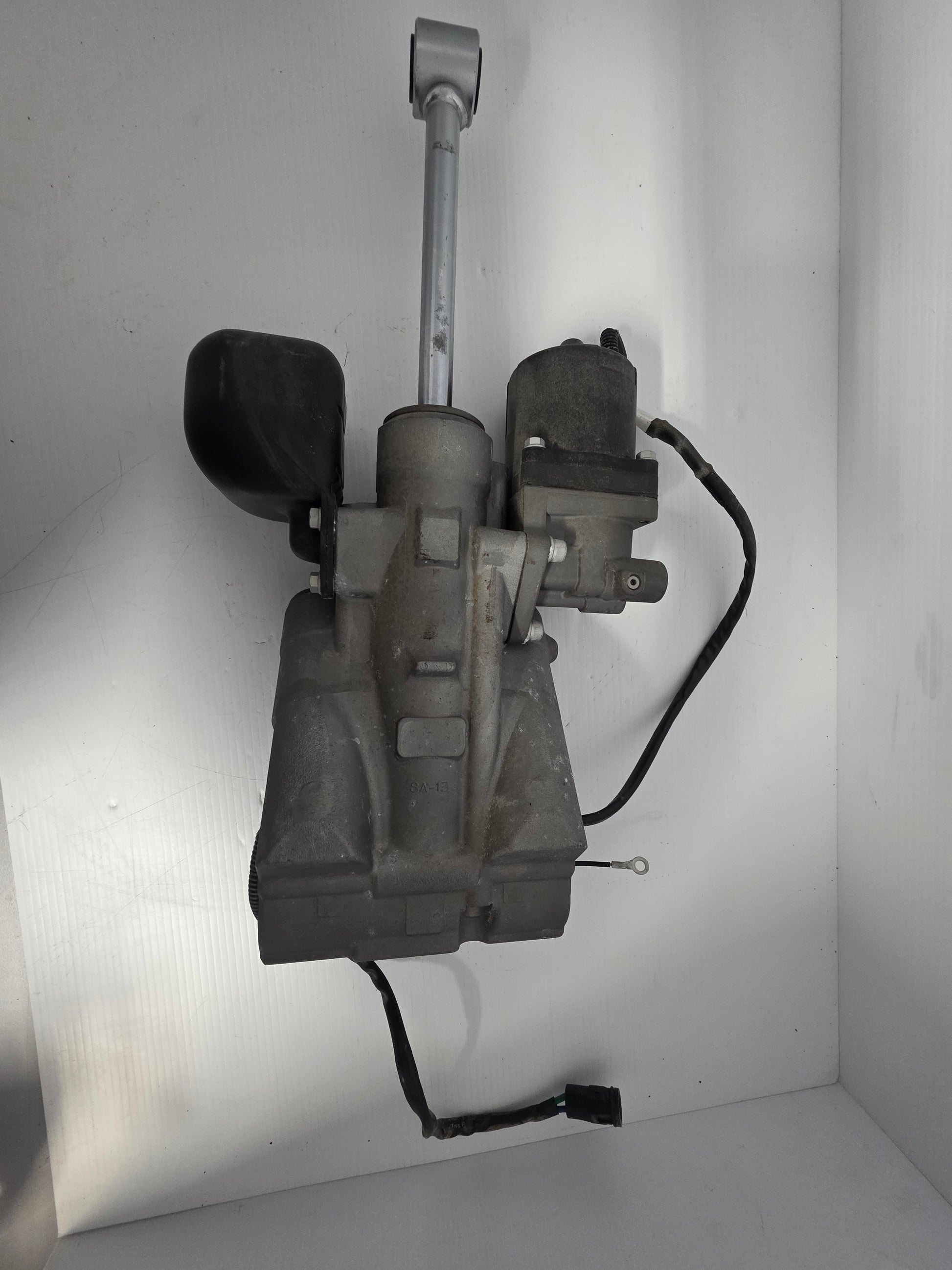

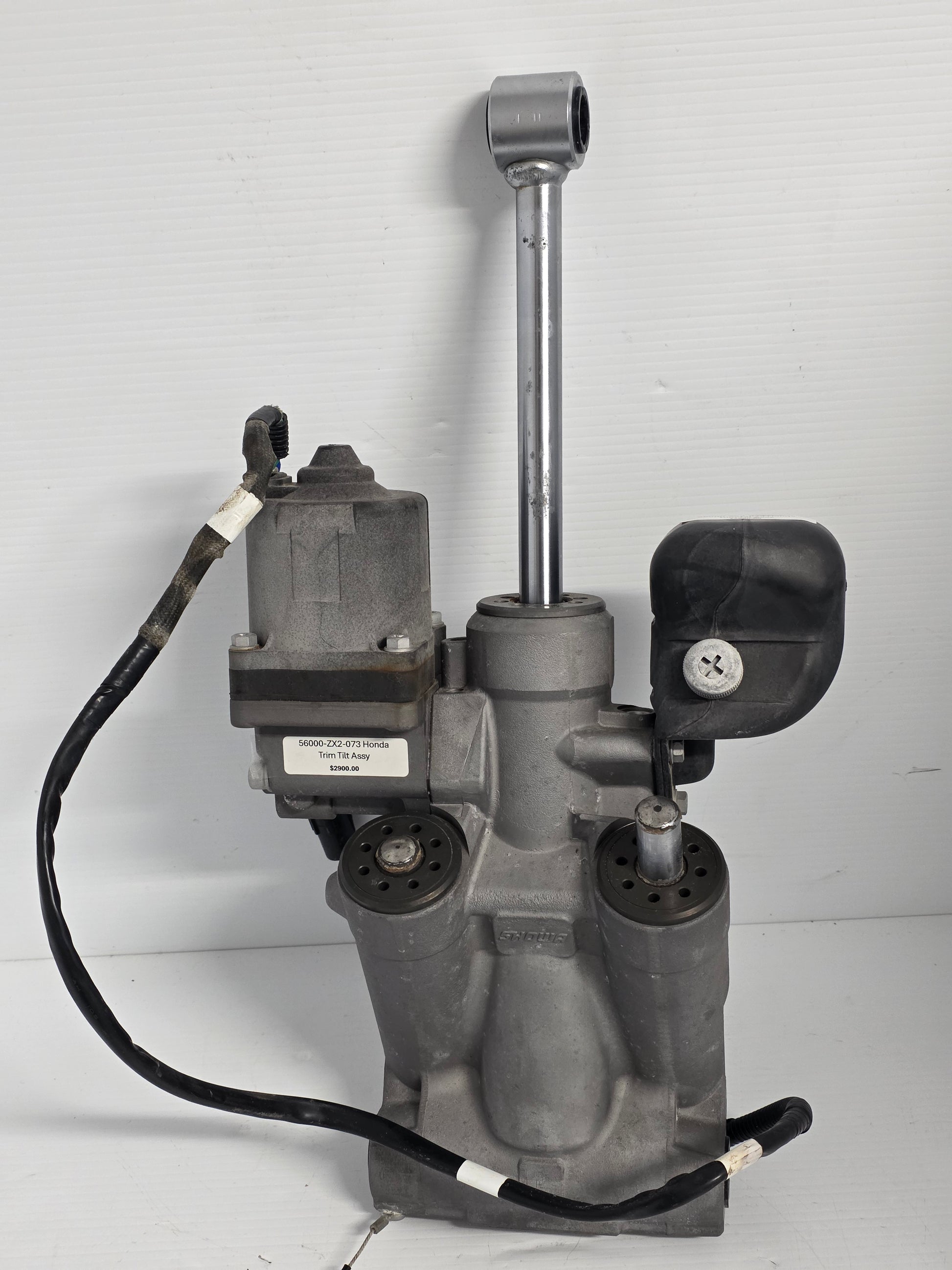

Genuine Honda Large-V6 Power Trim and Tilt Assembly - Part Number: 56000-ZX2-073
A genuine Honda three-ram hydraulic power trim and tilt assembly for selected BF175, BF200, BF225 and BF250 V6 four-stroke outboards. The ZX2 unit is used across several A-, D- and K-series engine suffixes, with the upper cylinder pin and bracket configuration controlled by model and serial number.
⚙️ Key Features
- Genuine Honda OEM large-V6 trim assembly
- Correct service number 56000-ZX2-073
- Three-ram hydraulic unit for 175HP to 250HP outboards
- Used on mechanical-control and selected later V6 transom assemblies
- Compatible with upper cylinder pin 56532-ZX2-C00 where specified
🚤 Compatibility
Commonly used on
- Honda large-V6 stern-bracket and swivel-case assemblies
- BF175, BF200, BF225 and BF250 power trim systems
Typically suits
- Engine models:
- Honda BF175A / BF175D
- Honda BF200A / BF200AK1 / BF200AK3 / BF200D / BF200DK1
- Honda BF225A5 / BF225A6 / BF225AK1 / BF225AK3 / BF225D / BF225DK1
- Honda BF250A / BF250D / BF250DK1
- BF225AK3 LA serial family BAGJ-1800001 to BAGJ-1899999
- BF250A XXW serial family BBJJ-1000001 to BBJJ-9999999
- BF225D LRA serial family BBPJ-1000001 and higher
- BF225D XCDA serial family BBPJ-8000001 and higher
- BF200D, BF225D and BF250D diagrams using the ZVJ4F1100B power-trim assembly
- HP Range: 175HP - 250HP
- Engine Type: Honda V6 EFI four-stroke outboard
- Year Range: Approximately 2005 onward, dependent on model suffix
🔌 Function
The assembly raises and lowers the engine through the tilt range and provides precise running-trim adjustment. Hydraulic check valves hold the engine position against propeller thrust and engine weight.
⚠️ Common Signs of Failure
- Engine will not raise or lower
- Hydraulic unit will not hold pressure

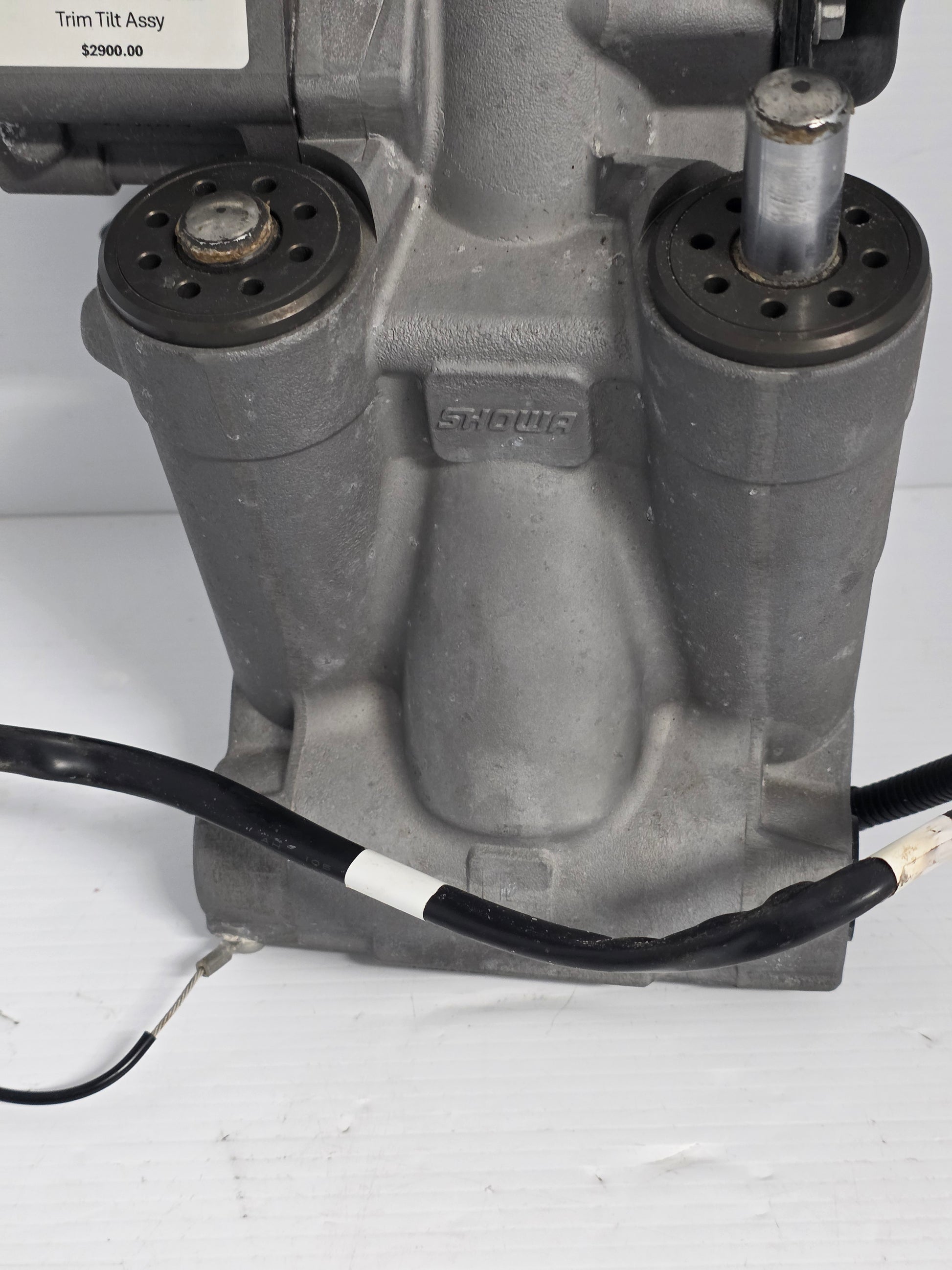

- Oil leakage around the centre or outer rams
- Slow or uneven ram travel

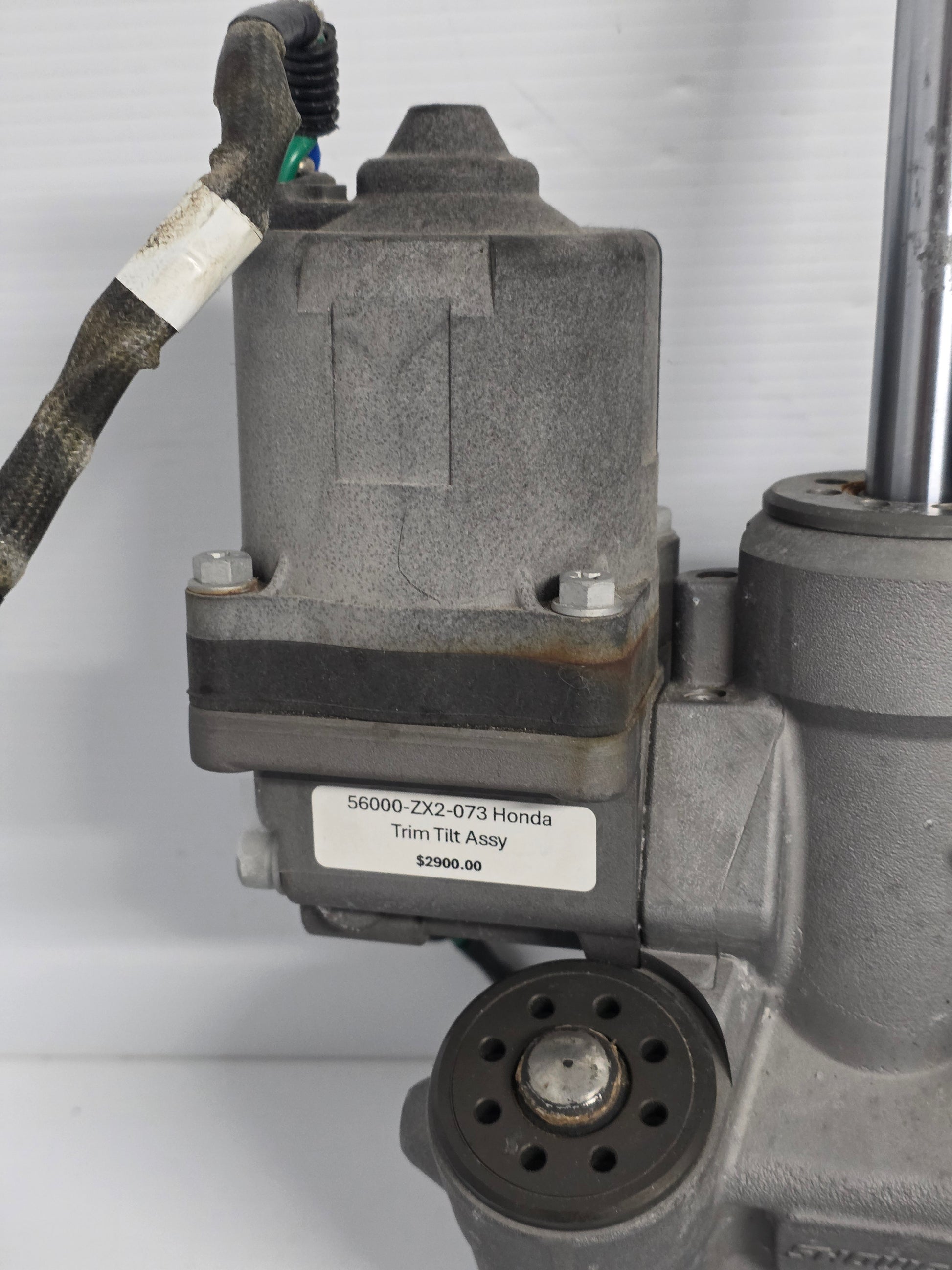

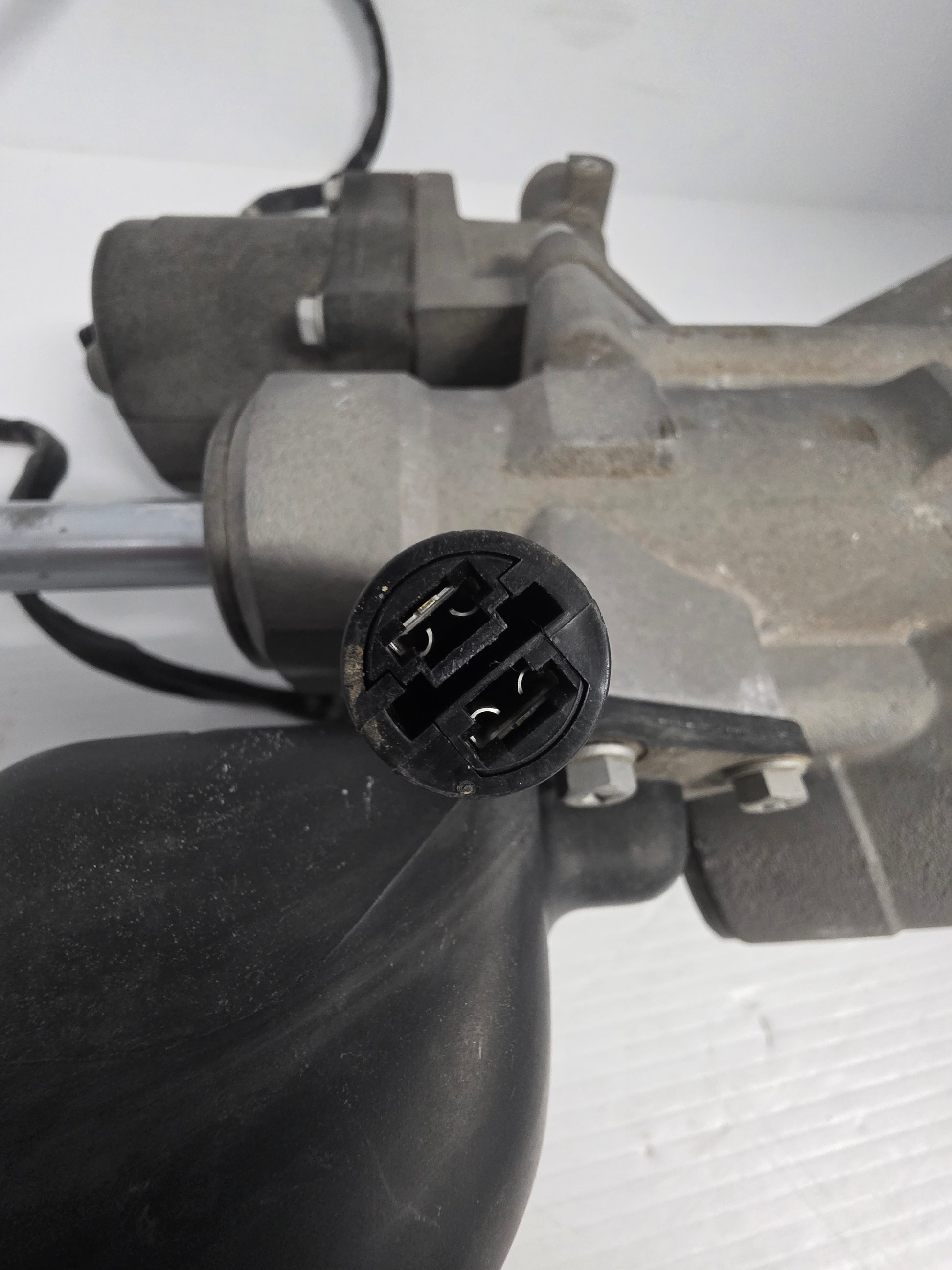

- Motor or relay faults
- Pitted piston rods
- Manual release valve bypassing internally
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 56000-ZX2-073 current principal ZX2 power-trim assembly
- 56000-ZY3-083 and 56000-ZY3-073 related V6 trim assemblies for alternate configurations
- Earlier ZY2 / ZY3 assembly references remain model-specific
OEM / Related Numbers
- 56000-ZX2-073
- 56000-ZY3-083
- 56000-ZY3-073
- 56532-ZX2-C00 upper cylinder pin
- 56532-ZY3-000 alternate upper pin
- 56120-ZY3-013 piston rod

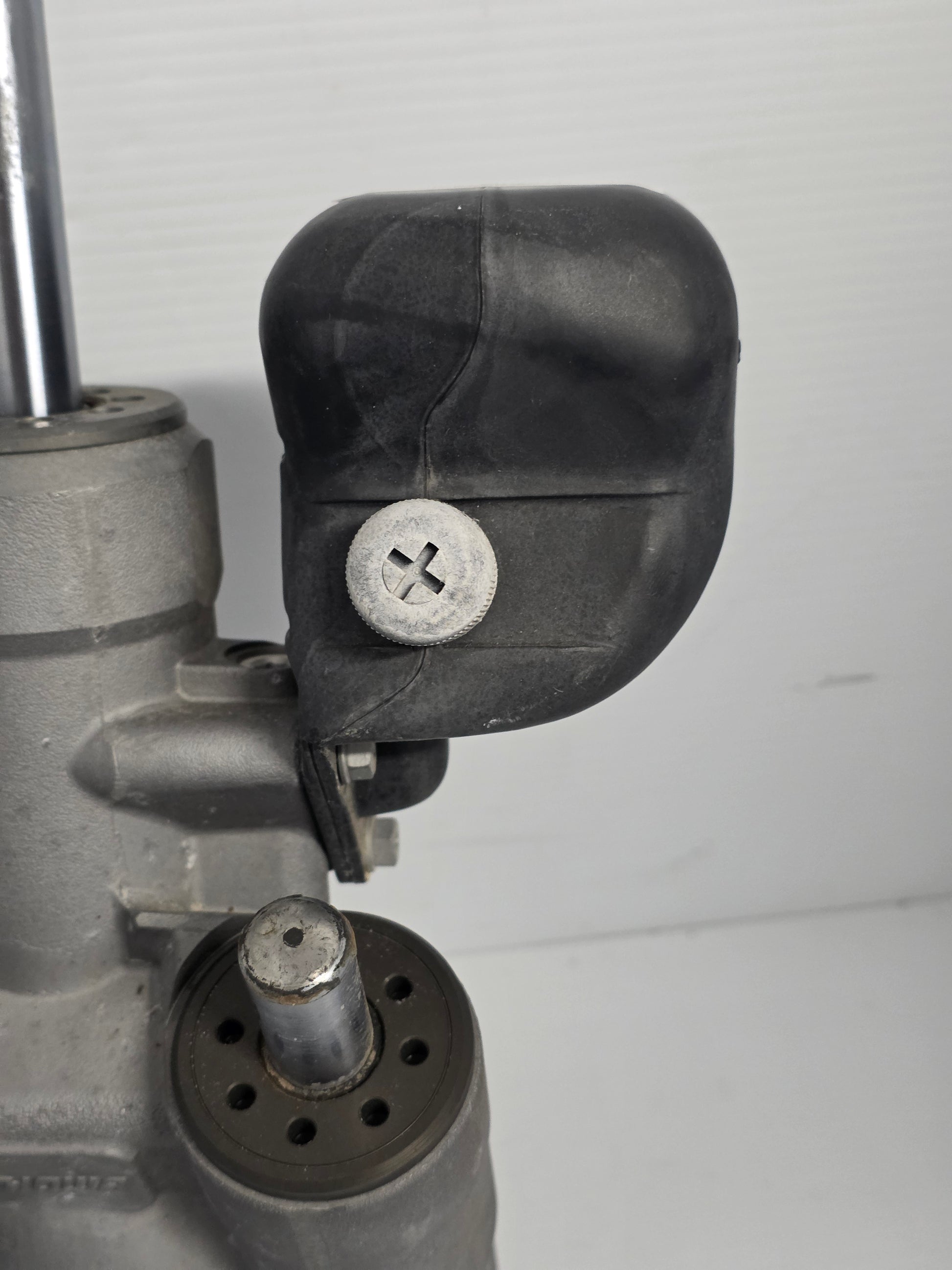

- 56851-ZW1-703 oil tank
- 56860-ZW1-701 oil-tank cap
Aftermarket / Verified Equivalents
- Professional Honda / Showa large-V6 trim rebuild service
- Aftermarket Honda BF175-BF250 trim motors and seal kits
- Remanufactured 56000-ZX2-073 hydraulic assemblies
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
