56532-ZX2-C00 Honda Upper Trim Pin | Genuine Used Part
56532-ZX2-C00 Honda Upper Trim Pin | Genuine Used Part
🔥 50% off all Used Parts - Limited Time 🔥
Low stock: 1 left
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide
🔧 Product Description

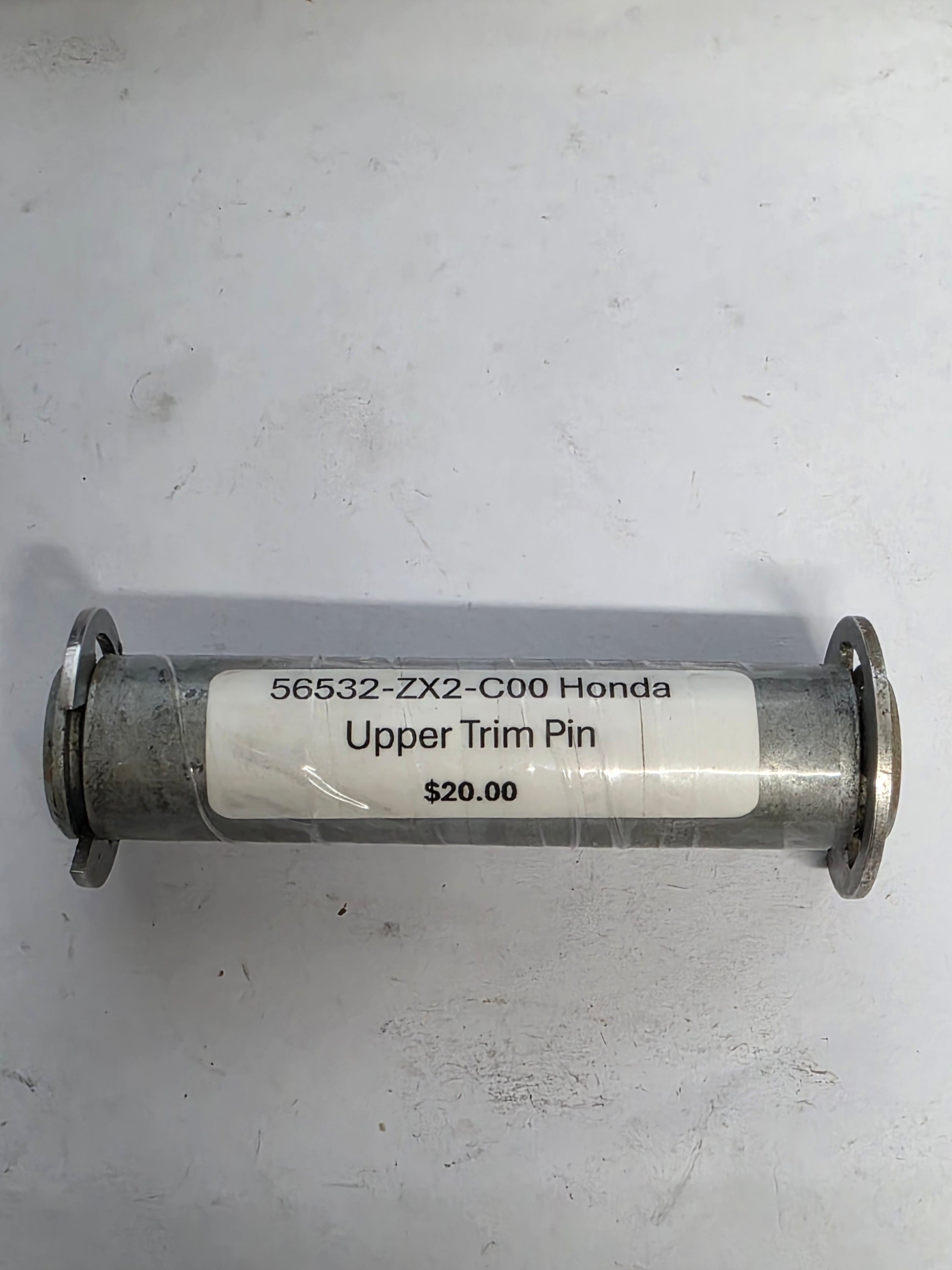

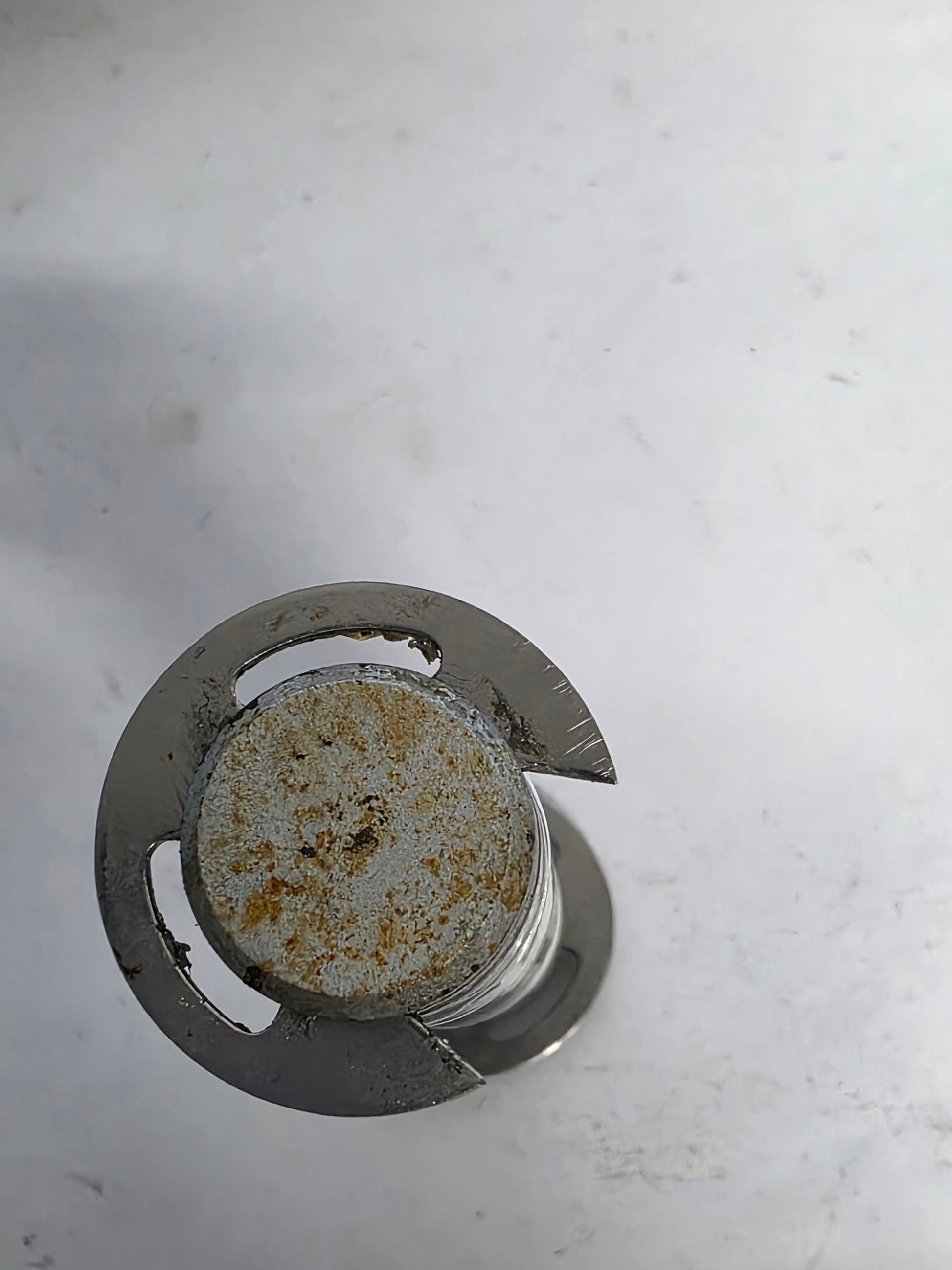

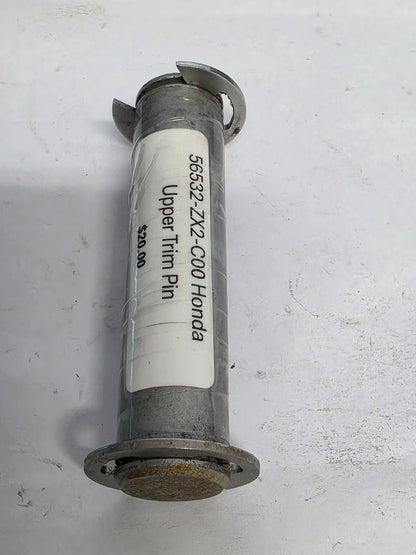

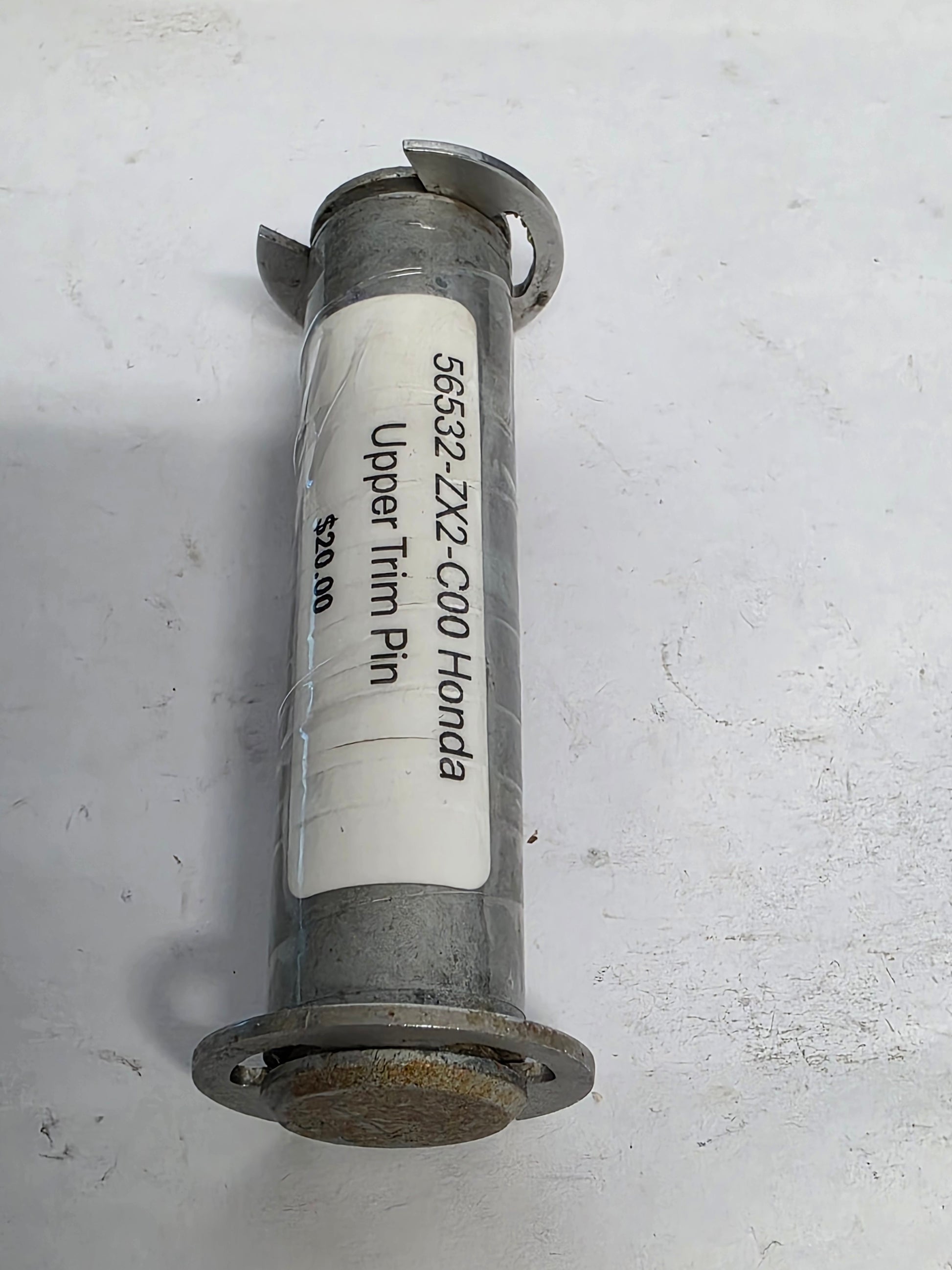

Genuine Honda Upper Power Trim Cylinder Pin - Part Number: 56532-ZX2-C00
A genuine Honda upper cylinder pin used to secure the top of the power trim and tilt assembly to the stern bracket on selected BF175, BF200, BF225 and BF250 V6 outboards. Honda also uses 56532-ZY3-000 on alternate shaft lengths, steering configurations and serial ranges.
⚙️ Key Features
- Genuine Honda OEM upper trim-cylinder pin
- Correct part number 56532-ZX2-C00
- Connects the upper trim-cylinder eye to the stern bracket
- Used on selected BF175 through BF250 V6 engines
- Model and serial controlled against alternate pin 56532-ZY3-000
🚤 Compatibility
Commonly used on
- Honda V6 power trim and stern-bracket assemblies
- Upper hydraulic-cylinder pivot locations
Typically suits
- Engine models:
- Honda BF175A / BF175D
- Honda BF200A / BF200AK1 / BF200AK3 / BF200D / BF200DK1
- Honda BF225A5 / BF225A6 / BF225AK1 / BF225AK3 / BF225D / BF225DK1
- Honda BF250A / BF250D / BF250DK1
- X3, XC3, XX3 and XXC3 trim configurations using the ZX2 pin
- BF200 / BF225 production at the Honda serial breaks where ZX2-C00 replaces ZY3-000
- BF200D / BF225D / BF250D model families using the ZVJ4F1100B trim diagram
- HP Range: 175HP - 250HP
- Engine Type: Honda V6 EFI four-stroke outboard
- Year Range: Approximately 2005 onward
🔌 Function
The pin forms the upper pivot for the hydraulic trim cylinder. It transfers lifting and holding loads from the trim unit into the stern bracket while allowing the cylinder to pivot through the tilt arc.
⚠️ Common Signs of Failure
- Excessive movement at the upper cylinder eye
- Pin corroded or seized in the bracket
- Grooving or wear at the bushes
- Bent pin causing trim-unit misalignment
- Damaged retaining grooves
- Knocking while trimming
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 56532-ZX2-C00 current ZX2 upper cylinder pin
- 56532-ZY3-000 alternate OEM upper pin for specified serial ranges
OEM / Related Numbers
- 56532-ZX2-C00
- 56532-ZY3-000
- 56513-ZV5-000 lower cylinder bushes
- 90380-series retaining hardware
- 56000-ZX2-073 related trim assembly
Aftermarket / Verified Equivalents
- No aftermarket equivalent
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
