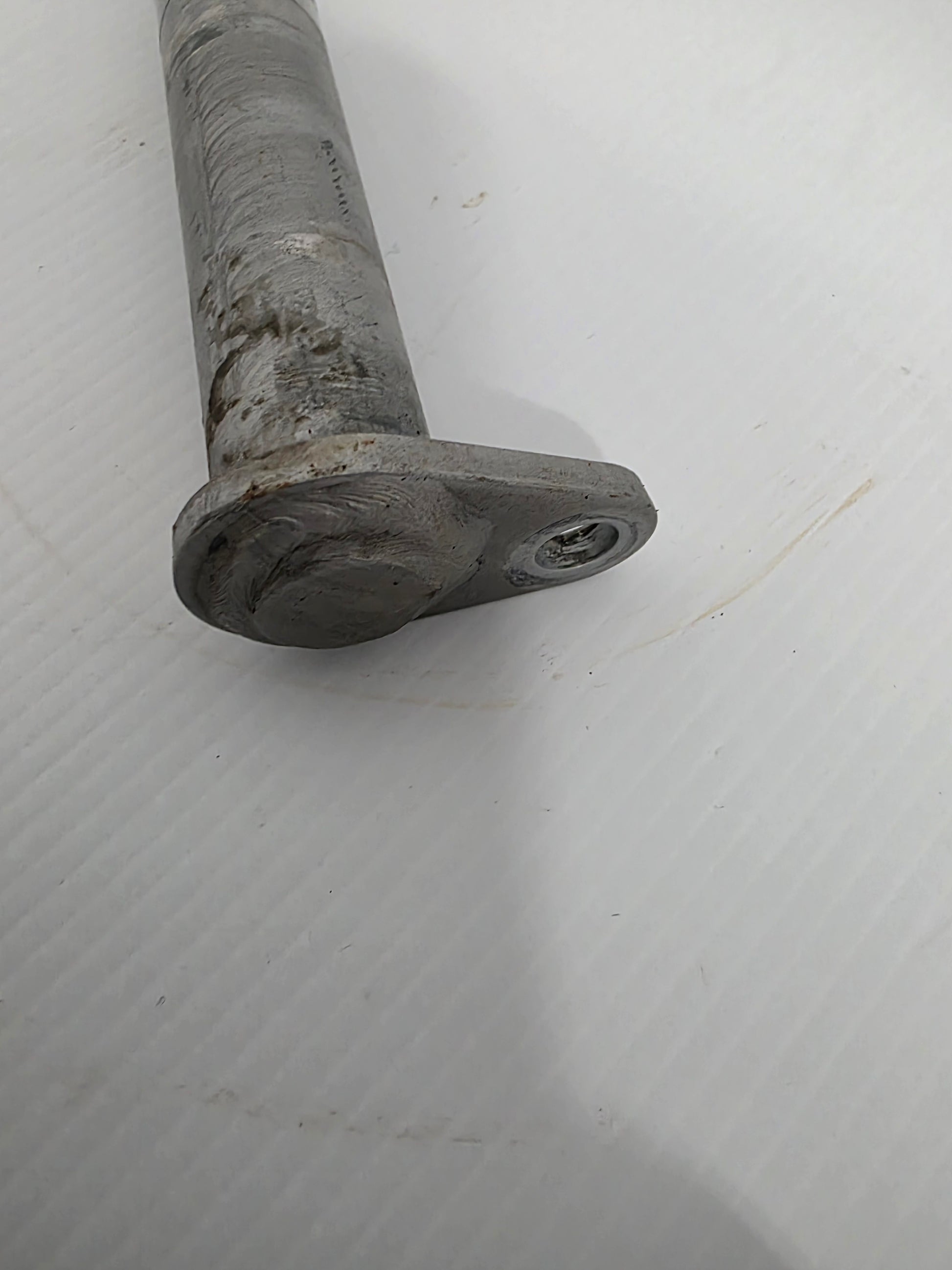

  • 56539-ZVL-000 Honda Lower Cylinder Shaft | Genuine Used Part - photo 2 of 6

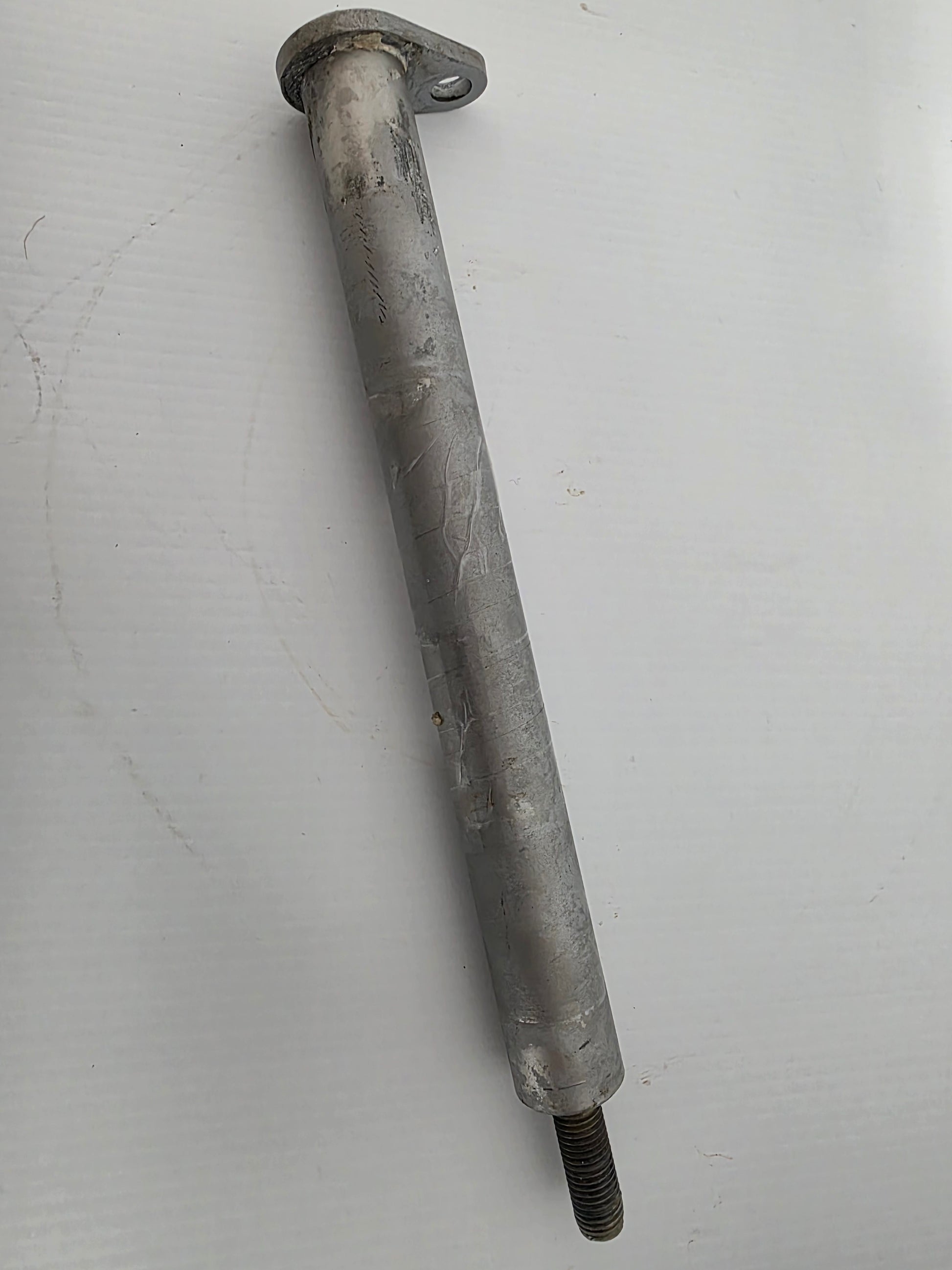

  • 56539-ZVL-000 Honda Lower Cylinder Shaft | Genuine Used Part - photo 3 of 6

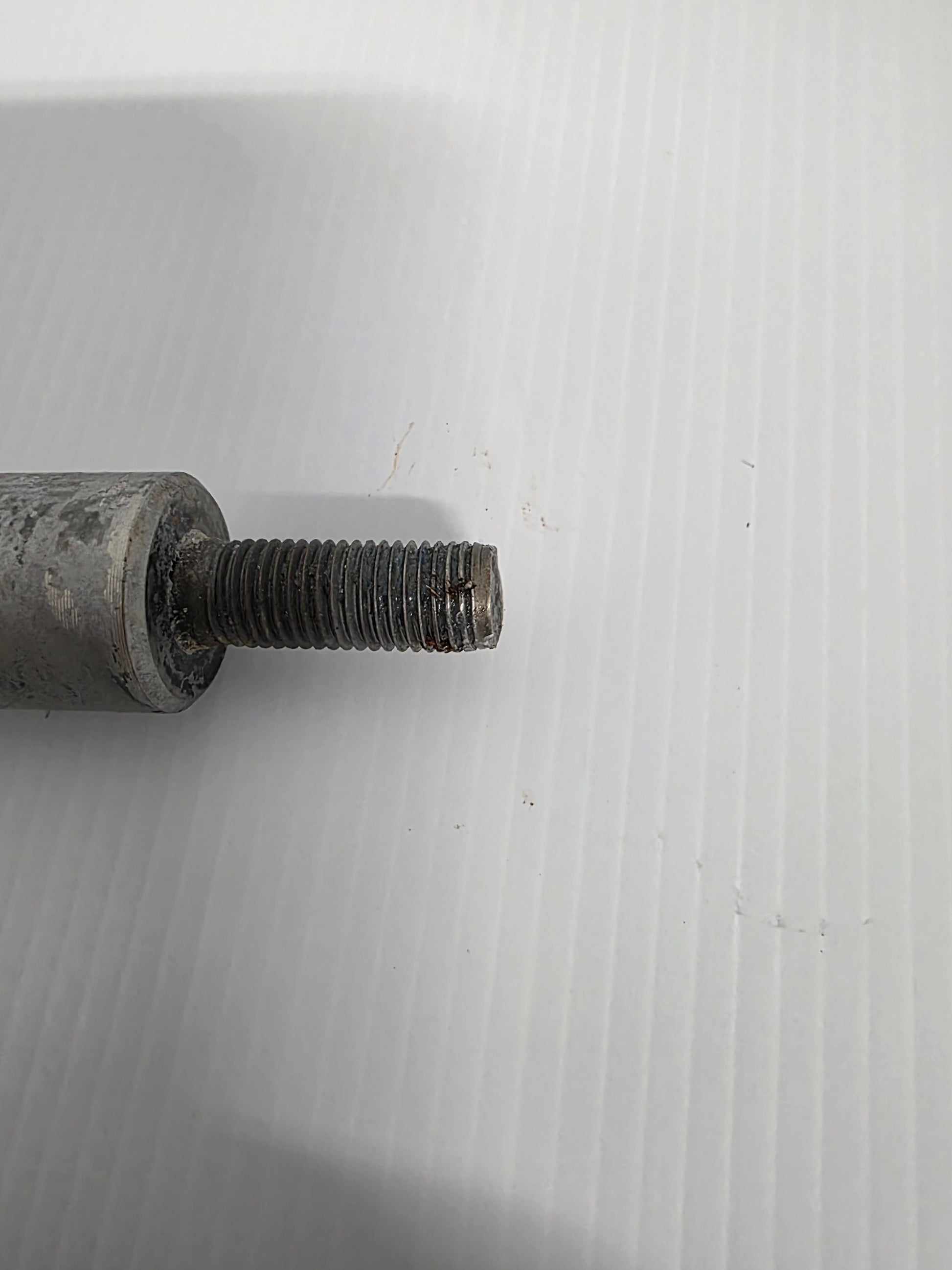

  • 56539-ZVL-000 Honda Lower Cylinder Shaft | Genuine Used Part - photo 4 of 6

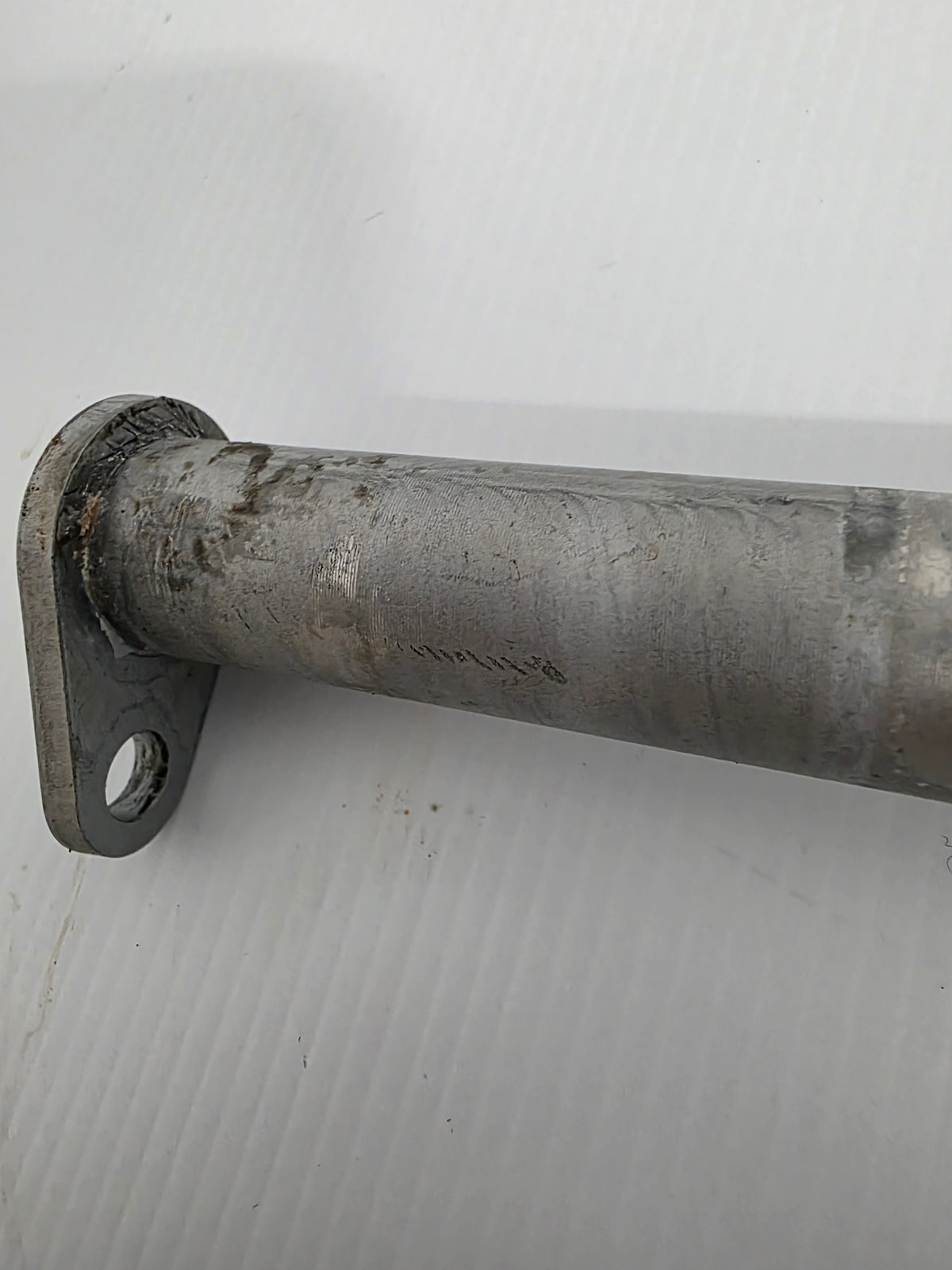

  • 56539-ZVL-000 Honda Lower Cylinder Shaft | Genuine Used Part - photo 5 of 6
  • 56539-ZVL-000 Honda Lower Cylinder Shaft | Genuine Used Part - photo 6 of 6
1 6

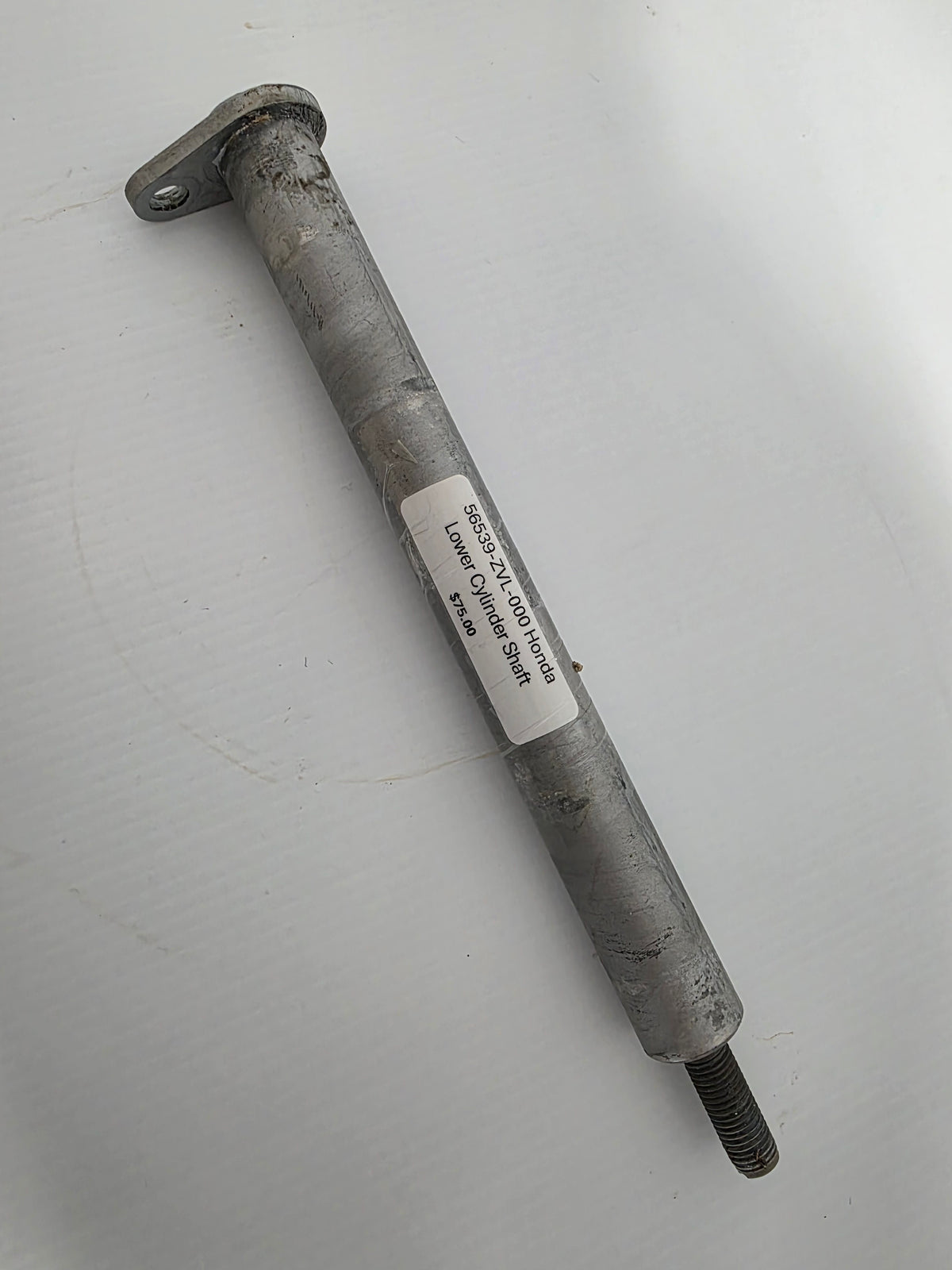

56539-ZVL-000 Honda Lower Cylinder Shaft | Genuine Used Part

56539-ZVL-000 Honda Lower Cylinder Shaft | Genuine Used Part

$75.00 AUD
$75.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

Genuine Honda Lower Power Trim and Tilt Cylinder Shaft - Part Number: 56539-ZVL-000

A genuine Honda lower cylinder pivot shaft used in the stern-bracket and power trim and tilt assembly of selected BF115J to BF250D four-stroke outboards.

The shaft passes through the lower end of the hydraulic trim and tilt cylinder, securing it between the stern brackets while allowing the cylinder to pivot as the outboard trims and tilts.

⚙️ Key Features

  • Genuine Honda OEM lower PTT cylinder shaft
  • Correct Honda part number 56539-ZVL-000
  • Supports the lower end of the hydraulic tilt cylinder
  • Allows controlled pivot movement through the trim range
  • Used on selected Honda 115HP to 250HP outboards

🚤 Compatibility

Commonly used on

  • Honda stern-bracket and swivel-case assemblies
  • Honda hydraulic power trim and tilt cylinder lower mounts

Typically suits

  • Engine models:
  • Honda BF115J
  • Honda BF135D
  • Honda BF140A
  • Honda BF150D
  • Honda BF175D
  • Honda BF200D
  • Honda BF200DK1
  • Honda BF225D
  • Honda BF225DK1
  • Honda BF250D
  • Honda BF250DK1
  • HP Range: 115HP - 250HP
  • Engine Type: Honda inline four-cylinder and V6 fuel-injected four-stroke outboard
  • Year Range: Approximately 2018 onward

🔌 Function

The shaft secures the lower end of the hydraulic trim and tilt cylinder while allowing the cylinder to pivot as the engine changes trim angle.

⚠️ Common Signs of Failure

  • Shaft corroded or seized in the bracket
  • Excessive clearance causes movement or knocking
  • Shaft bent after impact or incorrect removal
  • Retaining ends or locking hardware damaged
  • Trim cylinder cannot pivot freely

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 56539-ZVL-000 current Honda lower-cylinder shaft reference

OEM / Related Numbers

  • 56539-ZVL-000
  • 56539ZVL000
  • Related lower-cylinder pivot hardware
  • Related stern-bracket and swivel-case components
  • Related power trim and tilt cylinder assembly

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
