58100-88L62-019 Suzuki DF40A/DF50A/DF60A 11 1/4 x 15 Aluminium Propeller – RH 13 Spline | Genuine Used Part

🔧 Product Description

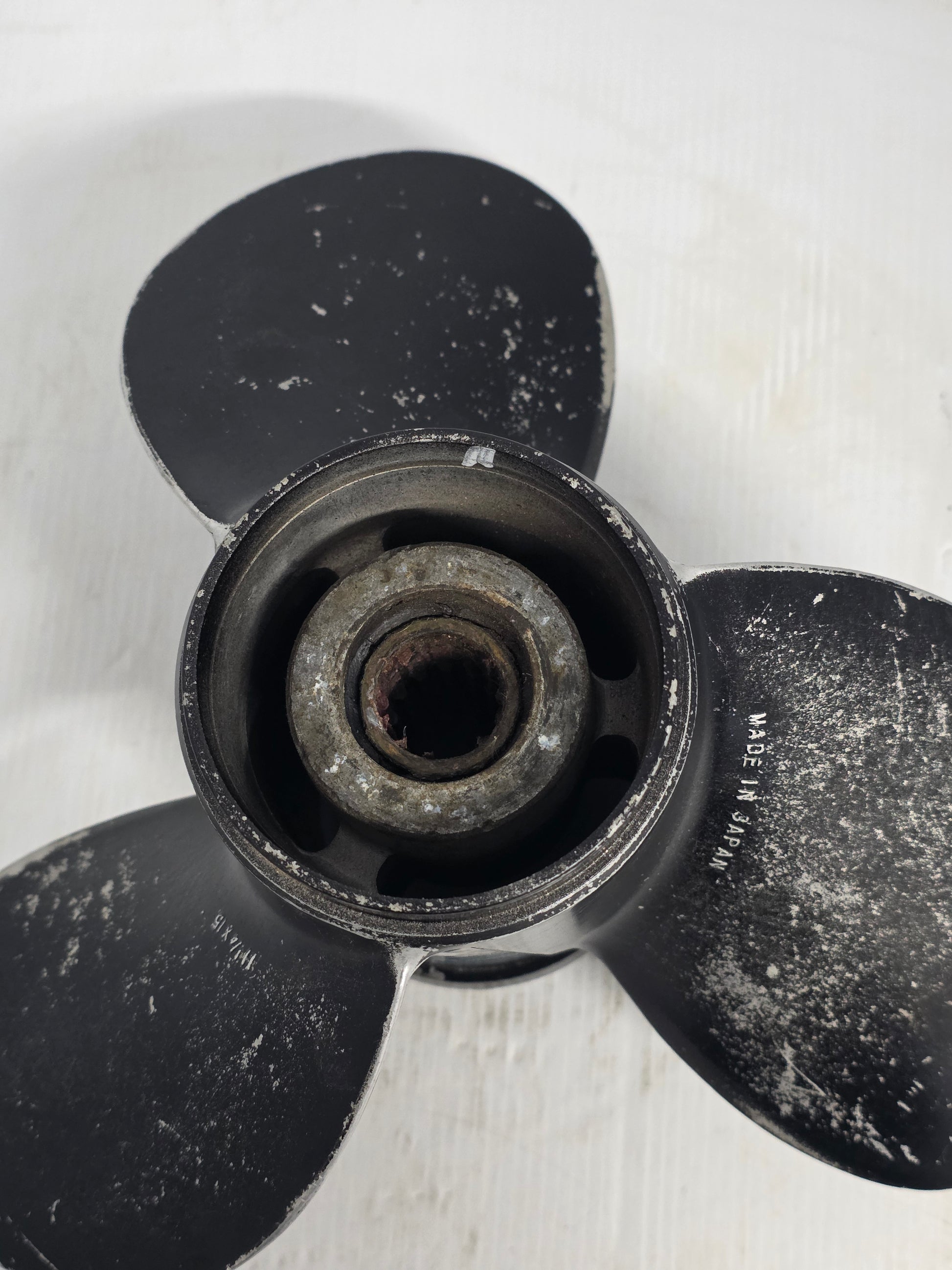

Genuine Suzuki DF40A DF50A DF60A 11 1/4 x 15 Aluminium Propeller - Part Number: 58100-88L62-019

A genuine used Suzuki three-blade right-hand aluminium propeller for DF40A, DF50A and DF60A four-stroke outboards using the 13-spline standard gearcase.

The 15-inch pitch is the higher-pitch option in the standard DF40A-DF60A aluminium range and is suited to lighter or faster hulls that can carry the pitch while maintaining Suzuki's specified wide-open-throttle RPM.

⚙️ Key Features

• Genuine Suzuki Marine OEM propeller
• 11 1/4-inch diameter x 15-inch pitch
• Three-blade aluminium construction
• Right-hand rotation with 13-tooth propeller shaft
• Current 2010-and-newer DF40A / DF50A / DF60A application

🚤 Compatibility

Commonly used on

• Suzuki DF40A, DF50A and DF60A standard 13-spline gearcases
• Remote-control and tiller versions using the 88L propeller family

Typically suits

• Engine models:
• Suzuki DF40A
• Suzuki DF40ATH
• Suzuki DF40AQH
• Suzuki DF50A
• Suzuki DF50ATH
• Suzuki DF60A
• Suzuki DF60ATH
• Suzuki DF60AQH
• Excludes DF50AV and DF60AV high-thrust models using the larger 15-spline gearcase
• HP Range: 40HP - 60HP
• Engine Type: Suzuki inline three-cylinder four-stroke outboard with 13-spline standard gearcase
• Year Range: 2010 onward

🔌 Function

The propeller converts engine torque into thrust. Its 15-inch pitch favours cruising and potential top speed on lighter installations, provided the engine still reaches its specified full-throttle RPM.

⚠️ Common Signs of Failure

• Blades are bent, chipped, cracked or out of track
• The rubber hub slips and engine RPM rises without matching boat speed
• Propeller vibration increases with engine speed
• Cavitation, ventilation or poor acceleration develops after impact damage

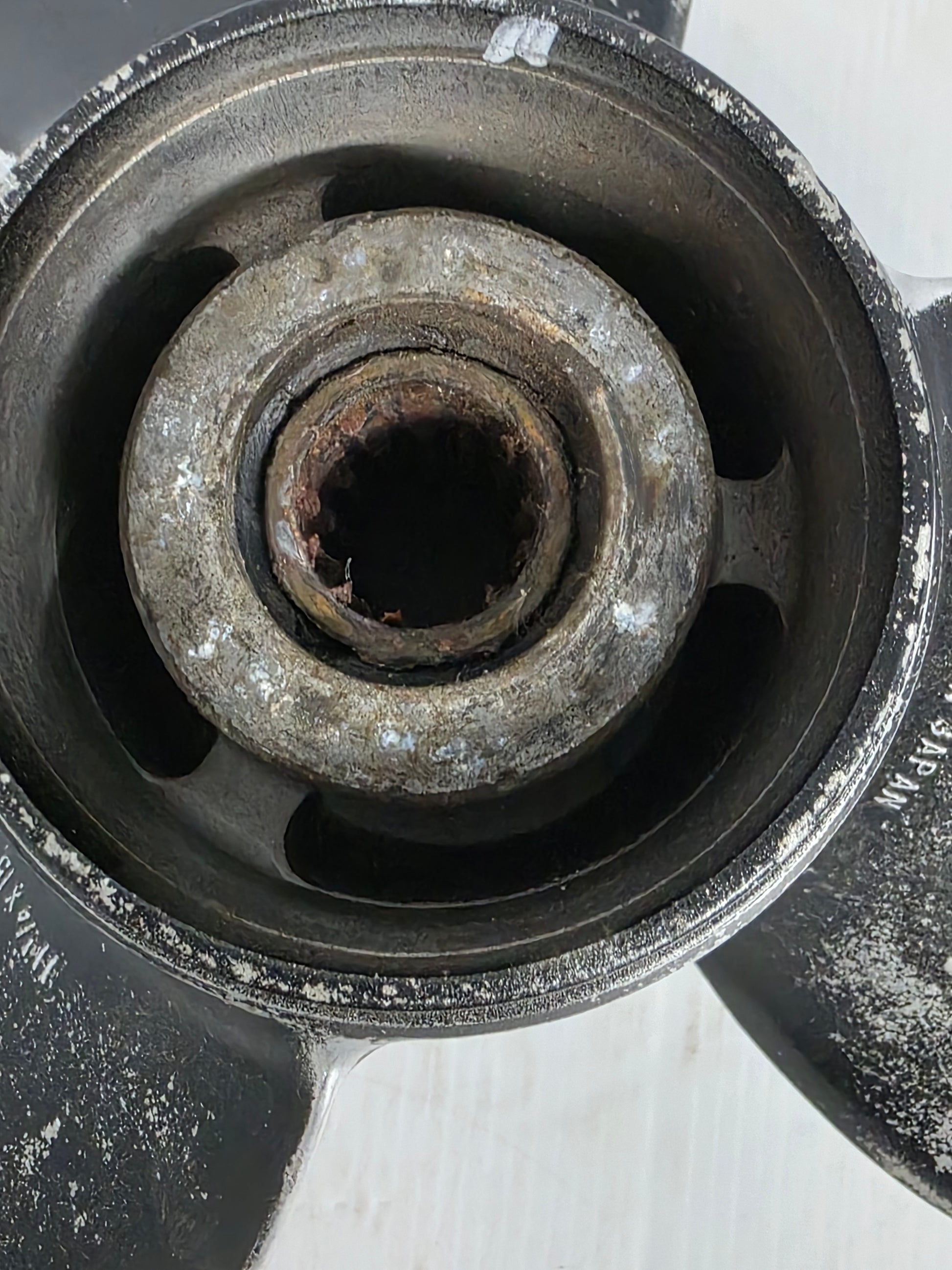

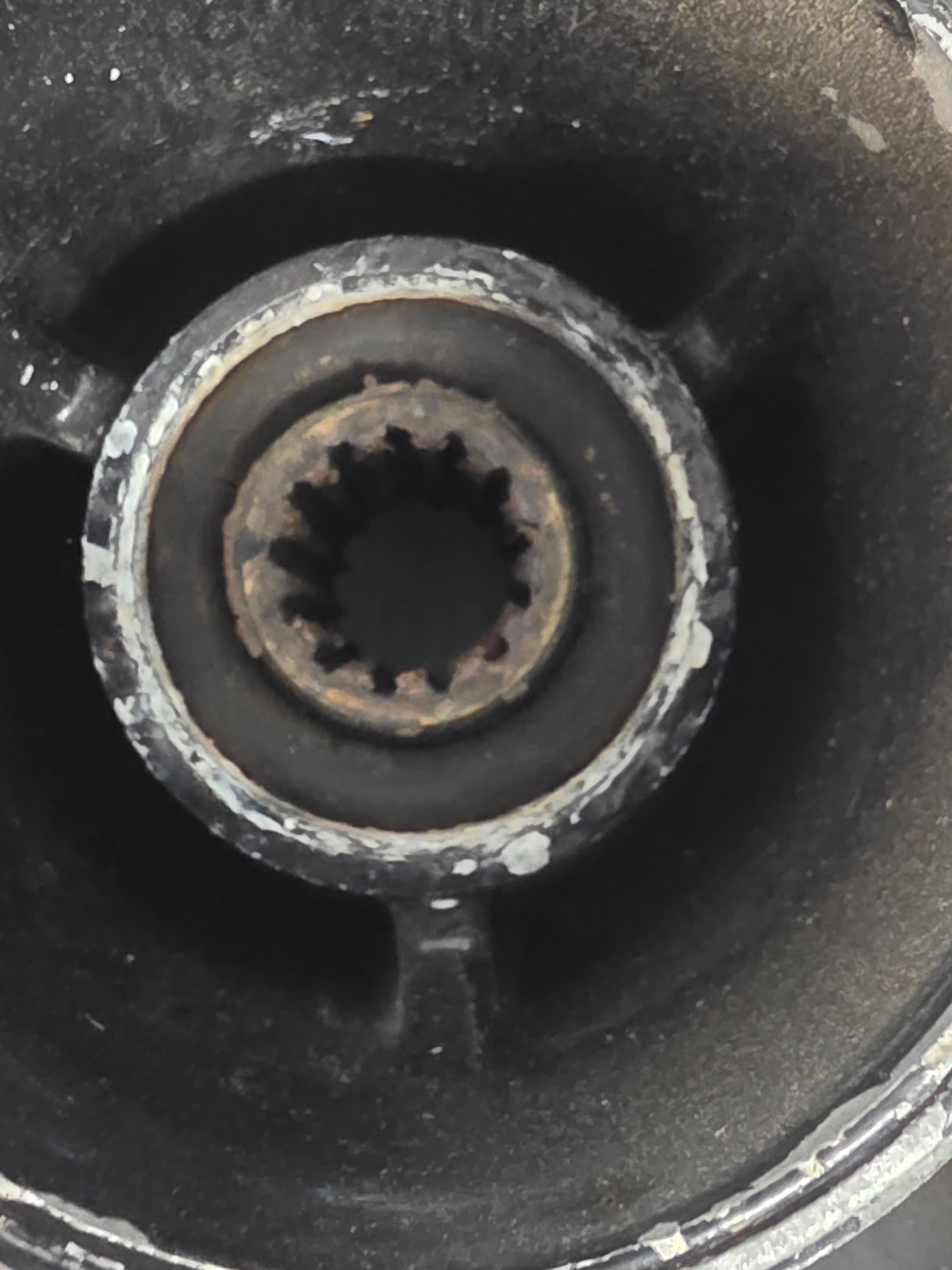

• Hub splines, thrust faces or retaining surfaces are worn or corroded

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 58100-88L62-019 current Suzuki OEM service reference

OEM / Related Numbers

• 58100-88L62-019
• 5810088L62019
• 58120-88L01 related press-in propeller bushing
• 57632-95320 related stopper
• 57633-94301 related spacer
• 09160-18028 related washer
• 09141-18005 related propeller nut

Aftermarket / Verified Equivalents

• Solas Amita 3: 4311-114-15 - 11 1/4 x 15 aluminium equivalent
• Suzuki Watergrip stainless steel: 990C0-00600-15P - 11 3/4 x 15 OEM performance alternative
• Genesis / CSS3: 11 1/4 x 15 stainless-steel 13-spline alternative

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
