58100-88LD0-019 Suzuki DF40A/DF50A/DF60A 11 1/2 x 10 Aluminium Propeller – RH 13 Spline | Genuine Used Part

🔧 Product Description

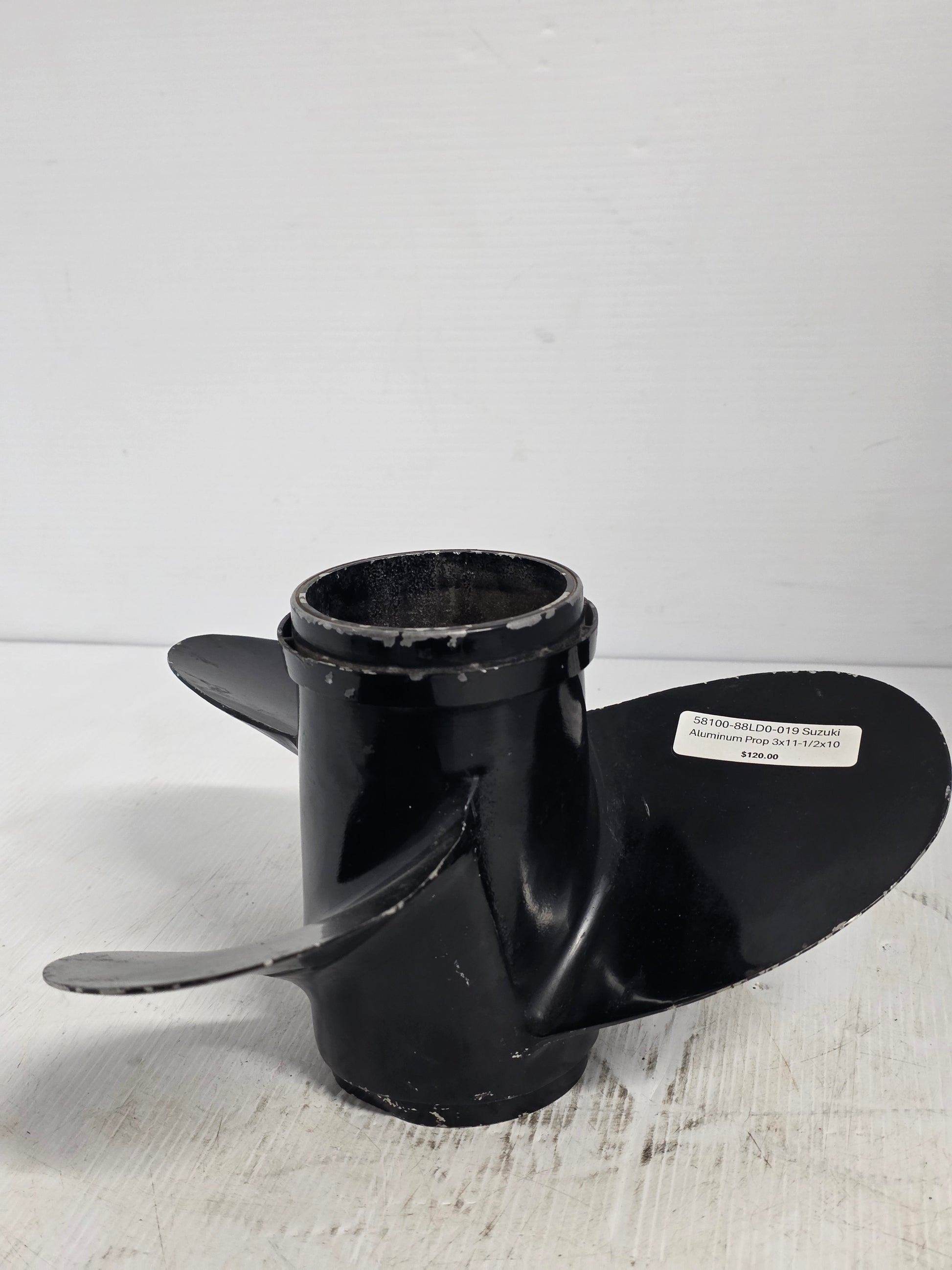

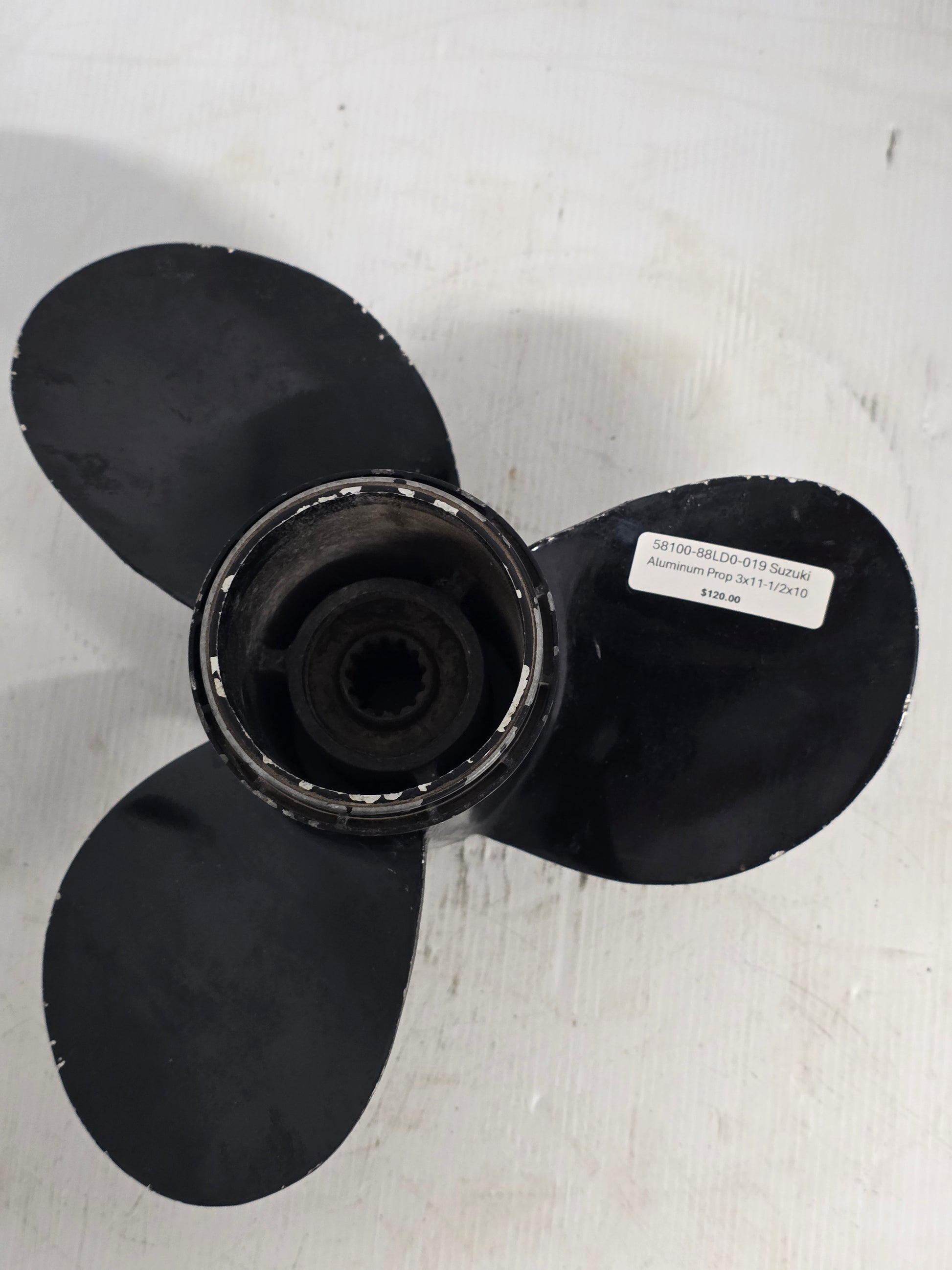

Genuine Suzuki DF40A DF50A DF60A 11 1/2 x 10 Aluminium Propeller - Part Number: 58100-88LD0-019

A genuine used Suzuki three-blade right-hand aluminium propeller for DF40A, DF50A and DF60A four-stroke outboards using the 13-spline standard gearcase.

The low 10-inch pitch provides strong acceleration, planing and load carrying for pontoons, workboats and heavily loaded hulls. It also helps the engine regain the correct RPM where a higher-pitch propeller causes lugging.

⚙️ Key Features

• Genuine Suzuki Marine OEM propeller
• 11 1/2-inch diameter x 10-inch pitch
• Three-blade aluminium construction

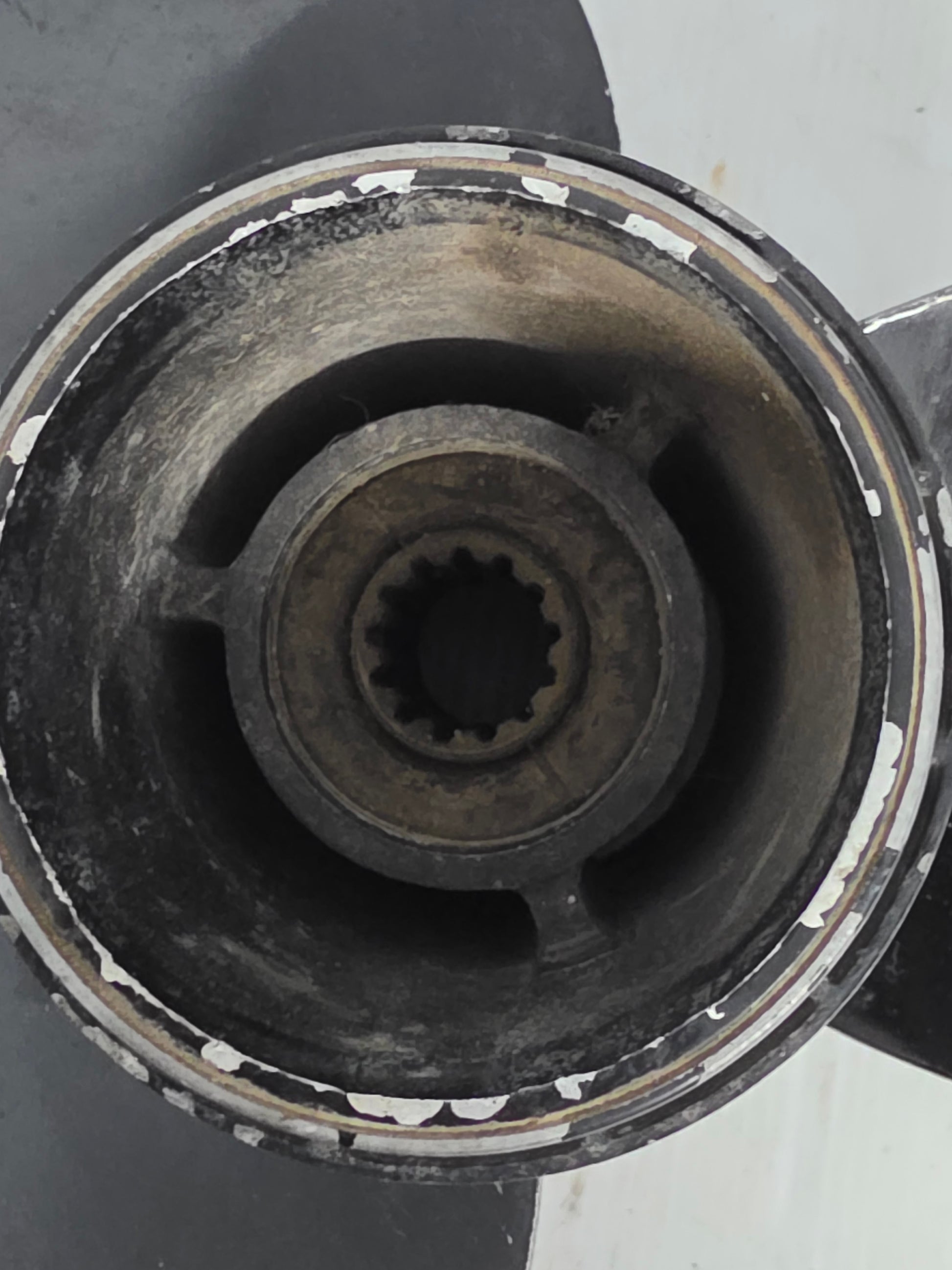

• Right-hand rotation with 13-tooth propeller shaft
• Low-pitch load-carrying option for DF40A / DF50A / DF60A

🚤 Compatibility

Commonly used on

• Suzuki DF40A, DF50A and DF60A standard 13-spline gearcases
• Heavy-load, pontoon and workboat applications requiring a low-pitch propeller

Typically suits

• Engine models:
• Suzuki DF40A
• Suzuki DF40ATH
• Suzuki DF40AQH
• Suzuki DF50A
• Suzuki DF50ATH
• Suzuki DF60A
• Suzuki DF60ATH
• Suzuki DF60AQH
• Excludes DF50AV and DF60AV high-thrust models using the larger 15-spline gearcase
• HP Range: 40HP - 60HP
• Engine Type: Suzuki inline three-cylinder four-stroke outboard with 13-spline standard gearcase
• Year Range: 2010 onward

🔌 Function

The propeller converts engine torque into thrust. Its 10-inch pitch delivers strong hole shot and load carrying and allows the engine to turn more RPM than higher-pitch propellers.

⚠️ Common Signs of Failure

• Blades are bent, chipped, cracked or out of track
• The rubber hub slips and engine RPM rises without matching boat speed
• Propeller vibration increases with engine speed
• Cavitation, ventilation or poor acceleration develops after impact damage
• Hub splines, thrust faces or retaining surfaces are worn or corroded

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 58100-88LD0-019 current Suzuki OEM service reference

OEM / Related Numbers

• 58100-88LD0-019
• 5810088LD0019
• 58120-88L01 related press-in propeller bushing
• 57632-95320 related stopper
• 57633-94301 related spacer
• 09160-18028 related washer
• 09141-18005 related propeller nut

Aftermarket / Verified Equivalents

• Solas Amita 3: 4311-120-10 - 12 x 10 aluminium functional equivalent
• Suzuki Watergrip stainless steel: 990C0-00600-10P - 11 3/4 x 10 OEM performance alternative
• Pacermarine direct 11 1/2 x 10 aluminium 13-spline replacement

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
