58100-90J10-019 Suzuki 14 x 19 Aluminium Propeller – DF70A–DF140 RH 15 Spline | Genuine Used Part

🔧 Product Description

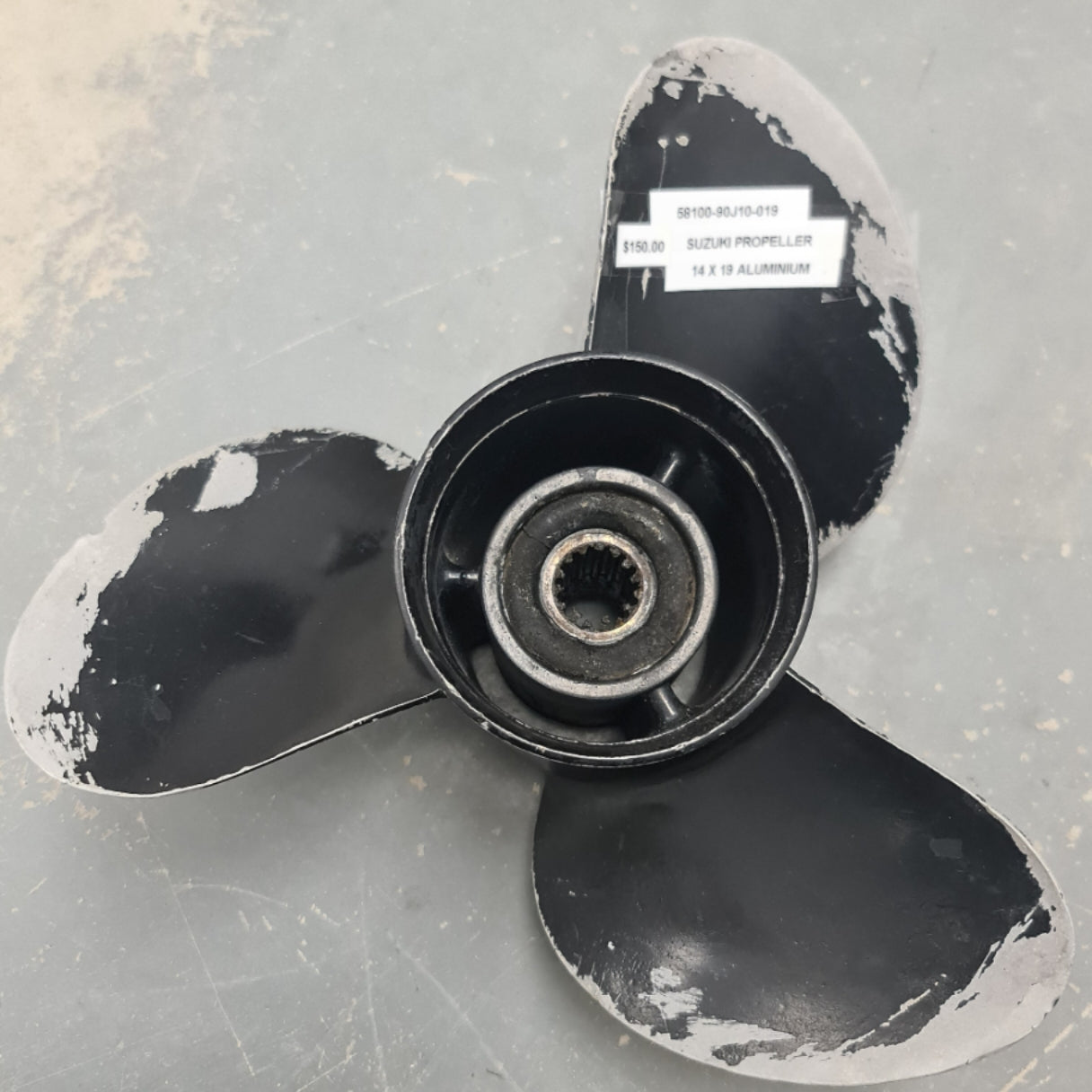

Genuine Suzuki 14 x 19 Aluminium Propeller - Part Number: 58100-90J10-019

A genuine used Suzuki three-blade right-hand aluminium propeller for selected DF70 through DF140 four-stroke outboards using the 15-spline gearcase.

This 14-inch diameter x 19-inch pitch propeller is an earlier reference in Suzuki's 90J-series aluminium family. The later global service number is 58100-90JB0-019, while the North American accessory-packaged equivalent is 990C0-00760-19P.

⚙️ Key Features

• Genuine Suzuki Marine OEM propeller
• 14-inch diameter x 19-inch pitch
• Three-blade aluminium construction
• Right-hand rotation with 15-tooth propeller shaft
• Later OEM and accessory-packaged equivalents available

🚤 Compatibility

Commonly used on

• Suzuki DF70-DF140 four-stroke propeller systems using the 15-spline gearcase
• Standard right-hand rotation applications requiring 19 inches of pitch

Typically suits

• Engine models:
• Suzuki DF70A
• Suzuki DF80A
• Suzuki DF90A
• Suzuki DF100A, DF100B and DF100C
• Suzuki DF90 - approximately 2001-2008
• Suzuki DF115 and DF140 - approximately 2001-2012
• Suzuki DF115A and DF140A - approximately 2013 onward
• Suzuki DF115B and DF115BG
• Suzuki DF140B and DF140BG
• Final suitability is controlled by the installed 15-spline gearcase and achieved wide-open-throttle RPM
• HP Range: 70HP - 140HP
• Engine Type: Suzuki inline four-cylinder four-stroke outboard with 15-spline gearcase
• Year Range: Approximately 2001 onward

🔌 Function

The propeller converts engine torque into forward thrust. Its 19-inch pitch is intended for boats capable of carrying a medium-high pitch while maintaining the engine's specified full-throttle operating range.

⚠️ Common Signs of Failure

• Blades are bent, chipped, cracked or out of track
• The rubber hub slips and engine RPM rises without matching boat speed
• Propeller vibration increases with engine speed
• Cavitation, ventilation or poor acceleration develops after impact damage
• Hub splines, thrust faces or retaining surfaces are worn or corroded

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 58100-90JB0-019 → Supersedes 58100-90J11-019
• 58100-90J11-019 → Supersedes 58100-90J10-019
• 990C0-00760-19P North American accessory-packaged OEM equivalent

OEM / Related Numbers

• 58100-90J10-019
• 58100-90J11-019
• 58100-90JB0-019
• 990C0-00760-19P
• 58120-90J00 related press-in propeller bushing
• 57632-90J01 related stopper
• 57633-90J02 related spacer
• 09160-18028 related washer
• 09141-18005 related propeller nut

Aftermarket / Verified Equivalents

• Solas Amita 3 / Rubex 3: 3411-139-19 - 13 3/4 x 19 aluminium alternative with Suzuki hub
• PropelTech direct 14 x 19 aluminium 15-spline replacement for 58100-90J11-019
• Polastorm / Osculati 52.455.03 - 14 x 19 aluminium OEM-equivalent
• Suzuki stainless steel: 58200-92J60-000 - 13 7/8 x 19 OEM performance alternative
• ARKDOZA / VQPROPS direct 14 x 19 aluminium replacements

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
