582223 0583129 OMC Timer Base Trigger | Genuine Used Part

🔧 Product Description

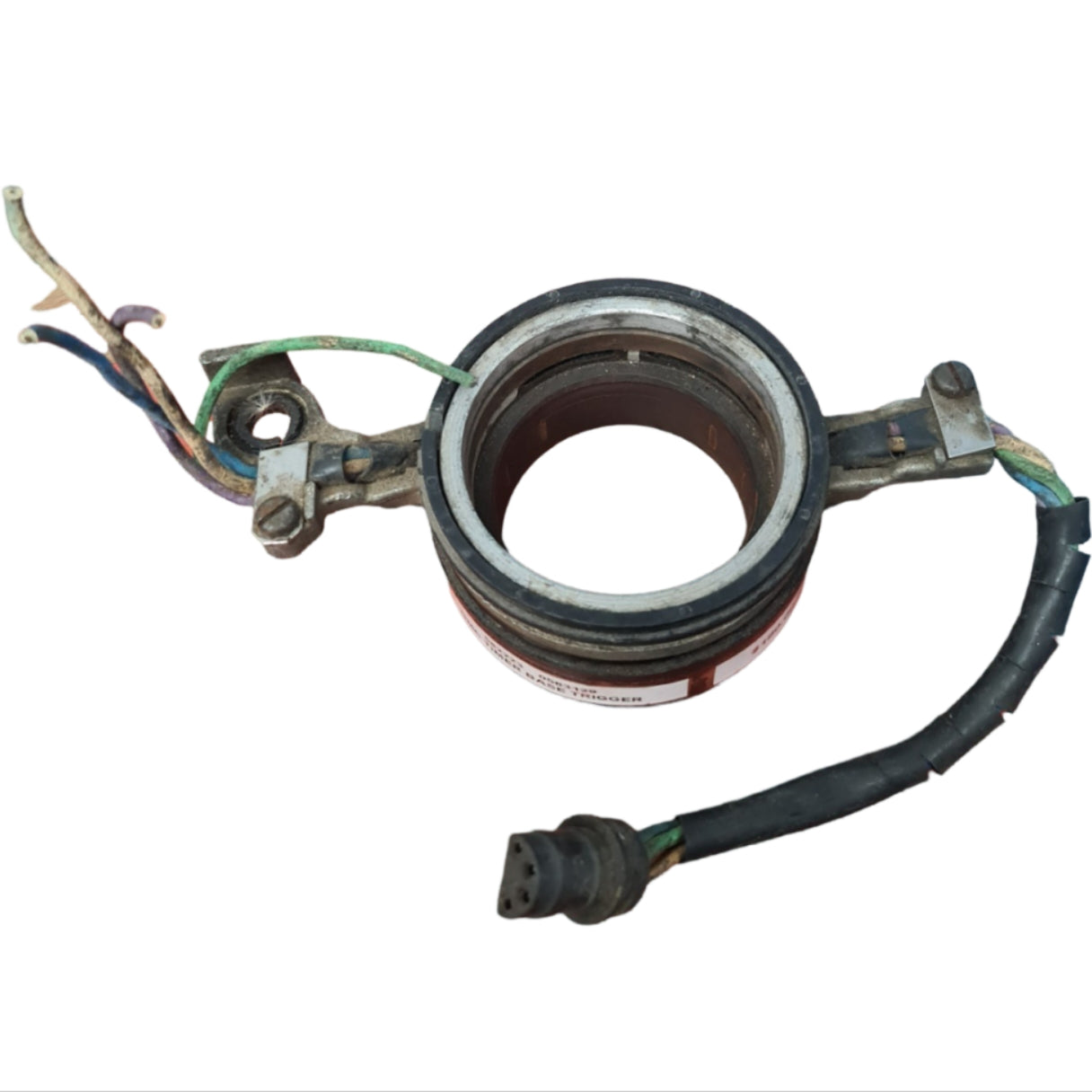

Genuine Used Evinrude Johnson V6 Cross-Flow Timer Base and Sensor Assembly - Part Number: 0583129

A genuine pre-owned OMC, Evinrude and Johnson six-cylinder timer-base and ignition-trigger assembly for selected 150HP to 235HP cross-flow outboards.

The principal service part number is 0583129, commonly written as 583129. Number 582223 may appear as an identification, casting or component number on the assembly and should be used only as secondary identification.

Part number 0583129 supersedes to timer-base kit 0583377 and is used on compatible V6 engines with dual power packs.

⚙️ Key Features

• Genuine OMC, Evinrude and Johnson used timer base

• Primary OEM reference 0583129 / 583129

• Associated identification number 582223

• Six-cylinder cross-flow trigger configuration

• Designed for compatible dual-power-pack ignition systems

• CDI Electronics replacement available

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0581985 - Earlier timer-base reference

• 0582122 - Earlier timer-base reference

• 0582356 - Earlier timer-base reference

• 0582357 - Earlier timer-base reference

• 0582371 - Earlier timer-base reference

• 0582394 - Earlier timer-base reference

• 0583129 - Timer-base and sensor assembly

• 0583377 - Later timer-base kit

• 0763768 - Related BRP service reference

OEM / Related Numbers:

• 0583129

• 583129

• 582223 - Associated casting or identification number

• 0583377

• 583377

• 0581985

• 581985

• 0582122

• 582122

• 0582356

• 582356

• 0582357

• 582357

• 0582371

• 582371

• 0582394

• 582394

• 0763768

• 763768

Aftermarket / Verified Equivalents:

• CDI Electronics: 133-3377

• Aftermarket V6 timer base replacing 0583129

• Aftermarket timer base replacing 0583377

• Replacement for the listed 1979-1988 V6 cross-flow timer-base family

🚤 Compatibility

Commonly used on:

• Evinrude V6 cross-flow outboards

• Johnson V6 cross-flow outboards

• Dual-power-pack capacitor-discharge ignition systems

• High-output carburetted two-stroke engines

Typically suits selected 1979-1988:

• 150HP

• 155HP

• 175HP

• 185HP

• 200HP

• 235HP

• Engine Configuration: Six-cylinder V6 two-stroke

• Induction Type: Cross-flow

• Ignition Type: Dual-power-pack capacitor-discharge system

Important fitment note:

• Confirm 0583129 or a verified superseded number rather than relying only on 582223.

• Later V6 cross-flow and loop-charged engines use different timer bases.

• Compare the wire colours, connector arrangement, mounting diameter and spark-advance linkage.

• Power packs, stator, flywheel and mounting hardware are included only when shown or stated.

🔌 Function

The timer base generates six timed crankshaft-position signals for the engine's ignition power packs.

It rotates with the throttle linkage to advance ignition timing progressively between idle and wide-open throttle.

Common signs of timer-base failure:

• No spark on one cylinder bank

• Loss of spark on one or more cylinders

• Intermittent ignition as the engine warms

• Difficult starting or backfiring

• Engine misfires under load

• Incorrect maximum ignition timing

• Trigger resistance or peak output is outside specification

• Cracked or brittle wiring

• Timer base binds or has excessive bearing movement

• Engine will not achieve rated rpm

Recommended checks before installation:

• Confirm the service number and engine year

• Compare each wire and connector

• Test all trigger circuits separately

• Inspect timer-base bearing surfaces

• Confirm free movement through the full advance range

• Test both power packs

• Check stator and ignition-coil output

• Inspect the flywheel key and magnets

• Perform the factory timing and synchronisation procedure

📦 Condition

• Genuine OMC, Evinrude or Johnson used part

• Pre-owned electrical component

• Wire ageing, cosmetic marks and light oxidation may be present

• Electrical testing before installation is strongly recommended

• Included components are limited to those shown or described

• Supplied in protective or equivalent packaging
