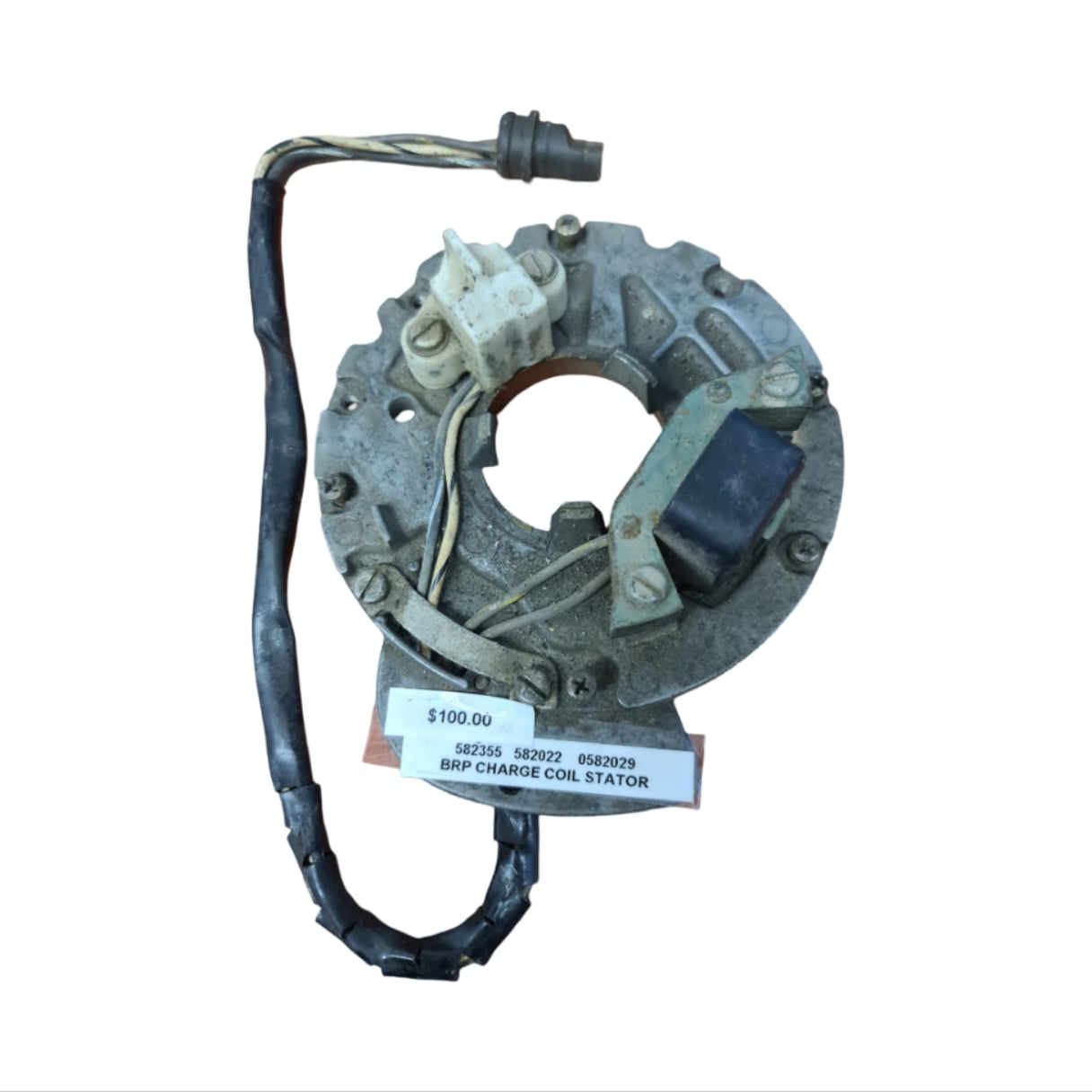

582355 582022 0582029 BRP Charge Coil Stator | Genuine Used Part

582355 582022 0582029 BRP Charge Coil Stator | Genuine Used Part

$100.00 AUD
$100.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

🔧 Product Description

Genuine BRP / OMC Charge Coil & Plate Assembly - Part Numbers: 0582029 / 582355 / 582022

A genuine BRP / OMC charge coil and plate assembly used in Johnson and Evinrude magneto ignition systems. This charge coil supplies ignition energy to the power pack on selected small and mid-range two-stroke outboards.

⚙️ Key Features

  • Genuine BRP / OMC charge coil stator assembly
  • Correct OEM references 0582029, 582355 and 582022
  • Charge coil and plate assembly design
  • Used in magneto / CDI ignition systems
  • Supplies ignition charge voltage to the power pack

🚤 Compatibility

Commonly used on

  • Johnson / Evinrude armature plate and charge coil assemblies
  • OMC two-stroke ignition systems using charge coil and plate assembly 0582029

Typically suits

  • Engine models:
  • Johnson 4.5HP two-stroke magneto applications where 0582029 is specified
  • Evinrude 4.5HP two-stroke magneto applications where 0582029 is specified
  • Johnson 6HP two-stroke magneto applications where 0582029 is specified
  • Evinrude 6HP two-stroke magneto applications where 0582029 is specified
  • Johnson 7.5HP / 8HP two-stroke magneto applications where 0582029 is specified
  • Evinrude 7.5HP / 8HP two-stroke magneto applications where 0582029 is specified
  • Johnson 9.9HP and 15HP two-stroke charge coil systems where 582355 / 0582029 is specified
  • Evinrude 9.9HP and 15HP two-stroke charge coil systems where 582355 / 0582029 is specified
  • Johnson 25HP two-stroke magneto applications where 0582029 is specified
  • Evinrude 25HP two-stroke magneto applications where 0582029 is specified
  • Johnson 35HP two-stroke magneto applications where 0582029 is specified
  • Evinrude 35HP two-stroke magneto applications where 0582029 is specified
  • HP Range: commonly 4.5HP - 35HP where listed by armature plate diagram
  • Engine Type: Johnson / Evinrude two-stroke outboard
  • Year Range: approximately 1979-1982 core applications, with model-specific use around that period
  • System Type: Charge coil and plate assembly / ignition source coil

🔌 Function

The charge coil generates the ignition charge voltage required by the CDI / power pack. Without correct charge coil output, the ignition system cannot reliably fire the spark plugs.

⚠️ Common Signs of Failure

  • No spark
  • Weak spark during cranking
  • Engine starts then dies
  • Hard starting when hot
  • Intermittent ignition cut-out
  • Charge coil resistance outside specification
  • Damaged coil wiring or cracked insulation
  • Low DVA output to the power pack

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 0582029 later OEM charge coil and plate assembly reference
  • 582355 related OEM charge coil / plate assembly reference
  • 582022 related OEM charge coil / stator reference

OEM / Related Numbers

  • 0582029
  • 582029
  • 582355
  • 0582355
  • 582022
  • 0582022

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
