583697 BRP Flywheel | Genuine Used Part

🔧 Product Description

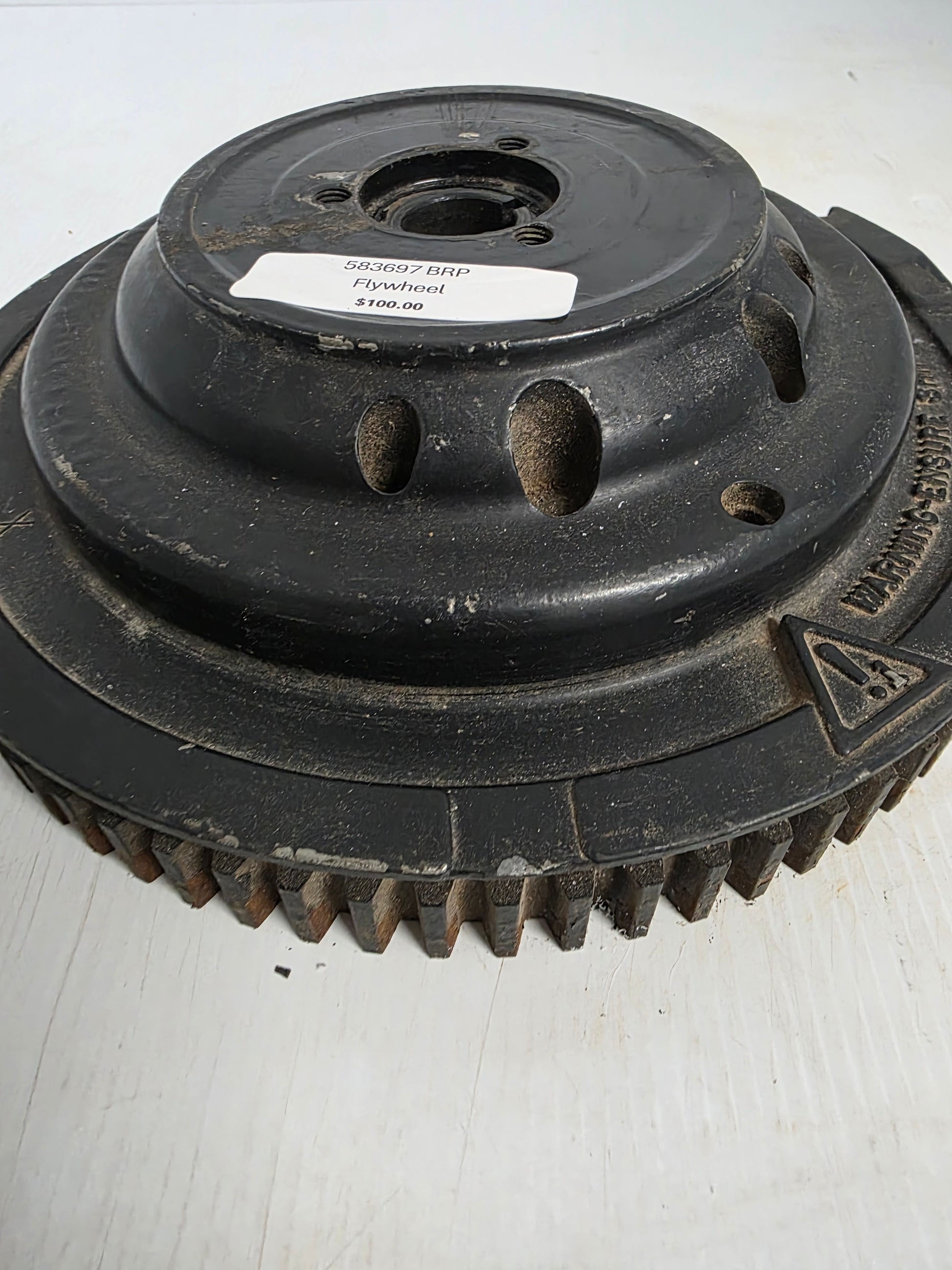

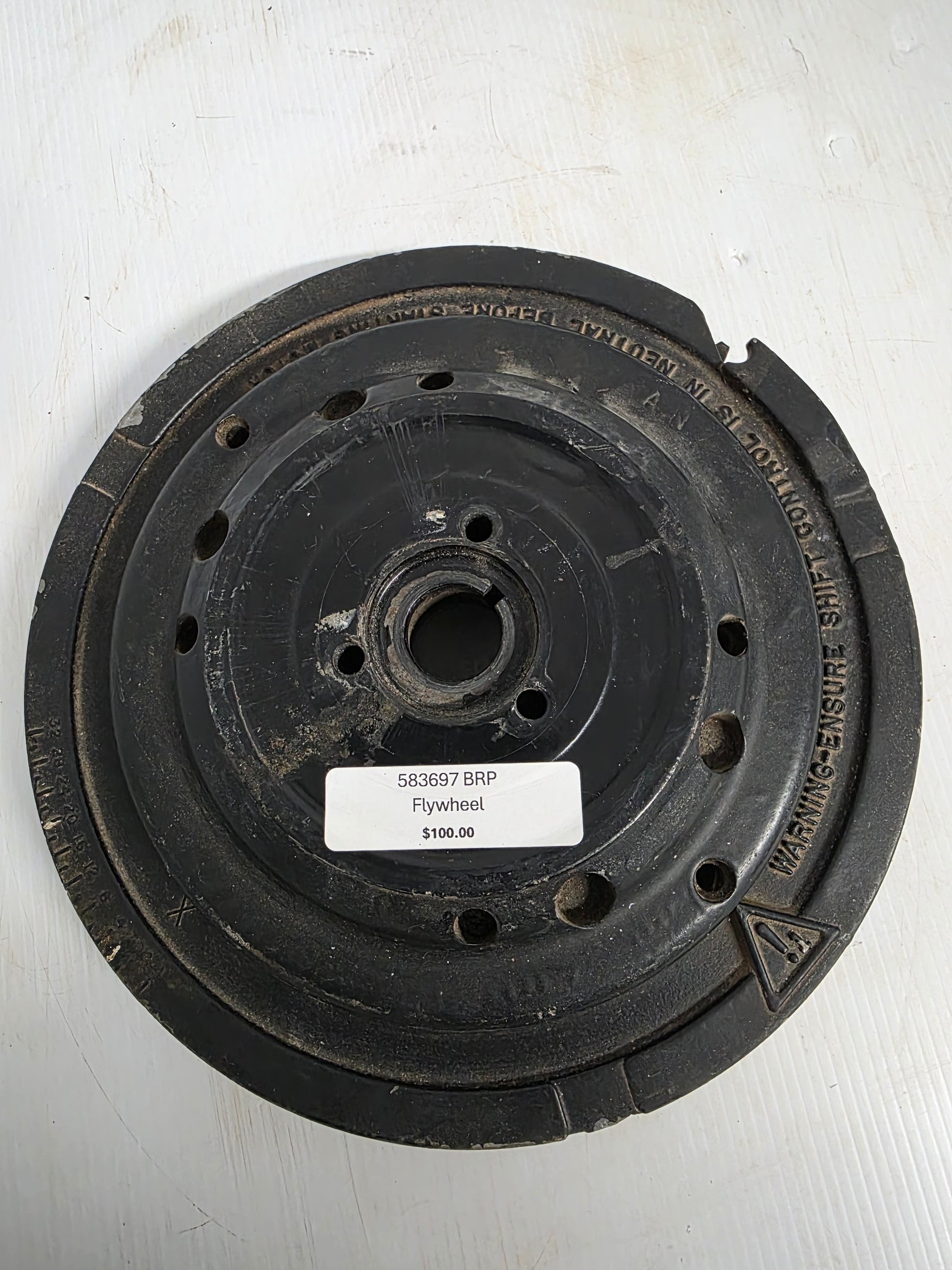

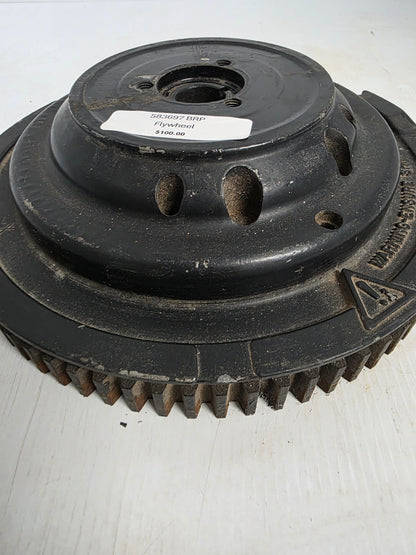

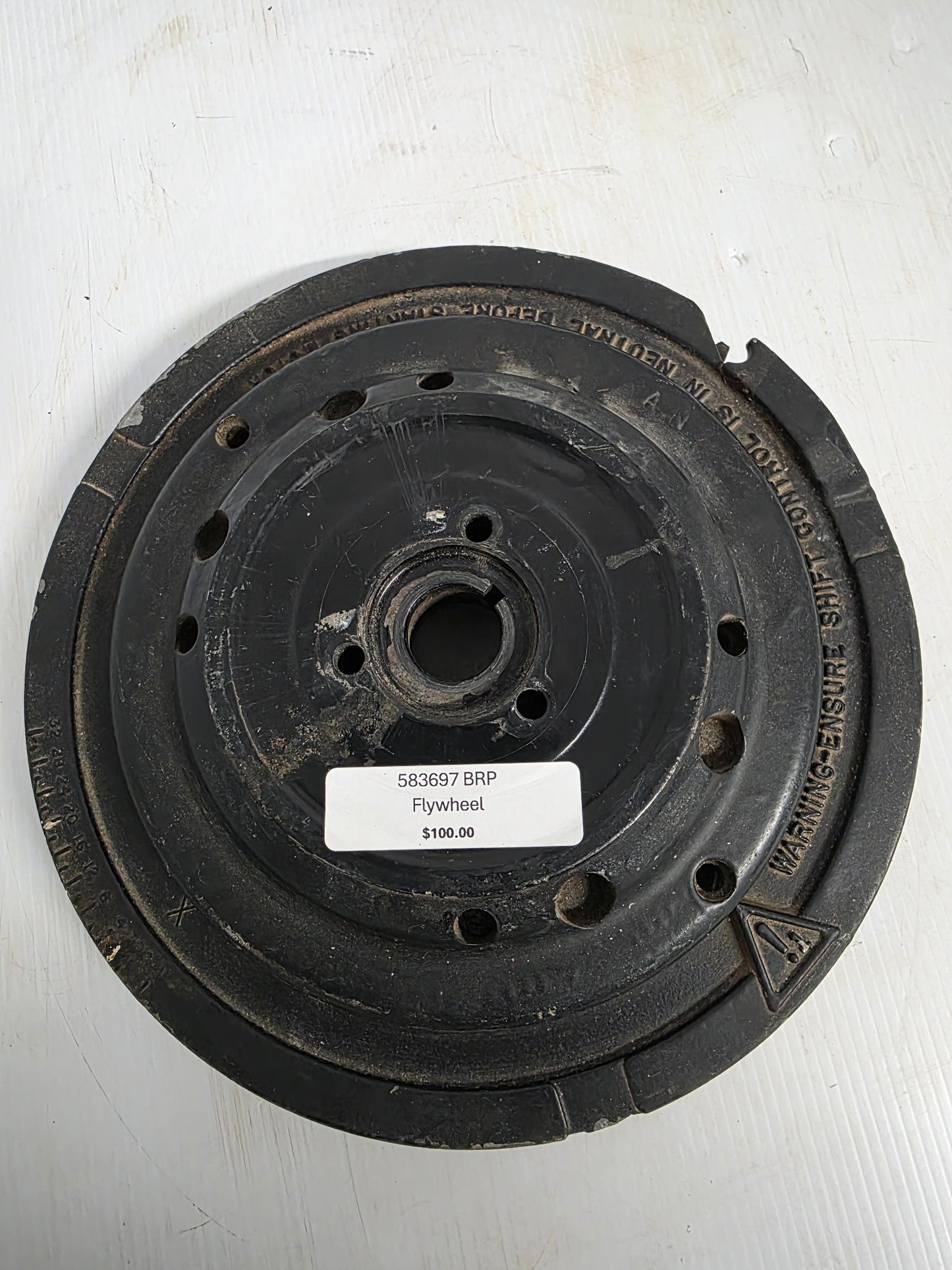

Genuine Used Evinrude Johnson 40HP-55HP Electric-Start Flywheel - Part Number: 0583697

A genuine pre-owned OMC, Evinrude and Johnson flywheel for selected twin-cylinder 40HP, 48HP, 50HP and 55HP two-stroke outboards.

The commonly stamped or shortened number is 583697. The full BRP and OMC service-number format is 0583697.

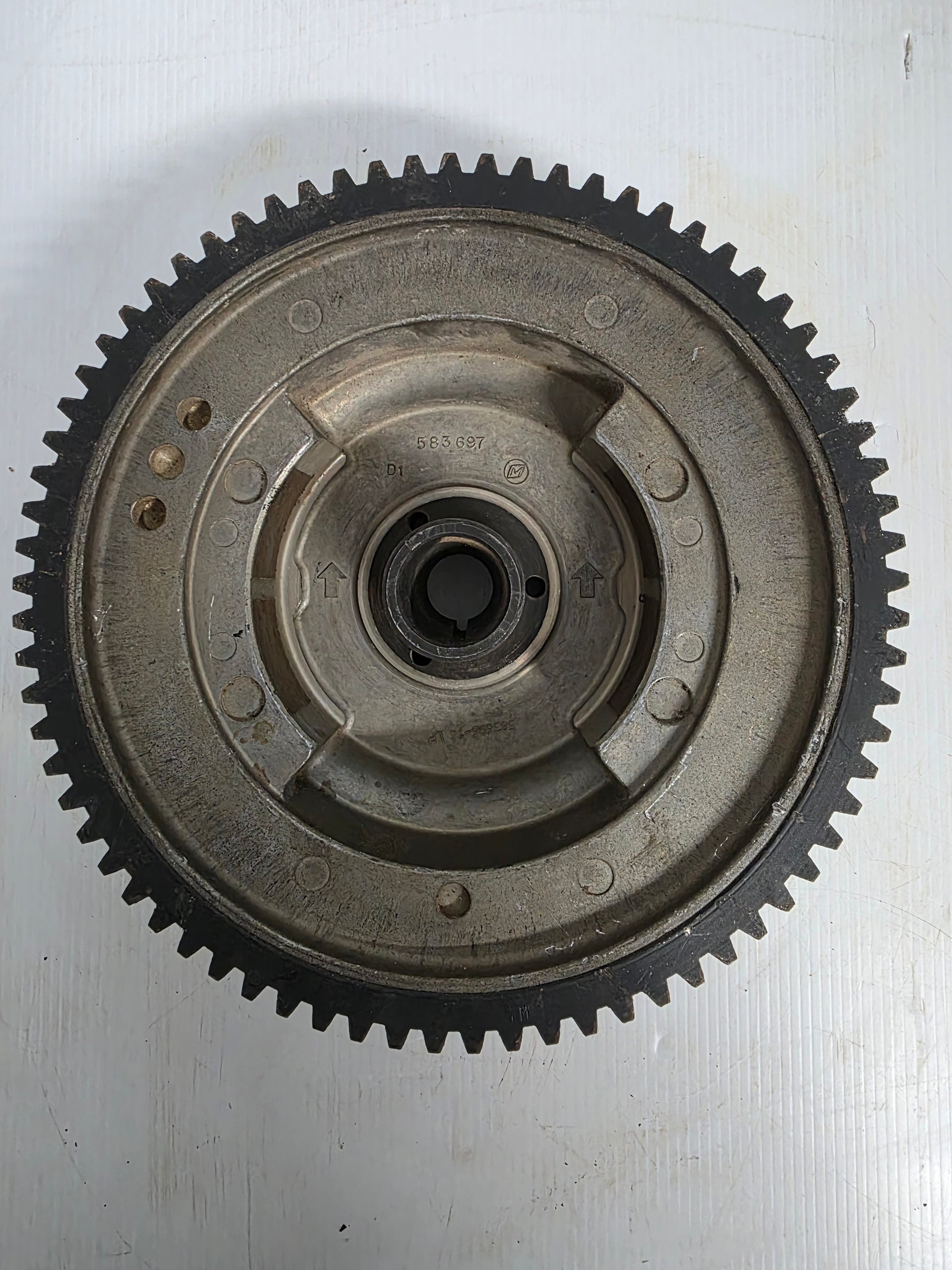

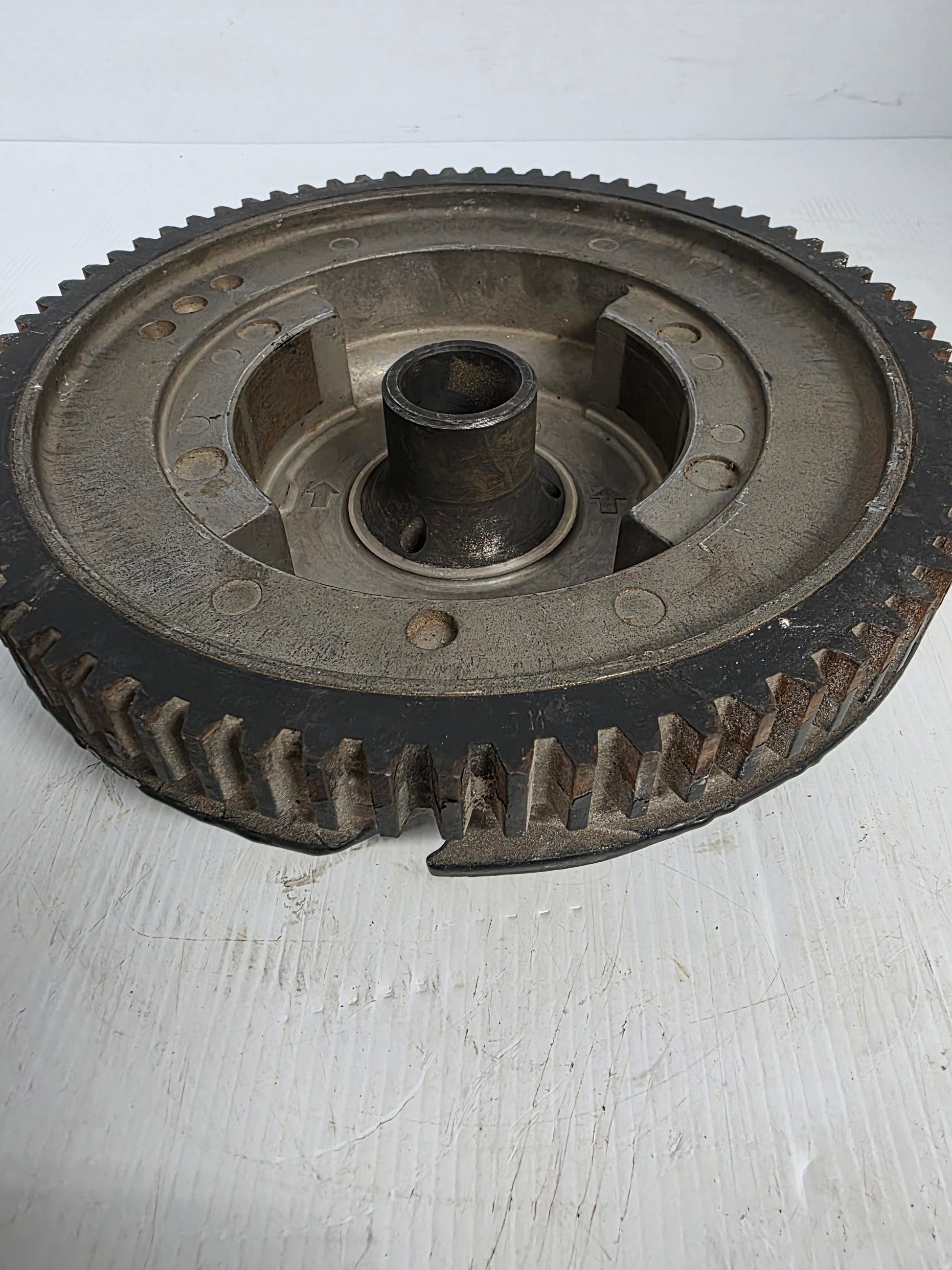

This electric-start flywheel incorporates the starter ring gear and permanent magnets required by the engine's charging and ignition systems.

⚙️ Key Features

• Genuine OMC, Evinrude or Johnson used flywheel

• Full OEM reference 0583697

• Common casting or service reference 583697

• Electric-start ring-gear configuration

• Approximately 73 starter-ring teeth on applicable assemblies

• Used with compatible stator and timer-base ignition systems

• Suitable for selected twin-cylinder 40HP-55HP engines

🔄 Supersession & Cross Reference

OEM Supersession / Related Numbers:

• 0583011

• 583011

• 0583012

• 583012

• 0583696

• 583696

• 0583697

• 583697

• 0585190

• 585190

• Related flywheel references depend on charging output and engine year

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on selected:

• Evinrude 40HP twin-cylinder outboards

• Johnson 40HP twin-cylinder outboards

• Evinrude and Johnson 48HP engines

• Evinrude and Johnson 50HP engines

• Selected 55HP twin-cylinder engines

• Electric-start engines using the matching stator and ring gear

Verified examples include:

• Selected mid-1980s 40HP electric-start models

• Engine families using 583011, 583012, 583696, 583697 or 585190 flywheel references

Important fitment note:

• Confirm the flywheel number, starter-ring tooth count, magnet arrangement and crankshaft taper.

• Charging output and ignition systems changed during production.

• Similar flywheels may bolt on but produce incorrect ignition or charging performance.

• Flywheel nut and key are included only when shown or described.

🔌 Function

The flywheel stores rotational energy, carries the starter ring gear and passes its magnets over the stator and timer-base components.

Common signs of damage:

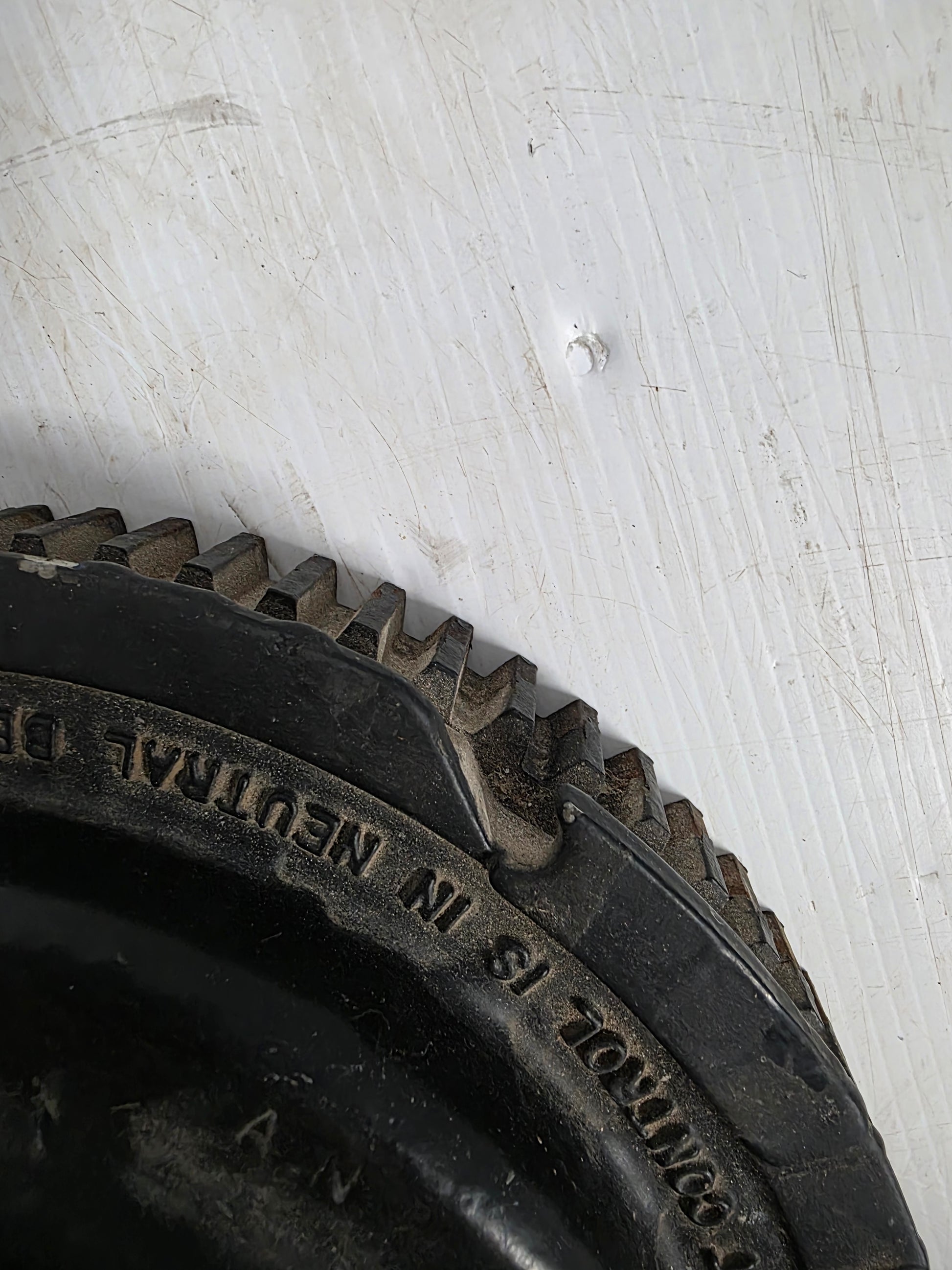

• Starter-ring teeth are chipped

• Internal magnets are loose or cracked

• Keyway is damaged

• Flywheel has visible runout

• Taper is fretted

• Charging output is low

• Ignition timing is unstable

• Flywheel rubs the stator

• Corrosion affects the magnet surfaces

Recommended checks before installation:

• Count the ring-gear teeth

• Compare all casting and service numbers

• Inspect the taper and keyway

• Check every magnet for movement

• Inspect the stator and timer base

• Confirm the crankshaft key is undamaged

• Clean mating tapers without lubricant

• Tighten the flywheel nut to the correct specification

• Check charging and ignition output after installation

📦 Condition

• Genuine OMC, Evinrude or Johnson used part

• Pre-owned rotating electrical component

• Paint wear, marks and surface corrosion may be present

• Magnets, keyway and ring gear must be inspected before installation

• Supplied in protective or equivalent packaging
