59657 Trim Gauge | Genuine Used Part

🔧 Product Description

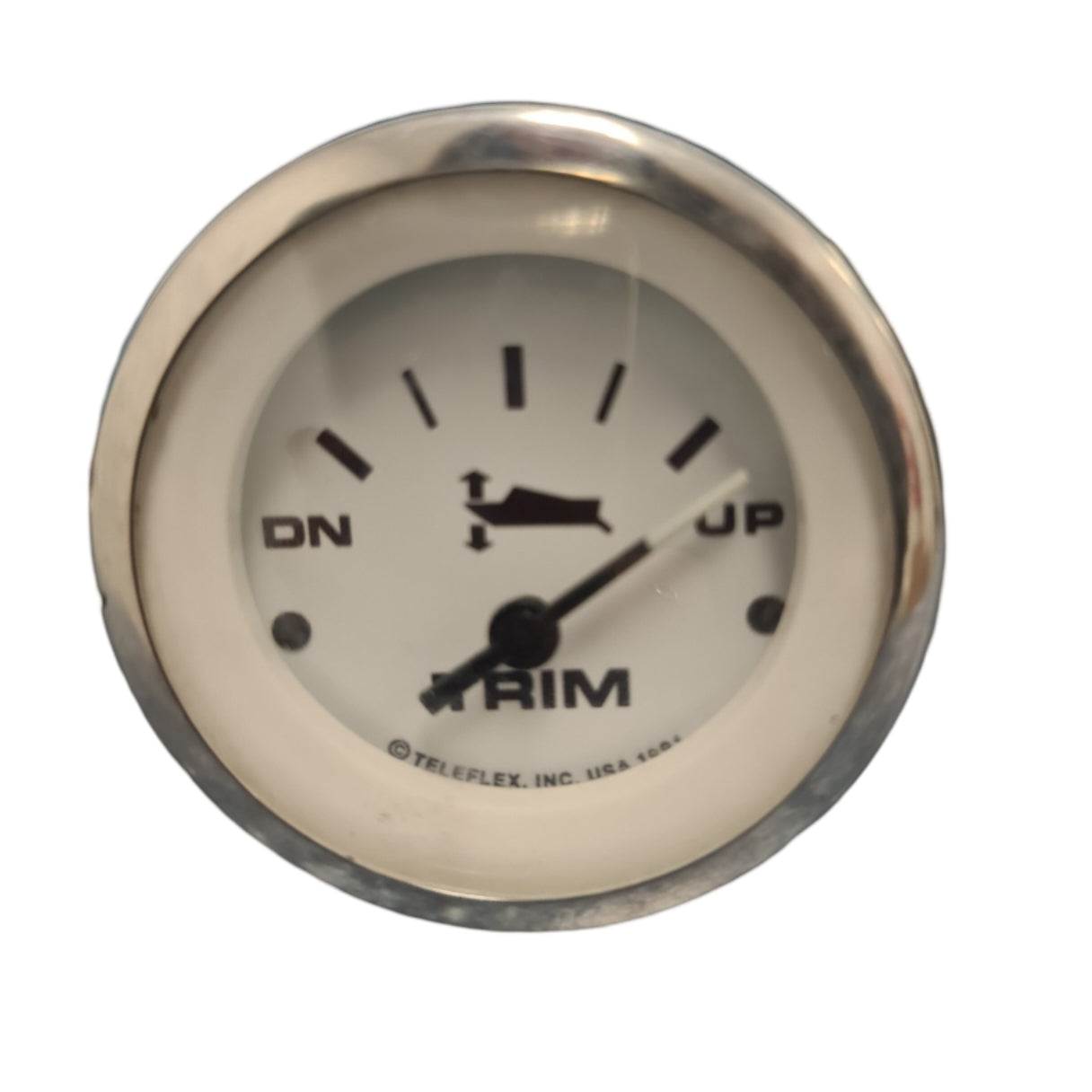

Teleflex Lido Marine Trim Gauge - Part Number: 59657

A genuine used Teleflex Lido-series trim-position gauge designed to display the raised or lowered position of a compatible outboard or sterndrive.

The gauge uses an UP-DOWN analogue dial and a bright Lido-series face with a domed lens and marine dashboard illumination. Sender compatibility must be matched to the engine or sterndrive because trim gauges use manufacturer-specific resistance curves.

⚙️ Key Features

• Genuine Teleflex / SeaStar Lido-series instrument
• Part number 59657
• Compact 2-inch marine trim gauge
• Analogue UP-DOWN display
• Illuminated face for night-time visibility
• Designed for 12-volt marine electrical systems

🚤 Compatibility

Commonly used on

• Mercury and Mariner outboards
• MerCruiser sterndrives
• Volvo Penta DP and SX drives
• Yamaha outboards using the corresponding trim-sender curve
• Boat dashboards originally fitted with Teleflex Lido instruments
• Gauge Size: Approximately 2-inch
• Electrical System: 12V DC
• Display: UP-DOWN analogue trim position
• Fitment Requirement: Confirm the engine or drive sender curve and terminal arrangement before installation

🔌 Function

The gauge receives a variable-resistance signal from the trim sender and converts it into a needle position showing whether the engine or drive is trimmed down, within the operating range or raised.

⚠️ Common Signs of Failure

• Needle remains at full UP or full DOWN
• Reading changes intermittently with vibration
• Gauge does not respond although the sender tests correctly
• Internal illumination does not operate
• Lens is fogged, cracked or difficult to read

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 59657 original Teleflex Lido trim-gauge reference
• Teleflex marine instrumentation is now marketed through SeaStar / Sierra product families

OEM / Related Numbers

• 59657
• Related Teleflex Lido tachometer 59737
• Related Lido voltmeter 59656
• Related engine-manufacturer trim sender and harness

Aftermarket / Verified Equivalents

• Sierra / SeaStar Lido trim gauge using the same engine-manufacturer sender curve
• Sierra Sterling 63482P for Mercury, Mariner, MerCruiser, Volvo Penta DP/SX and Yamaha 2001-on applications
• Sierra Sahara 59709P for specified Mercury / Mariner / Volvo / Yamaha sender systems
• Any replacement must be matched to the original trim-sender resistance range

📦 Condition

• Genuine used part
• Removed from operating dashboard where applicable
• In good working condition unless otherwise stated
• Sender and wiring harness are not included unless specifically stated
