60-06000000 Aftermarket Parsun Hydraulic Tilt Assembly F40, F50, F60 | Sawley's Select Marine Parts

🔧 Product Description

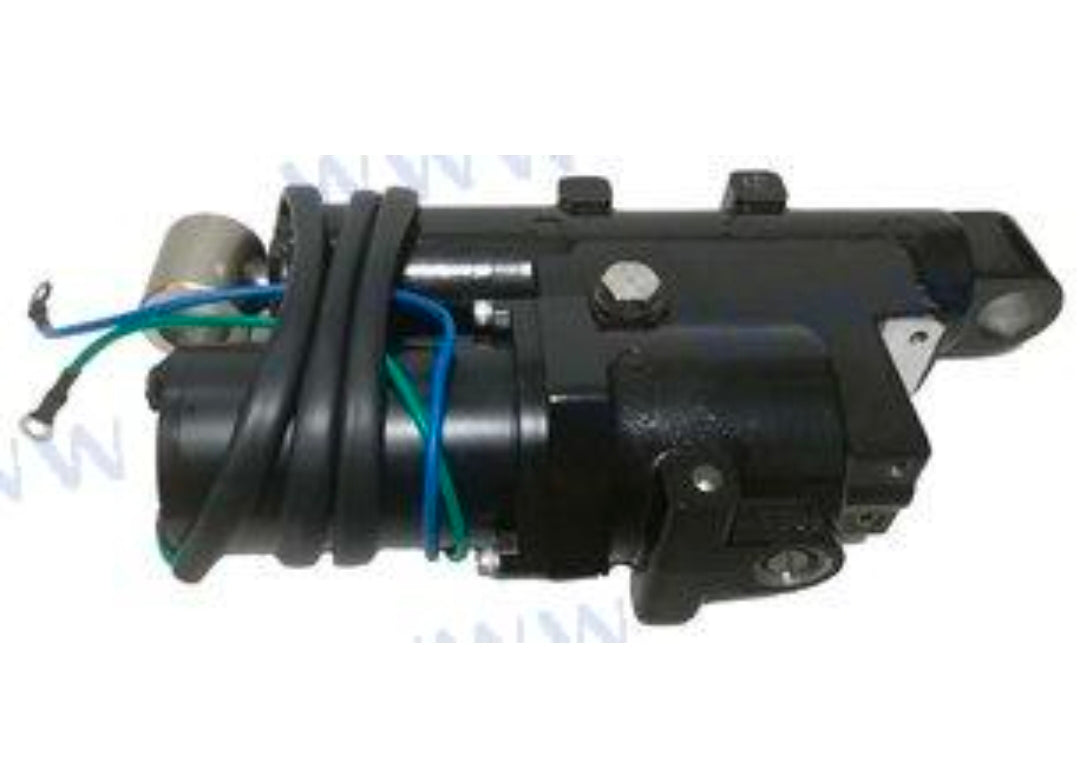

Aftermarket replacement Complete Hydraulic Power Trim & Tilt Assembly - Replaces Part Number: 60-06000000

New aftermarket complete hydraulic trim and tilt assembly for Parsun F50 and F60 outboards. The Parsun unit follows the Yamaha-pattern bracket and hydraulic layout.

⚙️ Key Features

• Complete motor, pump, valve body and ram assembly

• Direct fit to the Parsun F50/F60 bracket family

• Yamaha-pattern hydraulic trim construction

• Serviceable motor, piston shaft, cover and valve components

• Supplied as a complete unit rather than motor-only

🧰 Kit / Assembly Contents

• 1 × Complete hydraulic housing assembly - Parsun P/N F60-06000000

• 1 × Piston assembly - Parsun P/N F60-06010000

• 1 × Piston shaft assembly - Parsun P/N F60-06010100

• 1 × Piston cover assembly - Parsun P/N F60-06010200

• 1 × Free-piston assembly - Parsun P/N F60-06000200

• 1 × Electric motor assembly - Parsun P/N F60-06030000

• 1 × Gear-pump/motor assembly - Parsun P/N F60-06020000

• 1 × Manual valve body - Parsun P/N 60-06000005

• 1 × Motor link - Parsun P/N F60-06000010

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• F60-06000000 (Parsun complete hydraulic tilt reference) ↔ Yamaha-pattern 6H3-42725-00 bracket/assembly family

OEM / Related Numbers:

• 6H3-42725-00

• F60-06010000

• F60-06010100

• F60-06010200

• F60-06000200

• F60-06030000

• F60-06020000

• 60-06000005

• F60-06000010

Aftermarket / Verified Equivalents:

• Parsun: F60-06000000

• Yamaha-pattern complete F50/F60 trim assembly after bracket confirmation

🚤 Compatibility

Commonly used on:

• Parsun F50/F60 power trim and tilt systems

Typically suits:

• Engine / Drive models:

• Parsun F50

• Parsun F60

• Yamaha-pattern 50HP/60HP installations only after exact mounting confirmation

• HP / Drive Range: 50HP - 60HP

• System Type: Complete outboard electric-hydraulic power trim and tilt unit

• Year Range: Model- and serial-dependent

• Serial / Component Identification: Confirm bracket width, mounting pins, connector and complete assembly number.

🔌 Function

The complete electric-hydraulic power trim and tilt unit uses a reversible motor, pump, valve body and hydraulic ram assembly to raise, lower and hold the outboard at the selected angle.

Common signs of failure / service requirement:

• Outboard will not raise, lower or hold position

• Motor runs but the hydraulic ram does not move

• Hydraulic fluid leaks around the motor, pump, valve body or ram

• Movement is slow, jerky or noisy

• Unit drifts down under engine weight

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
