60V-81950-00 Aftermarket Yamaha Relay 12V | Sawley's Select Marine Parts

🔧 Product Description

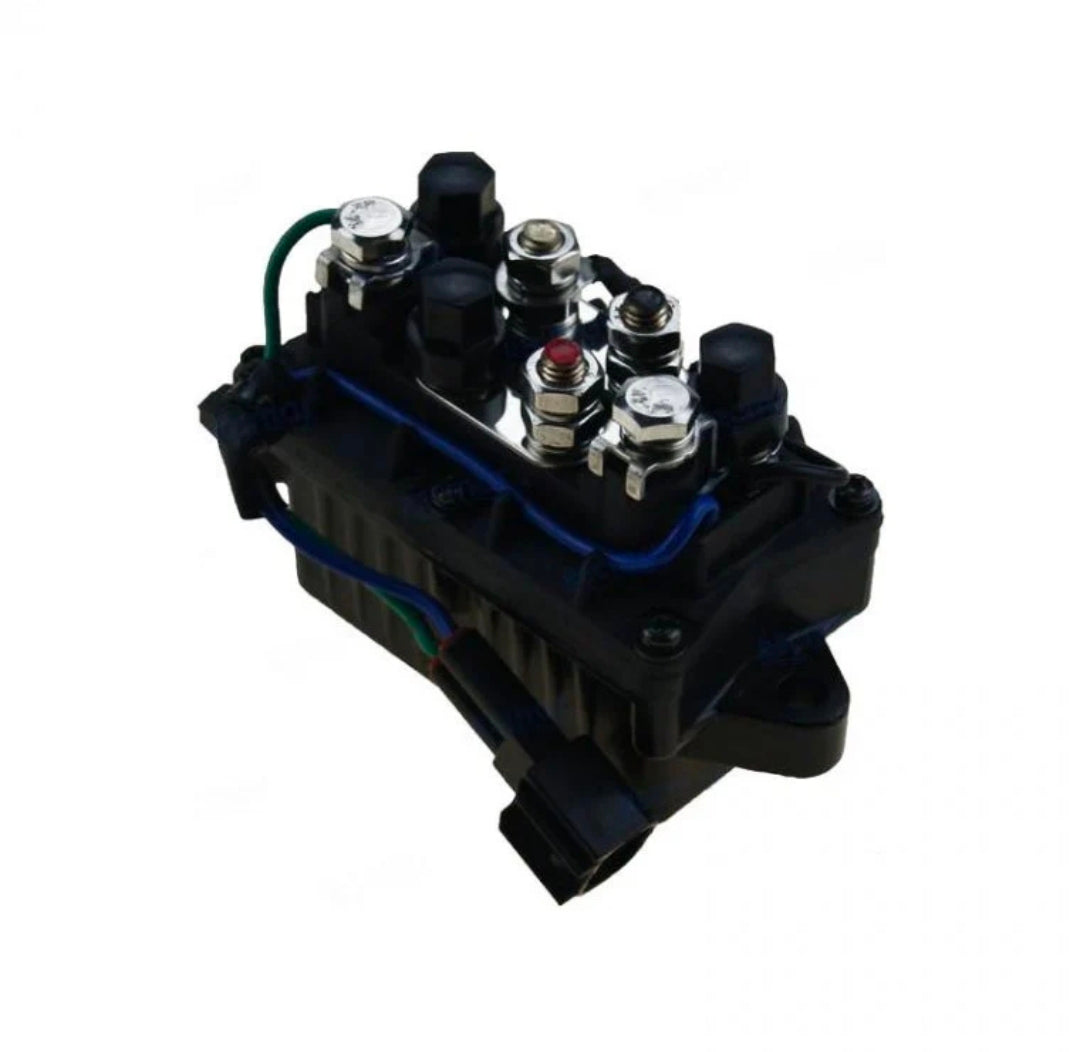

Aftermarket replacement 12-Volt Power Trim Relay Assembly - Replaces Part Number: 60V-81950-00

New aftermarket power trim relay replacing Yamaha 60V-81950-00. It controls trim-motor direction on selected large HPDI and four-stroke outboards.

⚙️ Key Features

• Combined UP/DOWN trim relay module

• 12-volt marine electrical system

• Designed for large Yamaha outboard trim motors

• Sealed relay housing and heavy-current leads

• Cross-references later 60V-81950-01

🧰 Kit / Assembly Contents

• 1 × Complete trim relay assembly - P/N 60V-81950-00

• 1 × Integrated high-current leads and control connector

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 60V-81950-01 → Later service revision associated with 60V-81950-00

OEM / Related Numbers:

• 60V-81950-01

Aftermarket / Verified Equivalents:

• Recmar: REC60V-81950-00

• Aftermarket Yamaha 60V trim-relay assembly

🚤 Compatibility

Commonly used on:

• Yamaha large-outboard power trim electrical systems

Typically suits:

• Engine / Drive models:

• Z250, LZ250, Z300 and LZ300 HPDI

• F225, F250, F300 and related large four-stroke applications where the 60V relay is specified

• HP / Drive Range: 225HP - 300HP

• System Type: Outboard power trim relay system

• Year Range: Approximately 2003 onward; model-serial dependent

• Serial / Component Identification: Confirm 60V connector and terminal arrangement.

🔌 Function

The relay assembly switches high battery current to the trim motor in the UP or DOWN direction when commanded by the control switch.

Common signs of failure / service requirement:

• Trim operates in only one direction

• Relay clicks but the motor does not run

• Intermittent operation or heat-damaged connector

• No voltage reaches the motor under load

• Burnt relay contacts or melted housing

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
