60X-81800-00 Aftermarket Yamaha Starter Motor | Sawley's Select Marine Parts

🔧 Product Description

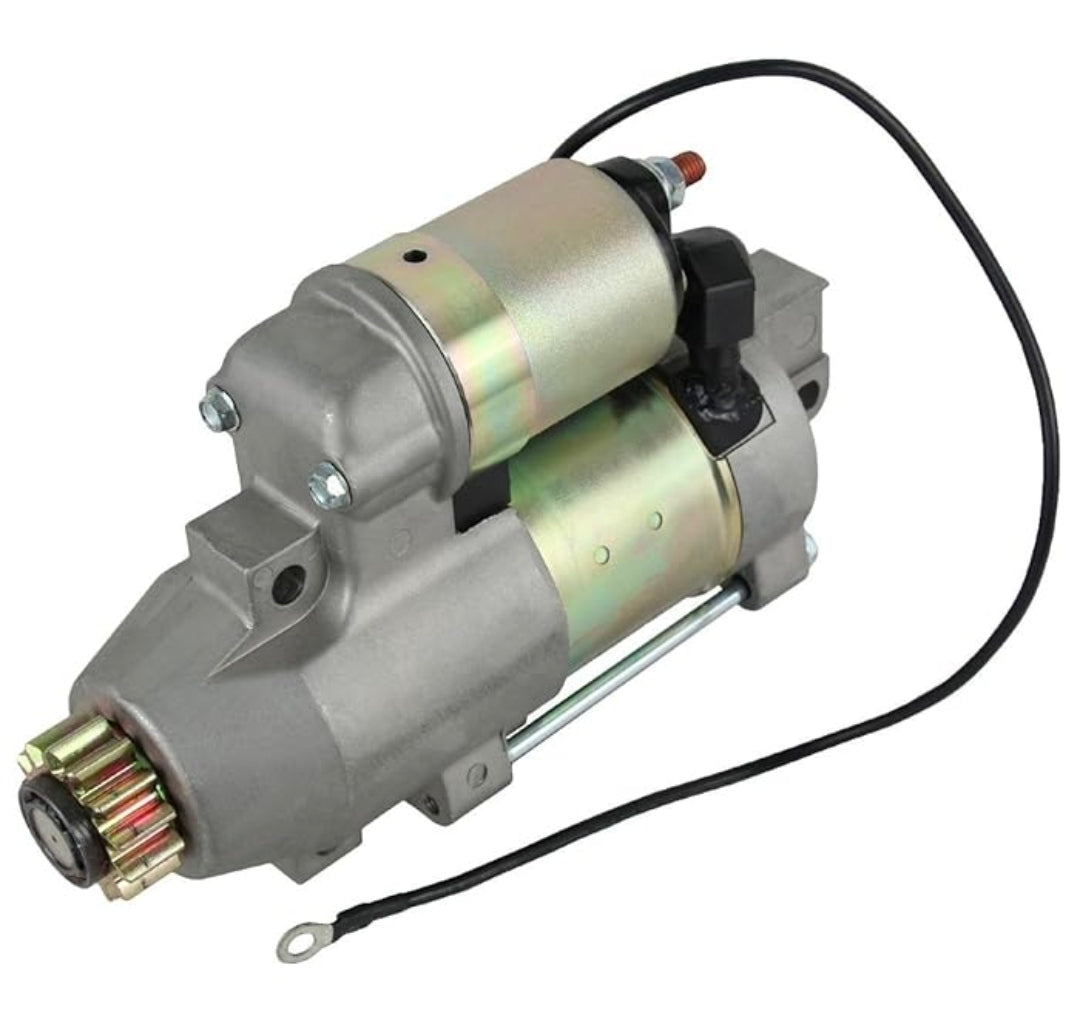

Aftermarket replacement Yamaha 60V/60X HPDI Starter Motor - Replaces Part Number: 60X-81800-00

New aftermarket Hitachi-pattern permanent-magnet gear-reduction starter replacing Yamaha 60X-81800-00 for 3.3-litre HPDI outboards. It is a 12-volt counter-clockwise starter with a 13-tooth pinion.

⚙️ Key Features

• 12-volt electrical system

• Counter-clockwise rotation viewed from the drive end

• 13-tooth pinion

• Permanent-magnet gear-reduction construction

• High-torque starter for Yamaha 3.3L V6 HPDI engines

• Complete new starter motor with integrated solenoid

• Marine or engine-grade corrosion-resistant construction

• Direct replacement only after voltage, rotation, tooth count and mounting pattern are confirmed

🧰 Kit / Assembly Contents

• 1 × Complete starter motor assembly - P/N 60X-81800-00

• 1 × Integrated starter solenoid and shift mechanism

• 1 × Installed pinion gear and overrunning clutch/Bendix assembly

• 1 × Installed armature, brush holder, field-magnet/winding and drive housing

• Mounting bolts, battery cables, relays and external wiring are transferred or renewed separately unless supplied

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 60X-81800-01 → Later Yamaha service revision associated with 60X-81800-00

• 60X-81800-00 ↔ Yamaha 60V-81800-00 and 6C9-81800-00 starter family

OEM / Related Numbers:

• 60X-81800-00

• 60X-81800-01

• 60V-81800-00

• 6C9-81800-00

• 6D0-81800-00

• Hitachi S114-863A

• S114-863B

• S114-863C

Aftermarket / Verified Equivalents:

• API Marine: MOT5030N

• Lester/WAI: 18441 family

• Aftermarket S114-863A/B/C starter

🚤 Compatibility

Commonly used on:

• Yamaha and Yamaha-built Mercury high-output outboard starting systems

Typically suits:

• Engine / Component models:

• LZ250 and Z250 HPDI applications

• VZ200, VZ225 and VZ250 HPDI applications

• Selected Yamaha/Mercury 200HP-250HP four-stroke or HPDI installations using the 60V/60X starter family

• HP Range: 200HP - 250HP

• Year Range: Principally 2003 - 2010; model dependent

• Component Identification: Confirm 12V, 13 teeth, CCW rotation and Hitachi S114-863 mounting.

🔌 Function

The starter motor converts battery electrical energy into high-torque mechanical rotation to crank the engine. When the start circuit energises the solenoid, the pinion moves into the flywheel ring gear and the motor turns the crankshaft until combustion begins. The overrunning clutch then protects the starter as engine speed rises.

Common signs of failure / service requirement:

• No-crank condition even though the battery and start-control circuit test correctly

• Solenoid clicks but the starter motor does not rotate

• Starter turns slowly, draws excessive current or overheats the battery cables

• Pinion spins without engaging the flywheel ring gear

• Grinding, clashing or repeated pinion kick-out during cranking

• Intermittent cranking caused by worn brushes, solenoid contacts or heat soak

• Corrosion, water intrusion, burnt windings or excessive shaft/bearing play

📦 Condition

• New aftermarket replacement starter motor

• Brand new

• Supplied in original or equivalent packaging
