61A-45527-00 Yamaha Collar Driveshaft J | Genuine OEM Yamaha Outboard Part

🔧 Product Description

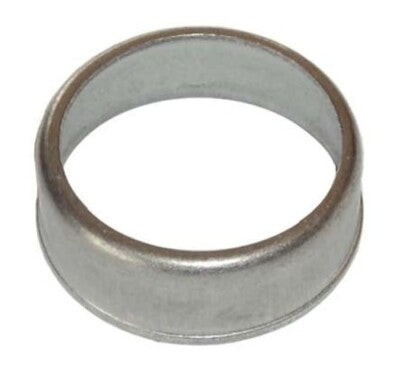

Genuine Yamaha Drive Shaft Collar J - Part Number: 61A-45527-00-00

A genuine Yamaha OEM drive shaft collar used in Yamaha outboard water pump and drive shaft assemblies. This collar works with the matching drive shaft spacer to correctly locate components around the water pump / drive shaft area.

⚙️ Key Features

• Genuine Yamaha OEM drive shaft collar

• Correct Yamaha part number 61A-45527-00-00

• Also listed as Collar, Drive Shaft J

• Works with Yamaha spacer 61A-45538-00-00

• Used on Yamaha 115HP to 300HP drive shaft / water pump assemblies where specified

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 61A-45527-00-00 Yamaha drive shaft collar reference

• 61A-45527-00 short Yamaha drive shaft collar format

OEM / Related Numbers:

• 61A-45527-00-00

• 61A-45527-00

• 61A455270000

• 61A4552700

• 61A-45538-00-00 matching drive shaft spacer

• 61A-45538-00 matching drive shaft spacer

Aftermarket / Verified Equivalents:

• Aftermarket reference: 61A-45527-00

• Aftermarket reference: 61A4552700

• Yamaha drive shaft collar replacement for 61A water pump stack assemblies

• Included / serviced alongside aftermarket 61A-W0078 water pump rebuild components where the original collar is worn or missing

• Replacement drive shaft collar and spacer service family with 61A-45538-00 where matched by diagram

🚤 Compatibility

Commonly used on:

• Yamaha outboard drive shaft assemblies

• Yamaha water pump collar and spacer assemblies

Typically suits:

• Engine models:

• Yamaha 115HP two-stroke drive shaft collar applications

• Yamaha 130HP two-stroke drive shaft collar applications

• Yamaha 150HP two-stroke and HPDI drive shaft collar applications

• Yamaha 175HP two-stroke drive shaft collar applications

• Yamaha 200HP two-stroke and HPDI drive shaft collar applications

• Yamaha 225HP two-stroke and four-stroke drive shaft collar applications

• Yamaha 250HP two-stroke and four-stroke drive shaft collar applications

• Yamaha 300HP high-output applications where 61A-45527-00 is specified

• Yamaha F115 / F150 / F200 / F225 four-stroke applications where listed by water pump / drive shaft diagram

• HP Range: commonly 115HP - 300HP where specified

• Engine Type: Yamaha two-stroke, HPDI and four-stroke outboard lower-unit assembly

• Year Range: approximately 1991 onward depending on model and gearcase

• Component Type: Drive shaft collar

🔌 Function

The drive shaft collar helps locate and retain components around the drive shaft and water pump assembly, supporting correct spacing and alignment during operation.

Common signs of failure or service need:

• Collar missing during water pump service

• Excessive wear or corrosion on drive shaft hardware

• Incorrect water pump stack height

• Spacer or collar damage during disassembly

• Abnormal rubbing around water pump assembly

• Required replacement during lower-unit rebuild or water pump overhaul

📦 Condition

• Genuine Yamaha part

• Brand new

• Supplied in original or equivalent packaging
