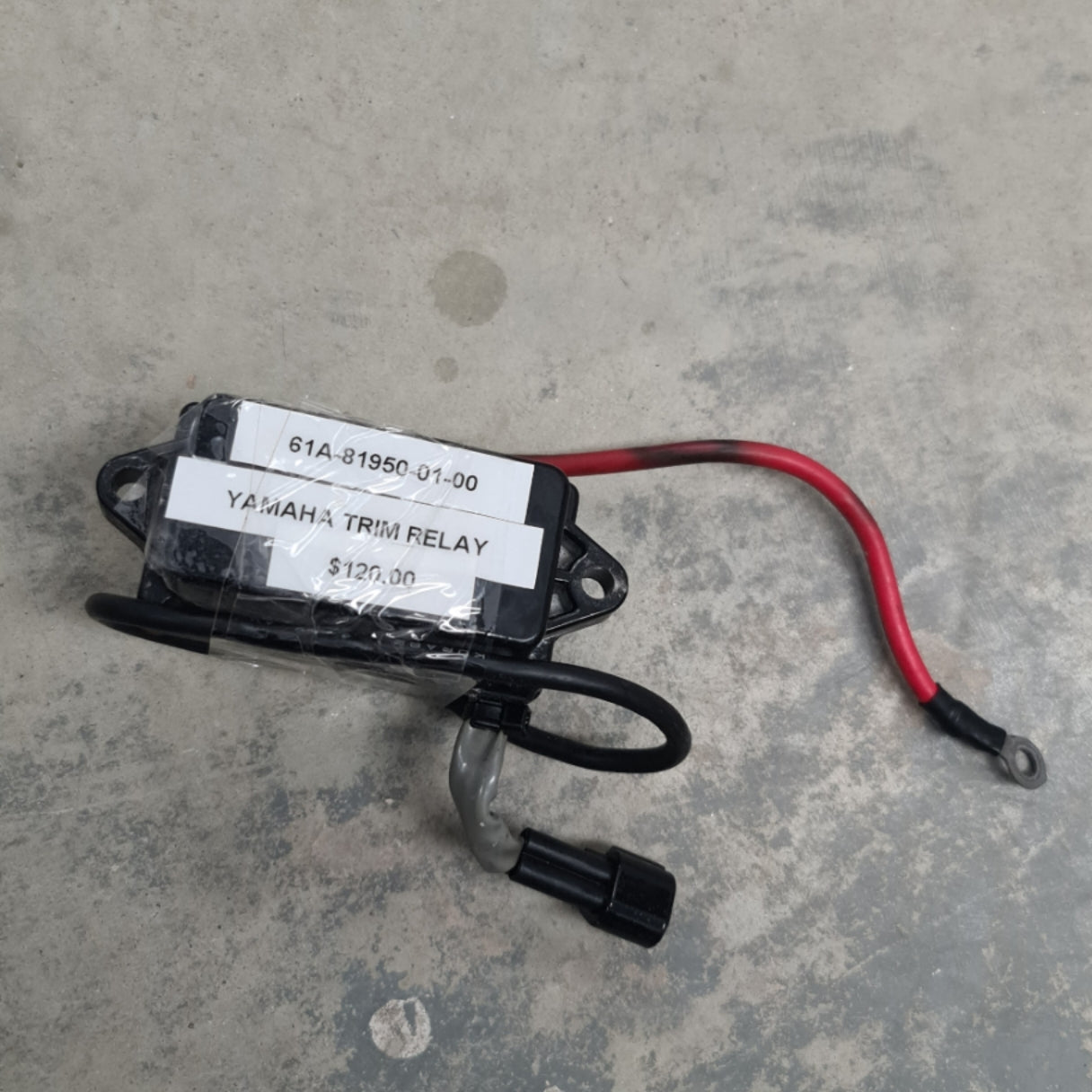

61A-81950-01-00 Yamaha Trim Relay | Genuine Used Part

🔧 Product Description

Genuine Yamaha Power Trim & Tilt Relay Assembly - Part Number: 61A-81950-01-00

A genuine Yamaha power trim and tilt relay used on selected Yamaha two-stroke and four-stroke outboards. This 3-pin relay switches high-current power to the trim / tilt motor and supersedes the earlier 61A-81950-00-00 relay reference.

⚙️ Key Features

• Genuine Yamaha trim relay assembly

• Correct Yamaha part number 61A-81950-01-00

• Supersedes 61A-81950-00-00

• 3-pin power trim and tilt relay

• Used across selected Yamaha 25HP to 250HP trim systems

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 61A-81950-01-00 → Supersedes 61A-81950-00-00

• 61A-81950-00-00 earlier Yamaha trim relay reference

OEM / Related Numbers:

• 61A-81950-01-00

• 61A819500100

• 61A-81950-01

• 61A8195001

• 61A-81950-00-00

• 61A819500000

• 61A-81950-00

• 61A8195000

• Trim relay assembly

• Power tilt and trim relay

• 3-pin trim relay

• 12V relay assembly

Aftermarket / Verified Equivalents:

• DB Electrical: SLC2062

• Outboard Parts: SLC2062

🚤 Compatibility

Commonly used on:

• Yamaha power trim and tilt relay circuits

Typically suits:

• Engine models:

• Yamaha F25HP - 1998-2005

• Yamaha T25HP - 2001-2006

• Yamaha 60HP - 1993-2005

• Yamaha 70HP - 1993-2009

• Yamaha 75HP - 1994-1999

• Yamaha 80HP - 1997

• Yamaha 85HP - 1993-1996

• Yamaha 90HP - 1993-2009

• Yamaha 150HP - 1999-2005

• Yamaha 200HP - 1998-2005

• Yamaha 225HP - 1990-2004

• Yamaha 250HP - 1990-2004

• Yamaha F50

• Yamaha F60

• Yamaha F75

• Yamaha F90

• Yamaha F150 - approximately 2004-2009

• Yamaha F225 TLR - approximately 2007-2009

• HP Range: commonly 25HP - 250HP

• Engine Type: Yamaha two-stroke and four-stroke outboard trim / tilt electrical systems

• Year Range: Approximately 1990 - 2009 depending on horsepower and model

• Serial Note: Match by exact Yamaha model code, serial number, relay plug, pin count and trim relay mounting layout.

🔌 Function

The trim relay switches high-current power to the trim / tilt motor so the outboard can raise and lower from the helm or cowl trim switch.

Common signs of failure:

• Trim motor does not operate

• Trim works in one direction only

• Relay clicks but motor does not move

• Intermittent tilt operation

• Burnt relay contacts

• Corroded or melted relay plug

• Trim motor tests correctly but relay output is missing

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
