61A-85895-00-00 Yamaha Z200 Crank Position Sender | Genuine Used Part

61A-85895-00-00 Yamaha Z200 Crank Position Sender | Genuine Used Part

$50.00 AUD
$50.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

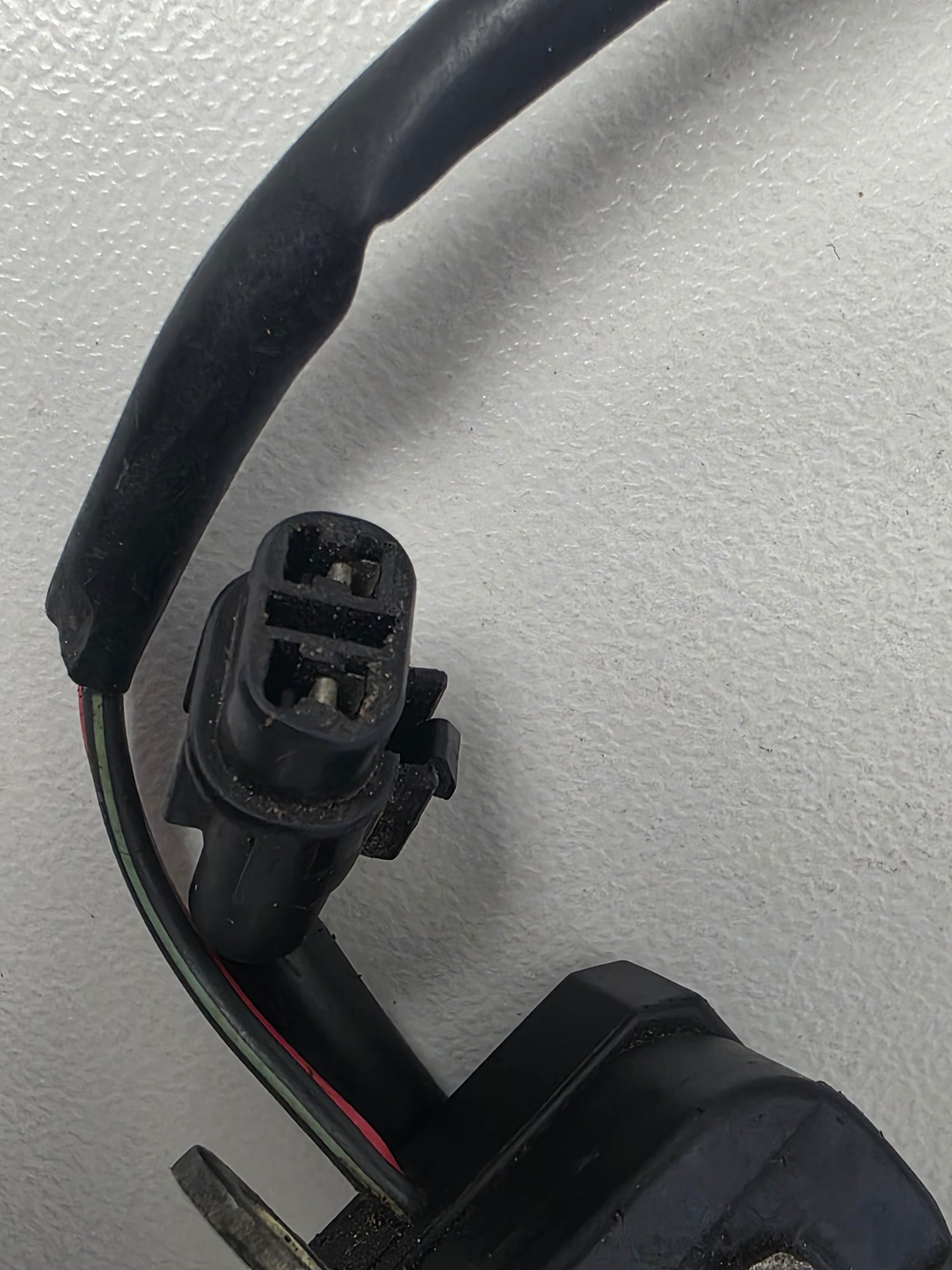

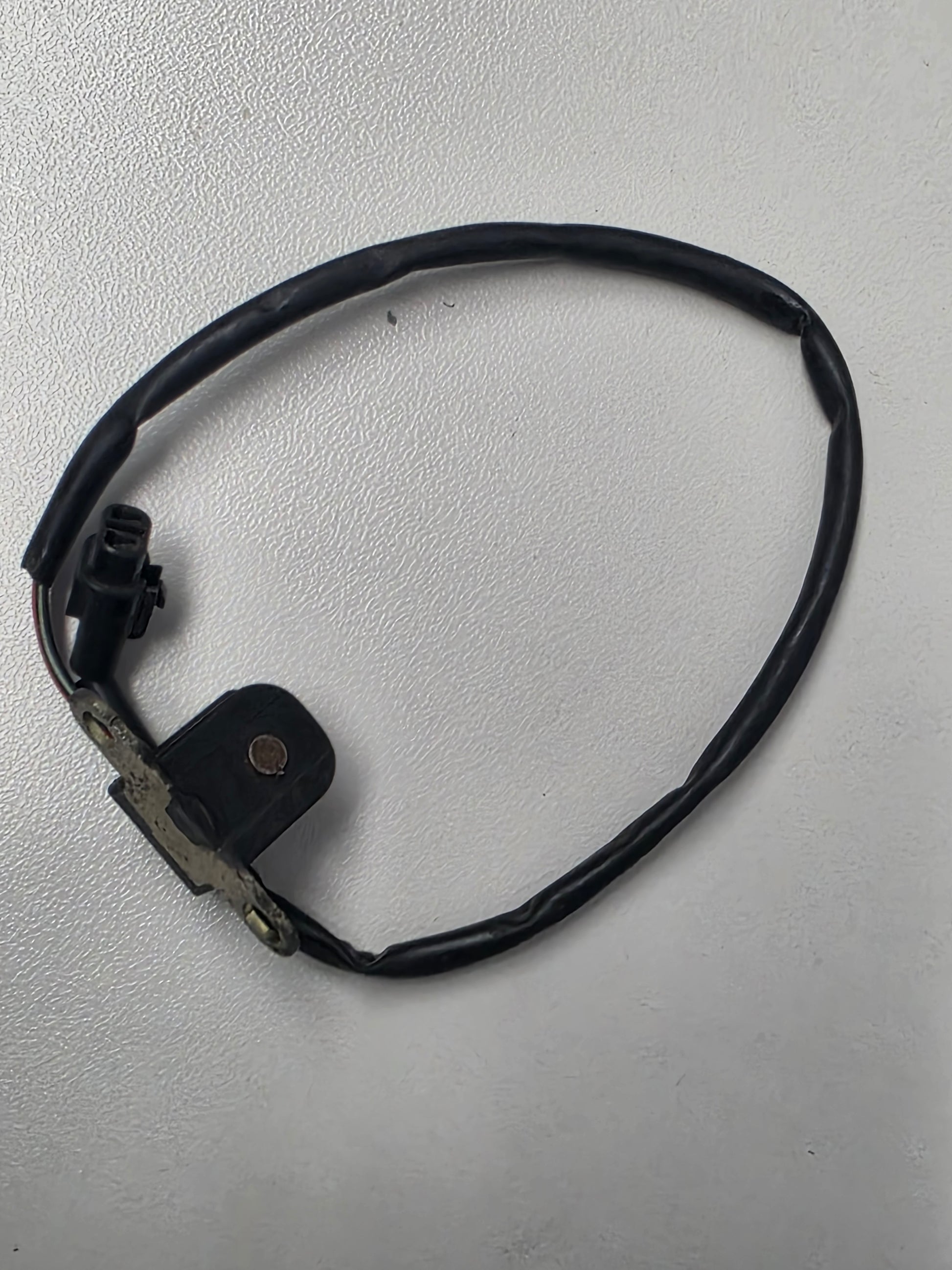

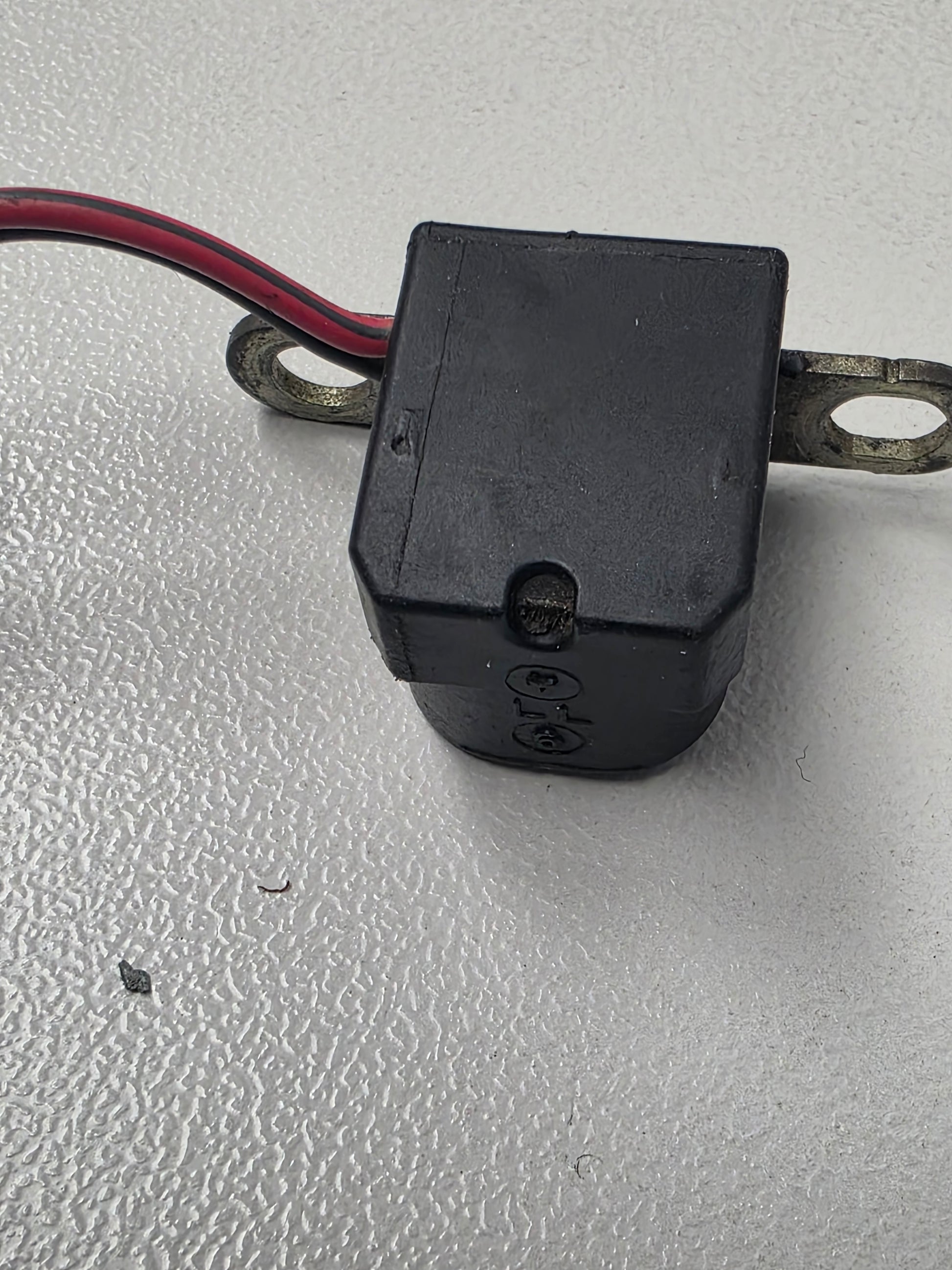

Genuine Yamaha Crank Position Sensor - Part Number: 61A-85895-00-00

A genuine Yamaha crank position sensor used on selected Yamaha high-output two-stroke and HPDI-style outboard applications. This sender provides crankshaft position and engine-speed input to the ignition / engine control system where the original 61A sensor number matches.

⚙️ Key Features

  • Genuine Yamaha crank position sensor
  • Correct OEM part number 61A-85895-00-00
  • Also listed as 61A-85895-00
  • Used on selected Yamaha Z, LZ and V6 outboard applications
  • Match by engine model, sensor plug, mounting position and flywheel / trigger layout

🚤 Compatibility

Commonly used on

  • Yamaha V6 / Z-series crankshaft position sensing systems

Typically suits

  • Engine models:
  • Yamaha Z150
  • Yamaha LZ150
  • Yamaha D150
  • Yamaha L150
  • Yamaha 150
  • Yamaha Z175
  • Yamaha Z200
  • Yamaha L200
  • Yamaha LZ200
  • Yamaha 200
  • Yamaha Z225
  • Yamaha L225
  • Yamaha 225
  • Yamaha Z240
  • Yamaha Z250
  • Yamaha L250
  • Yamaha LZ250
  • Yamaha 250
  • Yamaha Z300
  • Yamaha LZ300
  • HP Range: commonly 150HP - 300HP where 61A-85895-00-00 is specified
  • Engine Type: Yamaha V6 / high-output outboard crank position sensor system
  • Year Range: model-code controlled
  • Serial Note: Match by exact Yamaha model code, serial number, sensor plug, mounting location, flywheel / trigger layout and original sensor number before installation.

🔌 Function

The crank position sensor reports crankshaft rotation position and speed so the ignition / engine control system can calculate timing and engine operation correctly.

⚠️ Common Signs of Failure

  • No start
  • Intermittent spark
  • Engine cuts out unexpectedly
  • Hard starting when hot
  • Misfire at certain RPM
  • Timing signal fault on diagnostic systems
  • Sensor resistance or output signal out of specification
  • Engine runs correctly when a known-good sensor is fitted

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 61A-85895-00 Yamaha crank position sensor reference
  • 61A-85895-00-00 full Yamaha OEM crank position sensor reference

OEM / Related Numbers

  • 61A-85895-00-00
  • 61A858950000
  • 61A-85895-00
  • 61A8589500
  • Crank position sensor
  • Crank position sender
  • Crankshaft position sensor
  • Engine speed sensor
  • Timing sensor
  • Yamaha Z200 sensor

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
