61A-W0078-A4 Yamaha Impeller Repair Kit | Genuine OEM Yamaha Outboard Part

🔧 Product Description

Genuine Yamaha Water Pump / Impeller Repair Kit - Part Number: 61A-W0078-A4-00

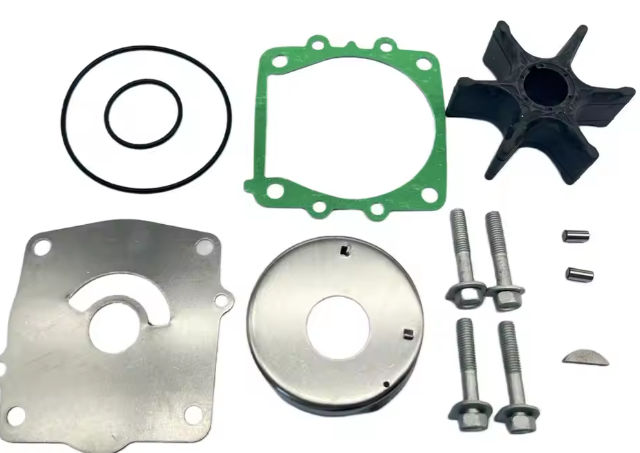

A genuine Yamaha OEM water pump repair kit used for Yamaha outboard lower-unit cooling-system service. This kit includes the impeller, cartridge insert, gaskets, O-rings, dowels, bolts and woodruff key required for a full water pump service on compatible Yamaha outboards.

⚙️ Key Features

• Genuine Yamaha OEM impeller repair kit

• Correct Yamaha part number 61A-W0078-A4-00

• Complete water pump service kit

• Includes Yamaha cartridge insert 61A-44322-02-00

• Used on selected Yamaha 150HP to 300HP two-stroke, HPDI and four-stroke outboards

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 61A-W0078-A4-00 later Yamaha water pump repair kit reference

• 61A-W0078-A3-00 related earlier Yamaha water pump repair kit reference

• 61A-W0078-A2-00 related earlier Yamaha water pump repair kit reference

OEM / Related Numbers:

• 61A-W0078-A4-00

• 61A-W0078-A4

• 61AW0078A400

• 61AW0078A4

• 61A-W0078-A3-00

• 61A-W0078-A3

• 61A-W0078-A2-00

• 61A-W0078-A2

Included / Related Kit Components:

• 61A-44322-02-00 Cartridge Insert

• 6E5-44352-01-00 Impeller

• 6G5-44323-01-00 Cartridge Outer Plate

• 6E5-44315-A0-00 Water Pump Gasket

• 93210-86M38-00 O-Ring

• 93210-37M67-00 O-Ring

• 93606-12019-00 Dowel Pins

• 90119-08M14-00 Bolts with Washers

• 90280-04M05-00 Woodruff Key

Aftermarket / Verified Equivalents:

• Sierra: 18-3396-1

• Aftermarket reference: 61A-W0078-A4

• Aftermarket reference: 61A-W0078-A3

• Aftermarket reference: 61A-W0078-A2

• Yamaha 61A water pump repair kit replacement family with impeller and cartridge insert

• Aftermarket kit family including water pump housing 61A-44311-01 where supplied

• Aftermarket component cross references include 61A-44322-02 cartridge insert and 6E5-44352-01 impeller

🚤 Compatibility

Commonly used on:

• Yamaha high-output outboard water pump assemblies

• Yamaha 61A-series impeller and water pump repair systems

Typically suits:

• Engine models:

• Yamaha F150 four-stroke water pump service applications

• Yamaha F175 four-stroke water pump service applications

• Yamaha F200 four-stroke water pump service applications

• Yamaha F225 four-stroke water pump service applications

• Yamaha F250 four-stroke water pump service applications

• Yamaha 150HP two-stroke water pump service applications where 61A-W0078-A4 is specified

• Yamaha 175HP two-stroke water pump service applications where specified

• Yamaha 200HP two-stroke and HPDI water pump service applications where specified

• Yamaha 225HP two-stroke / HPDI / four-stroke water pump service applications where specified

• Yamaha 250HP two-stroke / HPDI / four-stroke water pump service applications where specified

• Yamaha VZ / VX / SX / LX / Z-series outboards using the 61A-W0078-A4 water pump kit

• Yamaha 300HP applications where the water pump diagram specifies 61A-W0078-A4

• HP Range: commonly 150HP - 300HP where specified

• Engine Type: Yamaha two-stroke, HPDI and four-stroke outboard lower-unit water pump assembly

• Year Range: model-specific Yamaha 61A-W0078-A4 water pump kit applications

• Kit Type: Complete water pump / impeller repair kit

🔌 Function

The water pump repair kit restores the lower-unit cooling pump assembly. The impeller draws water from the intake, the insert cup and plate provide the pump chamber surfaces, and the gaskets / O-rings seal the assembly so cooling water can be delivered to the engine.

Common signs of failure or service need:

• Weak tell-tale water flow

• Engine overheating or temperature alarm

• Impeller blades cracked, missing or permanently bent

• Pump housing or insert cup scored from sand or debris

• Water pump service due at maintenance interval

• Dry-running damage to impeller or cup

• Poor cooling pressure at idle or cruise

• Lower unit removed for scheduled cooling-system service

📦 Condition

• Genuine Yamaha part

• Brand new

• Supplied in original or equivalent packaging
