61A-W0093-01 Aftermarket Yamaha Carburettor Kit 225C/CET, 250B, 250A/AET (1992-06) | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket Yamaha V6 carburettor repair kit - Replacement Part Number: 61A-W0093-01

A complete service kit for one carburettor on selected Yamaha 225HP and 250HP 3.1L carburetted V6 outboards. It renews the needle valve, float-control parts, drain valve, adjustment screw, gaskets and O-rings. One kit is required for each carburettor being rebuilt.

⚙️ Key Features

• Exact OEM service-component numbers listed below

• Designed for Yamaha 225HP and 250HP 3.1L carburetted V6 engines

• Cross-references to Sierra, Mallory and Recmar kits

• Services one carburettor

• Supports accurate float and mixture restoration

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 61A-W0093-01 → Revised service reference related to 61A-W0093-00

OEM / Related Numbers:

• 61A-W0093-01

• 61A-W0093-00

Aftermarket / Verified Equivalents:

• Sierra: 18-7772

• Mallory: 9-37507

• Recmar: REC61A-W0093-01

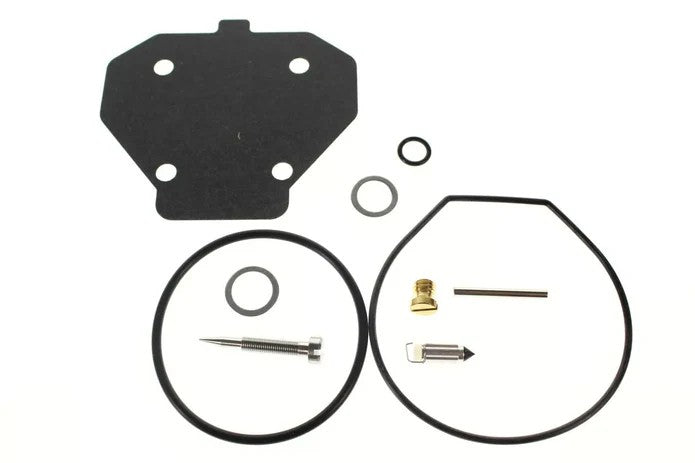

Included Components:

• 1 × Clip - Part Number: 6E5-14159-01-00

• 1 × O-ring - Part Number: 93210-50MA8-00

• 1 × Gasket - Part Number: 61A-14198-00-00

• 1 × Needle valve - Part Number: 6E5-14546-00-00

• 1 × Float pin - Part Number: 61A-14386-00-00

• 1 × Drain valve - Part Number: 61A-14394-00-00

• 1 × Float-chamber gasket - Part Number: 61A-14384-00-00

• 1 × Air-adjusting screw - Part Number: 6E5-14323-03-00

• 1 × Gasket - Part Number: 61A-14995-00-00

• 1 × Gasket - Part Number: 61A-14959-00-00

• 1 × O-ring - Part Number: 61A-14561-00-00

🚤 Compatibility

Commonly used on:

• Yamaha carburetted outboards using the listed OEM carburettor service kit

Typically suits:

• Engine models:

• Yamaha 225C and 225CET

• Yamaha S225 carburetted 3.1L

• Yamaha 250A and 250AET

• Yamaha 250B

• Yamaha S250 carburetted 3.1L

• HP Range: 225HP - 250HP

• Engine Type: Carburetted 3.1L V6 two-stroke outboard

• Year Range: Approximately 1990 - 2006 by global model code; direct North American carburetted applications are concentrated in the 1990s

• Quantity Required: One kit per carburettor

🔌 Function

The kit renews the carburettor's float-control, inlet-valve and sealing components. Correct rebuilding restores fuel-bowl level, prevents air and fuel leaks and stabilises the mixture from starting through full-load operation.

Common signs of failure:

• Hard starting or excessive choke/enrichment required

• Rough idle, hunting or repeated low-speed stalling

• Hesitation, flat spots or intake backfire during acceleration

• Fuel leakage, flooding or an incorrect float-bowl level

• Lean surging, reduced power or fuel starvation under load

• Rich running, smoke, spark-plug fouling or excessive fuel consumption

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
