61N-24560-10 Yamaha Fuel Filter | Genuine OEM Yamaha Outboard Part

🔧 Product Description

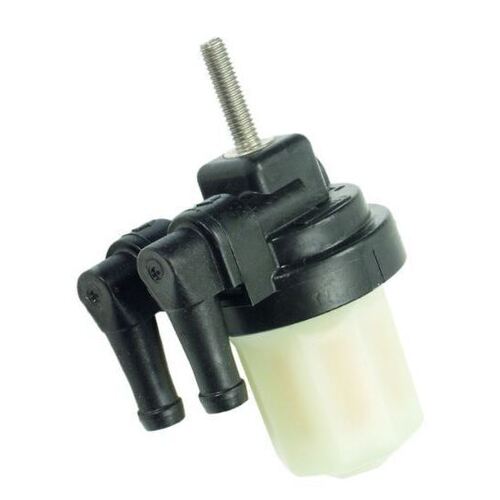

Genuine Yamaha Fuel Filter Assembly - Part Number: 61N-24560-10-00

A genuine Yamaha OEM in-line fuel filter assembly used on Yamaha outboard fuel systems. This filter helps remove debris, varnish and tank contamination before fuel reaches the carburettor, low-pressure fuel pump or fuel-delivery system.

⚙️ Key Features

• Genuine Yamaha OEM fuel filter assembly
• Correct Yamaha part number 61N-24560-10-00
• 6mm / 1/4 inch in-line fuel filter family
• Used on Yamaha 2-stroke and 4-stroke outboard fuel systems
• Helps protect carburettors, fuel pumps and fuel passages from contamination

🚤 Compatibility

Commonly used on

• Yamaha outboard in-line fuel filter systems
• Yamaha small and mid-range 2-stroke and 4-stroke fuel systems using the 61N / 655 filter family

Typically suits

• Engine models:
• Yamaha 9.9HP 2-stroke and 4-stroke fuel filter applications
• Yamaha 15HP 2-stroke and 4-stroke fuel filter applications
• Yamaha 20HP fuel filter applications where 61N-24560-10 is specified
• Yamaha 25HP fuel filter applications where 61N-24560-10 is specified
• Yamaha 30HP fuel filter applications where specified
• Yamaha 40HP fuel filter applications where specified
• Yamaha 50HP fuel filter applications where specified
• Yamaha 60HP fuel filter applications where specified
• Yamaha 70HP fuel filter applications where specified
• Yamaha 90HP fuel filter applications where specified
• Yamaha B90 / C25 / C30 / C40 / C50 / C55 fuel filter applications using the 61N / 655 filter family
• Selected Yamaha 115HP to 225HP two-stroke fuel-filter applications where the parts diagram lists 61N-24560-10
• HP Range: commonly 9.9HP - 90HP, with selected larger two-stroke applications where specified
• Engine Type: Yamaha 2-stroke and 4-stroke outboard fuel system
• Year Range: model-specific 61N / 655 fuel filter applications
• Component Type: In-line fuel filter assembly

🔌 Function

The fuel filter traps debris, varnish, tank contamination and fine particles before they enter the fuel pump, carburettor or fuel-delivery system.

⚠️ Common Signs of Failure

• Hard starting
• Poor idle quality
• Engine hesitation under throttle
• Fuel starvation at higher RPM
• Visible debris inside filter body
• Restricted fuel flow
• Filter due at scheduled service interval

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 61N-24560-10-00 later Yamaha fuel filter assembly reference
• 61N-24560-00-00 related earlier Yamaha fuel filter assembly reference
• 655-24560-60-00 related Yamaha fuel filter assembly reference
• 655-24560-01-00 related Yamaha fuel filter assembly reference
• 655-24560-00-00 earlier Yamaha fuel filter assembly reference

OEM / Related Numbers

• 61N-24560-10-00
• 61N-24560-10
• 61N245601000
• 61N2456010
• 61N-24560-00-00
• 61N-24560-00
• 655-24560-60-00
• 655-24560-60
• 655-24560-01-00
• 655-24560-01
• 655-24560-00-00
• 655-24560-00
• Mercury: 35-879884T

Aftermarket / Verified Equivalents

• Sierra: 18-79910
• Mallory: 9-37965
• Recmar / PAF: PAF15-07080000
• Aftermarket reference: 61N-24560-00 / 61N-24560-10
• Aftermarket reference: 655-24560-00 / 655-24560-01 / 655-24560-60
• 18 micron 1/4 inch barb in-line fuel filter replacement family
• Yamaha / Mercury-style replacement reference: 35-879884T

📦 Condition

• Genuine Yamaha part
• Brand new
• Supplied in original or equivalent packaging
