61N-W0093-00 Aftermarket Yamaha Carburettor Kit 25V, B, E30H, 30G, 30H (1998-2021) | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket Yamaha 25HP/30HP carburettor repair kit - Replacement Part Number: 61N-W0093-00

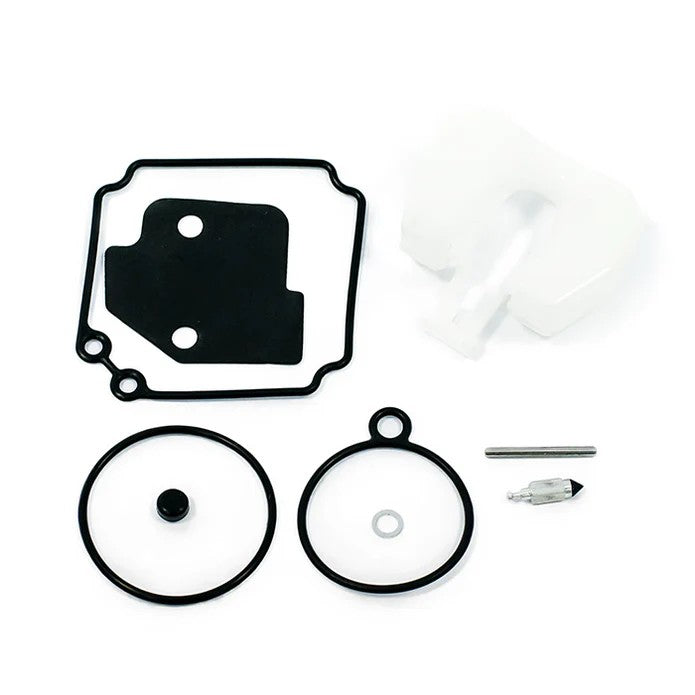

A complete repair kit for selected Yamaha 25HP and 30HP twin-cylinder two-stroke carburettors. The kit includes the float, needle valve, float pin, bowl gaskets, plug and O-ring under their individual Yamaha service numbers.

⚙️ Key Features

• Exact OEM service-component numbers listed below

• Includes the carburettor float

• Suitable for selected 25HP and 30HP two-stroke engines

• Cross-references to Sierra, Mallory and Recmar kits

• Services one carburettor

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 61N-W0093-00 (primary Yamaha service reference)

OEM / Related Numbers:

• 61N-W0093-00

Aftermarket / Verified Equivalents:

• Sierra: 18-7737

• Mallory: 9-37508

• Recmar: REC61N-W0093-00

Included Components:

• 1 × Needle valve - Part Number: 62Y-14392-00-00

• 1 × Float pin - Part Number: 6E5-14386-01-00

• 1 × Float - Part Number: 6L2-14385-00-00

• 1 × Gasket - Part Number: 6L2-14399-00-00

• 1 × Plug - Part Number: 50M-14355-00-00

• 1 × Gasket - Part Number: 6L2-14398-00-00

• 1 × Float-chamber gasket - Part Number: 6L2-14384-00-00

• 1 × Gasket - Part Number: 61N-14198-00-00

• 1 × O-ring - Part Number: 93210-40659-00

🚤 Compatibility

Commonly used on:

• Yamaha carburetted outboards using the listed OEM carburettor service kit

Typically suits:

• Engine models:

• Yamaha 25V and 25B global-market model families

• Yamaha E30H

• Yamaha 30G and 30H

• Yamaha C30 twin-cylinder 1994-1996 applications

• HP Range: 25HP - 30HP

• Engine Type: Carburetted twin-cylinder two-stroke outboard

• Year Range: Global-market applications approximately 1994 - 2021 where 61N-W0093-00 is specified

• Quantity Required: One kit per carburettor

🔌 Function

The kit renews the carburettor's float-control, inlet-valve and sealing components. Correct rebuilding restores fuel-bowl level, prevents air and fuel leaks and stabilises the mixture from starting through full-load operation.

Common signs of failure:

• Hard starting or excessive choke/enrichment required

• Rough idle, hunting or repeated low-speed stalling

• Hesitation, flat spots or intake backfire during acceleration

• Fuel leakage, flooding or an incorrect float-bowl level

• Lean surging, reduced power or fuel starvation under load

• Rich running, smoke, spark-plug fouling or excessive fuel consumption

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
