62Y-43880-02 Aftermarket Yamaha Power Trim Motor | Sawley's Select Marine Parts

🔧 Product Description

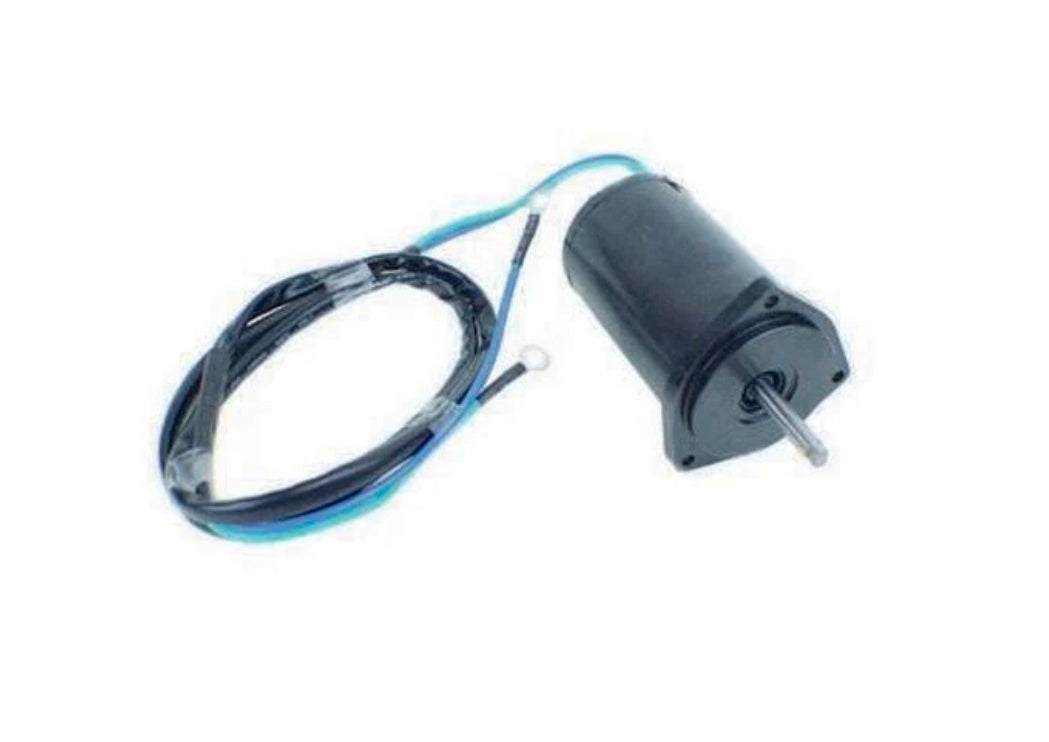

Aftermarket replacement Yamaha 40HP/50HP Long-Shaft Trim Motor - Replaces Part Number: 62Y-43880-02

New aftermarket reversible trim motor replacing Yamaha 62Y-43880-02. It is supplied as the motor-only replacement for the matching Yamaha hydraulic power trim unit.

⚙️ Key Features

• Direct replacement for the listed Yamaha motor number

• Two-wire reversible motor

• Three-bolt long-shaft motor configuration

• Marine corrosion-resistant motor housing

• Motor-to-pump seal renewed during installation

🧰 Kit / Assembly Contents

• 1 × Complete trim/tilt motor - P/N 62Y-43880-02

• 1 × Integrated electrical leads or connector

• 1 × Motor-to-pump seal - supplied according to manufacturer package

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 62Y-43880-02 (Yamaha OEM motor reference)

OEM / Related Numbers:

• 62Y-43880-01

• 69W-43880-00

• 69W-43880-09

• CS3-43880

Aftermarket / Verified Equivalents:

• ARCO: 6259

• Recmar: REC62Y-43880-02

🚤 Compatibility

Commonly used on:

• Yamaha outboard electric-hydraulic power trim systems

Typically suits:

• Engine / Drive models:

• 40H and 50H two-strokes

• F40, F50 and FT50 applications using the long-shaft 62Y/69W motor

• HP / Drive Range: 40HP - 50HP

• System Type: Outboard electric-hydraulic power trim motor

• Year Range: Model- and serial-dependent

• Serial / Component Identification: Confirm wire count, mounting-bolt pattern, drive-shaft length and connector before ordering.

🔌 Function

The reversible 12-volt trim motor drives the hydraulic pump in both directions so the outboard or sterndrive can be raised, lowered and trimmed under load.

Common signs of failure / service requirement:

• Trim or tilt does not operate in either direction

• Motor clicks, turns slowly or draws excessive current

• Intermittent operation caused by worn brushes or corroded wiring

• Pump works only after the motor is struck or cooled

• Water intrusion, corrosion or a burnt electrical smell

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
