63D-82563-11-00 Yamaha F40 Trim & Tilt Assy | Genuine Used Part

🔧 Product Description

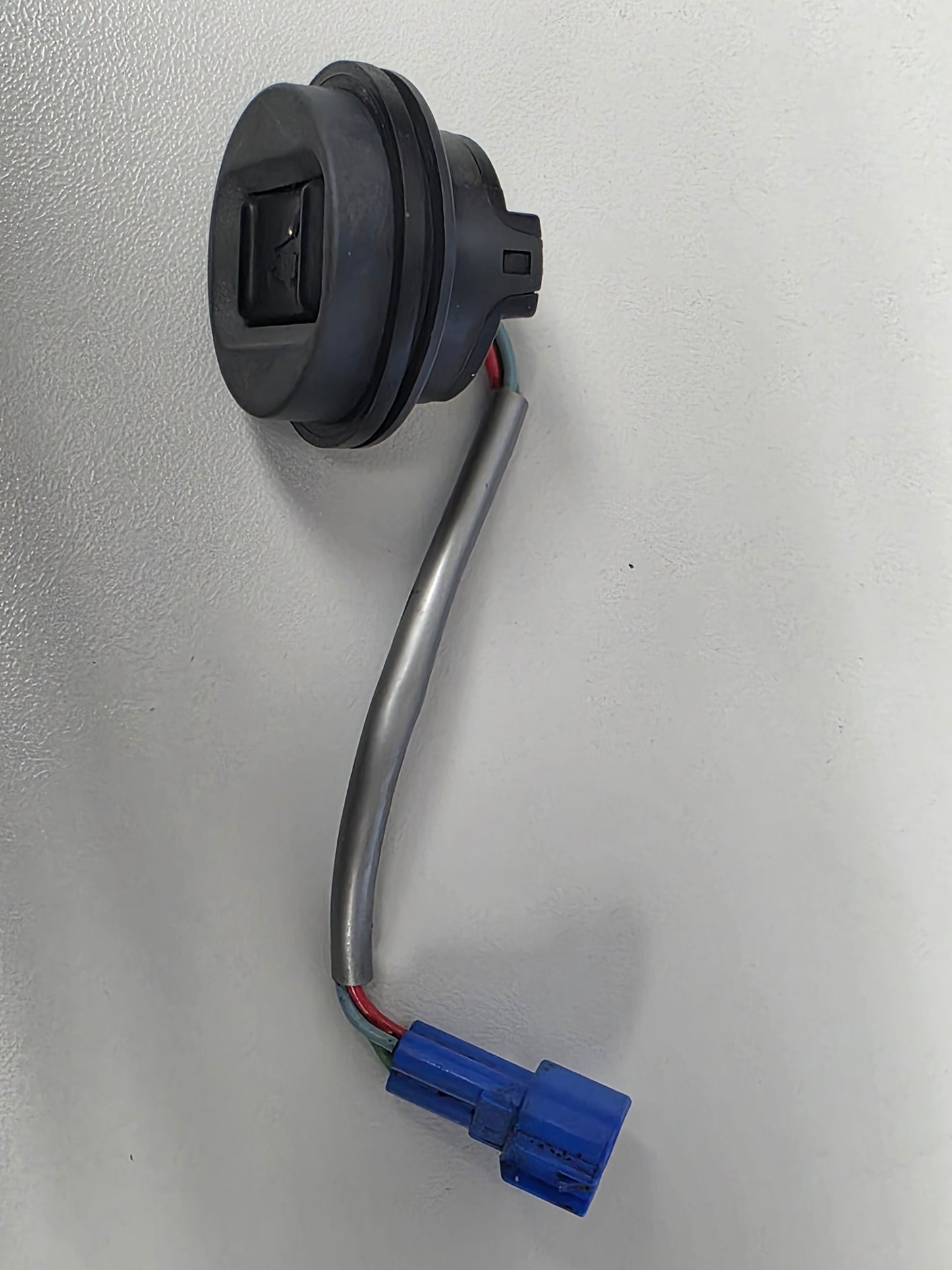

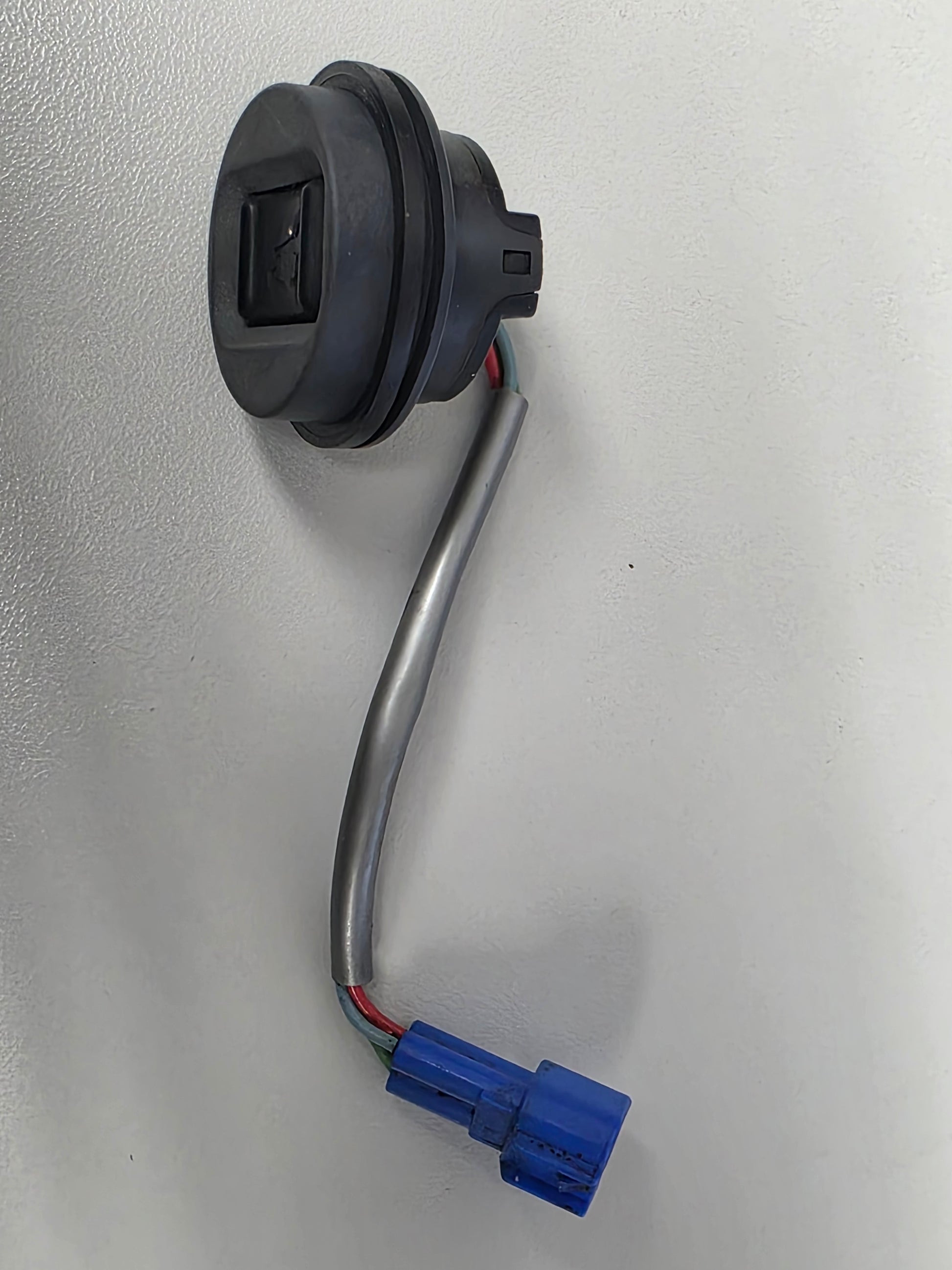

Genuine Yamaha Engine-Cowling Trim and Tilt Switch Assembly - Part Number: 63D-82563-11-00

A genuine Yamaha engine-mounted UP / DOWN trim switch for selected 30HP to 115HP outboards. The inventory title describes a trim and tilt assembly, but part number 63D-82563-11-00 identifies the cowling-mounted electrical switch used to command the power-trim relays.

⚙️ Key Features

• Genuine Yamaha OEM cowling trim switch
• Correct part number 63D-82563-11-00
• Supersedes 63D-82563-10-00

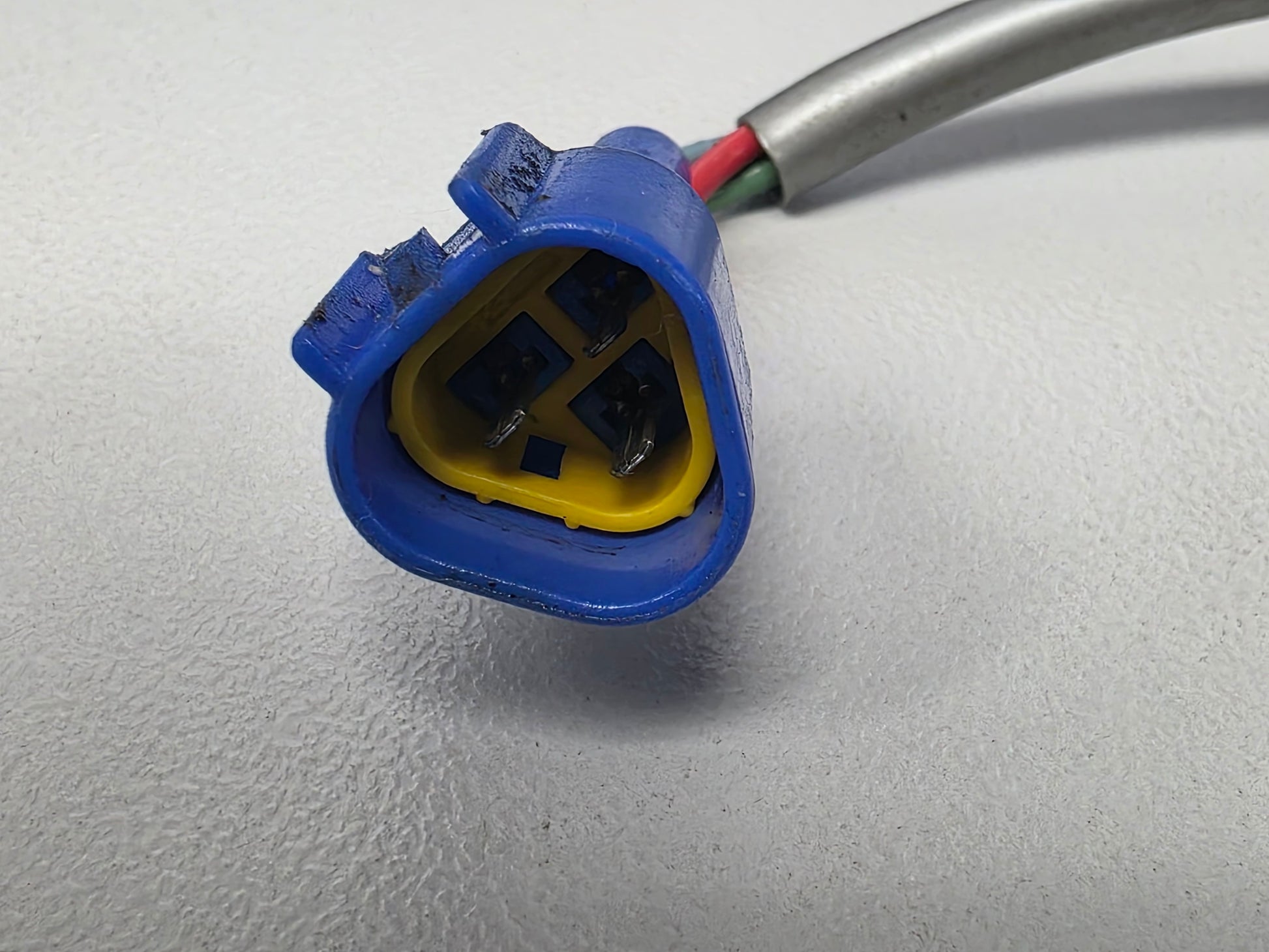

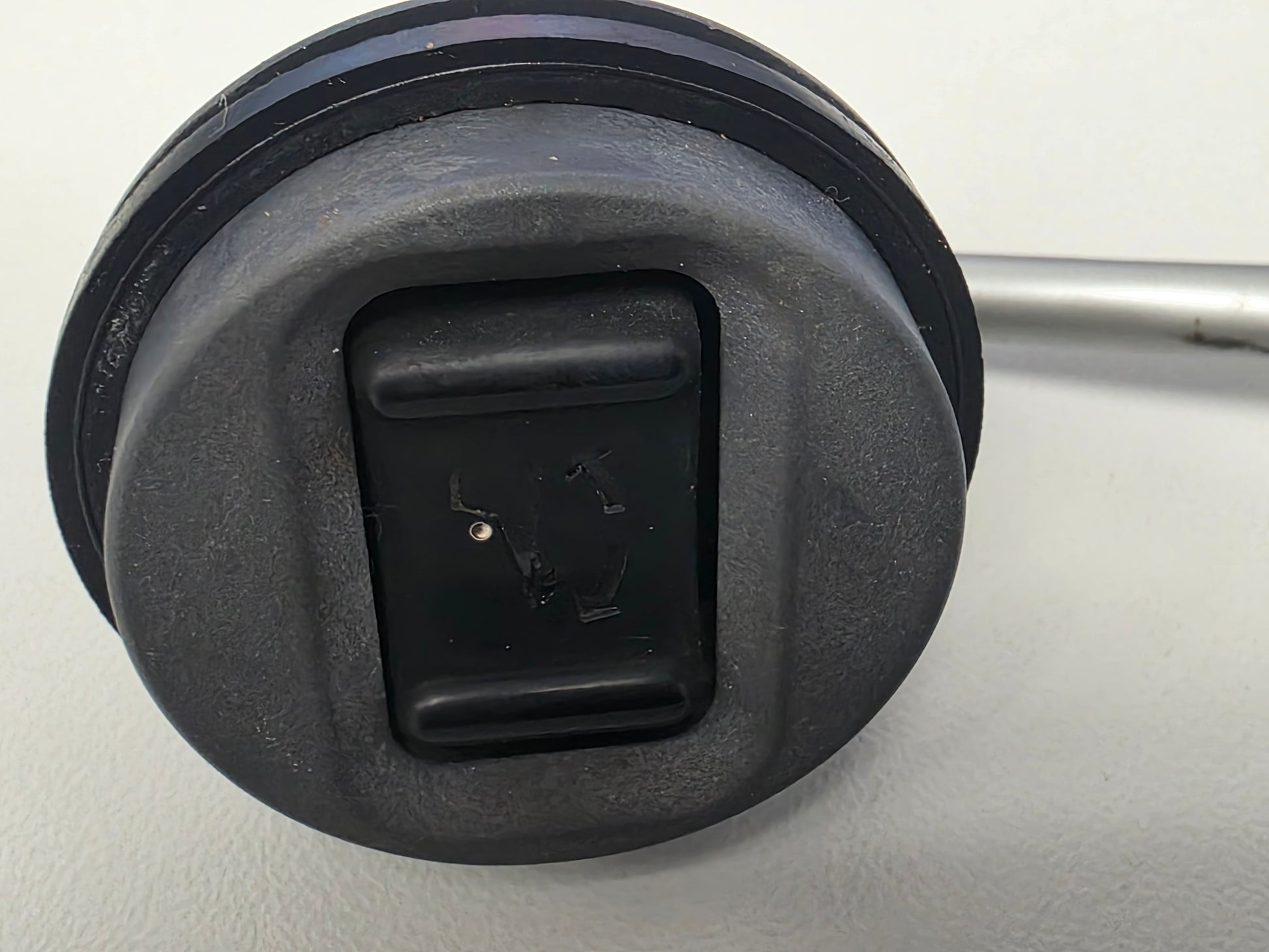

• Momentary UP / DOWN marine switch with moulded lead and connector
• Used on selected two-stroke and four-stroke Yamaha outboards

🚤 Compatibility

Commonly used on

• Yamaha lower-cowling and electrical control assemblies
• Outboards with engine-mounted local trim controls

Typically suits

• Engine models:
• Yamaha F30 / F30A / F30B
• Yamaha F40 / F40A / F40B / F40C / F40F
• Yamaha F50 / T50
• Yamaha F60 / T60
• Yamaha F70
• Yamaha F75 and F90 - including 2015-2017 model families
• Yamaha F100 and F115 applications whose electrical diagram specifies 63D-82563-11-00
• Representative 2007 F40TLR / F40EJR / F40MJH / F40MSH / F40MLH
• Later 2002-2021 Yamaha applications using the same connector and switch opening
• HP Range: Commonly 30HP - 115HP
• Engine Type: Yamaha two-stroke and four-stroke outboard with electric power trim
• Year Range: Approximately 2002-2021, dependent on engine family

🔌 Function

The switch sends low-current UP or DOWN commands to the trim relay circuit. The relays then reverse high-current power to the trim motor so the engine can be raised or lowered from the cowling.

⚠️ Common Signs of Failure

• No response when the switch is pressed
• Trim works from the helm but not from the engine
• Intermittent operation
• Water ingress or corroded contacts
• Cracked rubber boot
• Damaged wiring or connector pins

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 63D-82563-11-00 → Supersedes 63D-82563-10-00
• 63D-82563-10-00 earlier OEM trim-switch assembly

OEM / Related Numbers

• 63D-82563-11-00
• 63D825631100
• 63D-82563-10-00
• Yamaha engine-cowling UP / DOWN trim switch
• Related 6H1 / 6C5 power-trim relay and harness references

Aftermarket / Verified Equivalents

• Rareelectrical: direct replacement trim and tilt switch for 63D-82563-11-00
• Aftermarket Yamaha cowling trim switch assemblies cross-referencing 63D825631100

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
