• 63D-W0078-03 Yamaha Water Pump Repair Kit | Genuine OEM Yamaha Outboard Part
1 1

63D-W0078-03 Yamaha Water Pump Repair Kit | Genuine OEM Yamaha Outboard Part

63D-W0078-03 Yamaha Water Pump Repair Kit | Genuine OEM Yamaha Outboard Part

$124.74 AUD
$124.74 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

Genuine Yamaha Water Pump Repair Kit - Part Number: 63D-W0078-03-00

A genuine Yamaha OEM water pump repair kit used for Yamaha 40HP, 50HP and 60HP lower-unit cooling-system service. This kit includes the main water pump service components required to restore pump pressure and cooling-water flow.

⚙️ Key Features

  • Genuine Yamaha OEM water pump repair kit
  • Correct Yamaha part number 63D-W0078-03-00
  • Complete water pump service kit

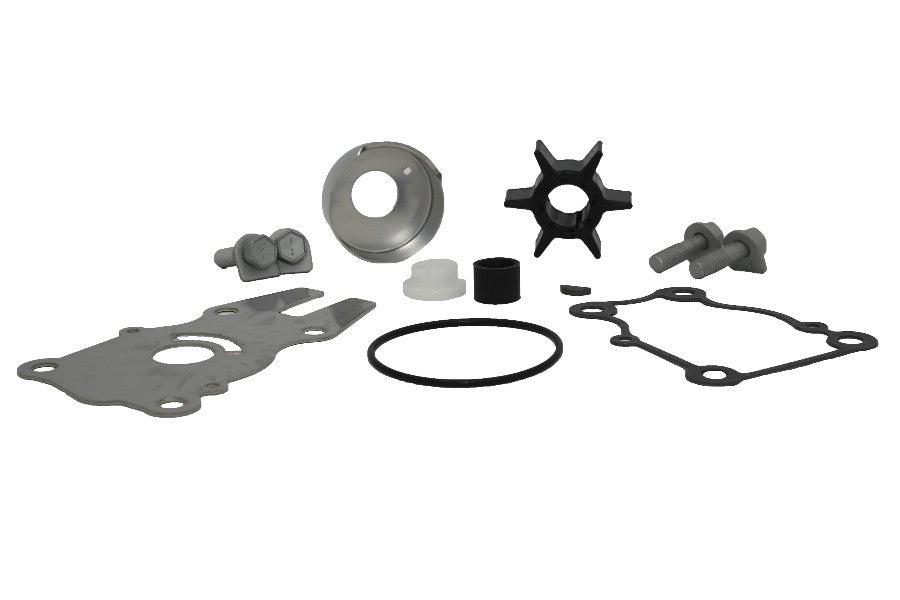

  • Includes cartridge insert, gasket, outer plate, impeller, O-ring, damper, bolts and woodruff key
  • Used on Yamaha 40HP to 60HP water pump assemblies where specified

🚤 Compatibility

Commonly used on

  • Yamaha 40HP to 60HP lower-unit water pump assemblies
  • Yamaha 63D-series water pump service applications

Typically suits

  • Engine models:
  • Yamaha C40 two-stroke water pump service applications
  • Yamaha P40 two-stroke water pump service applications
  • Yamaha 40V / 40Y water pump service applications
  • Yamaha F40A / F40C / F40D / F40H four-stroke water pump service applications
  • Yamaha 50H water pump service applications
  • Yamaha F50A / F50D / F50F / F50H four-stroke water pump service applications
  • Yamaha FT50B / FT50C high-thrust water pump service applications
  • Yamaha F60A / F60B / F60C / F60F four-stroke water pump service applications
  • Yamaha T60 / FT60 high-thrust water pump service applications
  • HP Range: commonly 40HP - 60HP where specified
  • Engine Type: Yamaha outboard lower-unit water pump assembly
  • Kit Type: Complete water pump / impeller repair kit

🔌 Function

The water pump repair kit restores cooling-water pump performance by replacing the impeller, insert, gasket and related sealing components that create water pressure and flow.

⚠️ Common Signs of Failure

  • Weak tell-tale stream
  • Engine overheating
  • Temperature alarm
  • Impeller blades cracked, missing or permanently bent
  • Pump insert scored from sand or debris
  • Pump damaged from dry running
  • Water pump service due at maintenance interval
  • Poor cooling pressure at idle or cruise

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 63D-W0078-03-00 later Yamaha water pump repair kit reference
  • 63D-W0078-01-00 related earlier Yamaha water pump repair kit reference
  • 63D-W0078-00-00 related earlier Yamaha water pump repair kit reference

OEM / Related Numbers

  • 63D-W0078-03-00
  • 63D-W0078-03
  • 63DW00780300
  • 63DW007803
  • 63D-W0078-01-00
  • 63D-W0078-01
  • 63D-W0078-00-00
  • 63D-W0078-00

Included / Related Kit Components

  • 63D-44312-00-00 Housing Cover
  • 63D-44316-00-00 Water Pump Gasket
  • 63D-44322-00-00 Cartridge Insert
  • 63D-44323-00-00 Outer Plate Cartridge
  • 663-44366-01-00 Water Seal Damper
  • 6H3-44352-00-00 Impeller
  • 90119-08185-00 Bolts with Washer
  • 90280-03024-00 Woodruff Key
  • 93210-59MG7-00 O-Ring

Aftermarket / Verified Equivalents

  • Sierra: 18-3434 water pump repair kit without housing
  • Sierra: 18-3415 water pump kit with housing
  • Recmar: REC63D-W0078-01
  • SeaSierra: 63DW0078 kit family
  • Aftermarket reference: HJ YHJB-63D
  • Aftermarket reference: 63D-W0078-03 / 63D-W0078-01 / 63D-W0078-00
  • Aftermarket water pump kit with housing for Yamaha 40HP / 50HP / 60HP outboards

📦 Condition

  • Genuine Yamaha part
  • Brand new
  • Supplied in original or equivalent packaging
