63P-11119-10-00 68F-11119-00-00 Yamaha Z200 Engine Hanger | Genuine Used Part

🔧 Product Description

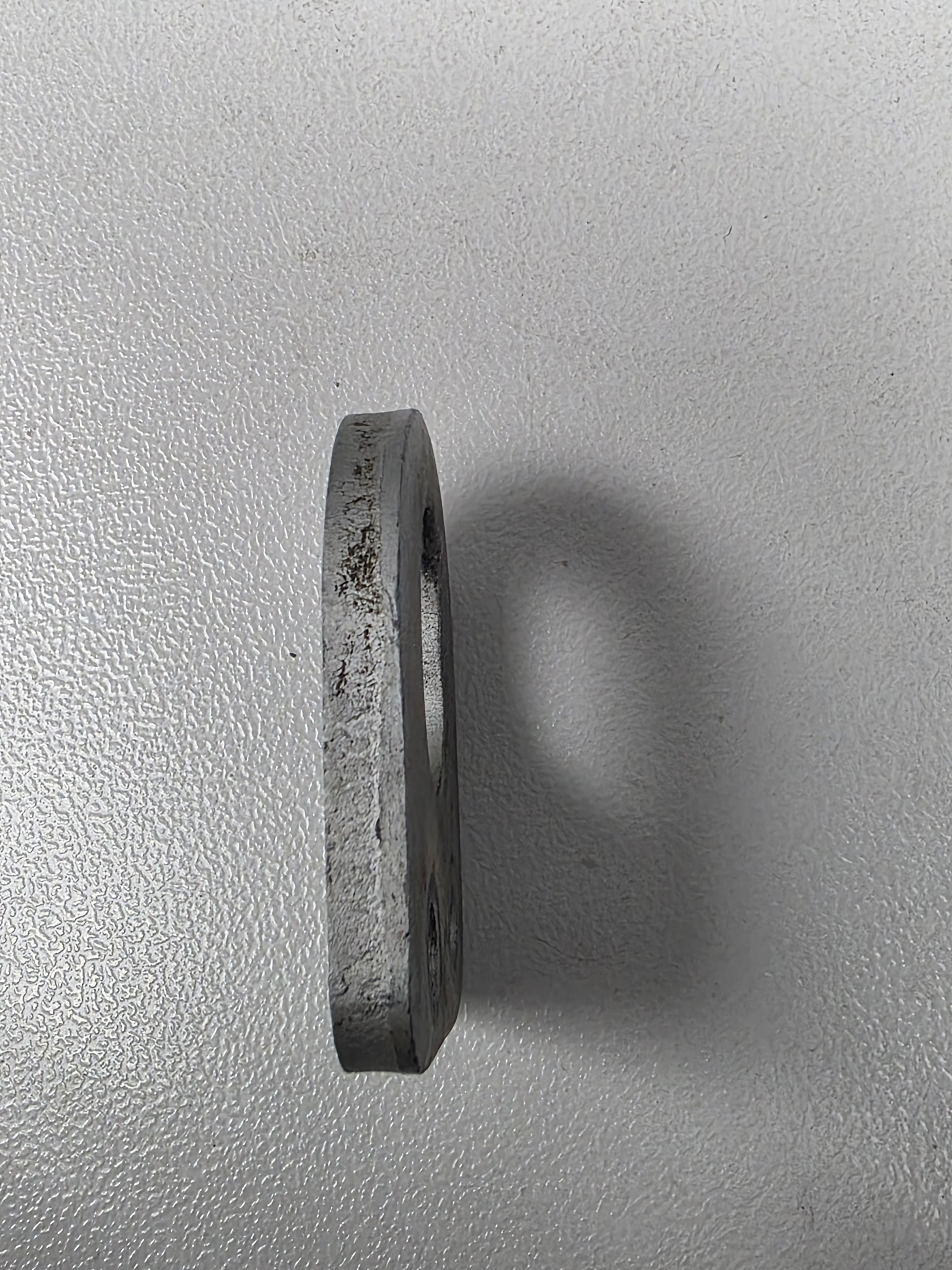

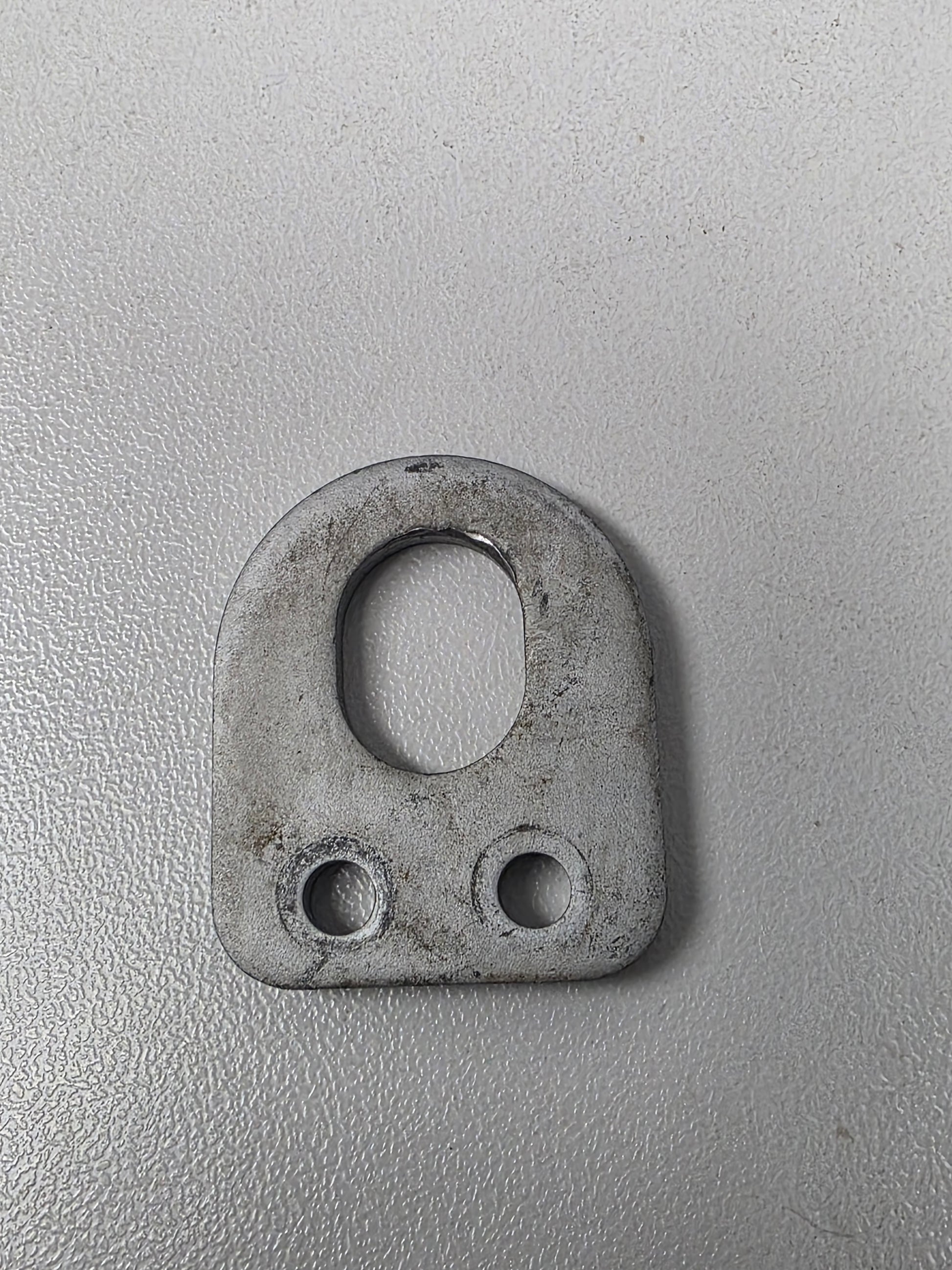

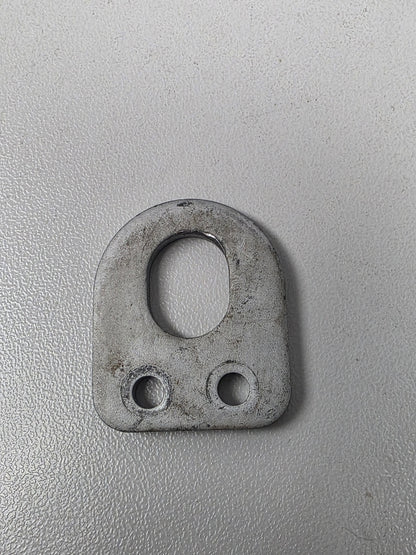

Genuine Yamaha Engine Lifting Hanger - Part Numbers: 63P-11119-10-00 / 68F-11119-00-00

A genuine used Yamaha engine hanger or lifting eye for selected high-output four-stroke and HPDI outboards. The hanger bolts to the cylinder block or crankcase and provides the approved lifting point for powerhead or complete-engine handling. Yamaha 63P-11119-10-00 supersedes 68F-11119-00-00.

⚙️ Key Features

• Genuine Yamaha Marine engine hanger
• Current reference 63P-11119-10-00
• Supersedes 68F-11119-00-00
• Factory lifting point for engine-handling operations
• Used on selected V6 HPDI and large four-stroke engines

🚤 Compatibility

Commonly used on

• Yamaha Z and VZ HPDI V6 outboards
• Yamaha Z200 and related 150HP-300HP HPDI engines
• Selected Yamaha F150 and later four-stroke platforms using the 63P service hanger
• Some Yamaha WaveRunner engines share the hanger reference but mounting must be confirmed

Typically suits

• Confirmed examples include Yamaha Z200 and Z300 HPDI engines
• 68F-prefix applications include Z150 / Z175 / Z200 / LZ200 and larger HPDI models where listed
• 63P-prefix applications include selected F150-family four-strokes
• Verify the cylinder-block parts diagram and mounting-bolt length
• HP Range: Approximately 150HP - 300HP
• Engine Type: Yamaha V6 HPDI two-stroke and selected four-stroke engines
• Year Range: Approximately early 2000s onward
• Safety Requirement: Use only with the correct lifting fixture and all specified mounting bolts

🔌 Function

The hanger provides a reinforced attachment point for lifting the engine or powerhead without loading fragile castings or ancillary components.

⚠️ Common Signs of Failure

• Cracks around the bolt holes
• Bent lifting loop
• Corrosion reducing section thickness
• Damaged mounting threads or bolts
• Evidence of overloading or incorrect lifting

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 63P-11119-10-00 → Supersedes 68F-11119-00-00
• 68F-11119-00-00 earlier engine-hanger reference
• The later 63P hanger is Yamaha's service replacement where catalogued

OEM / Related Numbers

• 63P-11119-10-00
• 63P111191000
• 68F-11119-00-00
• 68F111190000
• Related hanger bolts are selected by cylinder-block diagram
• Do not substitute an unverified fabricated lifting eye

Aftermarket / Verified Equivalents

• No direct aftermarket hanger verified
• Used genuine Yamaha 63P or 68F hangers are the correct replacement
• Universal lifting eyes are not a direct equivalent because thread engagement and load rating are critical

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
