63P-43800-23-00 Yamaha Power Trim & Tilt | Genuine Used Part

🔧 Product Description

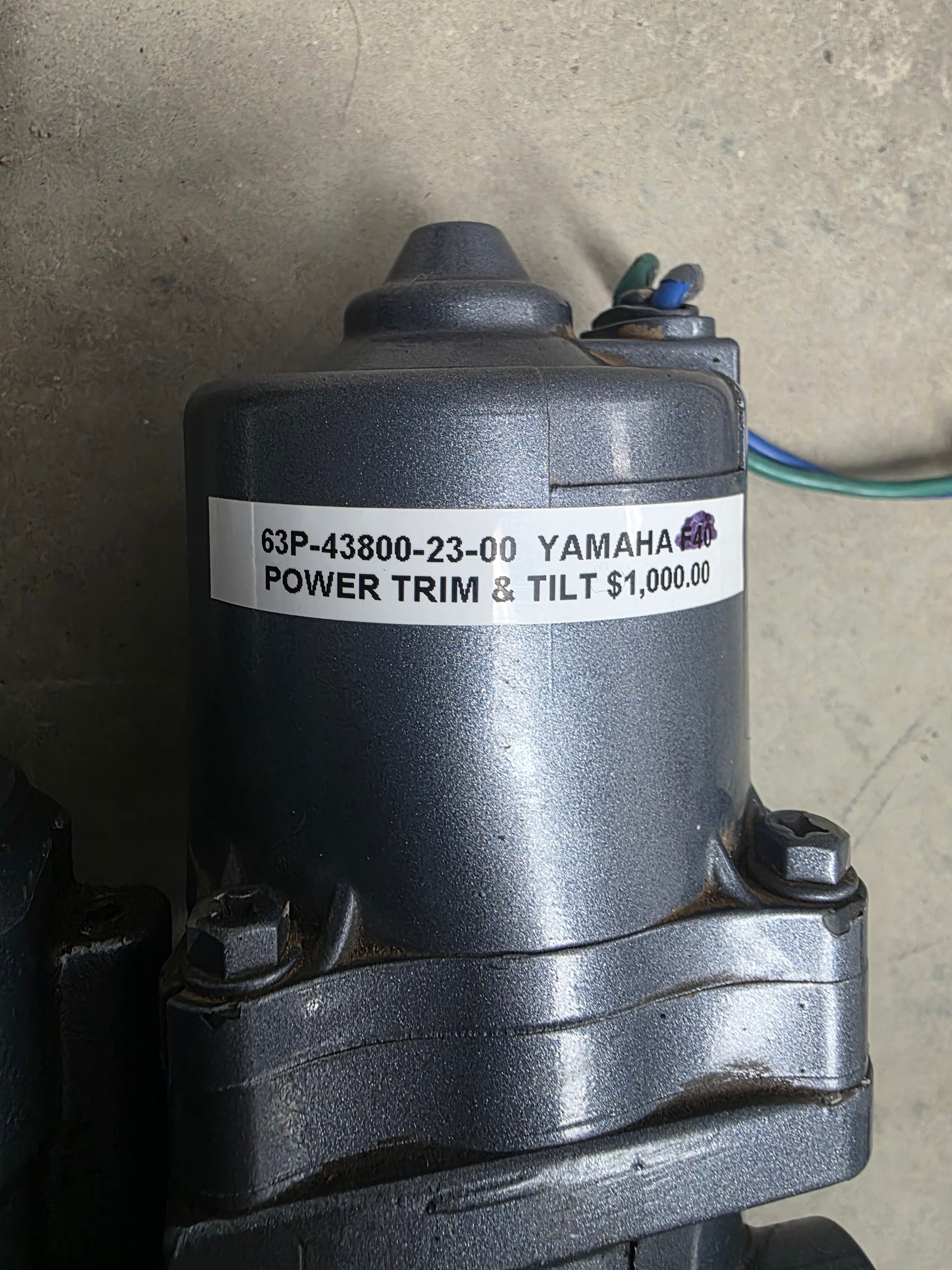

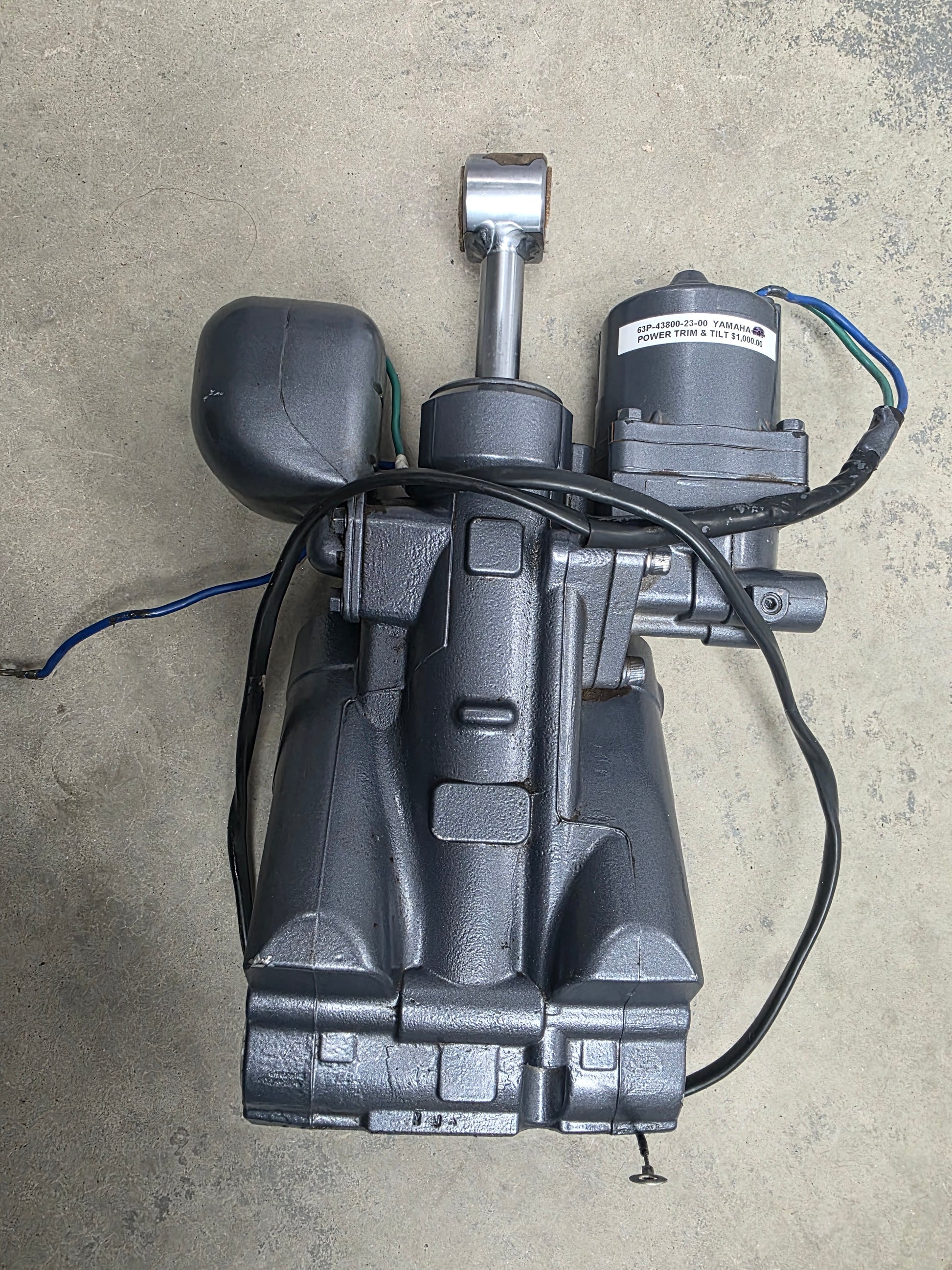

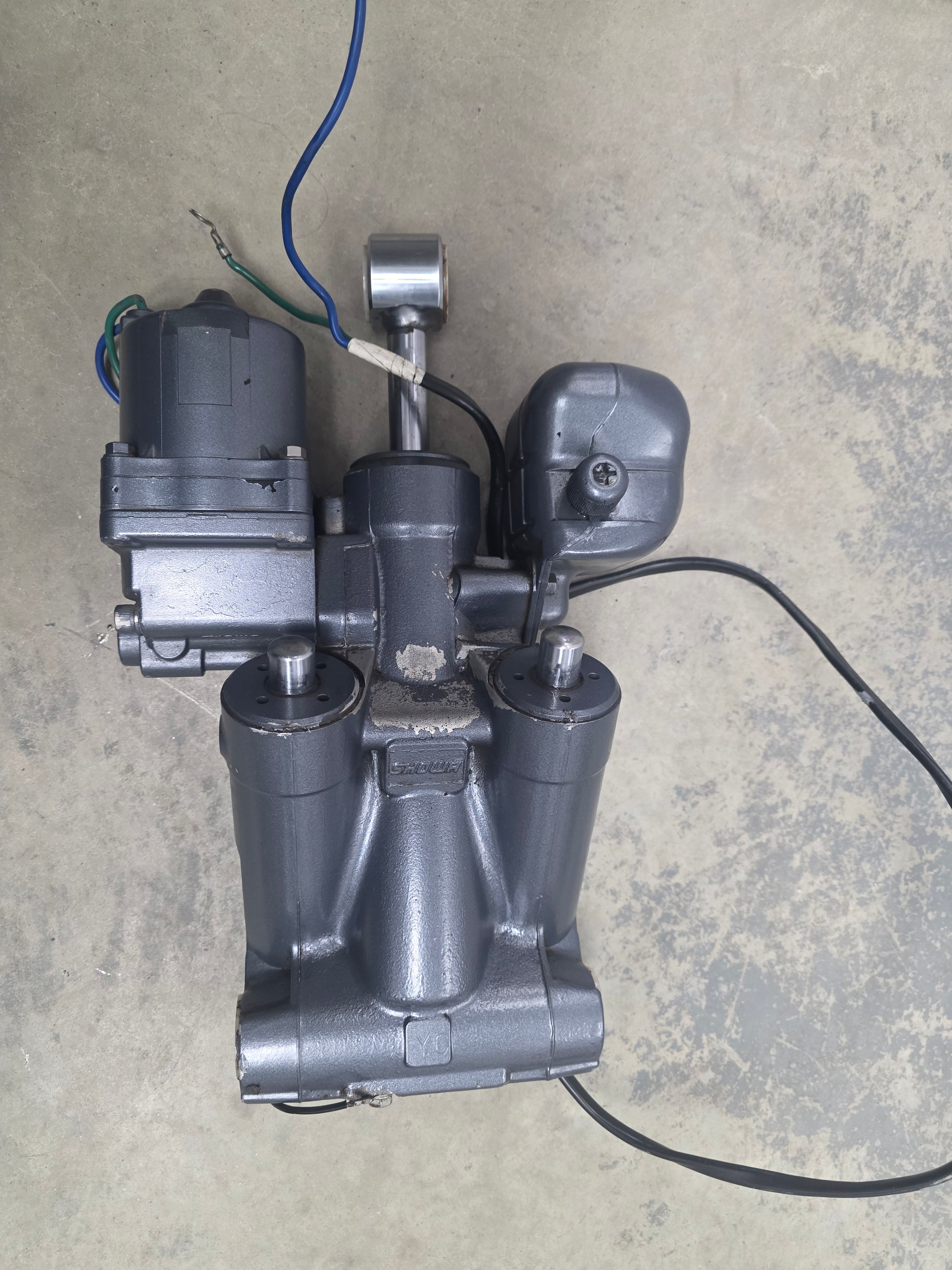

Genuine Yamaha Showa Power Trim and Tilt Assembly - Part Number: 63P-43800-23-00

A genuine Yamaha Showa three-ram hydraulic trim assembly used on F150 four-strokes and selected VX / VZ HPDI V6 outboards. This later 63P unit appears across model years extending from early HPDI applications into later F150 production.

⚙️ Key Features

• Genuine Yamaha OEM Showa power-trim assembly
• Correct service number 63P-43800-23-00
• Three-ram hydraulic tilt and running-trim design
• Used on F150 and selected 150HP to 225HP HPDI platforms
• Compatible with the corresponding 63P trim motor, valve body and cylinder service parts

🚤 Compatibility

Commonly used on

• Yamaha F150 and V6 HPDI transom assemblies
• Showa three-ram hydraulic systems using the 63P power unit

Typically suits

• Engine models:
• Yamaha VX200TLRB / VX225TLRB - 2003
• Yamaha F150TLRD / F150TXRD / LF150TXRD - 2005
• Yamaha F150TLR / F150TXR / LF150TXR - 2006-2009
• Yamaha F150LA / F150XA / F150JA - 2013
• Yamaha VZ150, VZ175, VZ200 and VZ225 applications whose trim diagram specifies 63P-43800-23-00
• Yamaha F150 and LF150 serial-controlled applications using the same Showa housing and hose configuration
• HP Range: Commonly 150HP - 225HP
• Engine Type: Yamaha four-stroke F150 and V6 HPDI two-stroke outboard
• Year Range: Approximately 2003-2013

🔌 Function

The hydraulic unit raises and lowers the engine and provides fine trim adjustment under load. Internal check valves hold pressure when the trim switch is released.

⚠️ Common Signs of Failure

• Slow or no hydraulic movement
• Engine settles after trimming
• Motor runs but pump does not build pressure
• Fluid leakage
• One trim ram moves unevenly
• Pitted ram rods
• Faulty manual release valve

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 63P-43800-23-00 later complete 63P power-trim assembly
• 63P-43800-24-00 alternate later F150 service assembly
• 63P-43800-00-4D earlier related Showa assembly

OEM / Related Numbers

• 63P-43800-23-00
• 63P-43800-24-00
• 63P-43800-00-4D
• 63P-43880-22 related trim motor
• 64E-43820-00 piston subassembly
• 64E-43822-series seals
• Showa 63P hydraulic housing family

Aftermarket / Verified Equivalents

• Aftermarket complete replacement units sold for 63P-43800-23-00
• Professional Showa rebuild service
• Aftermarket 63P trim motors and full hydraulic seal kits

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
