63P-43880-22 Aftermarket Yamaha Trim Motor | Sawley's Select Marine Parts

🔧 Product Description

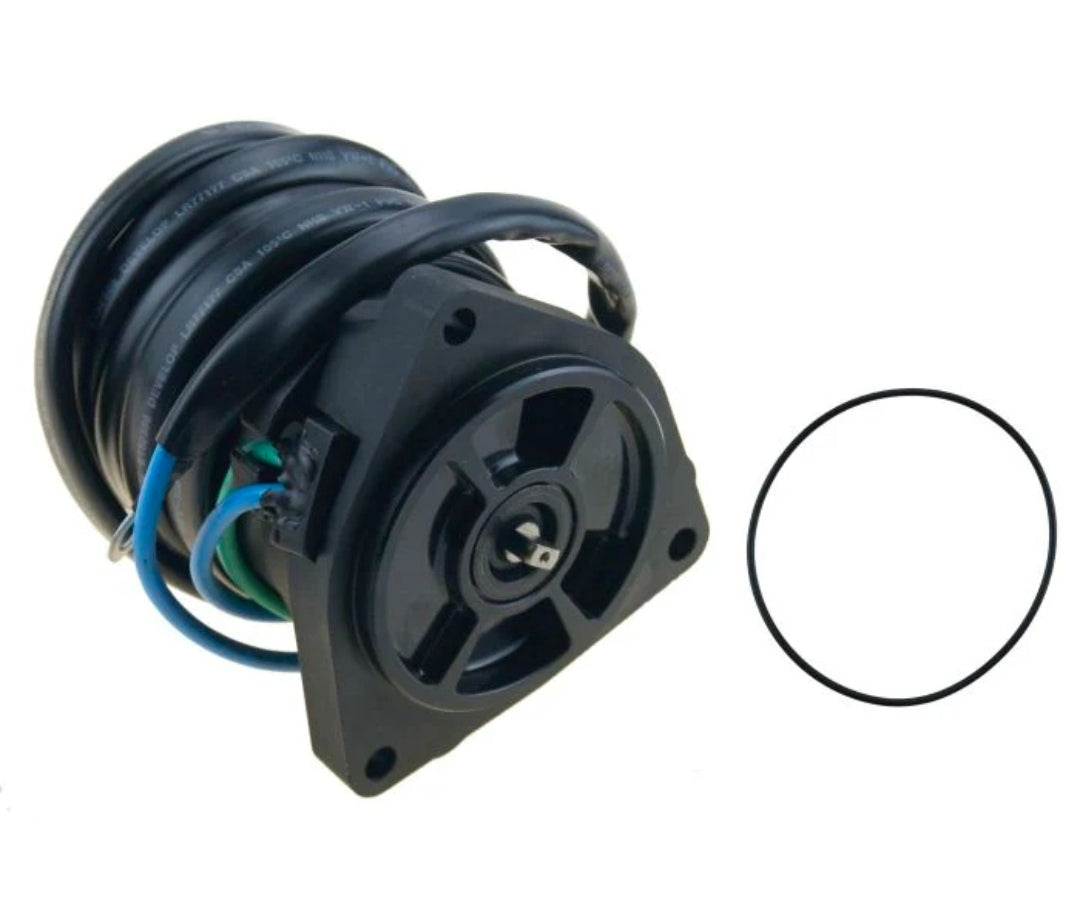

Aftermarket replacement Yamaha F150/F175/F200 Trim Motor - Replaces Part Number: 63P-43880-22

New aftermarket reversible trim motor replacing Yamaha 63P-43880-22. It is supplied as the motor-only replacement for the matching Yamaha hydraulic power trim unit.

⚙️ Key Features

• Direct replacement for the listed Yamaha motor number

• Two-wire reversible motor

• Later 63P service revision

• Marine corrosion-resistant motor housing

• Motor-to-pump seal renewed during installation

🧰 Kit / Assembly Contents

• 1 × Complete trim/tilt motor - P/N 63P-43880-22

• 1 × Integrated electrical leads or connector

• 1 × Motor-to-pump seal - supplied according to manufacturer package

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 63P-43880-22 (Yamaha OEM motor reference)

OEM / Related Numbers:

• 63P-43880-10

• 63P-43880-11

• 63P-43880-12

• 63P-43880-21

• 6KW-43880-00

• 6KW-43880-01

• 6KW-43880-02

Aftermarket / Verified Equivalents:

• ARCO: 6293

• Recmar: REC63P-43880-22

🚤 Compatibility

Commonly used on:

• Yamaha outboard electric-hydraulic power trim systems

Typically suits:

• Engine / Drive models:

• F150 and LF150

• F175 and F200 applications using the 63P/6KW motor family

• HP / Drive Range: 150HP - 200HP

• System Type: Outboard electric-hydraulic power trim motor

• Year Range: Model- and serial-dependent

• Serial / Component Identification: Confirm wire count, mounting-bolt pattern, drive-shaft length and connector before ordering.

🔌 Function

The reversible 12-volt trim motor drives the hydraulic pump in both directions so the outboard or sterndrive can be raised, lowered and trimmed under load.

Common signs of failure / service requirement:

• Trim or tilt does not operate in either direction

• Motor clicks, turns slowly or draws excessive current

• Intermittent operation caused by worn brushes or corroded wiring

• Pump works only after the motor is struck or cooled

• Water intrusion, corrosion or a burnt electrical smell

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
