63P-45987-00-00 Yamaha Spacer 115HP | Genuine Used Part

🔧 Product Description

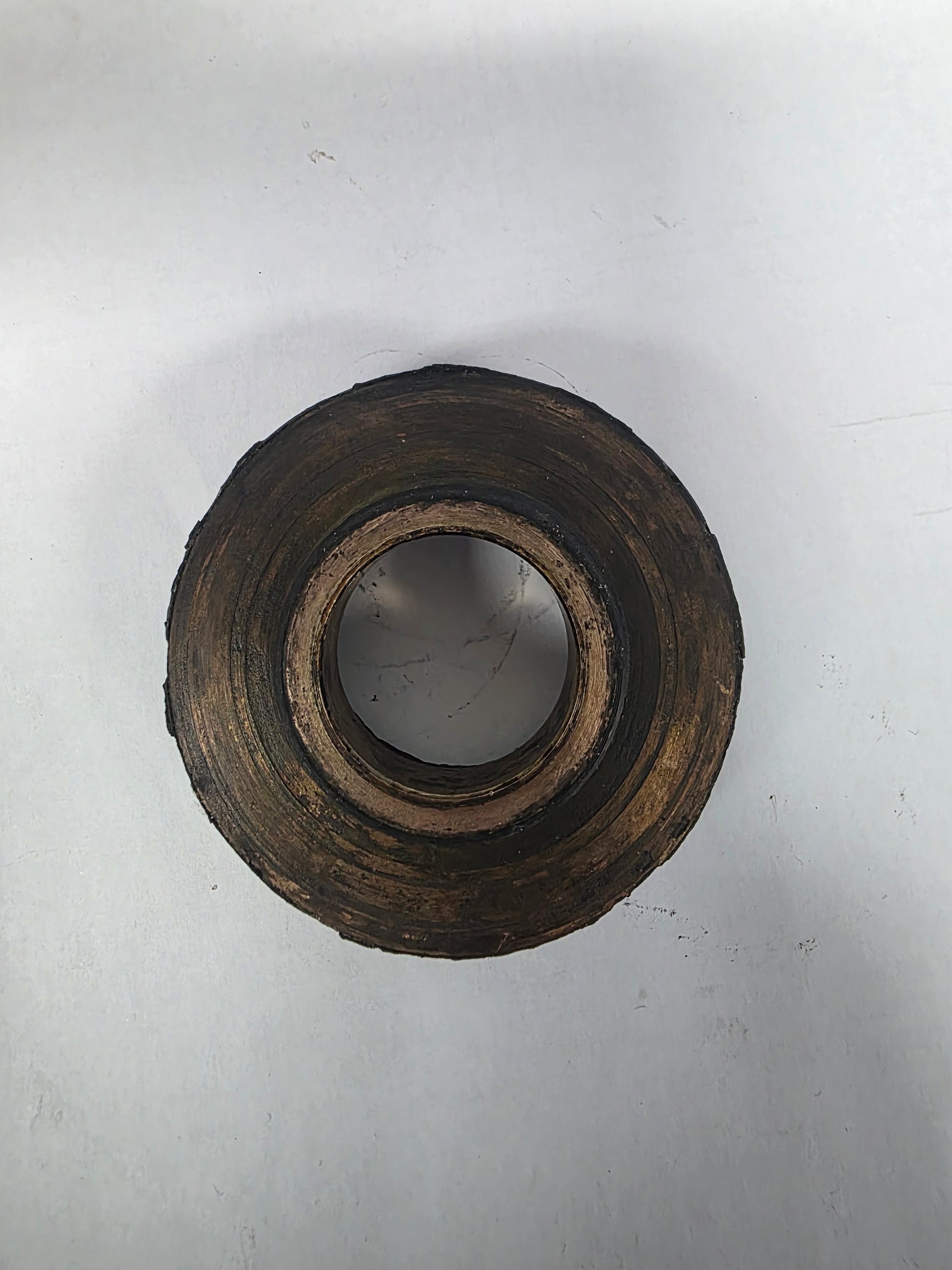

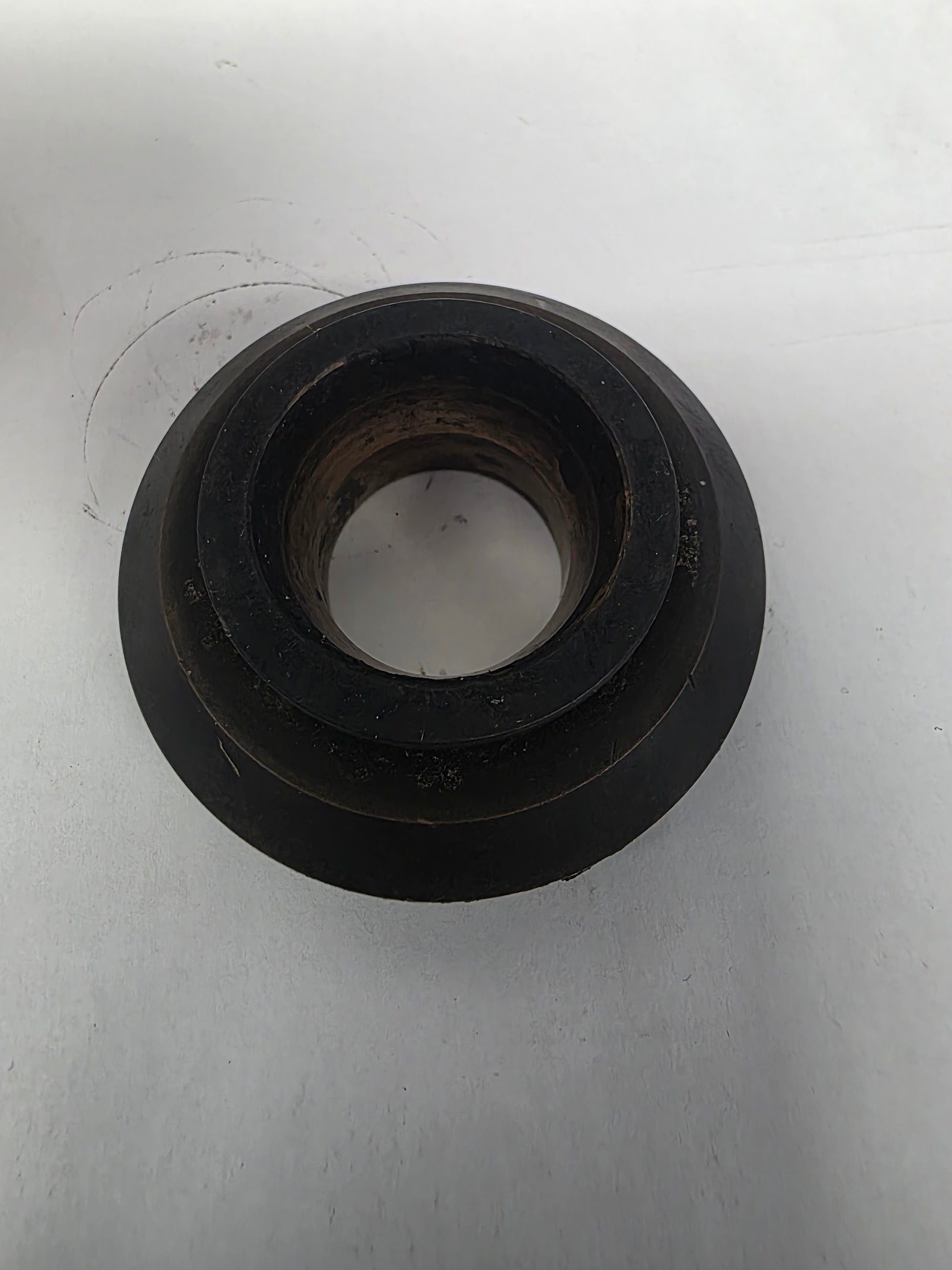

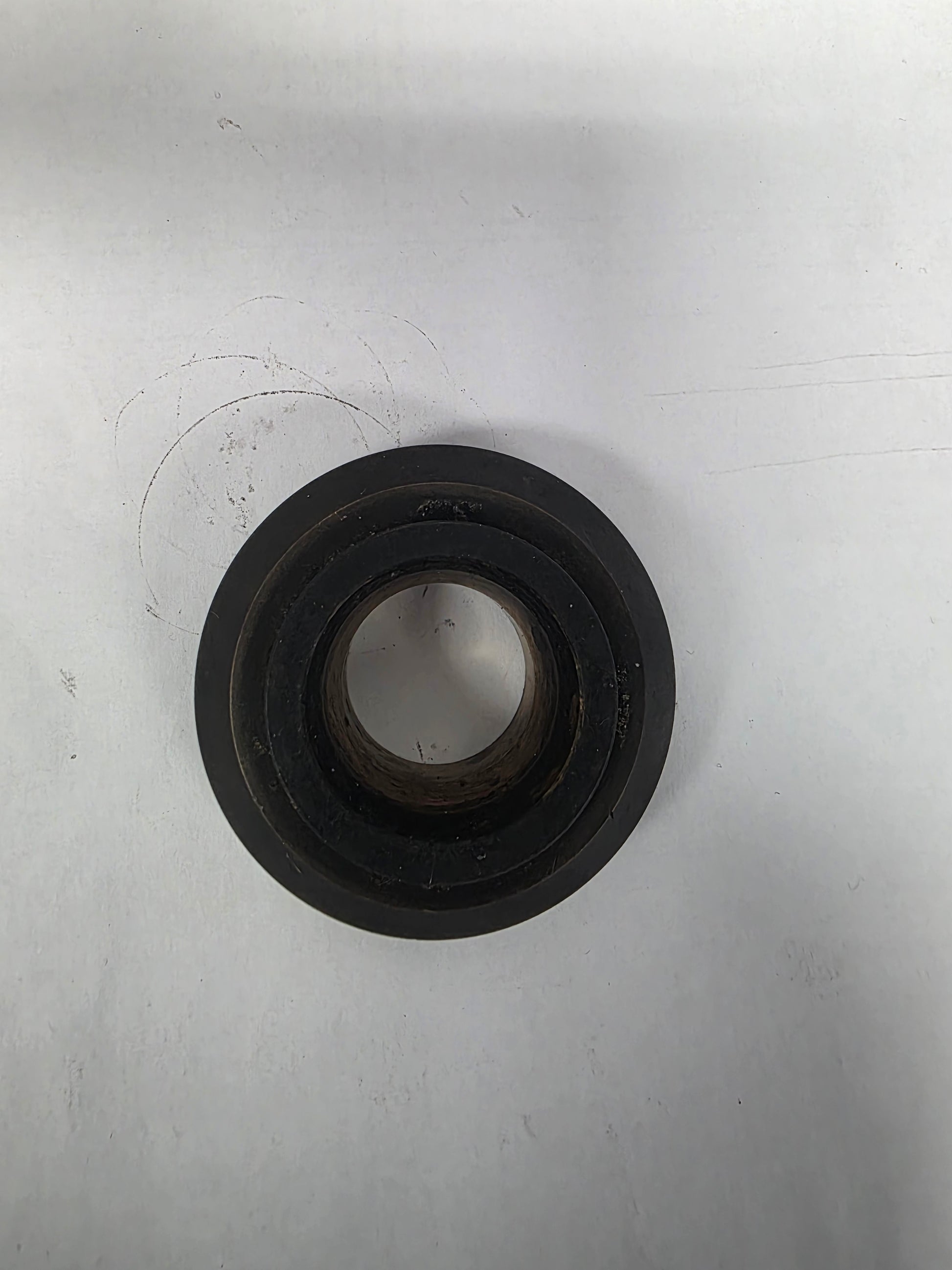

Genuine Yamaha Propeller Forward Thrust Washer - Part Number: 63P-45987-00-00

A genuine used Yamaha propeller forward thrust washer for selected 115HP to 200HP outboards.

The tapered washer sits on the propeller shaft ahead of the propeller hub. It locates the propeller correctly and transfers forward thrust into the gearcase bearing system rather than allowing the propeller to contact the housing.

⚙️ Key Features

• Genuine Yamaha OEM propeller thrust washer
• Correct Yamaha part number 63P-45987-00-00
• Cross-references with the 6E5-45987 thrust-washer family
• Used on selected F115 through F200 and corresponding two-stroke models
• Verified Sierra and Mallory aftermarket replacements available

🚤 Compatibility

Commonly used on

• Yamaha medium and large-gearcase propeller-shaft assemblies
• Selected standard- and counter-rotation outboards using the 63P / 6E5 thrust washer

Typically suits

• Engine models:
• Yamaha F115A and F115B
• Yamaha FL115 counter-rotation models
• Yamaha F130A
• Yamaha F150A, F150B and F150D
• Yamaha FL150 counter-rotation models
• Yamaha F175A and FL175
• Yamaha F200B, F200C and F200F
• Yamaha FL200 counter-rotation models
• Selected Yamaha 115HP, 130HP, 150HP, 175HP and 200HP two-stroke outboards using 6E5-45987-01-00
• HP Range: 115HP - 200HP
• Engine Type: Yamaha two-stroke and four-stroke outboard with compatible propeller shaft
• Year Range: Approximately 2004 onward for F115-F200 applications; earlier 6E5 applications where specified

🔌 Function

The washer positions the propeller hub on the shaft and transfers forward propeller thrust into the designed gearcase thrust surface. It also maintains clearance between the propeller and gearcase.

⚠️ Common Signs of Failure

• Washer is cracked, distorted or severely worn
• Tapered contact surface is fretted or scored
• Propeller contacts or rubs against the gearcase
• Excess propeller end play is present
• Incorrect washer profile prevents the propeller from seating correctly

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 63P-45987-00-00 current application reference
• 6E5-45987-01-00 interchangeable / related Yamaha reference
• 6E5-45987-00-00 earlier related Yamaha reference

OEM / Related Numbers

• 63P-45987-00-00
• 63P459870000
• 6E5-45987-01-00
• 6E5-45987-00-00
• Yamaha description: Spacer 1 / Propeller Thrust Washer

Aftermarket / Verified Equivalents

• Sierra: 18-73918
• Mallory: 9-73918

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
