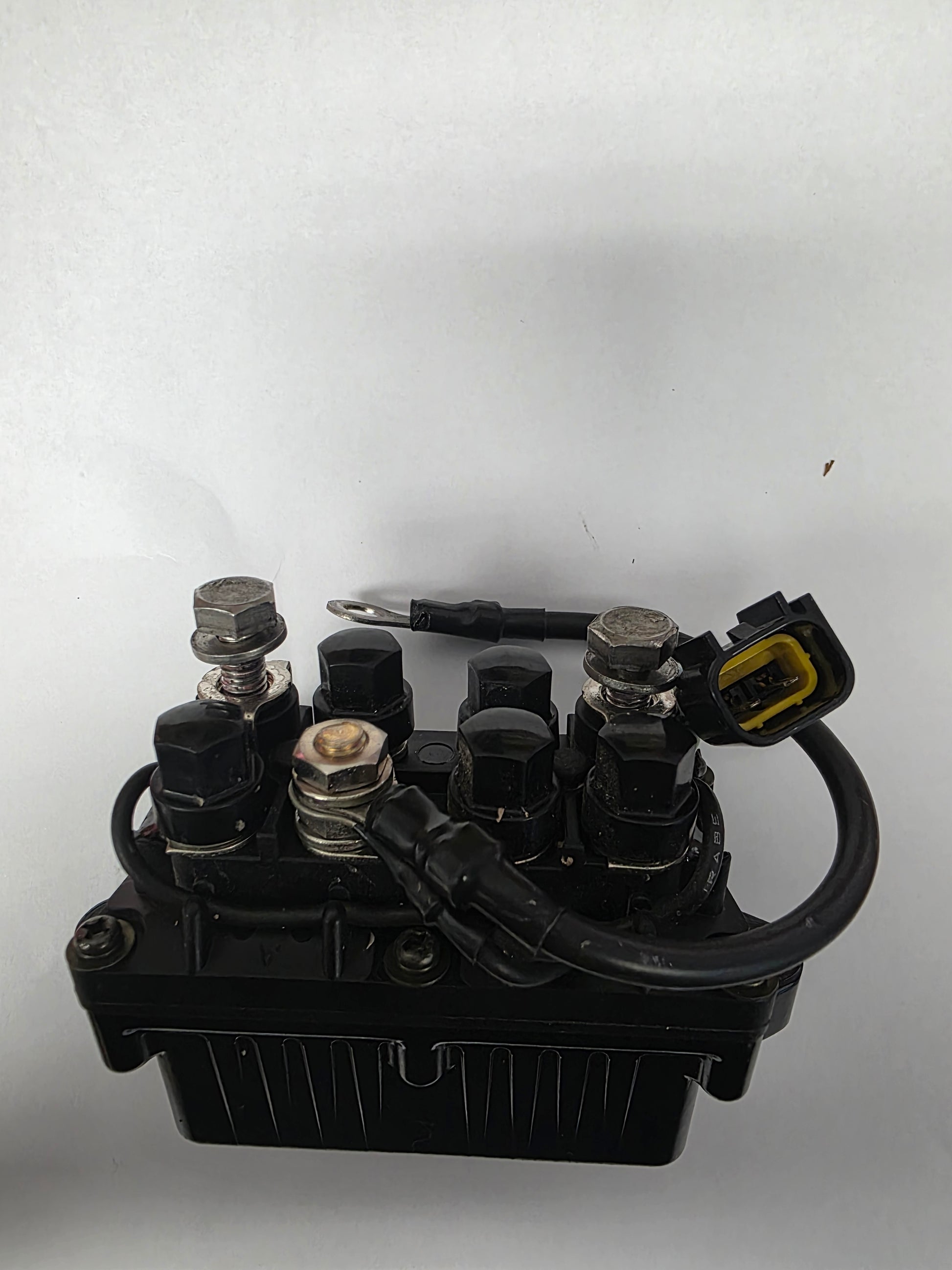

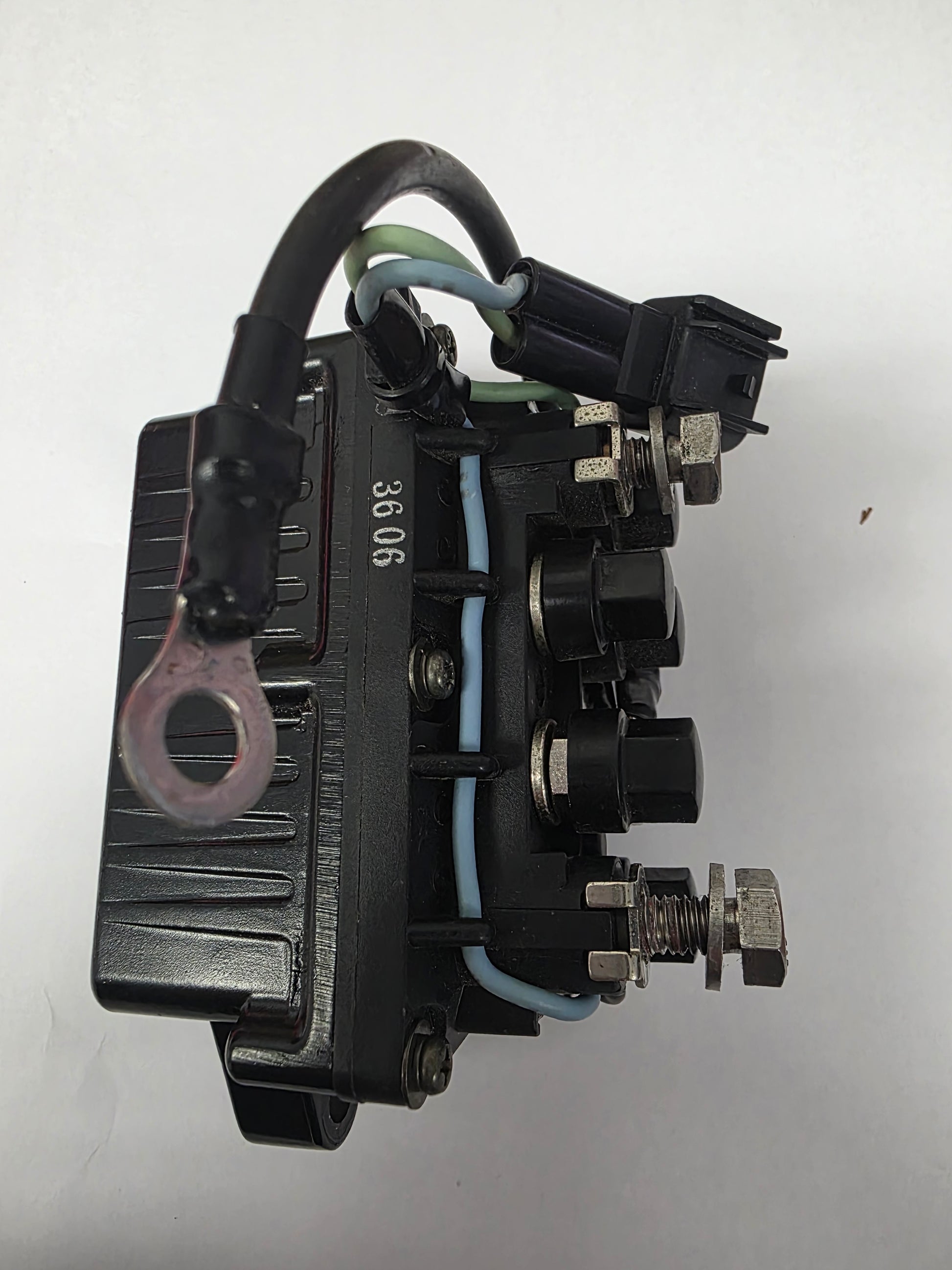

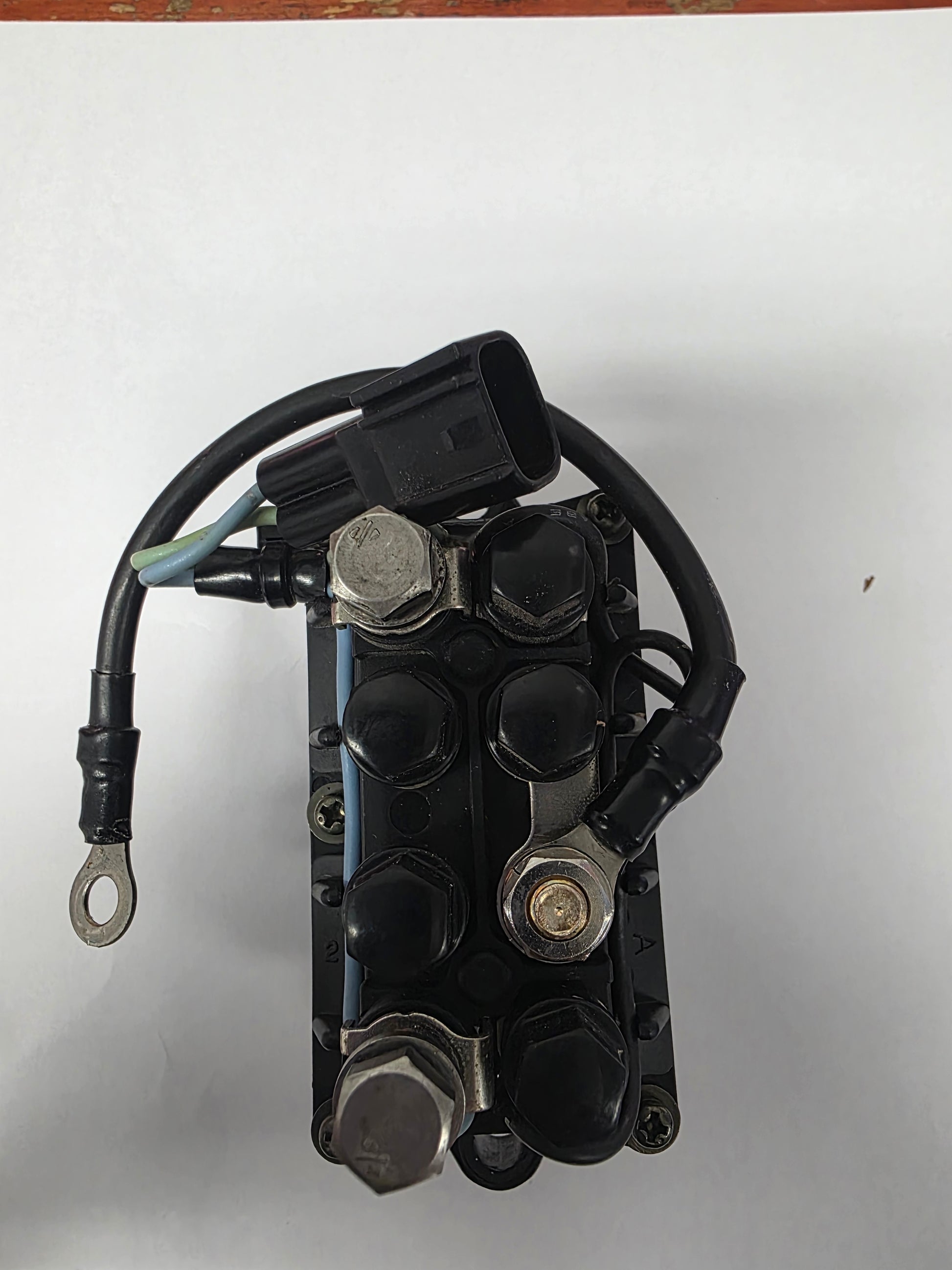

Genuine Yamaha Power Trim & Tilt Relay - Part Number: 63P-81950-01
A genuine Yamaha trim relay used on selected Yamaha four-stroke power trim and tilt systems. This relay switches high-current power to the trim motor so the outboard can raise and lower from the helm or engine trim switch.
⚙️ Key Features
- Genuine Yamaha trim relay
- Correct Yamaha part number 63P-81950-01
- Related to 63P-81950-00 and 63P-W8195-00 references
- Used on selected Yamaha 25HP to 250HP trim systems
- Match by relay plug, stud layout and engine model code
🚤 Compatibility
Commonly used on
- Yamaha four-stroke power trim and tilt relay systems
Typically suits
- Engine models:
- Yamaha F25 four-stroke - 2009-2020
- Yamaha FT25 four-stroke - 2009-2017
- Yamaha F30 four-stroke - 2009-2020
- Yamaha F40 four-stroke - 2009-2020
- Yamaha FT50 four-stroke - 2005-2017
- Yamaha F50 four-stroke - 2005-2020
- Yamaha F60 four-stroke - 2005-2020
- Yamaha FT60 four-stroke - 2005-2023
- Yamaha F70 four-stroke - 2011-2020
- Yamaha F80 four-stroke - 2005-2019
- Yamaha F90 four-stroke - 2015-2017
- Yamaha F100 four-stroke - 2005-2017
- Yamaha F115 four-stroke - 2012-2017
- Yamaha LF115 / FL115 four-stroke - 2012-2017
- Yamaha F125 four-stroke - 2017
- Yamaha F130 four-stroke - 2015-2017
- Yamaha F150 four-stroke - 2005-2023
- Yamaha LF150 / FL150 four-stroke - 2004-2023
- Yamaha F175 four-stroke - 2014-2023
- Yamaha F200 four-stroke
- Yamaha F225 four-stroke
- Yamaha F250 four-stroke
- HP Range: 25HP - 250HP
- Engine Type: Yamaha four-stroke outboard power trim and tilt system
- Year Range: approximately 2004 onward depending on horsepower and model
- Serial Note: Match by Yamaha model code, trim relay mounting holes, plug style and terminal layout.
🔌 Function
The trim relay switches battery power to the trim motor in the up and down directions when commanded by the trim switch.
⚠️ Common Signs of Failure
- Trim motor does not run
- Trim works in one direction only
- Relay clicks but trim motor does not move
- Intermittent trim operation
- Burnt relay studs
- Corroded relay plug
- Trim returns when a known-good relay is fitted
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 63P-81950-01 later Yamaha trim relay reference
- 63P-81950-00 earlier Yamaha trim relay reference
- 63P-W8195-00 related Yamaha trim relay kit reference
OEM / Related Numbers
- 63P-81950-01
- 63P8195001
- 63P-81950-01-00
- 63P819500100
- 63P-81950-00
- 63P8195000
- 63P-81950-00-00
- 63P819500000
- 63P-W8195-00
- Trim relay
- Power trim relay
- Tilt relay
Aftermarket / Verified Equivalents
- DB Electrical: 240-58022
- Arrowhead: TRM6003
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
