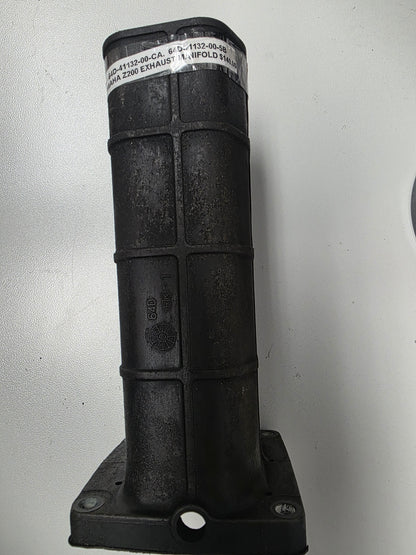

64D-41132-00-CA 64D-41132-00-5B Yamaha Z200 Exhaust Manifold | Genuine Used Part

🔧 Product Description

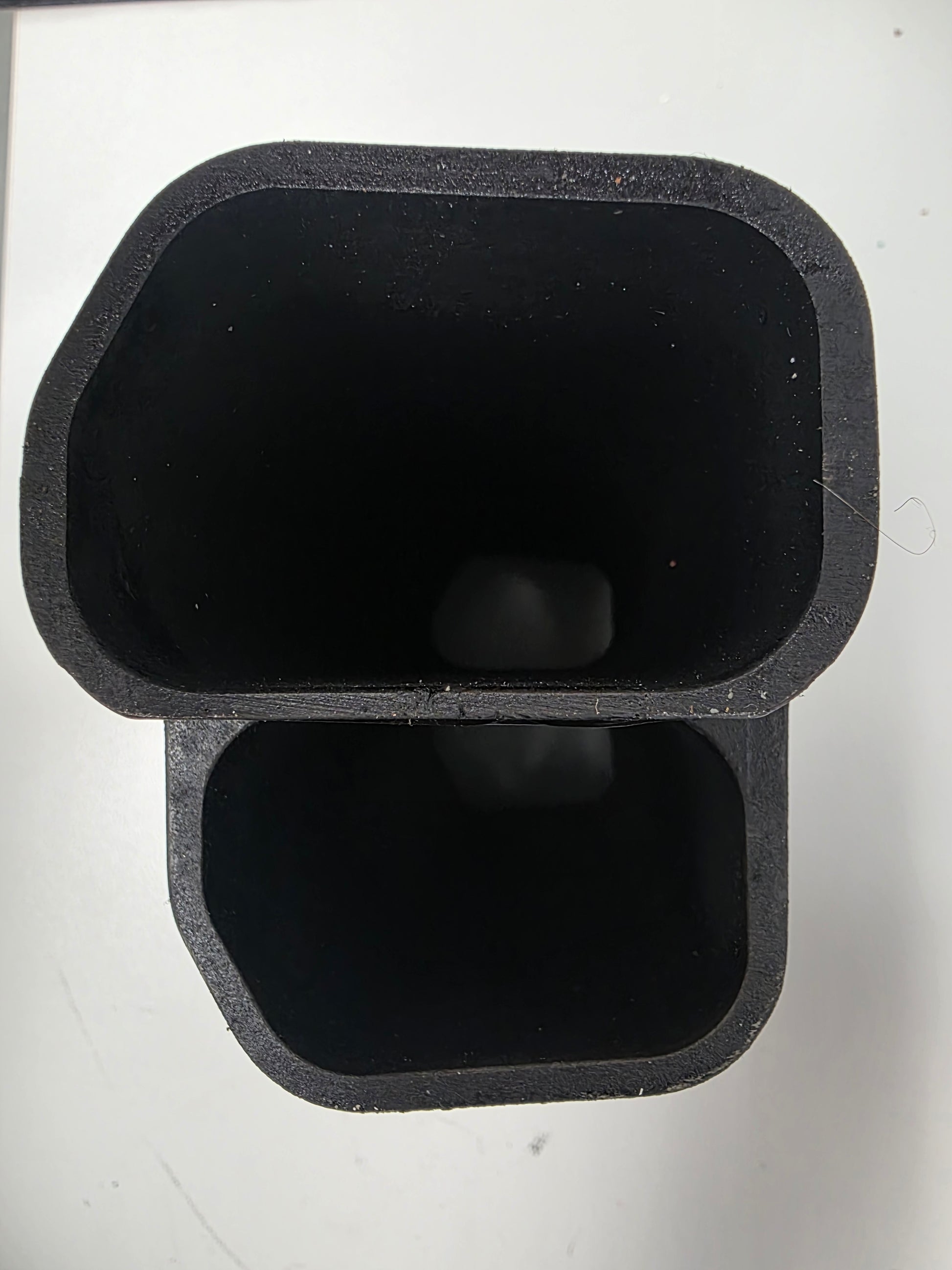

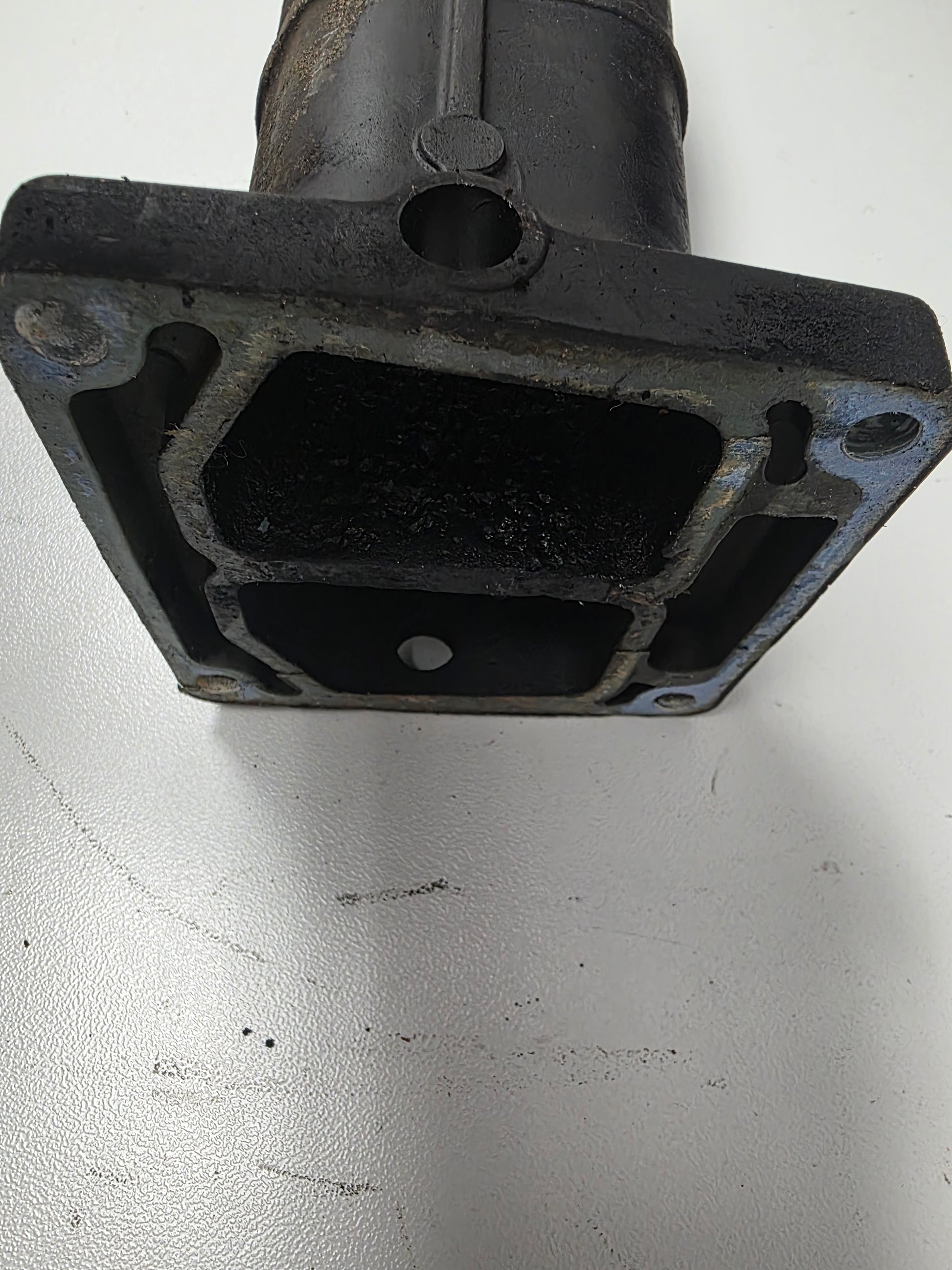

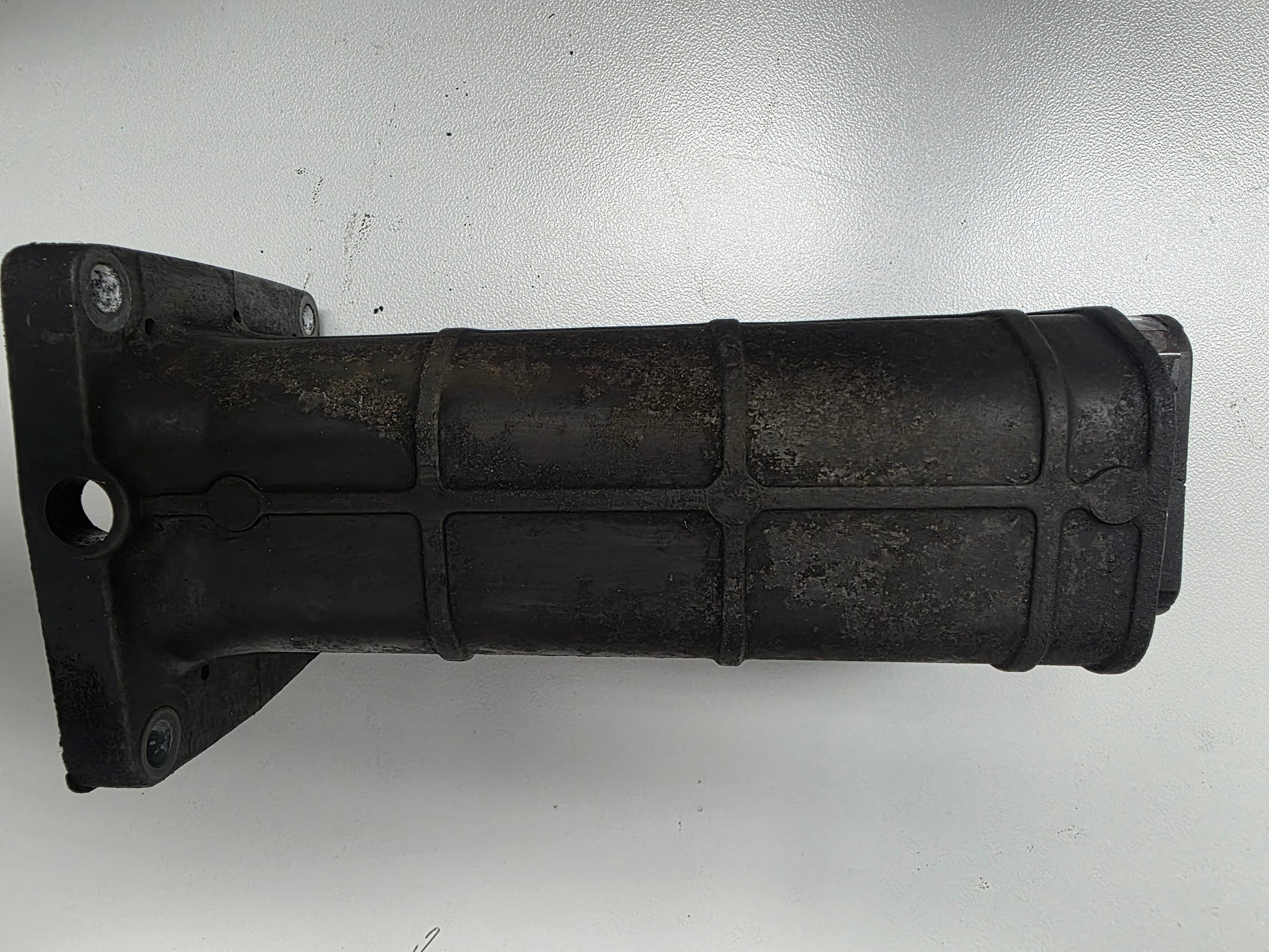

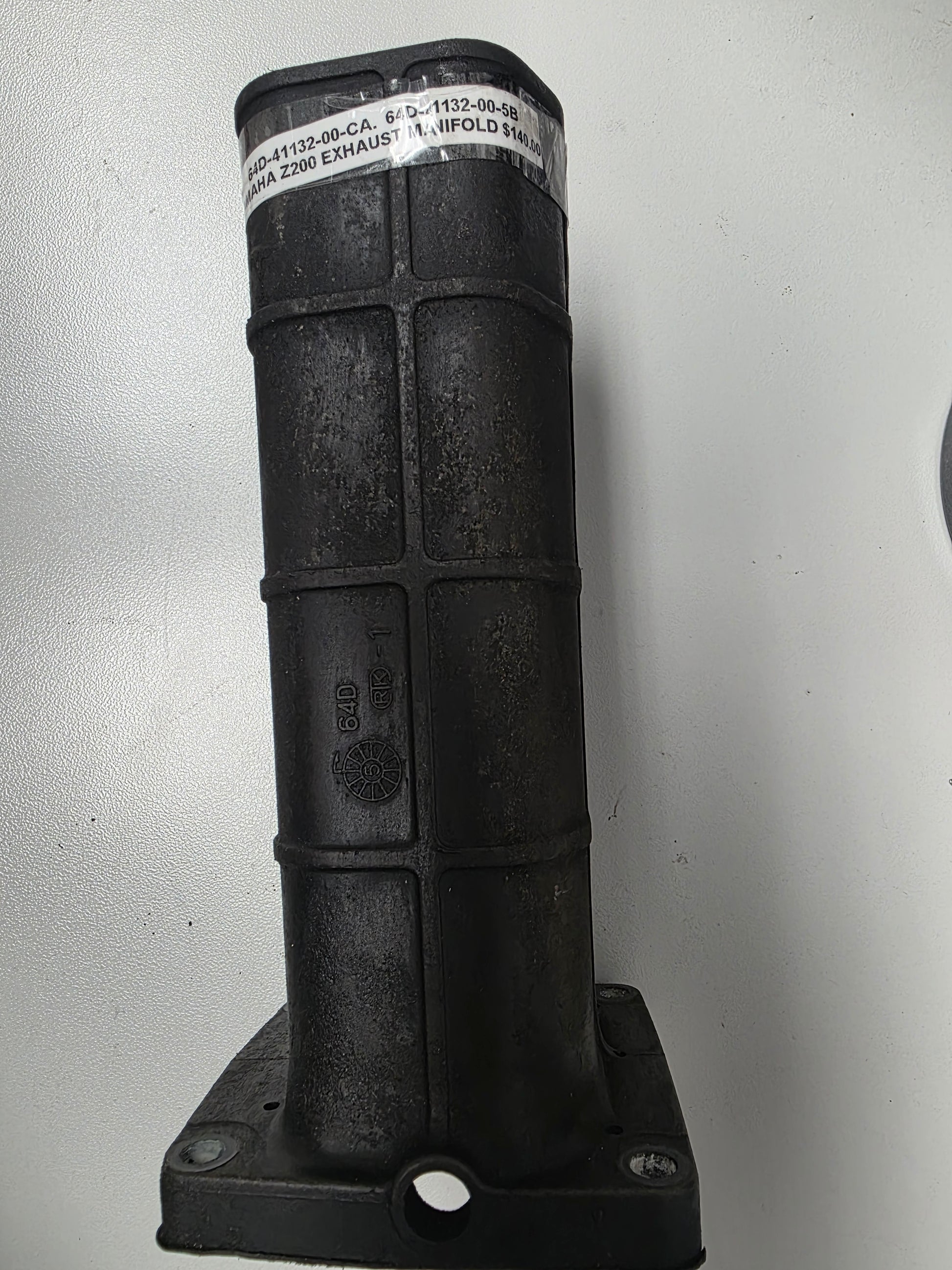

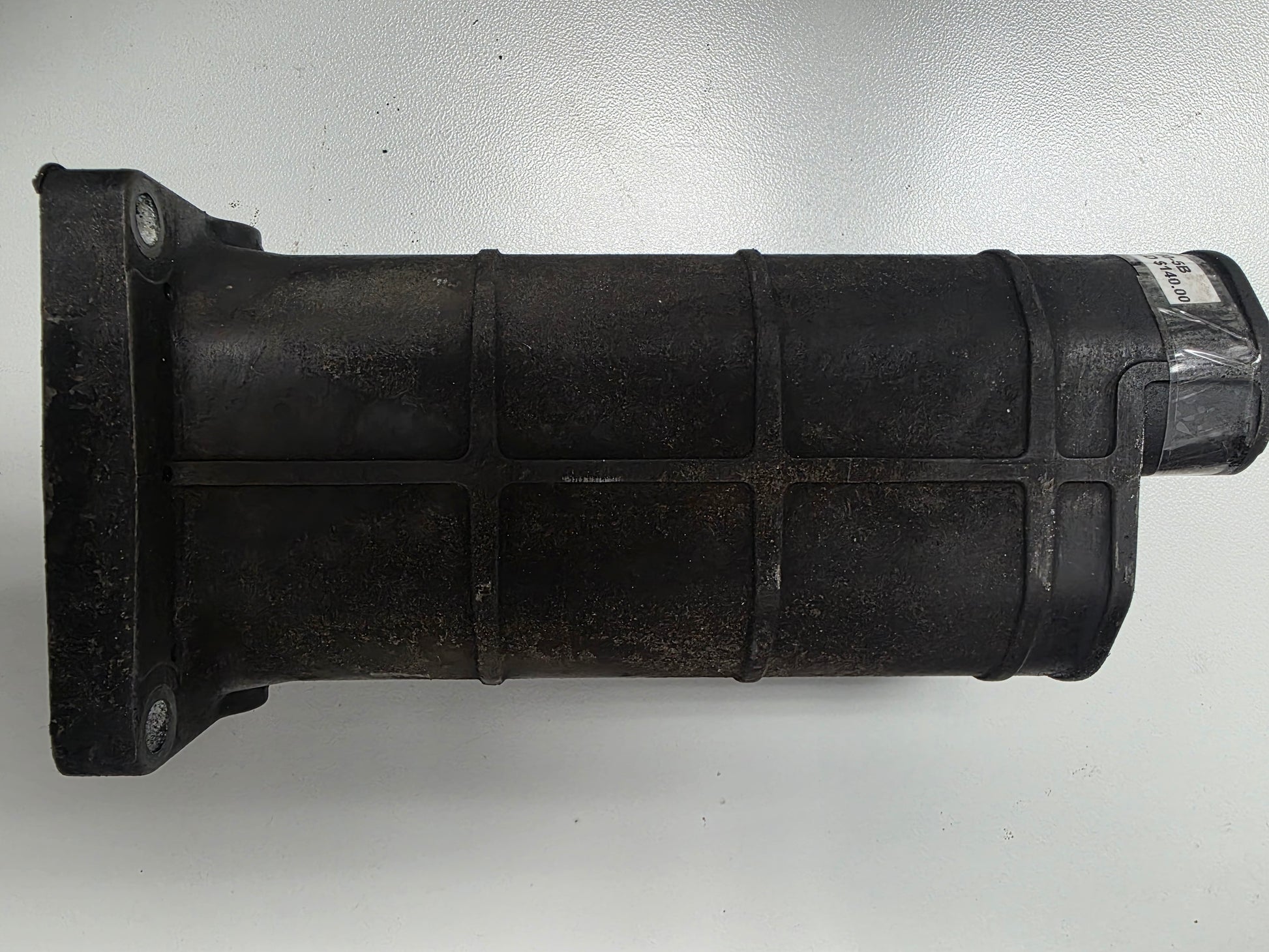

Genuine Yamaha V6 Exhaust Manifold - Part Number: 64D-41132-00-CA

A genuine Yamaha exhaust manifold for selected 150HP, 175HP and 200HP V6 carburetted and HPDI two-stroke outboards.

The manifold installs within the upper-casing exhaust assembly and connects the powerhead exhaust outlet to the primary exhaust muffler.

Part number 64D-41132-00-CA supersedes the earlier 64D-41132-00-5B finish-coded manifold.

⚙️ Key Features

• Genuine Yamaha exhaust manifold
• Current part number 64D-41132-00-CA
• Supersedes 64D-41132-00-5B
• Used on carburetted and HPDI V6 engines
• Connects the upper exhaust guide to the muffler assembly

🚤 Compatibility

Commonly used on

• Yamaha V6 two-stroke upper-casing and exhaust assemblies

Typically suits

• Engine models:
• Yamaha 150 / 150AET
• Yamaha L150 / L150AET
• Yamaha Z150
• Yamaha 175 / 175DETO
• Yamaha Z175 / VZ175
• Yamaha 200 / 200AET
• Yamaha L200 / L200AET
• Yamaha Z200 / VZ200
• Yamaha LZ200
• HP Range: 150HP - 200HP
• Engine Type: Yamaha V6 carburetted or HPDI two-stroke outboard
• Year Range: Approximately early 2000s onward, dependent on model and sales region

🔌 Function

The manifold receives exhaust from the powerhead and directs it into the primary muffler and outboard midsection. Its shape maintains the designed exhaust-pulse and back-pressure characteristics.

⚠️ Common Signs of Failure

• Exhaust gas leaks into the upper casing
• Manifold is cracked or heavily corroded
• Gasket failure produces soot or water staining
• Engine becomes unusually noisy
• Restricted or damaged passages reduce engine performance

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 64D-41132-00-CA → Supersedes 64D-41132-00-5B
• 64D-41132-00-5B earlier factory-finish reference

OEM / Related Numbers

• 64D-41132-00-CA
• 64D-41132-00-5B
• 64D4113200CA
• 6G5-41134-A1 exhaust-manifold gasket
• 6E5-14711-01-CA related primary muffler
• 6E5-41135-A0 related muffler-to-manifold gasket
• 6G5-41131-series related exhaust manifold No. 1
• 6G5-45114-A1 upper-casing gasket

Aftermarket / Verified Equivalents

• Aftermarket exhaust-manifold gasket replacing 6G5-41134-A1
• Aftermarket muffler gasket replacing 6E5-41135-A0
• Specialist used or pressure-tested 64D-41132 manifold
• No direct aftermarket manifold casting

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
