64E-43111-02-8D 64E-43111-01-8D Yamaha Z200 Clamp Bracket (Port) | Genuine Used Part

🔧 Product Description

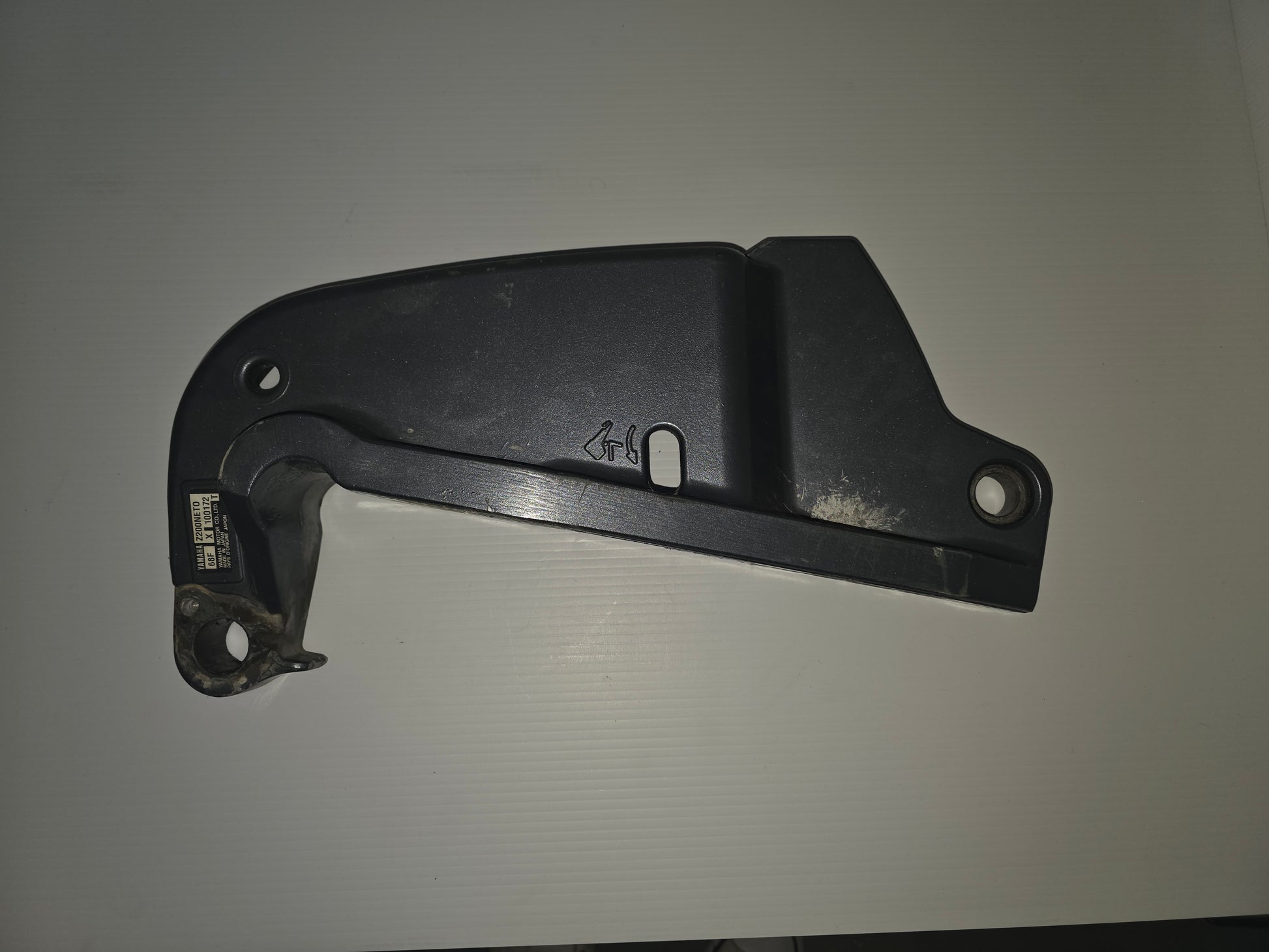

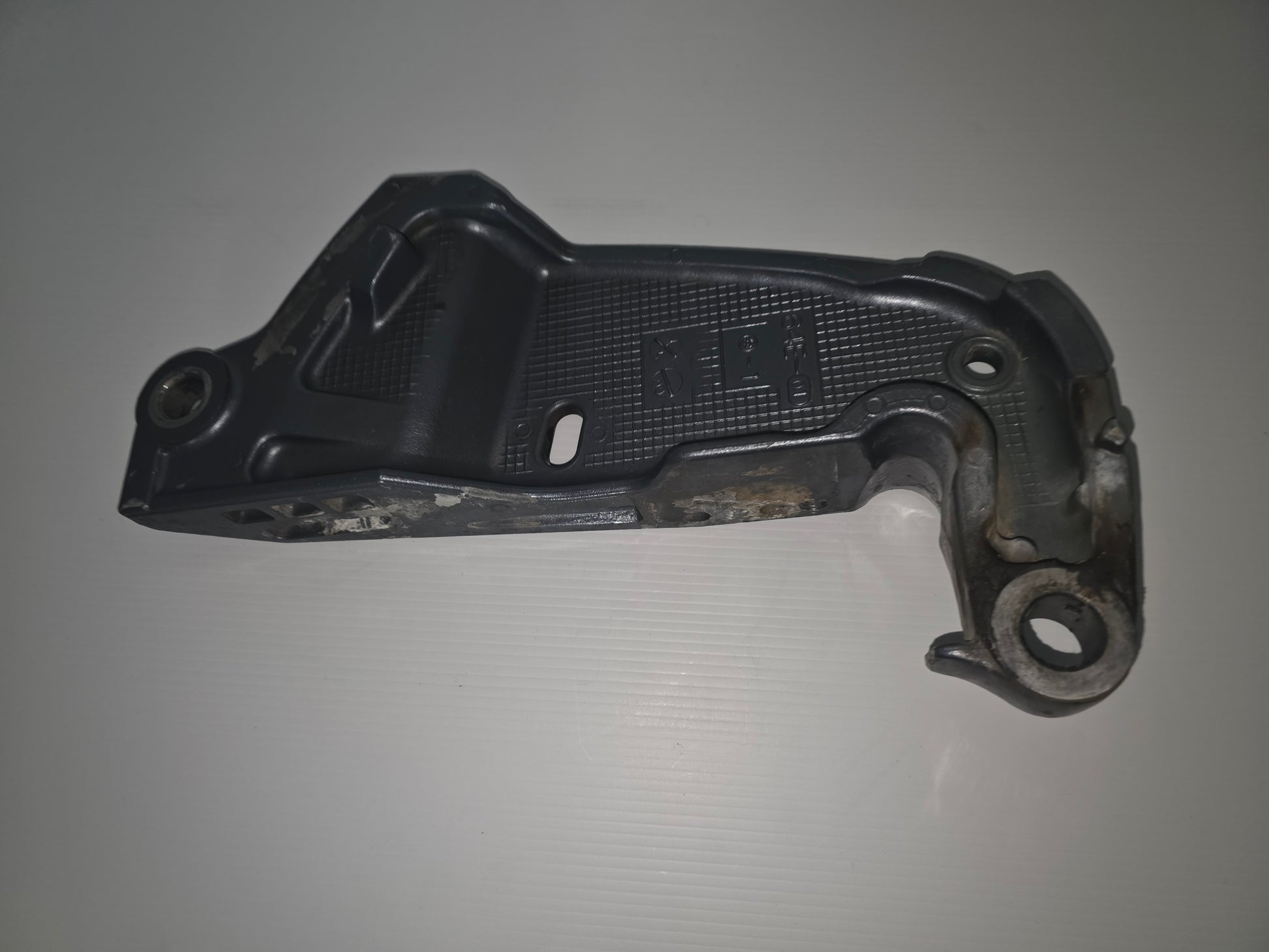

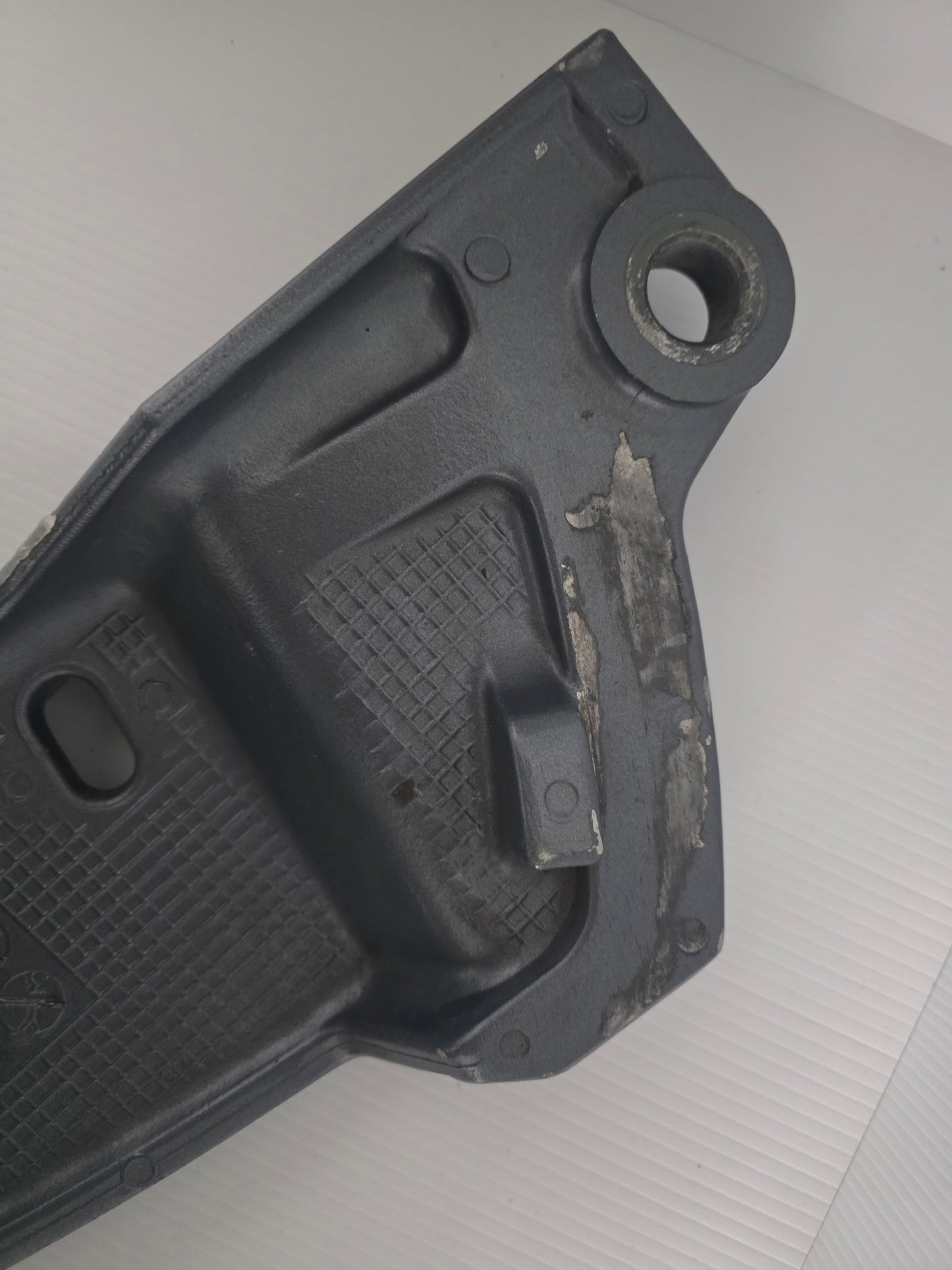

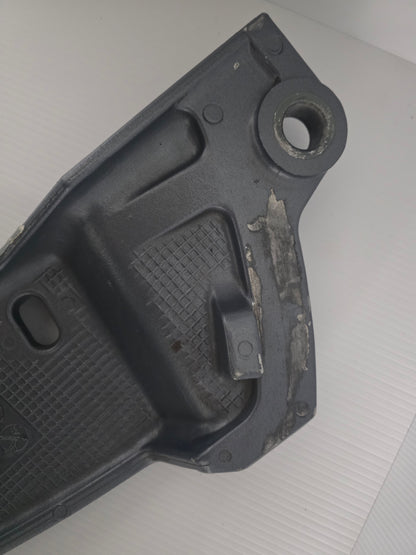

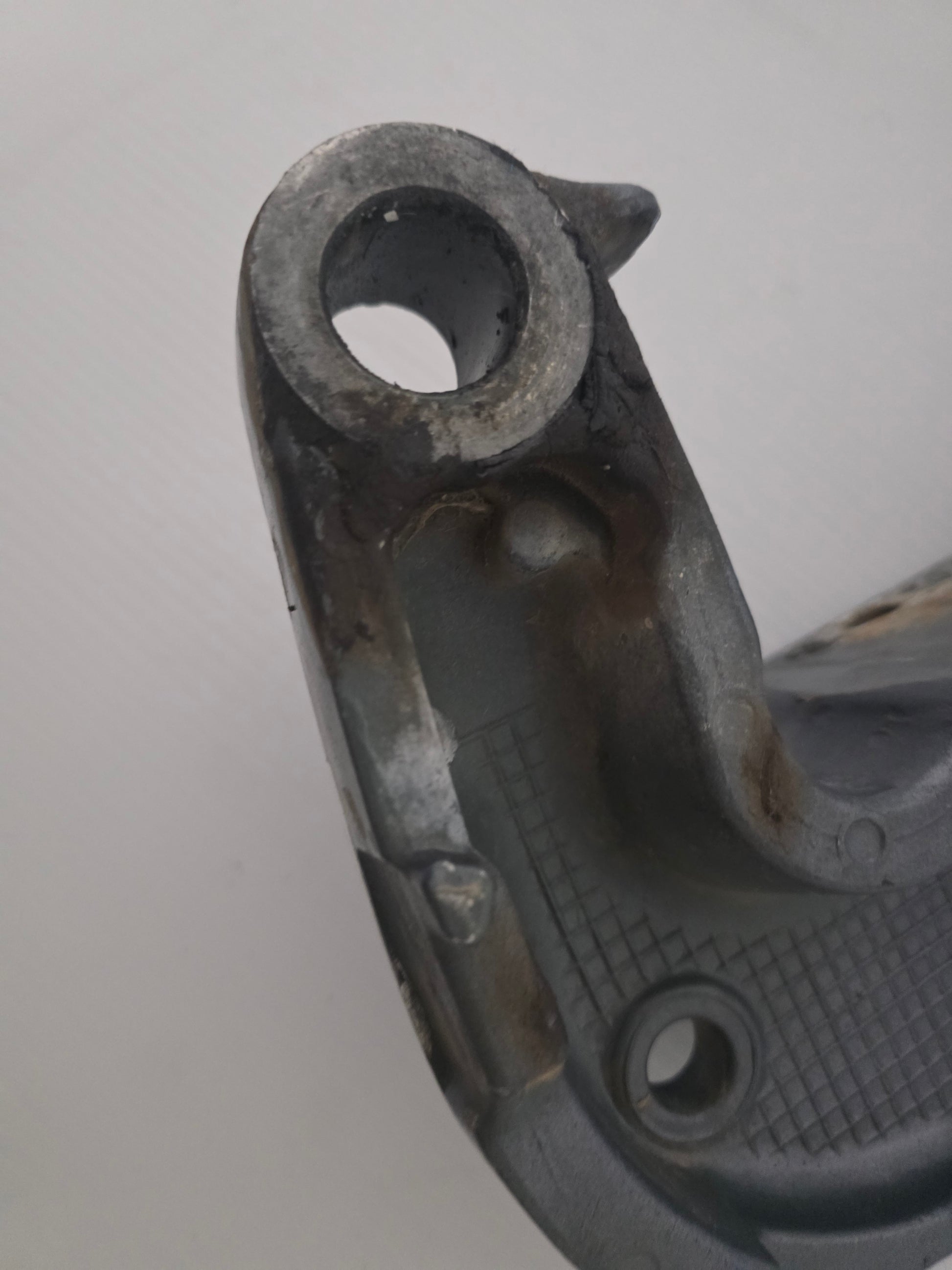

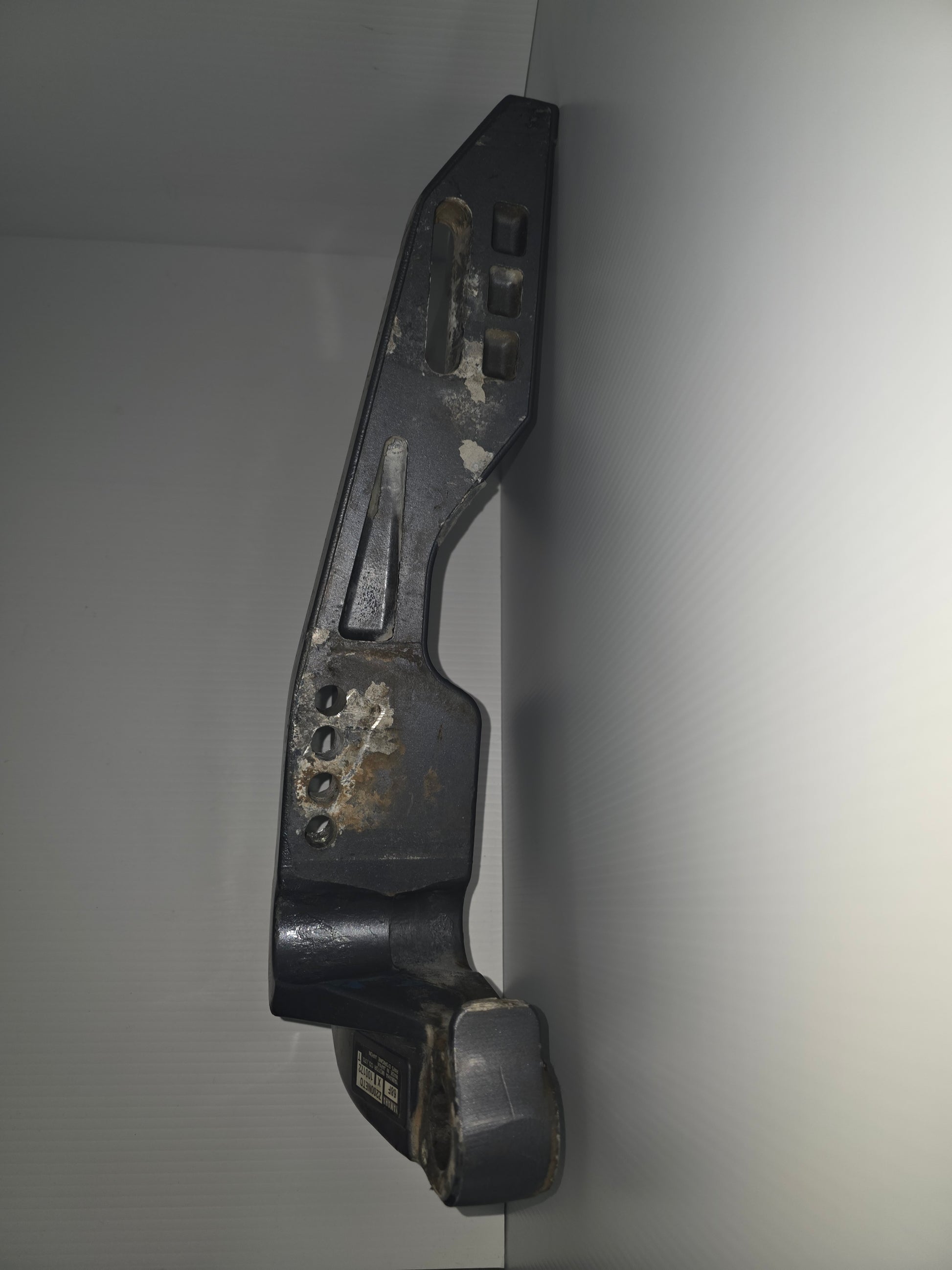

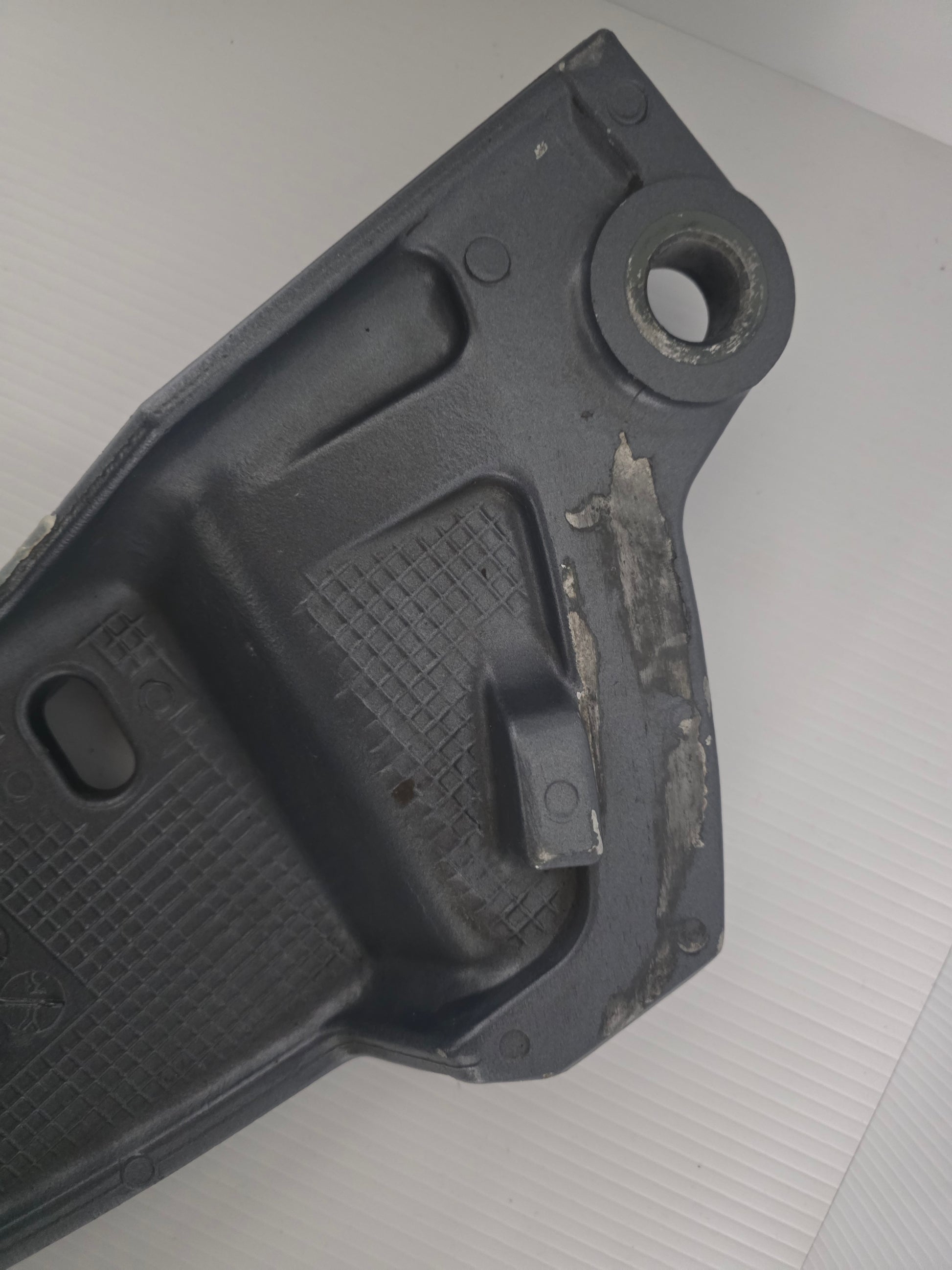

Genuine Yamaha Port Clamp Bracket - Part Numbers: 64E-43111-02-8D / 64E-43111-01-8D

A genuine used Yamaha port-side transom clamp bracket for selected 115HP to 300HP outboards. The bracket forms the left side of the engine's transom-mount assembly, supports the clamp-bracket tilt tube and carries steering, tilt and thrust loads. The 02-8D revision replaces earlier 01-8D and 00-8D versions.

⚙️ Key Features

• Genuine Yamaha port clamp bracket
• Current grey reference 64E-43111-02-8D
• Supersedes 64E-43111-01-8D and 64E-43111-00-8D
• Used across two-stroke, HPDI and selected four-stroke engines
• Factory transom-clamp casting with anode and hardware mounting points

🚤 Compatibility

Commonly used on

• Yamaha 115HP-300HP transom-mount systems
• Yamaha two-stroke, OX66, HPDI, four-stroke and V MAX SHO applications where 64E-43111-02-8D is listed
• Standard, long and extra-long shaft installations using the common clamp-bracket casting

Typically suits

• Confirmed model examples include 115CETO, 130BETO, 150FETO, 175, 200, 225 and Z200 / Z250
• Confirmed four-stroke examples include F150, F175, F200 and selected larger engines
• Catalogue usage spans approximately 1997 through at least 2022 on model-specific assemblies
• The swivel bracket, tilt tube and trim system must match the engine model and shaft length
• HP Range: Approximately 115HP - 300HP
• Side: Port / clamp bracket 1
• Engine Type: Yamaha two-stroke, HPDI and selected four-stroke outboards
• Fitment Requirement: Confirm colour, trim-unit layout, tilt-limit equipment and transom-bracket hardware

🔌 Function

The clamp bracket secures the engine to the transom and supports the tilt tube, swivel bracket and trim system while transferring propulsion loads into the boat.

⚠️ Common Signs of Failure

• Cracking around the tilt-tube or mounting bosses
• Severe galvanic corrosion
• Worn tilt-tube bushings or bore
• Damaged transom-clamp or mounting holes
• Distorted bracket after impact or grounding

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 64E-43111-02-8D → Supersedes 64E-43111-01-8D
• 64E-43111-02-8D → Supersedes 64E-43111-00-8D
• Earlier colour and regional suffixes may appear in older catalogues

OEM / Related Numbers

• 64E-43111-02-8D
• 64E43111028D
• 64E-43111-01-8D
• 64E-43111-00-8D
• 64E-43112-02-8D matching starboard clamp bracket
• 6G5-45251-02-00 related clamp-bracket anode
• 6R3-43131-00-00 / 6E5-43131-02-00 related tilt-tube / clamp-bracket bolt

Aftermarket / Verified Equivalents

• No verified aftermarket cast clamp bracket
• Used genuine Yamaha brackets and complete used transom-bracket sets are the practical replacements
• Aftermarket stainless tilt tubes, bushings and anodes are available separately

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
