64E-43111-02-8D 64E-43112-02-8D Yamaha Clamp Bracket | Genuine Used Part

🔧 Product Description

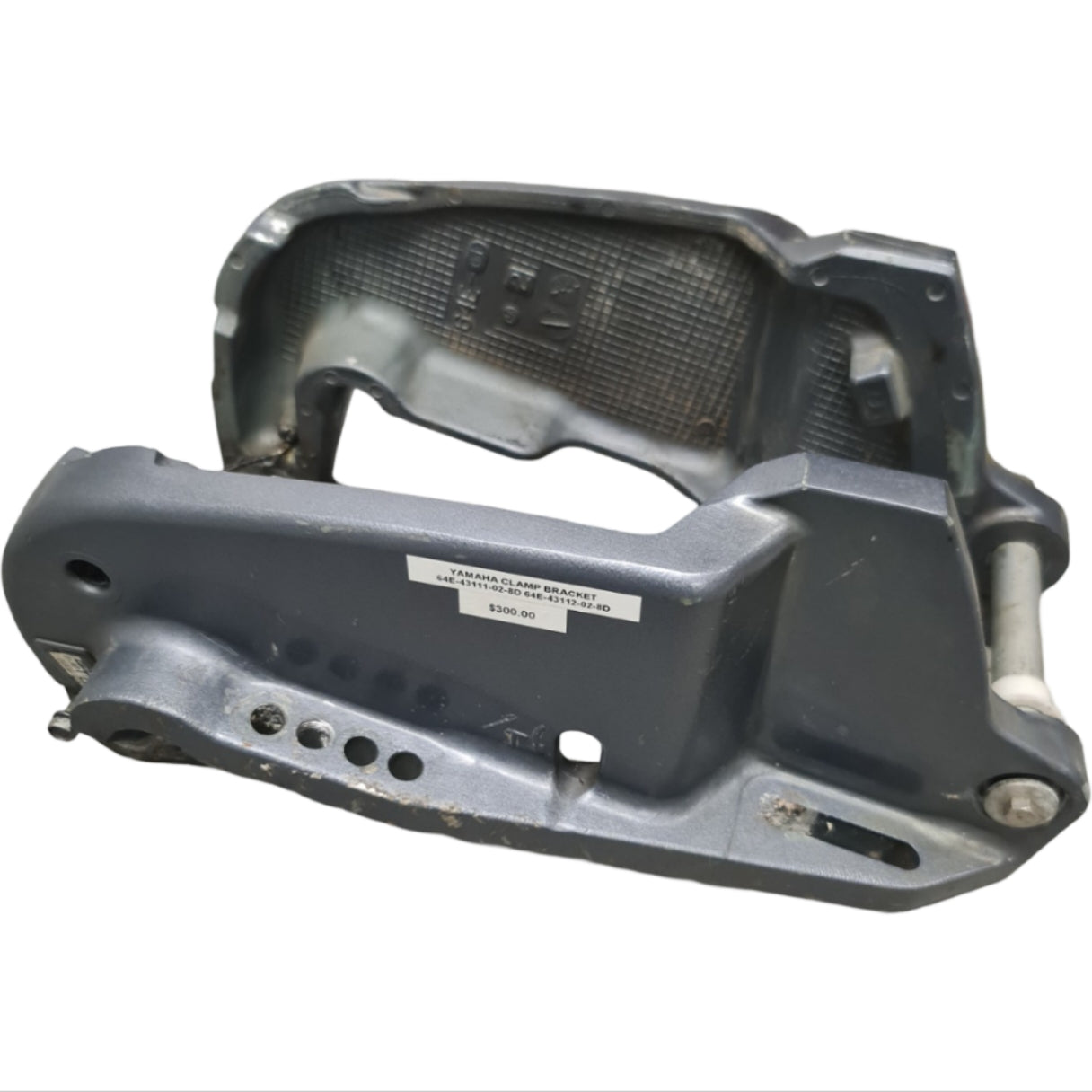

Genuine Yamaha Port and Starboard Clamp-Bracket Pair - Part Numbers: 64E-43111-02-8D / 64E-43112-02-8D

A genuine used matched pair of Yamaha transom clamp brackets for selected 115HP to 300HP outboards. The port 64E-43111-02-8D and starboard 64E-43112-02-8D brackets support the tilt tube, swivel bracket, trim-and-tilt system and transom mounting hardware.

⚙️ Key Features

• Genuine Yamaha clamp-bracket pair
• Port bracket 64E-43111-02-8D
• Starboard bracket 64E-43112-02-8D
• Later revisions replacing earlier 00 and 01-series brackets
• Suitable for rebuilding a complete matching transom bracket

🚤 Compatibility

Commonly used on

• Yamaha 115HP-300HP mounting systems
• V4 and V6 two-stroke, OX66 and HPDI engines
• F150, F175, F200 and selected larger four-stroke engines
• Standard, long and extra-long shaft models using the 64E clamp-bracket family

Typically suits

• 115CETO / 130BETO and related international models
• 150HP, 175HP, 200HP, 225HP and 250HP two-strokes
• Z150 / Z175 / Z200 / Z225 / Z250 HPDI variants where catalogued
• F150 through selected F200 / F250 applications
• Verify swivel bracket, power-trim unit and tilt-limit components
• HP Range: Approximately 115HP - 300HP
• Sides: Port and starboard
• Year Range: Approximately 1997 onward, depending on model
• Fitment Requirement: Use the correct tilt tube, bushings, anodes and mounting hardware

🔌 Function

The pair clamps the outboard to the transom and carries steering, tilt, trim and propulsion loads on both sides of the engine mounting assembly.

⚠️ Common Signs of Failure

• Uneven corrosion between port and starboard brackets
• Cracked tilt-tube bosses
• Worn or seized tilt tube
• Damaged mounting holes
• Misalignment caused by impact or mixed bracket revisions

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 64E-43111-02-8D replaces 64E-43111-01-8D and 64E-43111-00-8D
• 64E-43112-02-8D replaces 64E-43112-01-8D and earlier related versions
• Use the brackets as a matched pair when corrosion or impact has affected both sides

OEM / Related Numbers

• 64E-43111-02-8D port bracket
• 64E-43112-02-8D starboard bracket
• 64E-43111-01-8D and 64E-43112-01-8D earlier pair
• 6G5-45251-02-00 related anode
• 6R3-43131-00-00 related tilt tube
• 90386-25M31-00 related tilt-tube bushings

Aftermarket / Verified Equivalents

• No aftermarket cast bracket pair verified
• Used genuine Yamaha bracket pairs and complete transom assemblies are available
• WSM and other suppliers offer stainless tilt tubes and bushings separately

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
