64E-43112-02-8D 64E-43112-01-8D Yamaha Z200 Clamp Bracket (Stb) | Genuine Used Part

🔧 Product Description

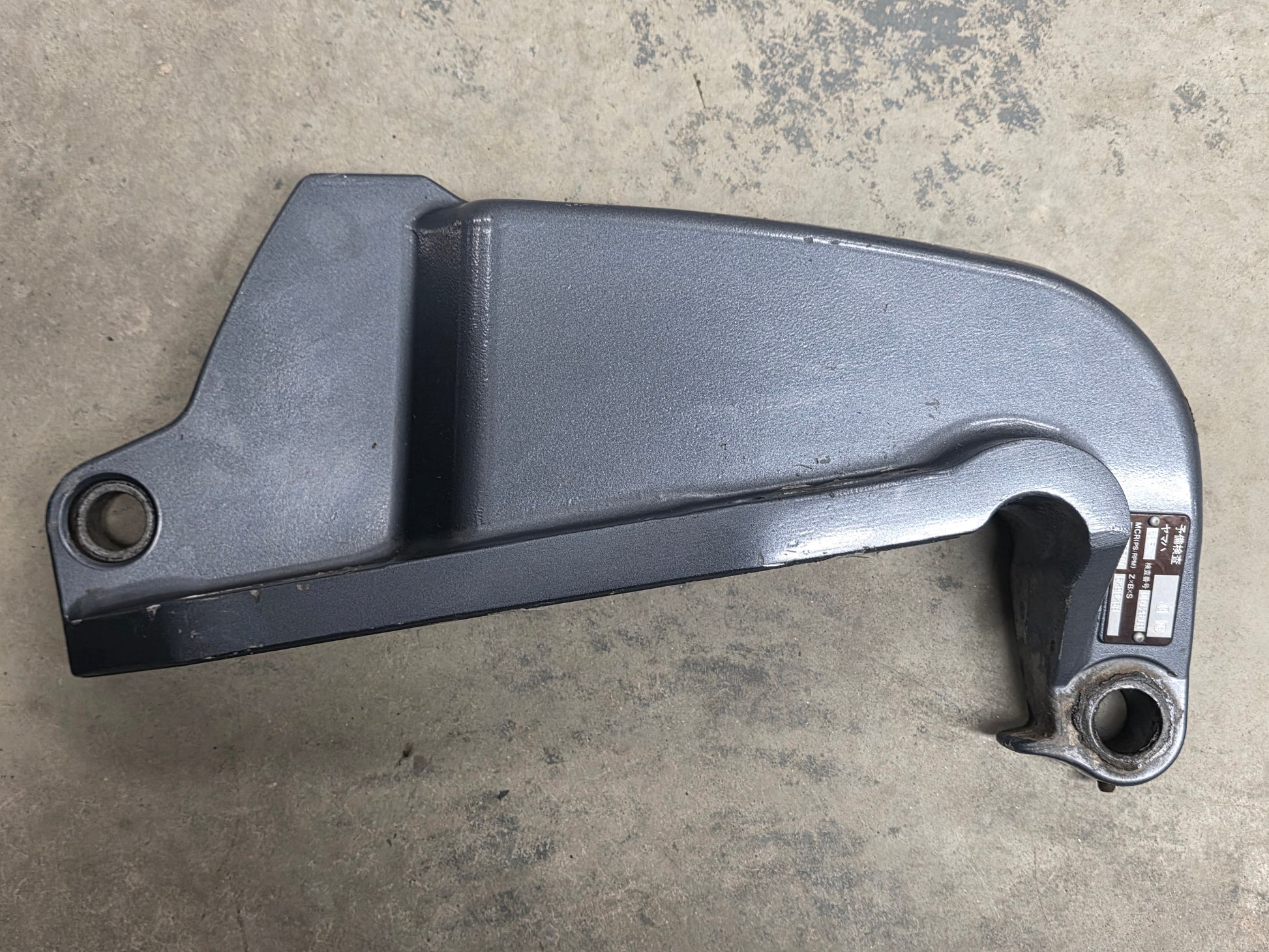

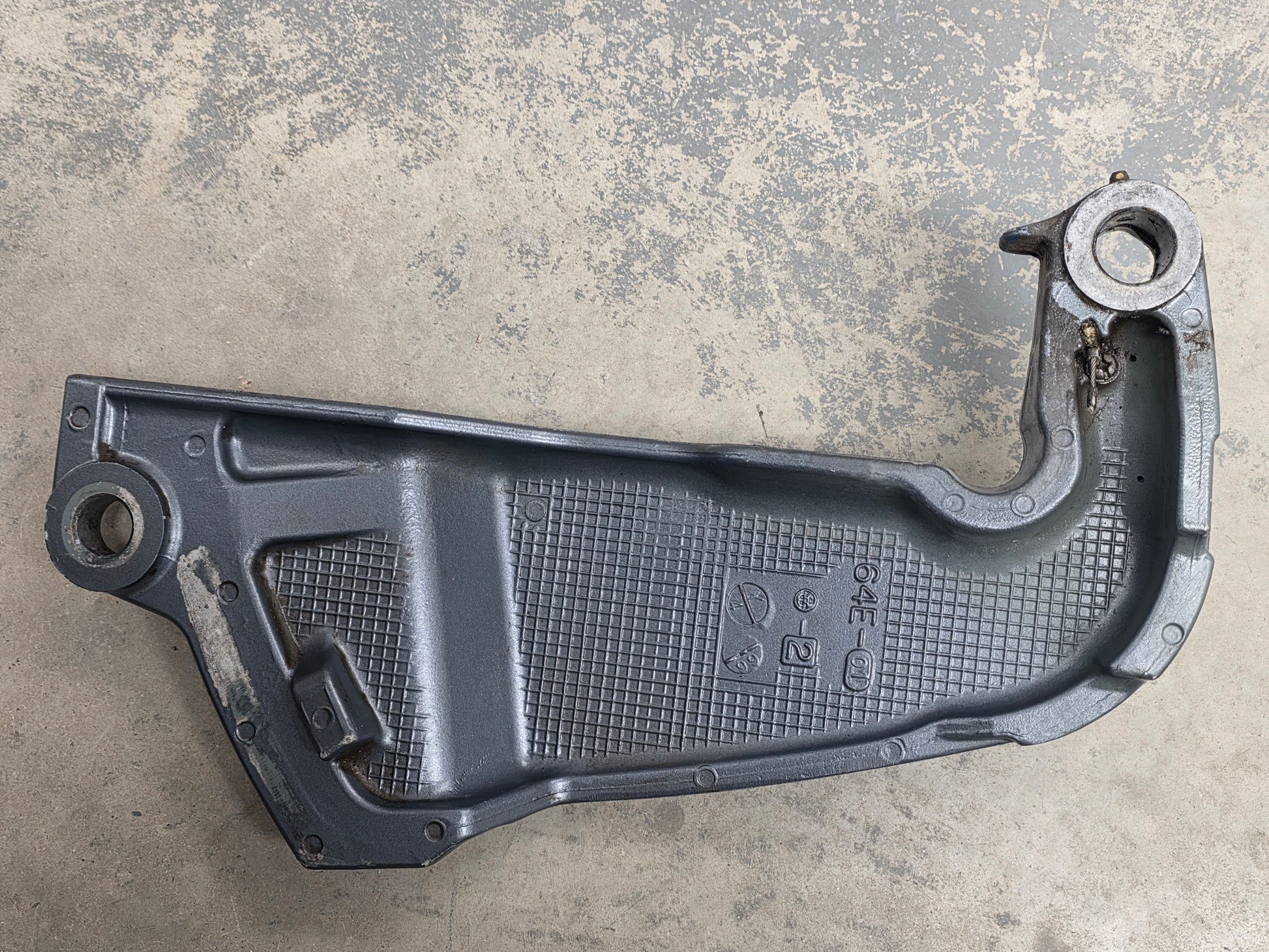

Genuine Yamaha Starboard Clamp Bracket - Part Numbers: 64E-43112-02-8D / 64E-43112-01-8D

A genuine used Yamaha starboard-side clamp bracket for selected 115HP to 300HP outboards. Yamaha identifies the 43112 component as clamp bracket 2, corresponding to the starboard side. The 02-8D version replaces 01-8D and earlier revisions.

⚙️ Key Features

• Genuine Yamaha starboard clamp bracket
• Current grey reference 64E-43112-02-8D
• Supersedes 64E-43112-01-8D
• Supports the tilt tube and trim-and-tilt assembly
• Used on broad Yamaha two-stroke and four-stroke model families

🚤 Compatibility

Commonly used on

• Yamaha 115HP-300HP clamp-bracket systems
• Two-stroke, OX66, HPDI, F-series four-stroke and V MAX SHO engines where catalogued
• Long-production transom-bracket family used from the late 1990s onward

Typically suits

• Confirmed on 115CETO / 130BETO and 150HP-225HP two-stroke models
• Confirmed on Z200 / Z250 HPDI and related models
• Confirmed on F150, F175 and F200 four-stroke diagrams
• Some F250 / 300 applications use different 69J or 61A brackets and must be checked
• HP Range: Approximately 115HP - 300HP
• Side: Starboard / clamp bracket 2
• Year Range: Approximately 1997 onward
• Fitment Requirement: Confirm trim-system layout, colour, tilt-limit equipment and bracket pair

🔌 Function

The starboard bracket supports the right side of the transom mounting assembly and carries the tilt tube, trim system and engine thrust loads.

⚠️ Common Signs of Failure

• Cracks around the trim-unit mounting area
• Corrosion behind the anode or bonding wire
• Worn tilt-tube bore
• Damaged transom mounting surface
• Bracket distortion after collision or grounding

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 64E-43112-02-8D → Supersedes 64E-43112-01-8D
• 64E-43112-01-8D earlier starboard clamp-bracket reference
• Earlier 00-series and colour suffixes may appear on older engines

OEM / Related Numbers

• 64E-43112-02-8D
• 64E43112028D
• 64E-43112-01-8D
• 64E43112018D
• 64E-43111-02-8D matching port bracket
• 6R3-43131-00-00 related tilt tube
• 6G5-45251-02-00 related anode

Aftermarket / Verified Equivalents

• No verified aftermarket cast bracket
• Used genuine Yamaha 64E starboard brackets are the practical replacement
• Aftermarket tilt tubes, bushings and anodes can service the associated mounting assembly

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
