64E-43126-00-00 Yamaha Z200 Upper Shock Mount Pin | Genuine Used Part

🔧 Product Description

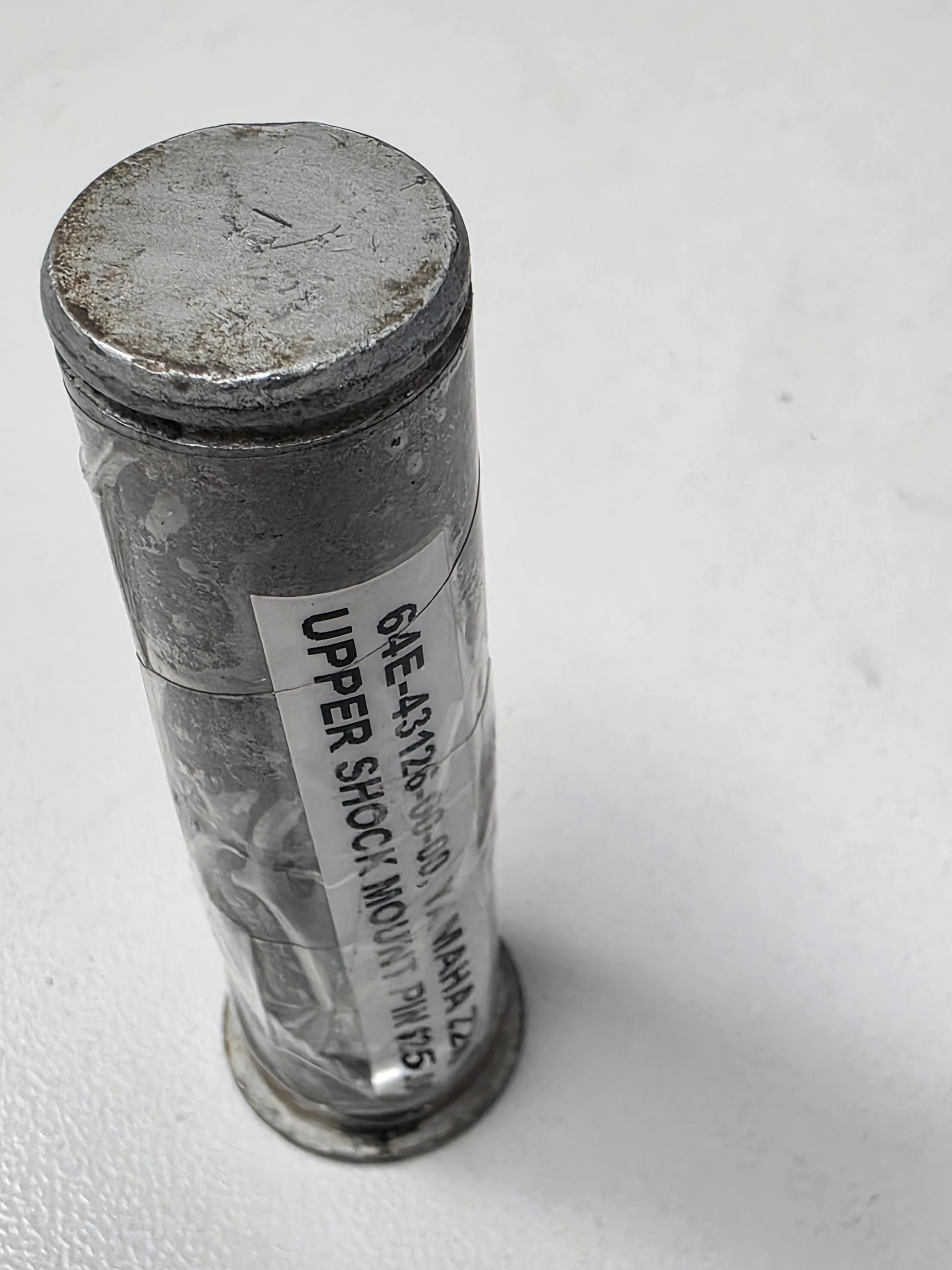

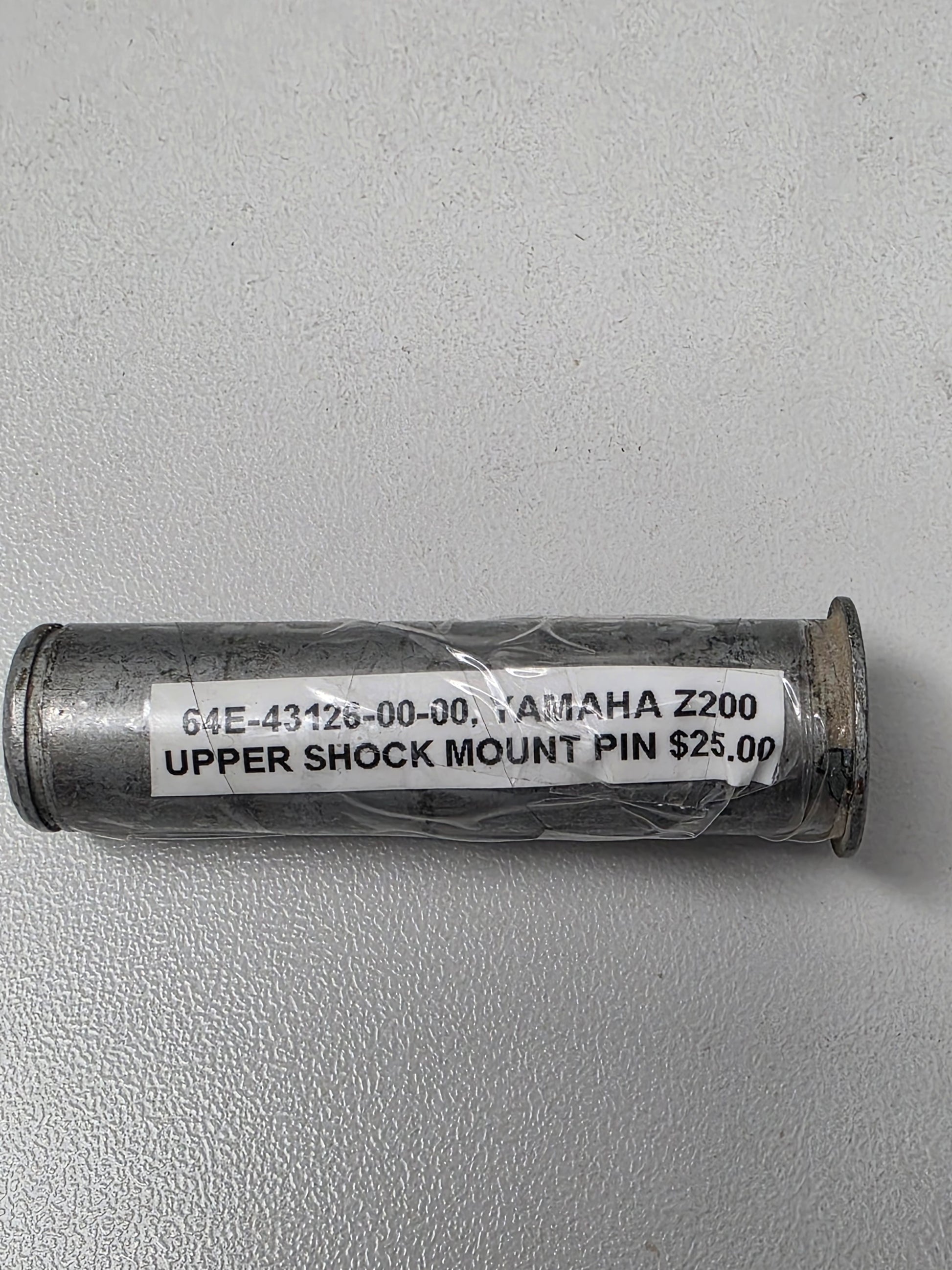

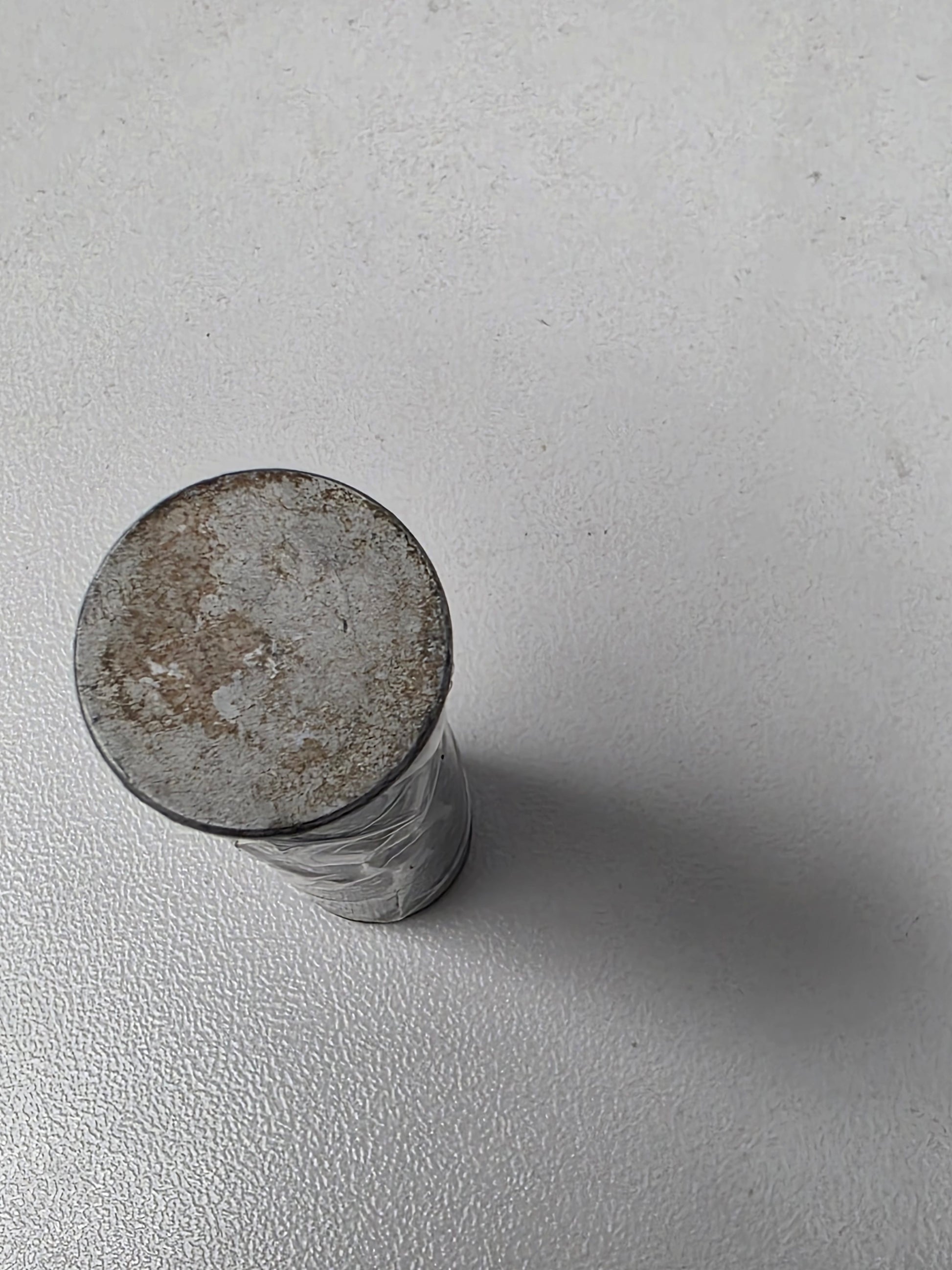

Genuine Yamaha Upper Shock Mount and Trim Cylinder Pin - Part Number: 64E-43126-00-00

A genuine Yamaha upper shock-mount pin used at the upper power-trim cylinder pivot on selected 115HP to 300HP outboards. It replaces 6CB-43126-00-00 and is fitted across carburetted, EFI, HPDI, four-stroke and V MAX SHO bracket assemblies.

⚙️ Key Features

• Genuine Yamaha OEM upper shock-mount pin
• Correct part number 64E-43126-00-00
• Supersedes 6CB-43126-00-00
• Supports the upper trim-cylinder pivot
• Used across selected 115HP to 300HP Yamaha platforms

🚤 Compatibility

Commonly used on

• Yamaha V4, V6 and inline four-cylinder transom-bracket assemblies
• Upper power-trim cylinder and shock-mount pivot locations

Typically suits

• Engine models:
• Yamaha C115, 115, S115 and 130 two-stroke families
• Yamaha 150, 175 and 200 carburetted / EFI two-stroke families
• Yamaha Z150, VZ150, VZ175, Z200, VZ200 and VZ225 HPDI families
• Yamaha 225 and 250 V6 two-stroke / HPDI applications
• Yamaha F115, F150, F175, F200, F225, F250 and F300 four-stroke families
• Yamaha VF200, VF225 and VF250 V MAX SHO applications
• Representative 1997 225TRV, C115TRV and C150TXRV
• Representative 2004 130TLRC and 2017 VF250LA
• HP Range: 115HP - 300HP
• Engine Type: Yamaha two-stroke, HPDI and four-stroke outboard
• Year Range: Approximately 1997 onward

🔌 Function

The pin secures the upper eye of the trim cylinder between the swivel-bracket bosses. It carries hydraulic lifting force and engine weight while allowing the cylinder to pivot.

⚠️ Common Signs of Failure

• Excessive play at the trim-cylinder mount
• Pin seized by corrosion
• Wear grooves at the bushes
• Bent pin
• Damaged circlip groove
• Knocking during trim operation

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 64E-43126-00-00 → Supersedes 6CB-43126-00-00
• 6CB-43126-00-00 earlier OEM upper-pin reference

OEM / Related Numbers

• 64E-43126-00-00
• 6CB-43126-00-00
• 90386-22M98 special nylon bushes
• 93410-series retaining circlip
• 64E / 63P / 68V related power-trim assemblies

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
