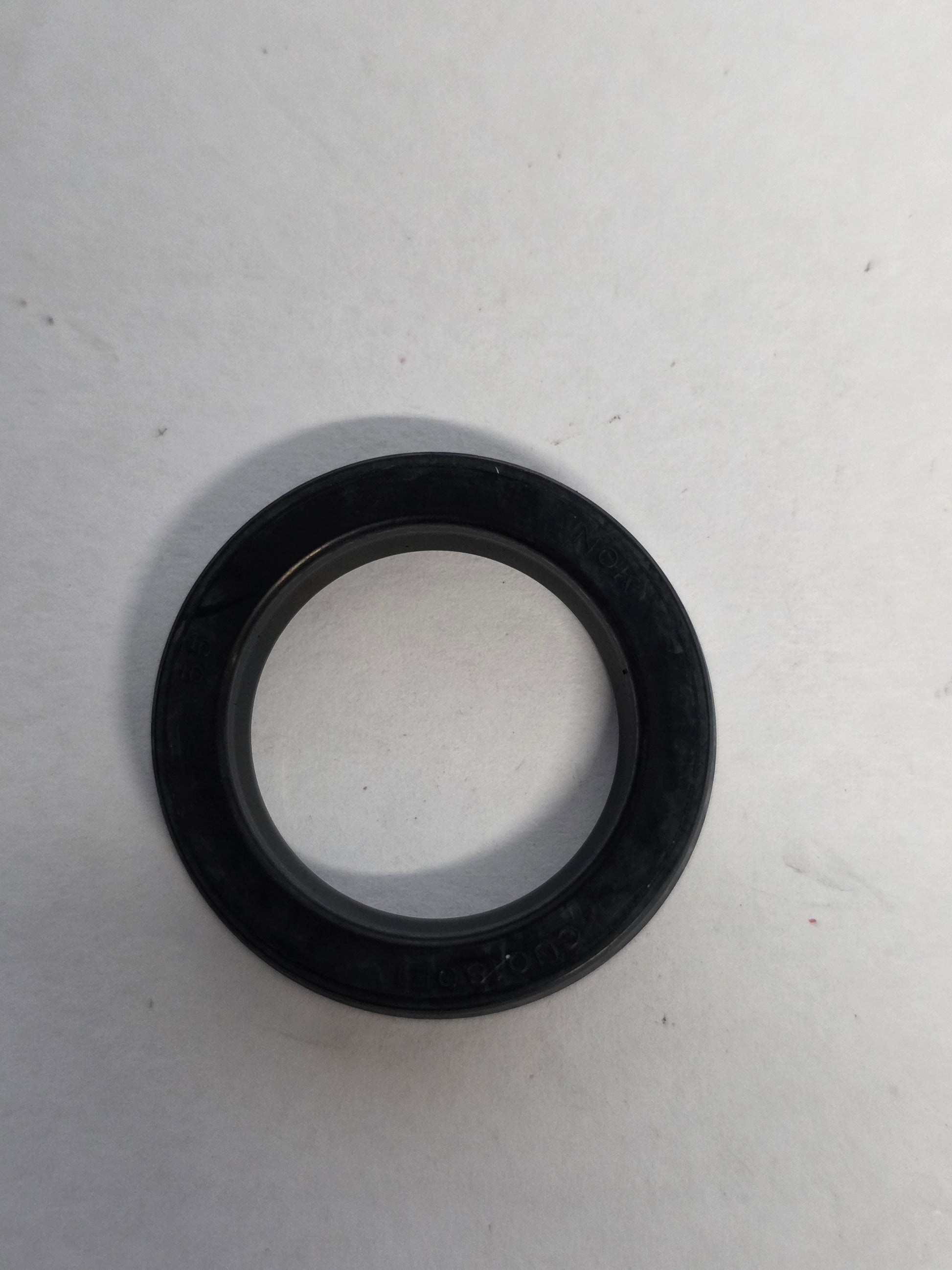

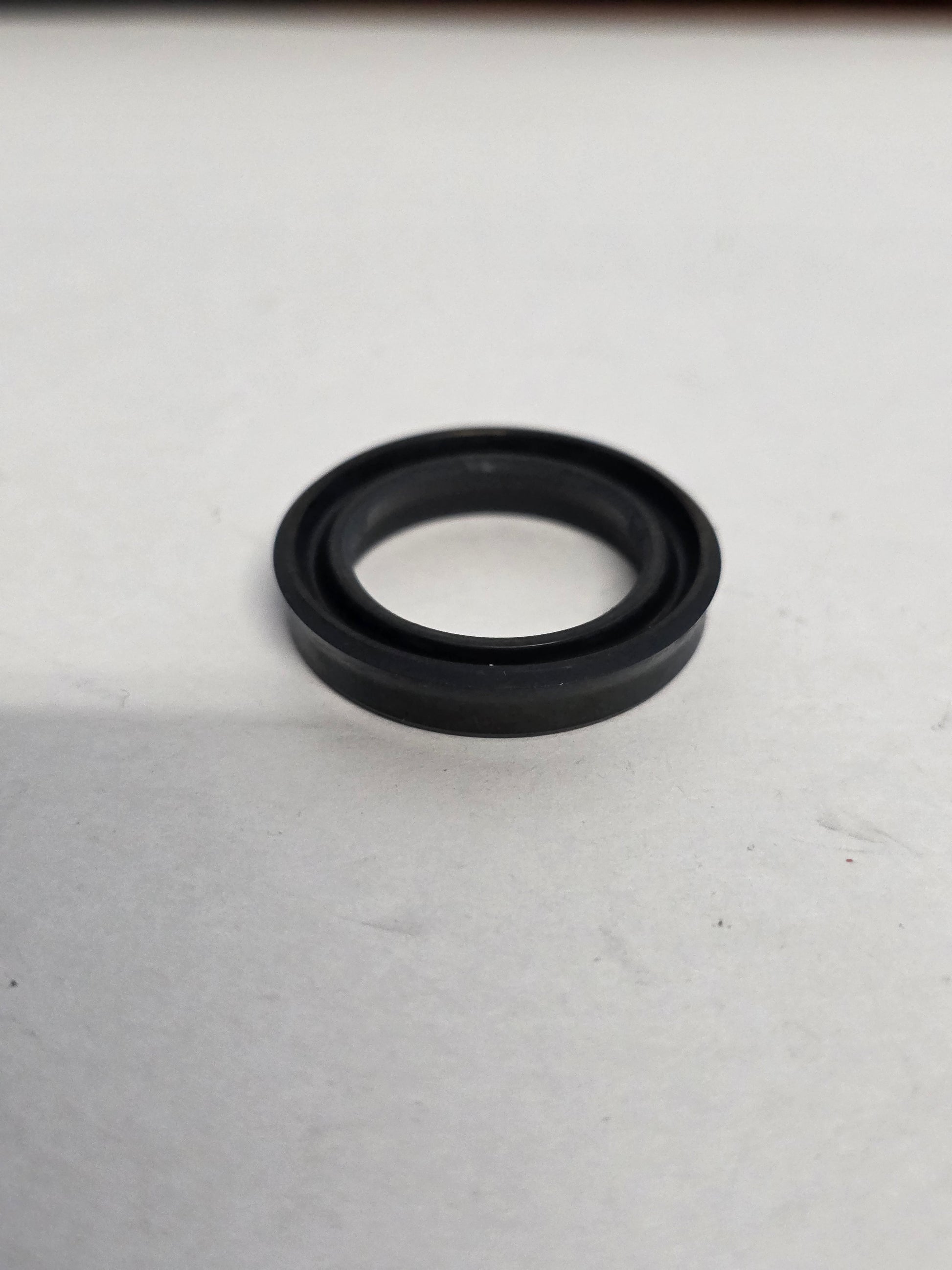

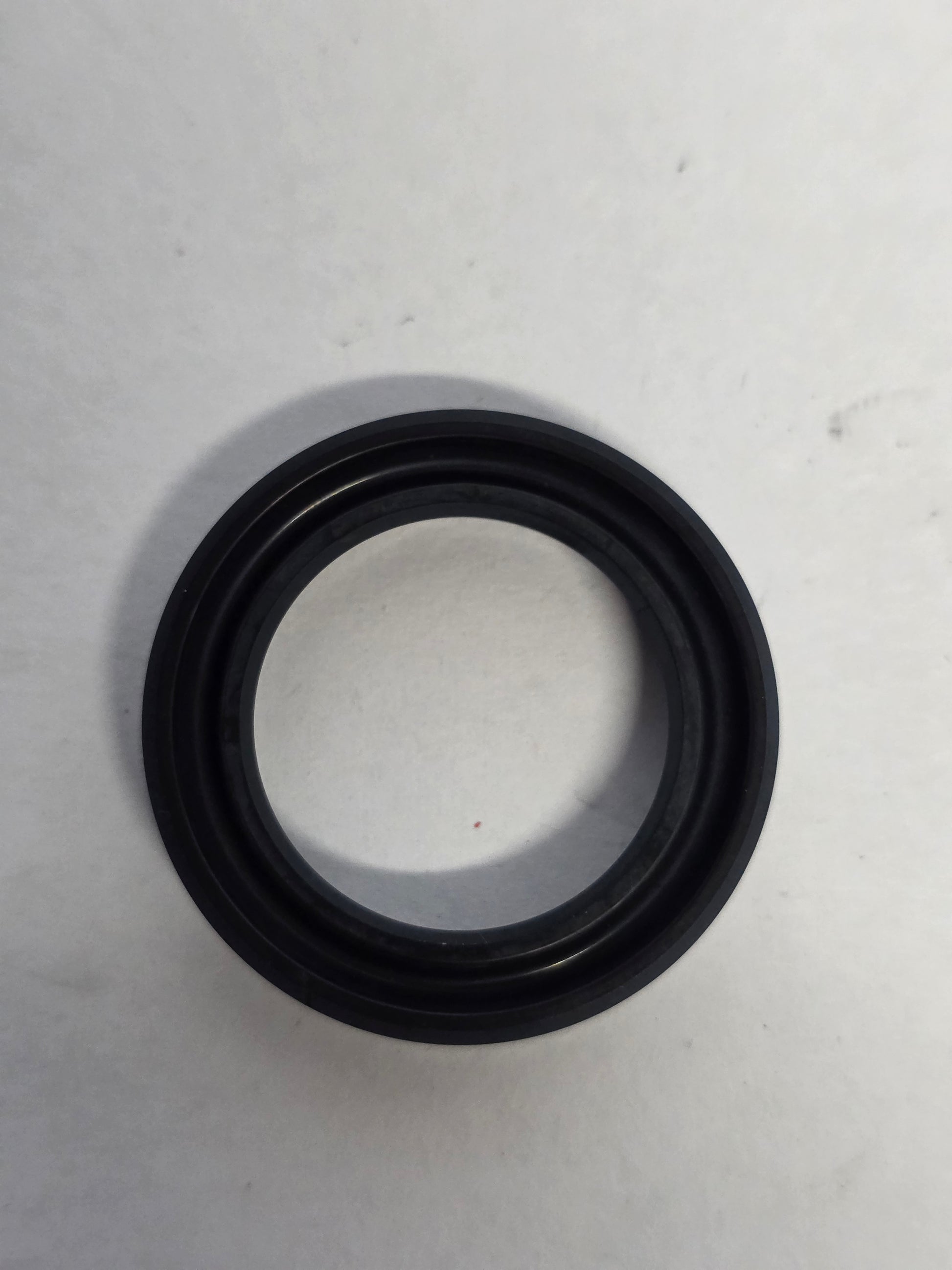

Genuine Yamaha Trim Cylinder Down Seal - Part Number: 64E-4384J-00
A genuine Yamaha hydraulic trim-cylinder down seal for selected large-horsepower Yamaha outboards.
The seal is installed within the trim-cylinder end-cap assembly and maintains hydraulic pressure around the trim ram during downward movement. It works with the external dust seal and supporting O-rings to prevent hydraulic-fluid loss and water intrusion.
⚙️ Key Features
- Genuine Yamaha OEM trim-cylinder hydraulic seal
- Correct Yamaha part number 64E-4384J-00
- Used in the trim-down side of the cylinder end-cap assembly
- Supports hydraulic pressure retention and controlled ram movement
- Cross-references with Sierra, WSM and Pro Marine replacements
🚤 Compatibility
Commonly used on
- Yamaha two-stroke and four-stroke power trim cylinder assemblies
- Yamaha VMAX, Saltwater Series, OX66, HPDI, four-stroke and SHO systems
Typically suits
- Engine models:
- Yamaha 115HP, B115, C115, F115, LF115 and S115
- Yamaha 130HP, L130 and S130
- Yamaha 150HP, C150, F150, FL150, L150, LZ150, P150, S150, SX150, V150, VF150, VX150, VZ150 and Z150
- Yamaha 175HP, F175, P175, S175, V175, VZ175 and Z175
- Yamaha 200HP, F200, FL200, LF200, L200, LZ200, P200, S200, SX200, V200, VF200, VX200, VZ200 and Z200
- Yamaha 225HP, F225, LF225, V225, VF225, VX225, VZ225 and Z225
- Yamaha 250HP, F250, LF250, VF250, VX250, VZ250 and Z250
- Yamaha VZ300 and Z300 HPDI trim-cylinder assemblies
- HP Range: 115HP - 300HP
- Engine Type: Yamaha two-stroke, OX66, HPDI, four-stroke and VMAX SHO outboard
- Year Range: Approximately 1997 - 2018, dependent on trim cylinder
🔌 Function
The seal retains pressurised hydraulic fluid around the trim ram during trim-down operation. It also prevents water and contaminants from entering the hydraulic cylinder around the moving rod.
⚠️ Common Signs of Failure
- Hydraulic oil leaking around the trim-cylinder ram
- Engine slowly settles after being trimmed
- Trim movement becomes weak or uneven
- Air repeatedly enters the hydraulic system
- Seal lip is torn, flattened or hardened during overhaul
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 64E-4384J-00 current Yamaha OEM service reference
OEM / Related Numbers
- 64E-4384J-00
- 64E-4384J-00-00
- 64E4384J0000
- 64E-43822-00 related trim dust seal
- 64E-43821-00 related trim-cylinder end screw
- 64E-43866-09 related outer O-ring
Aftermarket / Verified Equivalents
- Sierra: 18-2082
- WSM: 335-310
- Pro Marine: 64E-4384JP
📦 Condition
- Genuine Yamaha part
- Brand new
- Supplied in original or equivalent packaging
