64E-43867-09 Yamaha Seal | Genuine OEM Yamaha Outboard Part
64E-43867-09 Yamaha Seal | Genuine OEM Yamaha Outboard Part
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
🔧 Product Description

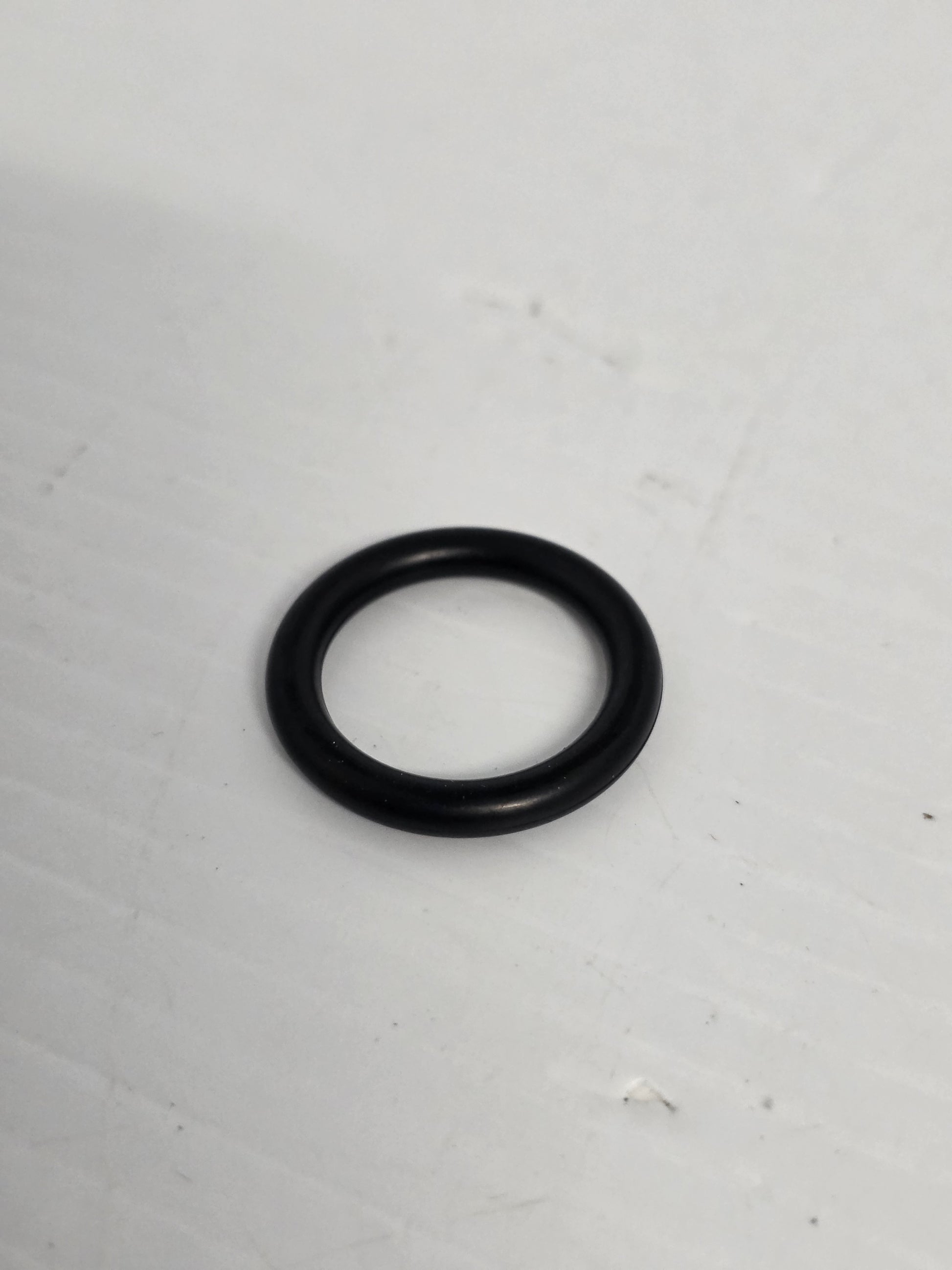

Genuine Yamaha Inner Tilt Cylinder O-Ring Seal - Part Number: 64E-43867-09
A genuine Yamaha inner hydraulic O-ring, identified in Yamaha trim diagrams as O-Ring 7, for selected power trim and tilt cylinder assemblies.
The seal fits within the trim-cylinder end-cap arrangement and supports hydraulic pressure retention around the internal sealing components. It is commonly renewed together with the outer O-ring, dust seal and rod seal during trim-cylinder rebuilding.
⚙️ Key Features
- Genuine Yamaha OEM inner trim-cylinder O-ring
- Correct current Yamaha part number 64E-43867-09
- Supersedes the earlier 64E-43867-00 reference
- Used in the hydraulic cylinder end-cap assembly
- Cross-references with WSM replacement O-ring 526-58
🚤 Compatibility
Commonly used on
- Yamaha large-outboard hydraulic trim-cylinder end caps
- Yamaha two-stroke, OX66, HPDI and four-stroke power trim systems
Typically suits
- Engine models:
- Yamaha 115HP, C115, F115, LF115 and B115
- Yamaha 130HP and L130
- Yamaha 150HP, C150, F150, FL150, L150, LZ150, S150, SX150, V150, VX150, VZ150 and Z150
- Yamaha 175HP, F175, V175, VZ175 and Z175
- Yamaha 200HP, F200, FL200, LF200, L200, LZ200, SX200, V200, VX200, VZ200 and Z200
- Yamaha 225HP, F225, LF225, V225, VX225, VZ225 and Z225
- Yamaha 250HP, F250, LF250, VX250, VZ250 and Z250
- Yamaha VZ300 and Z300 HPDI trim assemblies
- HP Range: 115HP - 300HP
- Engine Type: Yamaha two-stroke, OX66, HPDI and four-stroke outboard
- Year Range: Approximately 1997 - 2018, dependent on trim-cylinder design
🔌 Function
The O-ring provides an internal hydraulic seal within the trim-cylinder end-cap assembly. It supports consistent trim pressure and prevents fluid from bypassing the sealing surfaces.
⚠️ Common Signs of Failure
- Hydraulic oil leakage from the cylinder end cap
- Trim ram drifts downward after the switch is released
- Weak or inconsistent trim response
- O-ring appears cut, compressed or chemically swollen
- Internal leakage remains after replacing the external dust seal
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 64E-43867-09 → Supersedes 64E-43867-00
- 64E-43867-00 earlier Yamaha inner O-ring reference
OEM / Related Numbers
- 64E-43867-09
- 64E-43867-09-00
- 64E438670900
- 64E-43867-00
- 64E-43867-00-00
- 64E-43866-09 related outer O-ring
- 64E-4384J-00 related trim-down seal
Aftermarket / Verified Equivalents
- WSM: 526-58
📦 Condition
- Genuine Yamaha part
- Brand new

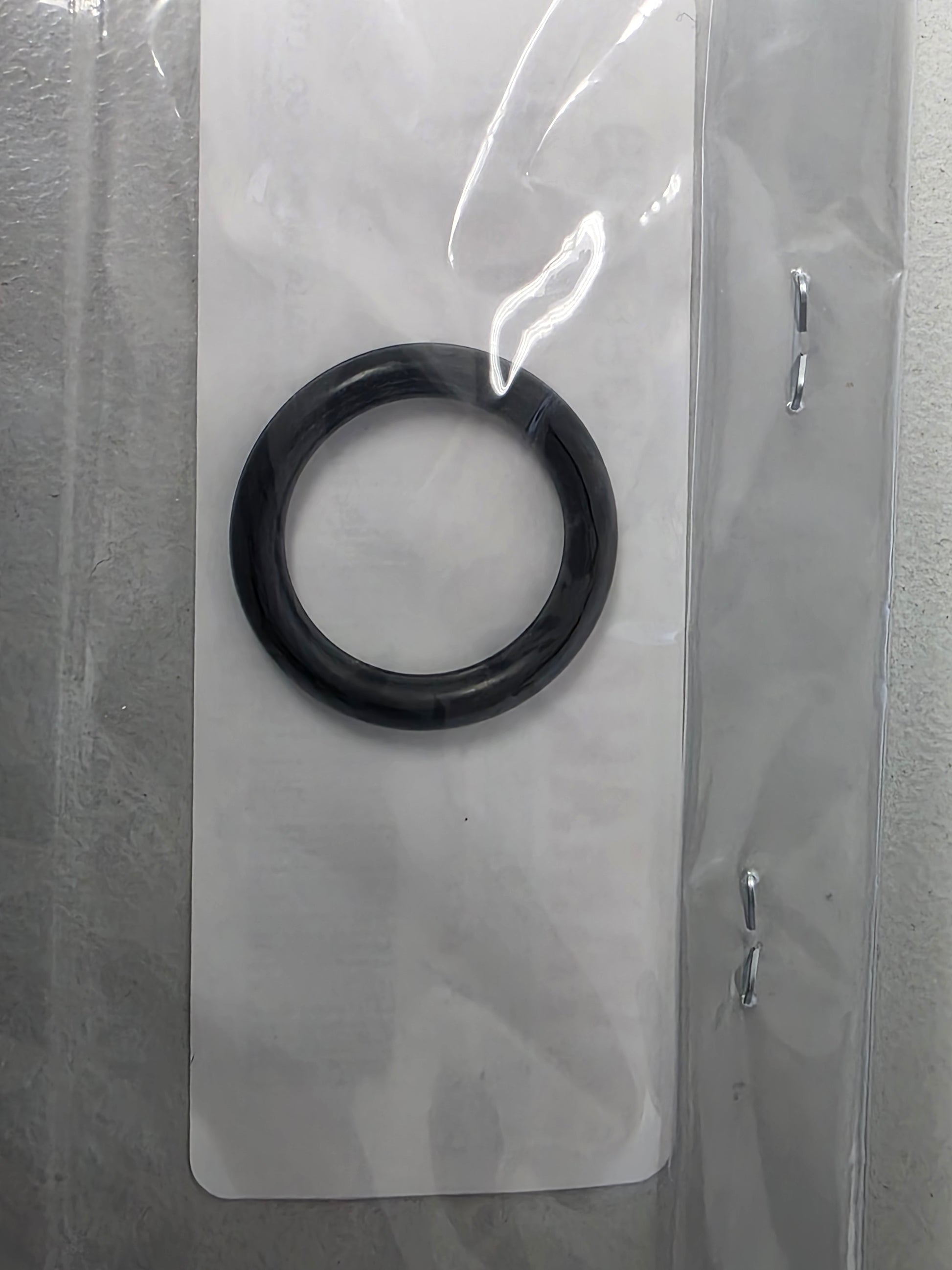

- Supplied in original or equivalent packaging
