65W-11119-00-00 Yamaha F40 Engine Hanger | Genuine Used Part

🔧 Product Description

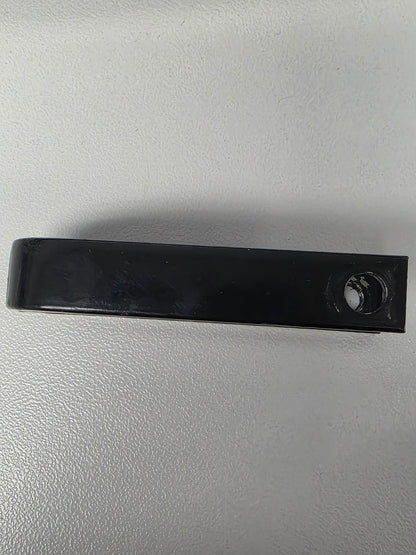

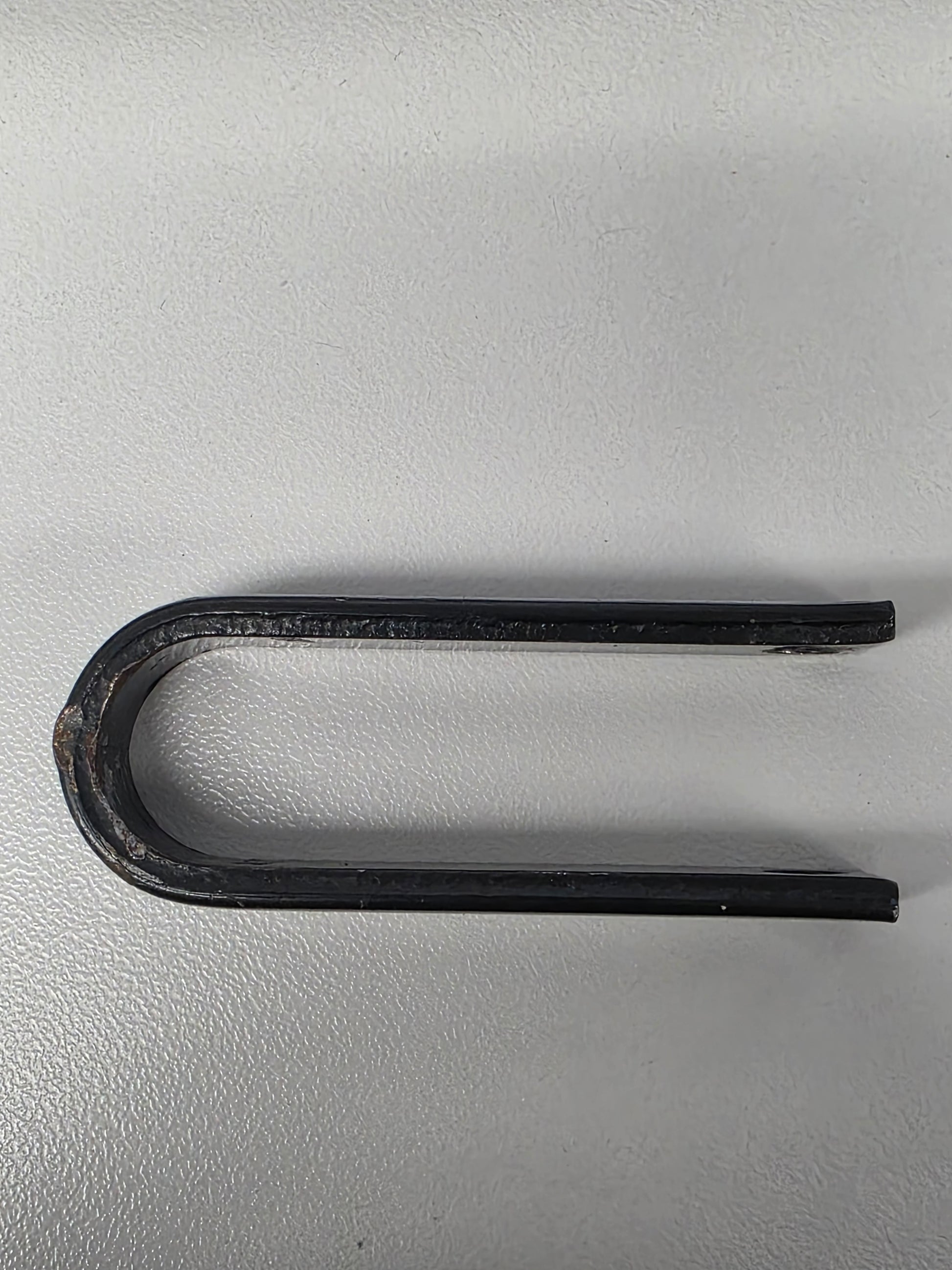

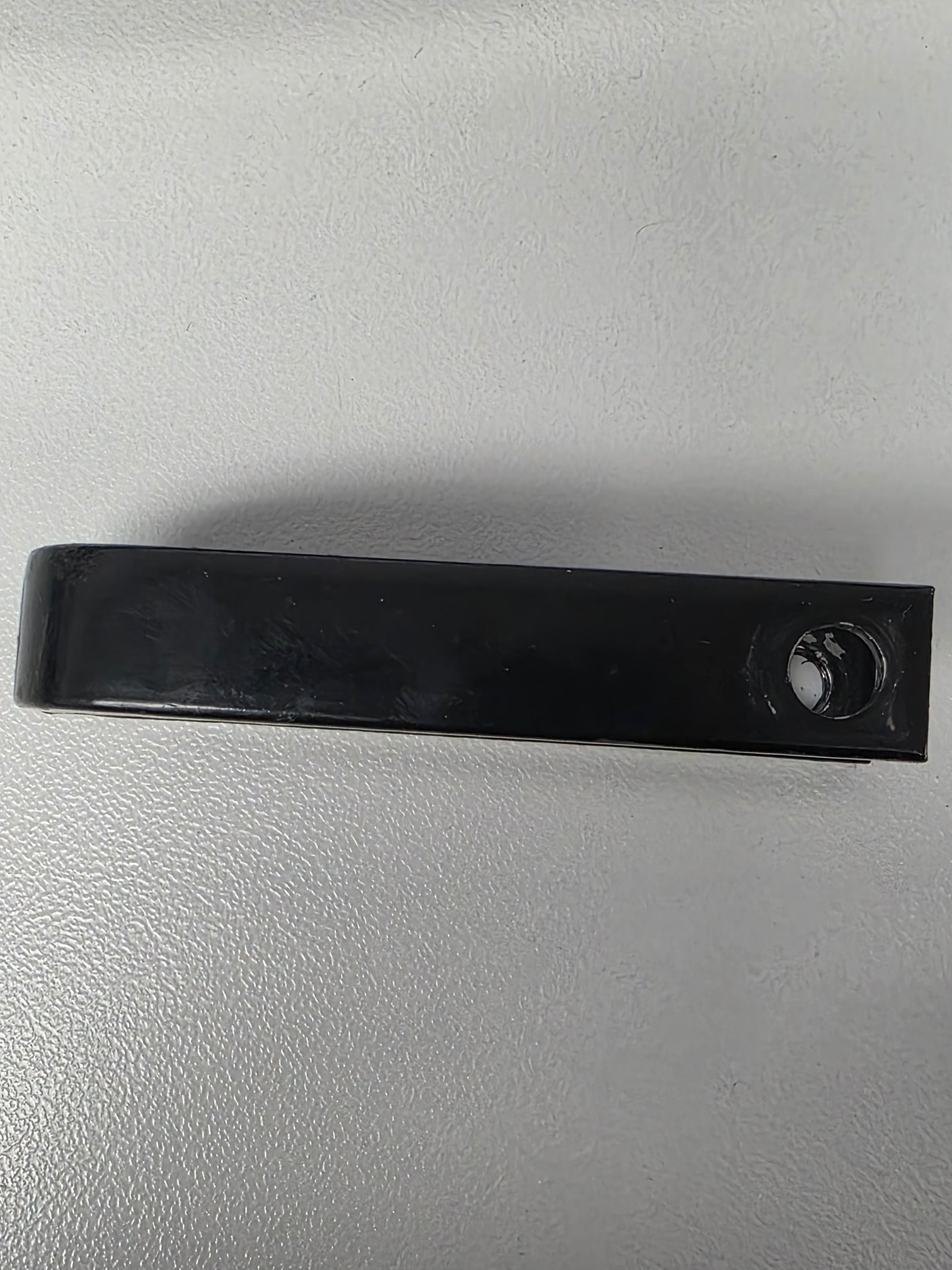

Genuine Yamaha F25 / F30 / F40 Engine Lifting Hanger - Part Number: 65W-11119-00-00

A genuine used Yamaha engine lifting eye for selected 25HP, 30HP and 40HP four-stroke outboards.

The formed steel hanger bolts to the cylinder-block assembly and provides a factory-positioned lifting point for removing or installing the powerhead. Yamaha diagrams document the part on F25, F30 and F40 engines, including 67C-series F40 models.

⚙️ Key Features

• Genuine Yamaha engine lifting hanger
• Correct Yamaha reference 65W-11119-00-00
• Fits selected F25, F30 and F40 engines
• Factory-positioned lifting eye
• Aftermarket equivalent available for Yamaha-derived engines

🚤 Compatibility

Commonly used on

• Yamaha F25 four-stroke outboards
• Yamaha F30 four-stroke outboards
• Yamaha F40 four-stroke outboards
• High-thrust FT25 models

Typically suits selected

• Yamaha F25AEH, F25AET and F25AMH variants
• Yamaha FT25BED, FT25BET and FT25BETX
• Yamaha F30AEH, F30AET and F30AMH variants
• Yamaha F40B variants
• Yamaha F40BEJR
• Yamaha F40ELHA
• Yamaha F40MLH, F40ESR and F40TLR variants
• HP Range: 25HP - 40HP
• Engine Type: Inline three-cylinder four-stroke outboard
• Year Range: Approximately late-1990s through 2000s

🔌 Function

The hanger provides a safe lifting point located near the engine's centre of mass so the powerhead can be handled without attaching chains to intake, exhaust or electrical components.

⚠️ Common Signs of Failure

• Lifting hole is elongated
• Hanger is bent
• Cracks appear around the mounting flange
• Corrosion reduces the metal thickness
• Mounting bolt or thread is damaged
• Hanger has been cut or modified
• Powerhead hangs at an unsafe angle
• Hanger contacts the cowling or nearby components

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 65W-11119-00-00 documented Yamaha engine-hanger reference
• No verified supersession

OEM / Related Numbers

• 65W-11119-00-00
• 65W111190000
• Mounting flange bolt: 90105-08M87-00
• Cylinder-block and crankcase assembly numbers vary by engine

Aftermarket / Verified Equivalents

• Parsun / aftermarket reference: PAF25-05010106
• Yamaha / Mercury / Parsun replacement engine hanger marketed under 65W-11119-00-00
• No Sierra or Mallory equivalent located

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
