663-44324-A0 Yamaha Gasket | Genuine OEM Yamaha Outboard Part

663-44324-A0 Yamaha Gasket | Genuine OEM Yamaha Outboard Part

$7.89 AUD
$7.89 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

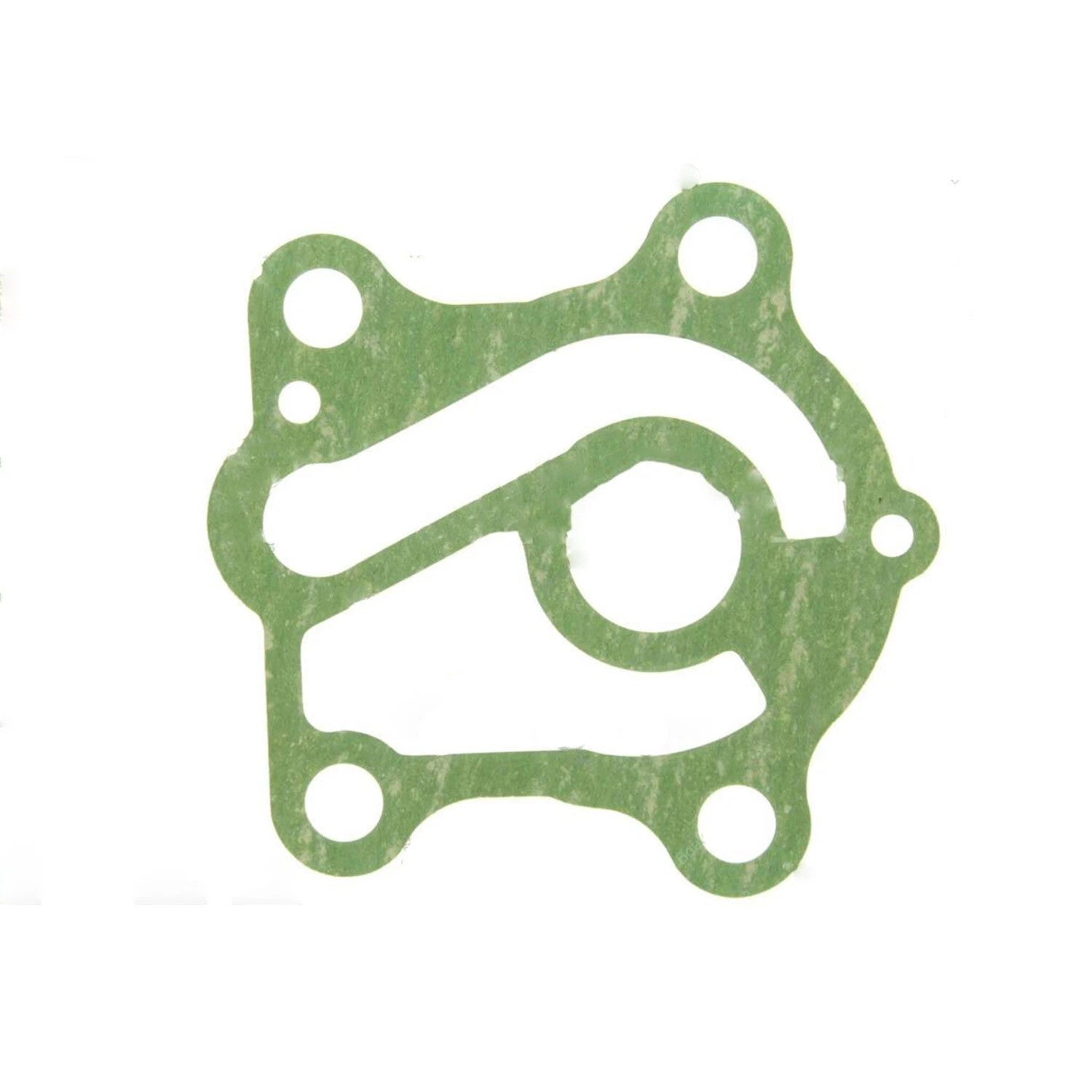

Genuine Yamaha Water Pump Cartridge Gasket - Part Number: 663-44324-A0

A genuine Yamaha gasket used beneath the water-pump cartridge or wear-plate assembly on selected 30HP, 40HP and 50HP two-stroke outboards.

The gasket seals the cartridge assembly against the gearcase and helps maintain water-pump suction and discharge pressure.

⚙️ Key Features

  • Genuine Yamaha OEM water-pump cartridge gasket
  • Correct Yamaha part number 663-44324-A0
  • Replaces the earlier 663-44324-00 reference
  • Used in selected 30HP to 50HP two-stroke lower units
  • Cross-references with Sierra, Recmar and Mercury / Mariner numbers

🚤 Compatibility

Commonly used on

  • Yamaha 30HP, 40HP and 50HP two-stroke water-pump assemblies
  • Yamaha gearcases using the 663-series cartridge and wear-plate design

Typically suits

  • Engine models:
  • Yamaha 30A and related 30HP two-stroke gearcases
  • Yamaha 40HP two-stroke - approximately 1984-1994
  • Yamaha 40E, 40H, 40J, 40N and 40Q
  • Yamaha 50HP two-stroke - approximately 1984-1987
  • Yamaha 50HP Pro Series - approximately 1987-1990
  • Yamaha P50 - approximately 1995-1996
  • Yamaha 50D, 50G and 50H gearcases using the 663-series water pump
  • HP Range: 30HP - 50HP
  • Engine Type: Yamaha carburetted two-stroke outboard
  • Year Range: Approximately 1984 - 1996, dependent on gearcase design

🔌 Function

The gasket seals the water-pump cartridge to the lower-unit housing. This prevents water from bypassing the pump chamber and allows the impeller to maintain adequate cooling-water flow.

⚠️ Common Signs of Failure

  • Reduced tell-tale or cooling-water output
  • Engine overheats after pump installation
  • Gasket is torn, compressed or incorrectly aligned
  • Water-pressure loss occurs around the cartridge base
  • Pump housing will not seat flat against the gearcase

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 663-44324-A0 → Supersedes 663-44324-00
  • 663-44324-00 earlier Yamaha water-pump gasket reference

OEM / Related Numbers

  • 663-44324-A0
  • 663-44324-A0-00
  • 66344324A000
  • 663-44324-00
  • 663-44315-A0 related lower plate gasket
  • 663-44316-A0 related upper plate gasket
  • Mercury / Mariner: 27-81421M

Aftermarket / Verified Equivalents

  • Sierra: 18-0294
  • Recmar: REC663-44324-00
  • Mercury / Mariner: 27-81421M
  • Included in Sierra lower-unit seal kit 18-2789

📦 Condition

  • Genuine Yamaha part
  • Brand new
  • Supplied in original or equivalent packaging
