66K-14980-00-00 Yamaha Float Chamber Body HPDI | Genuine Used Part

🔧 Product Description

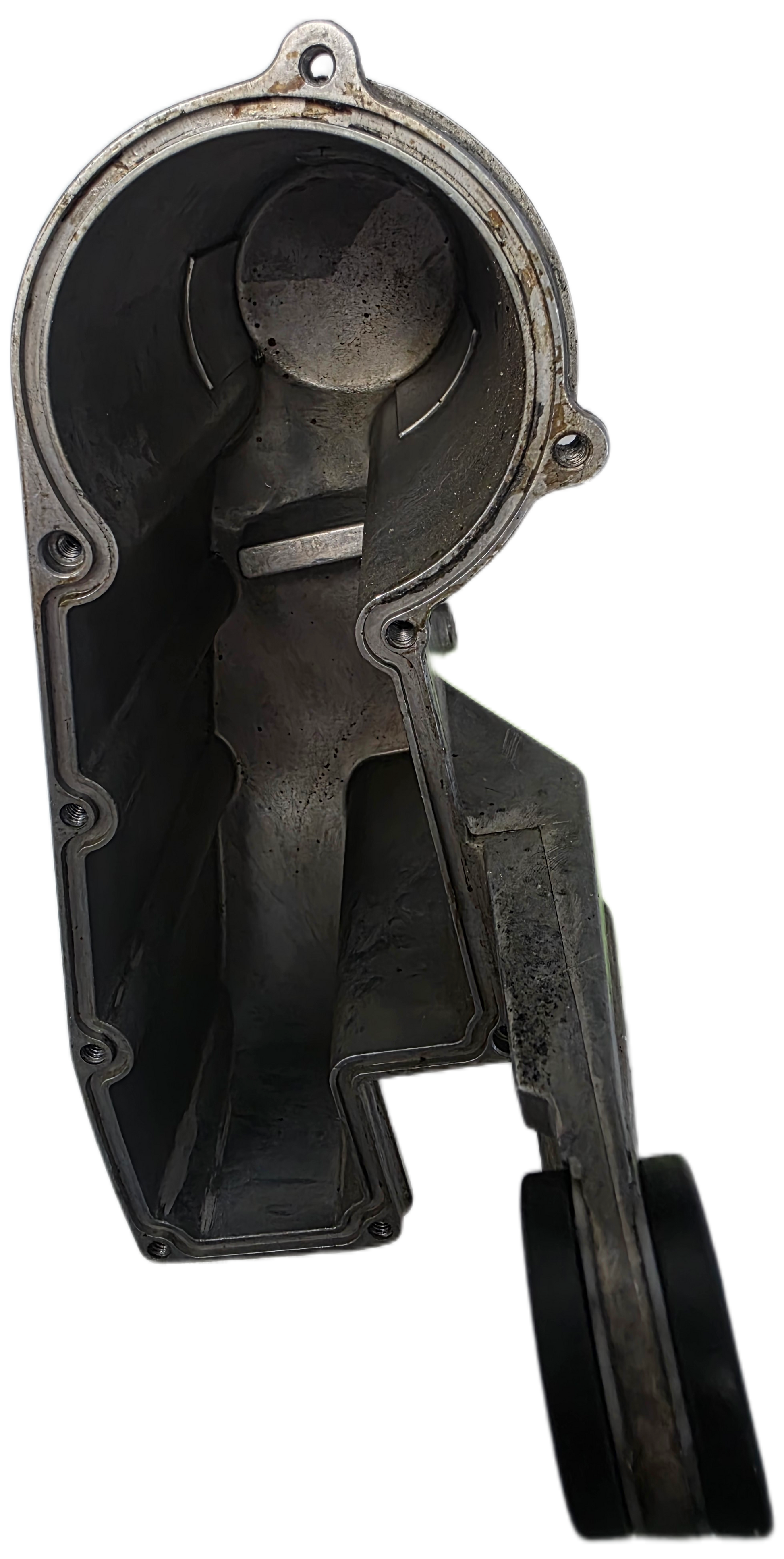

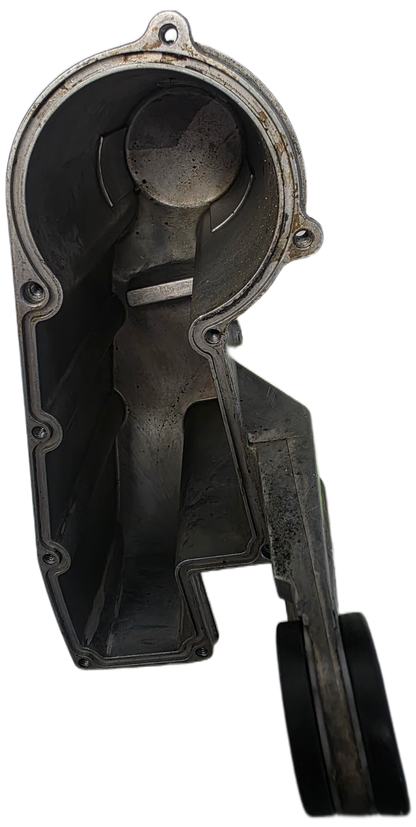

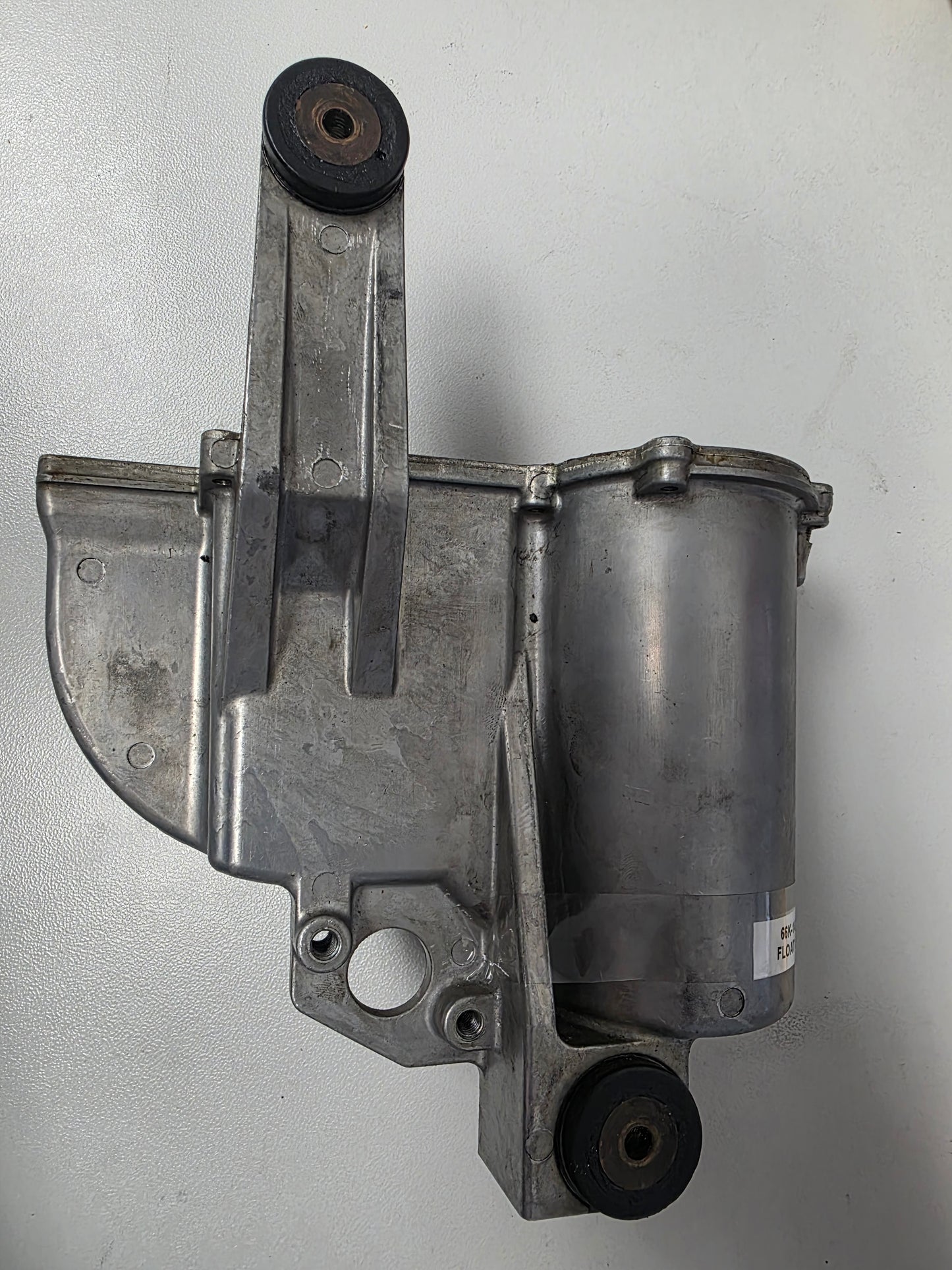

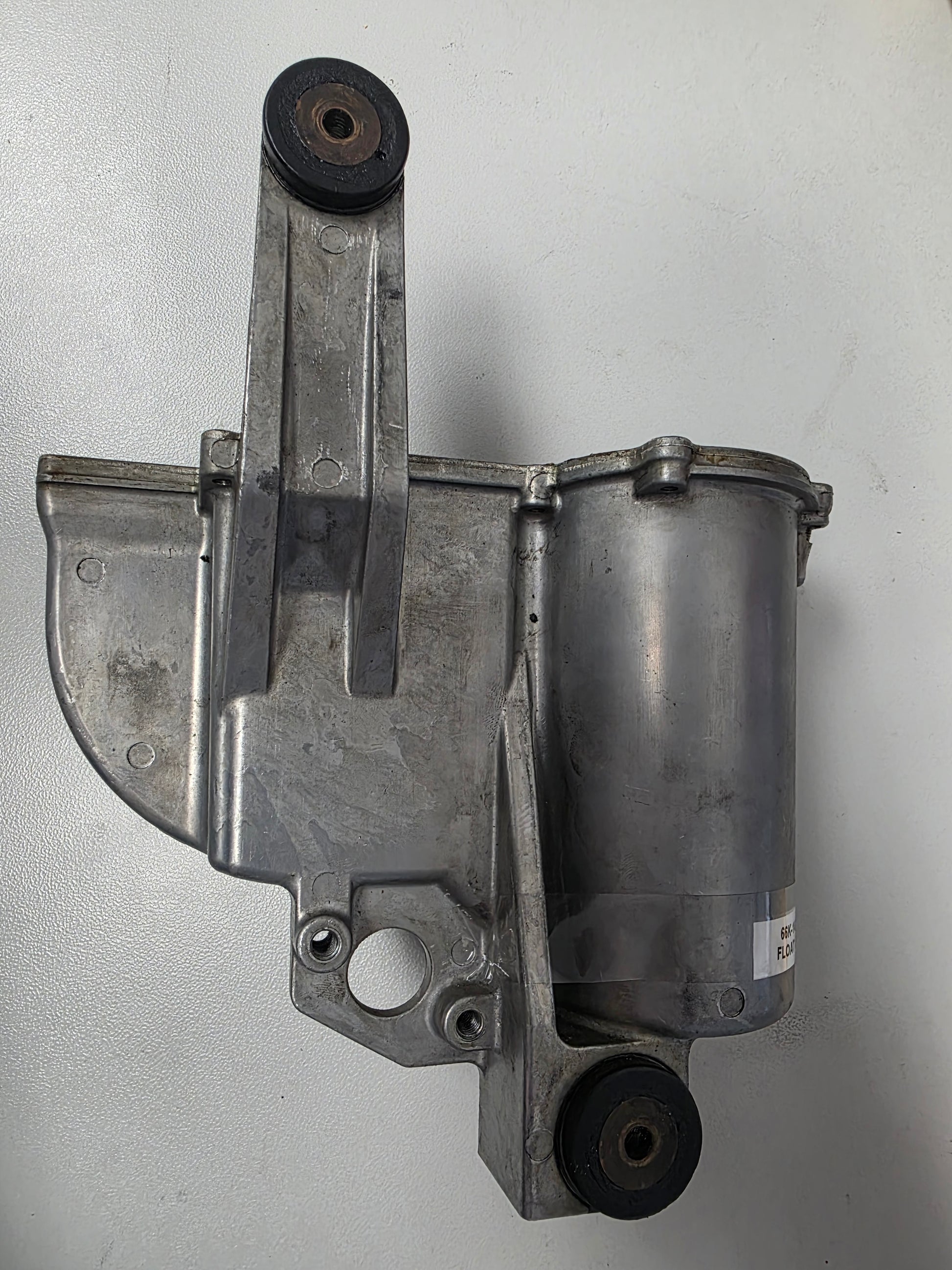

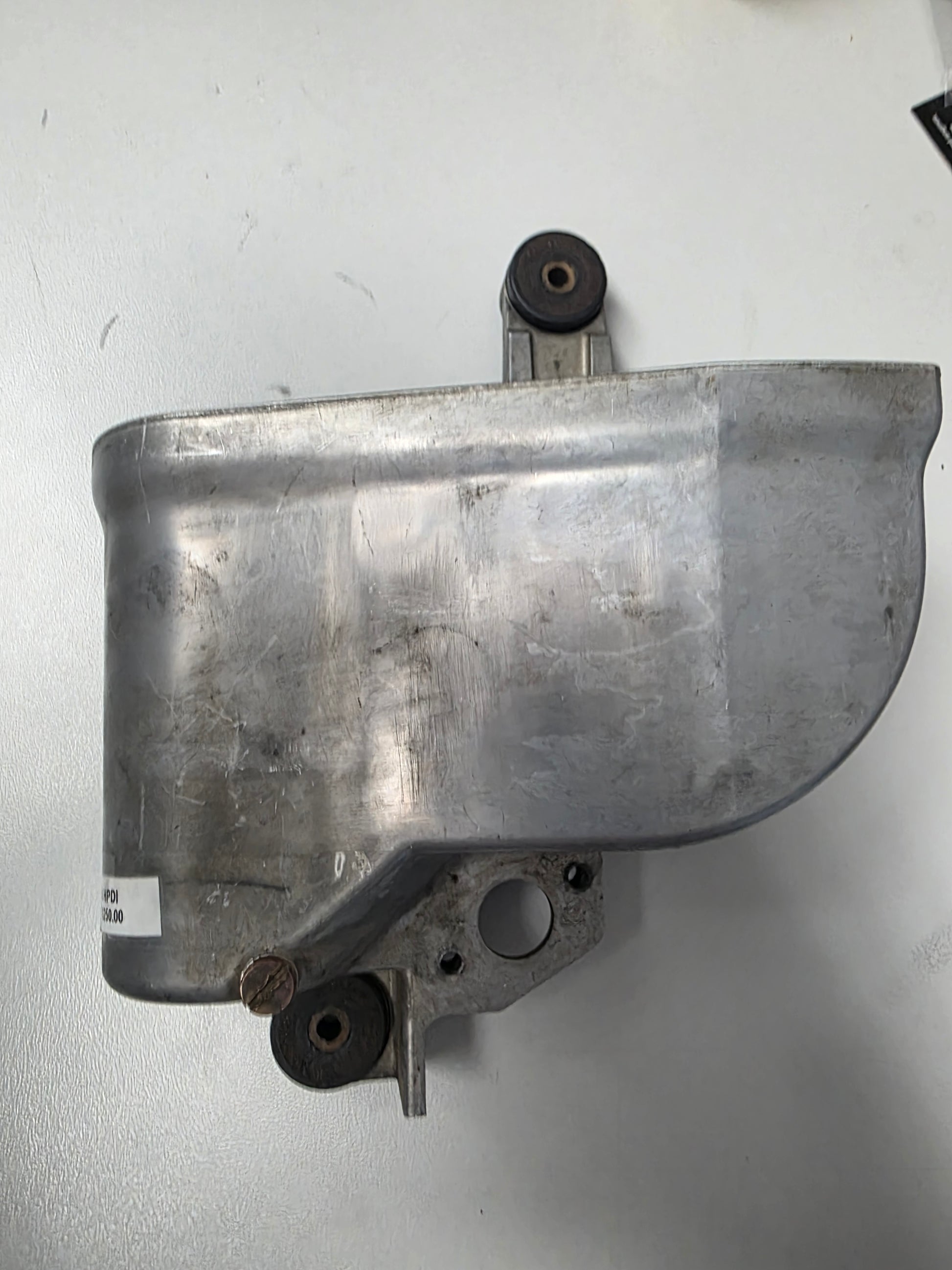

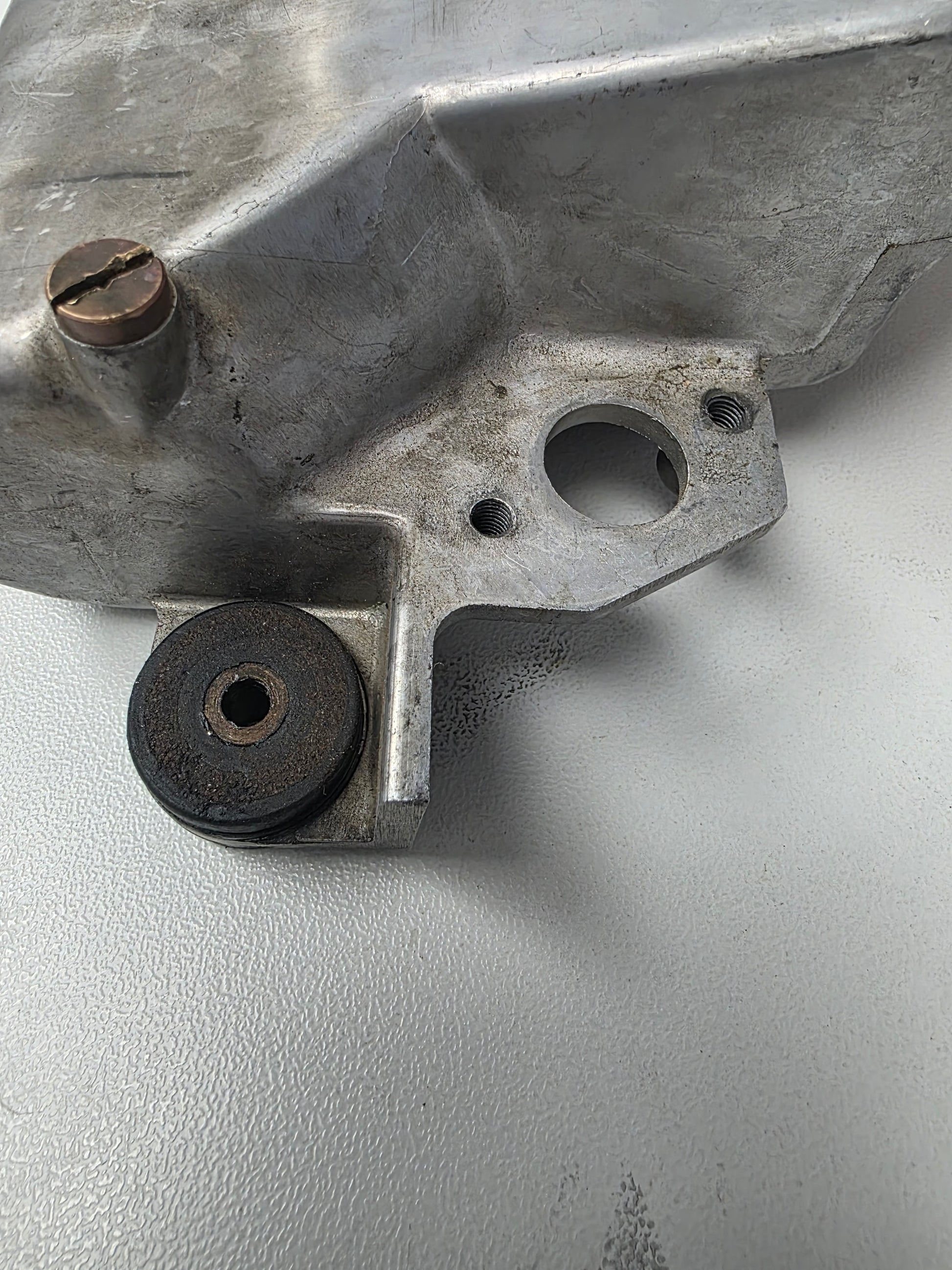

Genuine Yamaha HPDI / EFI Float Chamber Body - Part Number: 66K-14980-00-00

A genuine Yamaha float chamber body used as the vapour separator tank body on selected 2.6L V6 OX66 EFI and HPDI outboards. The chamber houses the float and needle system and forms the fuel reservoir feeding the engine's high-pressure fuel-delivery components.

This body is used with the 66K-series float chamber cover, gasket and internal components. Fitment is controlled by the exact Yamaha model code and fuel-system diagram.

⚙️ Key Features

• Genuine Yamaha OEM float chamber / VST body
• Correct Yamaha part number 66K-14980-00-00
• Used on selected 150HP to 250HP 2.6L V6 EFI and HPDI engines
• Houses the float, needle valve and fuel-reservoir components
• Correct cast body for 66K-series fuel-injection assemblies

🚤 Compatibility

Commonly used on

• Yamaha 2.6L V6 OX66 EFI and HPDI vapour separator systems
• Yamaha 66K / 68F-series float chamber and high-pressure fuel assemblies

Typically suits

• Engine models:
• Yamaha DX150TLRX - 1999
• Yamaha SX150TXRY - 2000
• Yamaha SX150TXRZ - 2001
• Yamaha DX150TLRA - 2002
• Yamaha VX200TLRB - 2003
• Yamaha SX200TXRA - 2002
• Yamaha SX200TXRB - 2003
• Yamaha SX200TXRC - 2004
• Yamaha Z200TXRY - 2000
• Yamaha Z200TXRZ - 2001
• Yamaha Z200TXRA - 2002
• Yamaha Z200TXRB - 2003
• Yamaha V225TLRX - 1999
• Yamaha VX225TLRZ - 2001
• Yamaha LX250TXRZ - 2001
• Yamaha 225GETOL / 66K2 international model - 2003
• HP Range: 150HP - 250HP
• Engine Type: Yamaha 2.6L V6 OX66 EFI / HPDI two-stroke outboard
• Year Range: Approximately 1999 - 2004

🔌 Function

The float chamber body stores a controlled volume of fuel, allows vapour separation and supports the float and needle-valve system that maintains the correct fuel level for the high-pressure injection circuit.

⚠️ Common Signs of Failure

• Fuel leakage from cracks, corrosion or damaged sealing surfaces
• Engine starves for fuel at higher RPM
• Flooding caused by a sticking float or worn needle valve
• Contamination or varnish inside the chamber restricts fuel flow
• High-pressure pump cavitation caused by an unstable VST fuel level

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 66K-14980-00-00 current / original OEM float chamber body reference

OEM / Related Numbers

• 66K-14980-00-00
• 66K149800000
• 66K-14985-00-00 related float
• 66K-14548-01-00 related float pin
• 66K-14984-00-00 related float chamber gasket
• 68F-14182-01-00 related HPDI float chamber cover
• 68F-13907-02-00 related high-pressure fuel pump

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
