6M6-24413-01 Yamaha Fuel Pump Body | Genuine OEM Yamaha Outboard Part

🔧 Product Description

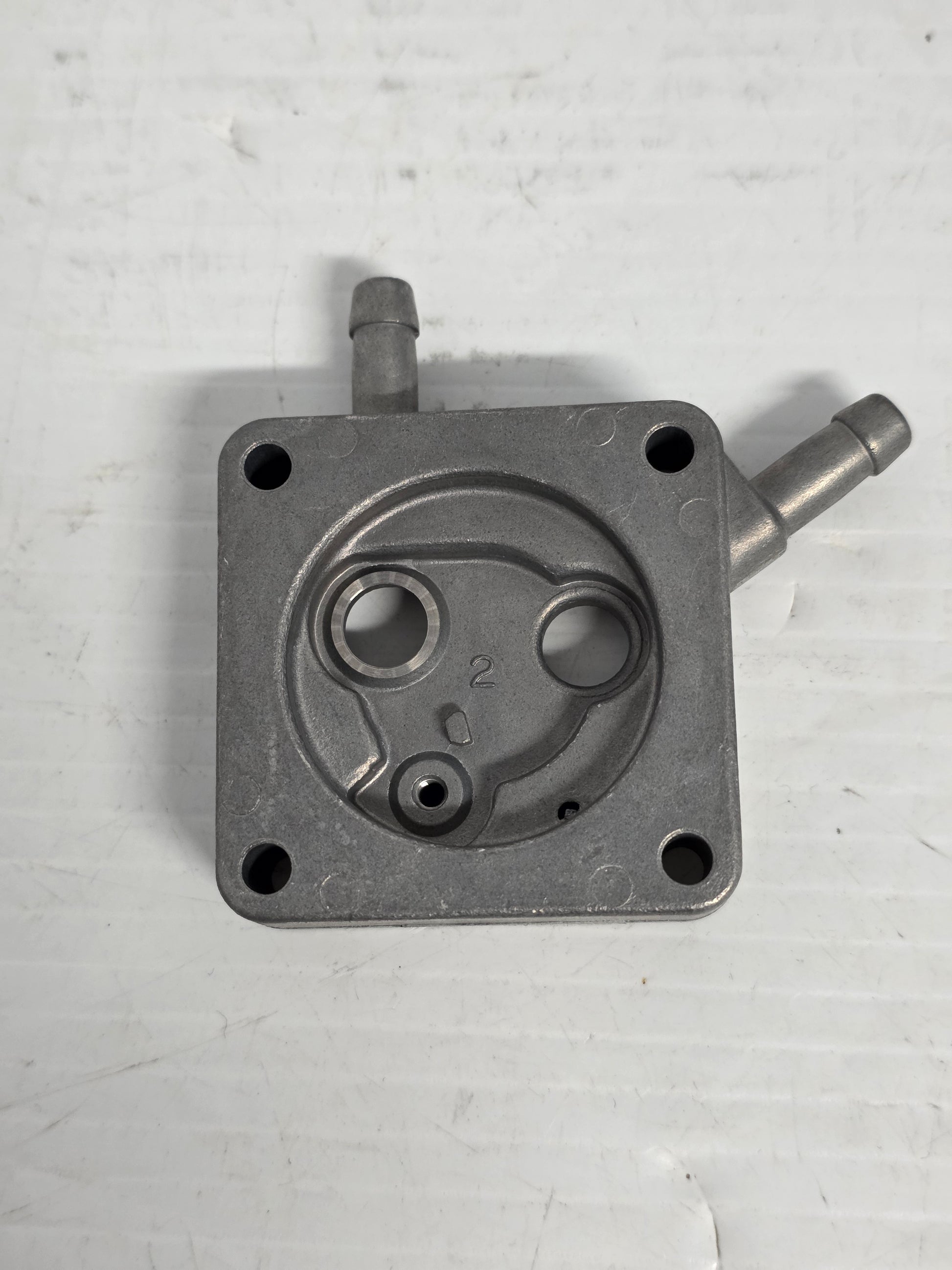

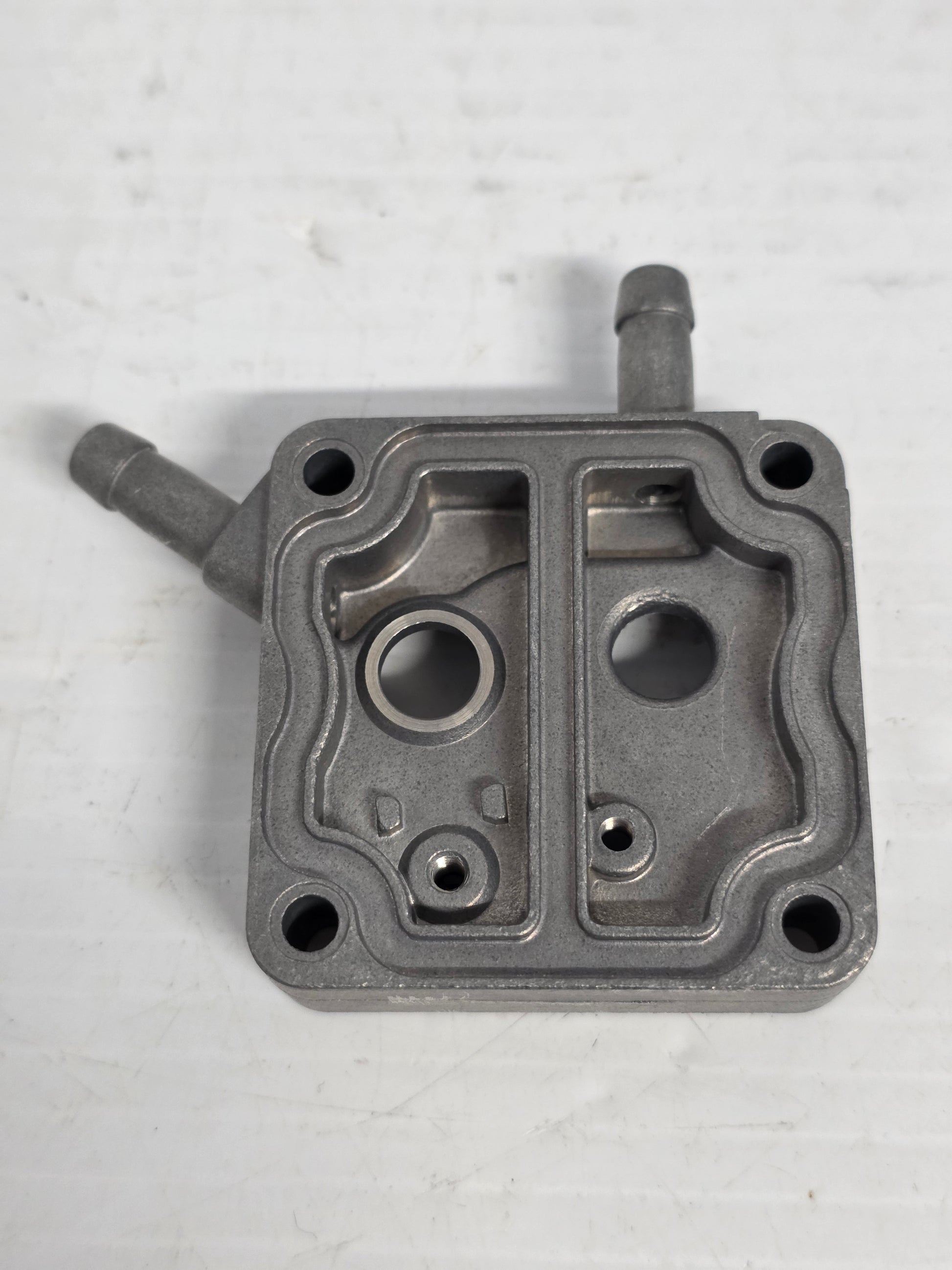

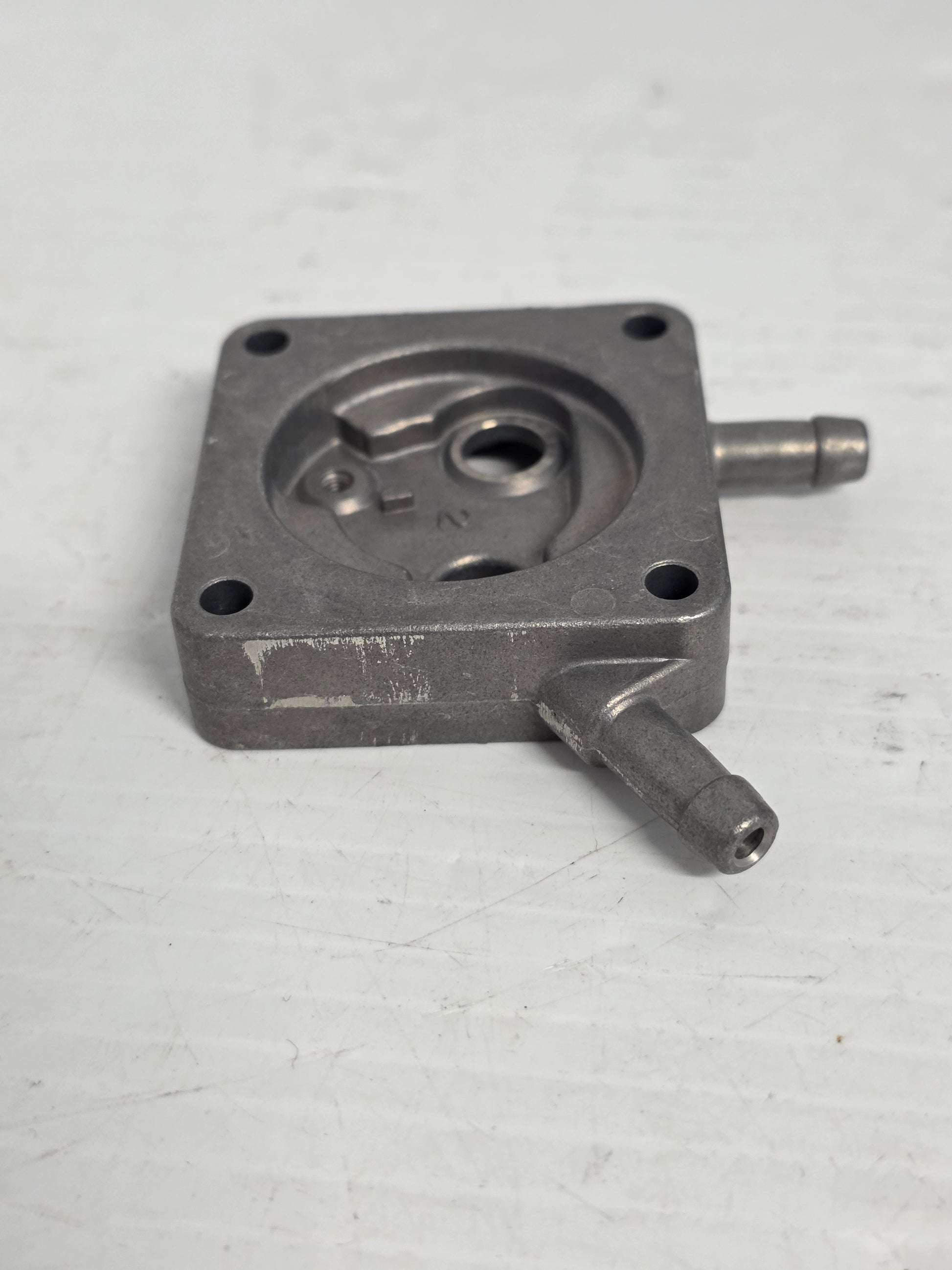

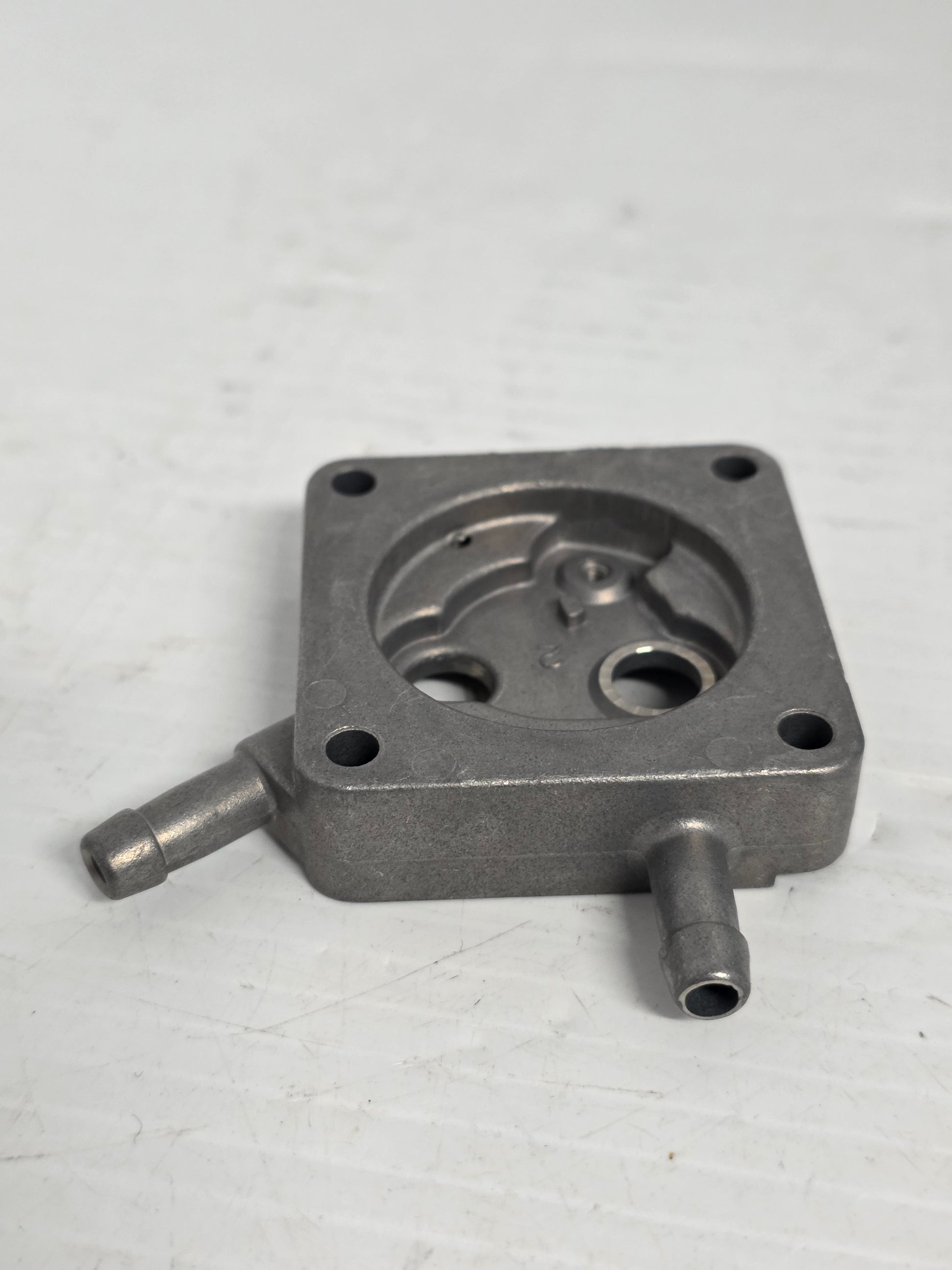

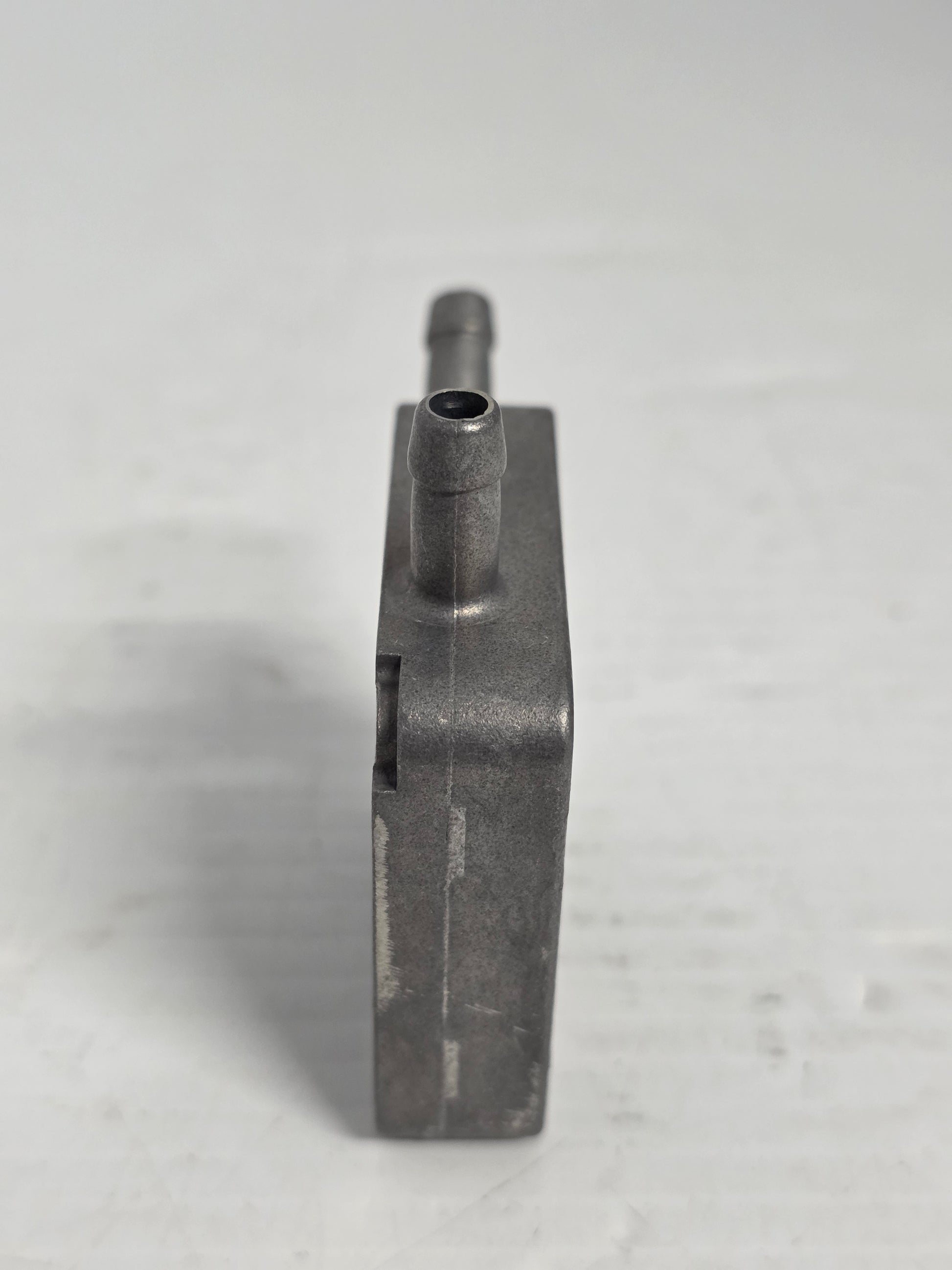

Genuine Yamaha Carburettor Fuel Pump Body - Part Number: 6M6-24413-01

A genuine Yamaha diaphragm fuel-pump body used on selected small four-stroke outboards and Yamaha personal-watercraft and sport-boat carburettor assemblies.

The moulded body forms part of the mechanical pulse-operated fuel pump. It contains the internal fuel passages and supports the diaphragm, check valves and associated sealing components.

⚙️ Key Features

• Genuine Yamaha OEM fuel-pump body

• Correct Yamaha part number 6M6-24413-01

• Replaces earlier Yamaha 66M-24413-01

• Used in pulse-operated diaphragm fuel pumps

• Suitable for selected Yamaha outboard, WaveRunner and sport-boat applications

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6M6-24413-02 → Supersedes 6M6-24413-01

• 6M6-24413-01 → Supersedes 66M-24413-01

• 6M6-24413-01 → Related to earlier 6M6-24413-00

• 6M6-24413-00 earlier Yamaha fuel-pump body reference

OEM / Related Numbers:

• 6M6-24413-01

• 6M6-24413-01-00

• 6M6244130100

• 6M6-24413-02

• 6M6-24413-00

• 66M-24413-01

• 6M6-24410-series related fuel-pump assembly

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Yamaha pulse-operated carburettor fuel pumps

• Yamaha small four-stroke outboards

• Yamaha WaveRunner and sport-boat carburettor fuel systems

Typically suits:

• Engine models:

• Yamaha F6AMH

• Yamaha F8CMH

• Yamaha F15AMH

• Yamaha FT8DEP

• Yamaha FT9.9D, FT9.9DE and FT9.9DMH

• Yamaha Marine Jet 700

• Yamaha XL700 and XL700 Jet

• Yamaha SJ700 and SuperJet 700

• Yamaha WaveRunner III 650 and 700

• Yamaha Wave Raider 700 and 760

• Yamaha Wave Blaster 700 and 760

• Yamaha Wave Venture 700

• Yamaha GP760

• Yamaha GP1200

• Yamaha SUV1200 and SV1200 Jet

• Yamaha Exciter and 1430TR Jet sport boats

• Yamaha LS2000 sport boat

• HP Range: 6HP - 15HP outboard applications; 650cc - 1200cc personal-watercraft and sport-boat applications

• Engine Type: Yamaha carburetted four-stroke outboard and carburetted two-stroke marine jet engine

• Year Range: Approximately 1992 - 2020, dependent on platform and fuel-pump assembly

🔌 Function

The fuel-pump body contains the internal passages and valve seats that allow crankcase or intake pulses to move the diaphragm. This draws fuel from the tank and supplies it to the carburettor.

Common signs of failure:

• Fuel leaking from a cracked or distorted pump body

• Engine loses power because of inadequate fuel delivery

• Hard starting after the engine has been standing

• Pump will not hold prime

• Damaged sealing surfaces cause air or fuel leakage

📦 Condition

• Genuine Yamaha part

• Brand new

• Supplied in original or equivalent packaging
