🔧 Product Description

Aftermarket Yamaha four-stroke carburettor repair kit - Replacement Part Number: 66M-W0093-01

A complete service kit for selected Yamaha F9.9, FT9.9 and F15 four-stroke carburettors. It supersedes the earlier 66M-W0093-00 and cross-references to Mercury and Tohatsu service kits used on the related engine platform.

⚙️ Key Features

• Exact OEM service-component numbers listed below

• Includes float, needle valve, gaskets, O-rings, stopper and filter

• Designed for selected 9.9HP and 15HP four-stroke engines

• Cross-brand Mercury and Tohatsu equivalents

• Services one carburettor

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 66M-W0093-01 → Supersedes 66M-W0093-00

OEM / Related Numbers:

• 66M-W0093-01

• 66M-W0093-00

Aftermarket / Verified Equivalents:

• Sierra: 18-7738

• Mercury/Mariner: 802706A1

• Tohatsu: 3V1-87122-0

• Recmar: REC66M-W0093-01

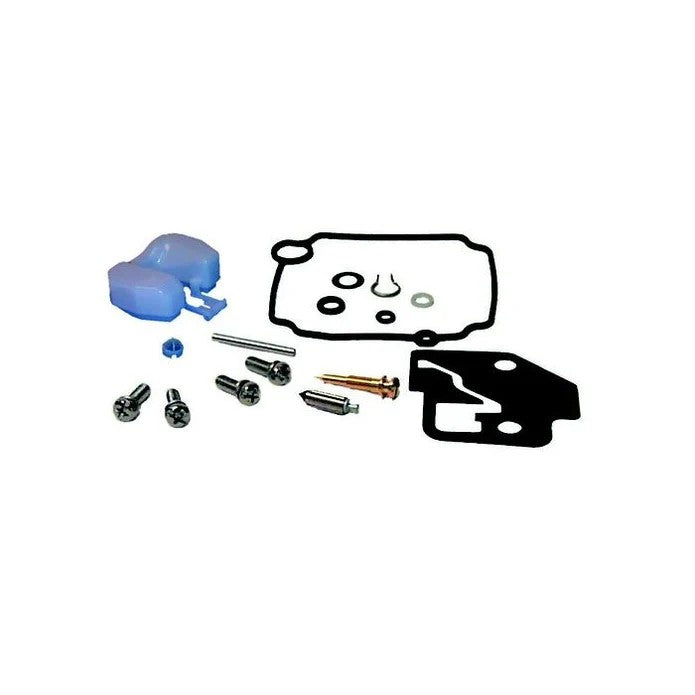

Included Components:

• 1 × Gasket - Part Number: 66M-14398-00-00

• 1 × Gasket - Part Number: 6L2-14398-00-00

• 1 × Stopper - Part Number: 66M-14377-00-00

• 1 × Float-chamber gasket - Part Number: 66M-14384-00-00

• 1 × Float - Part Number: 6L2-14385-00-00

• 1 × Float pin - Part Number: 6E5-14386-01-00

• 1 × Needle valve - Part Number: 6L2-14392-00-00

• 1 × Gasket - Part Number: 62Y-14399-00-00

• 1 × Air-adjusting screw - Part Number: 12V-14105-00-00

• 4 × Screws with washers - Part Number: 97980-04112-00

• 1 × O-ring - Part Number: 5H0-14397-00-00

• 1 × O-ring - Part Number: 6F5-14397-00-00

• 1 × Filter - Part Number: 66M-14827-00-00

🚤 Compatibility

Commonly used on:

• Yamaha carburetted outboards using the listed OEM carburettor service kit

Typically suits:

• Engine models:

• Yamaha F9.9C

• Yamaha FT9.9D

• Yamaha F15A

• Yamaha F15ELH, F15MHZ and F15PL derivatives

• HP Range: 9.9HP - 15HP

• Engine Type: Carburetted four-stroke outboard

• Year Range: F9.9/FT9.9 approximately 1998 - 2008; F15 approximately 1998 - 2007

• Quantity Required: One kit per carburettor

🔌 Function

The kit renews the carburettor's float-control, inlet-valve and sealing components. Correct rebuilding restores fuel-bowl level, prevents air and fuel leaks and stabilises the mixture from starting through full-load operation.

Common signs of failure:

• Hard starting or excessive choke/enrichment required

• Rough idle, hunting or repeated low-speed stalling

• Hesitation, flat spots or intake backfire during acceleration

• Fuel leakage, flooding or an incorrect float-bowl level

• Lean surging, reduced power or fuel starvation under load

• Rich running, smoke, spark-plug fouling or excessive fuel consumption

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
