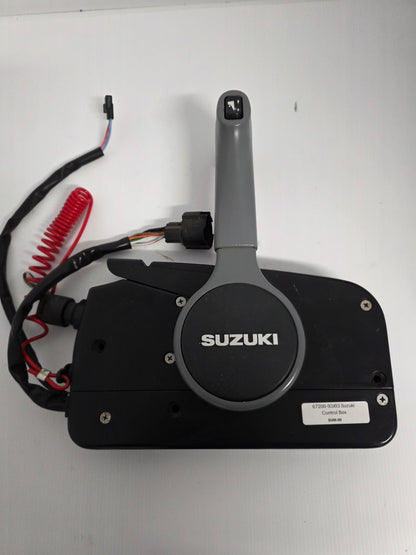

67200-93J03 Suzuki Control Box | Genuine Used Part

🔧 Product Description

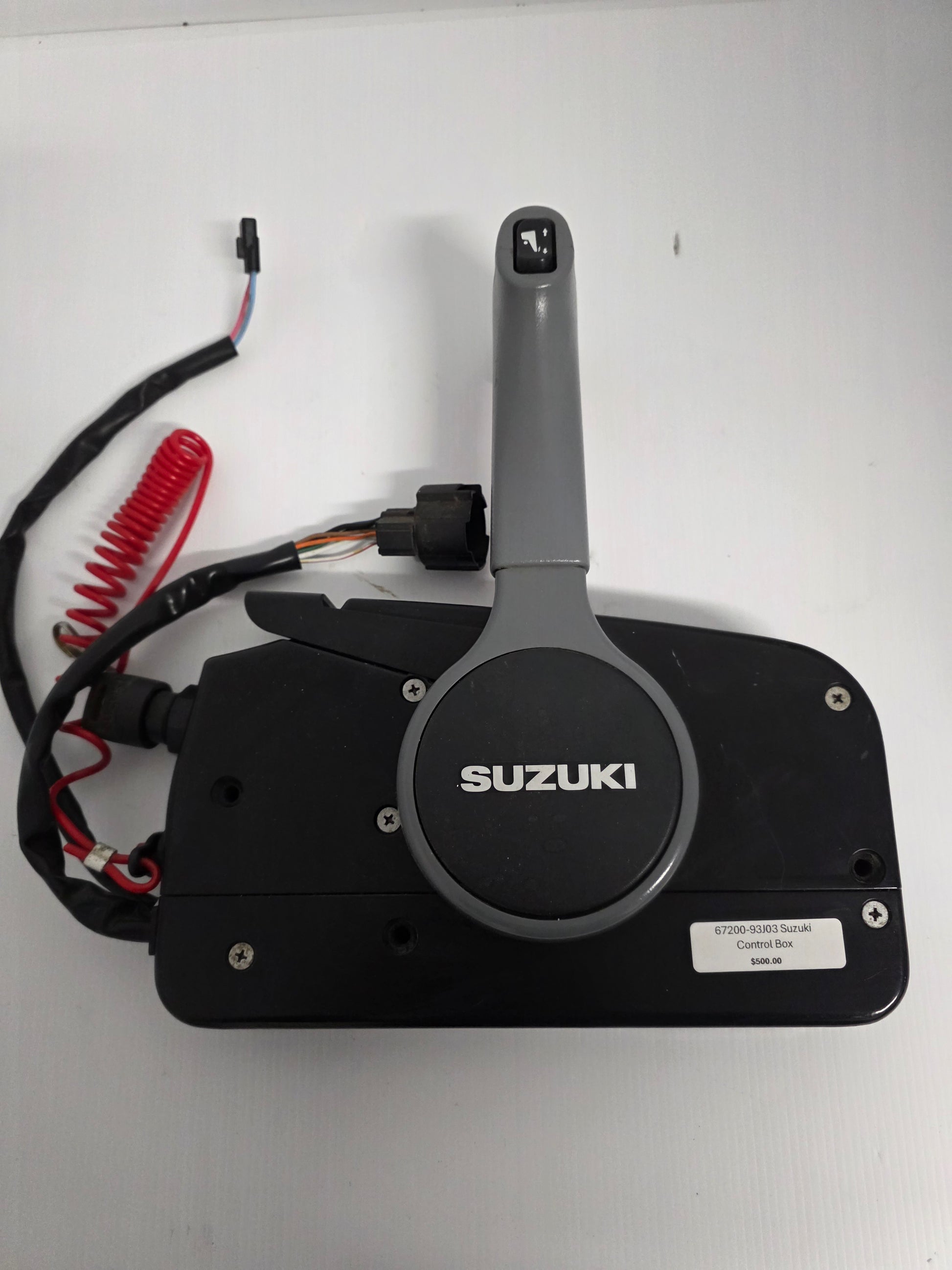

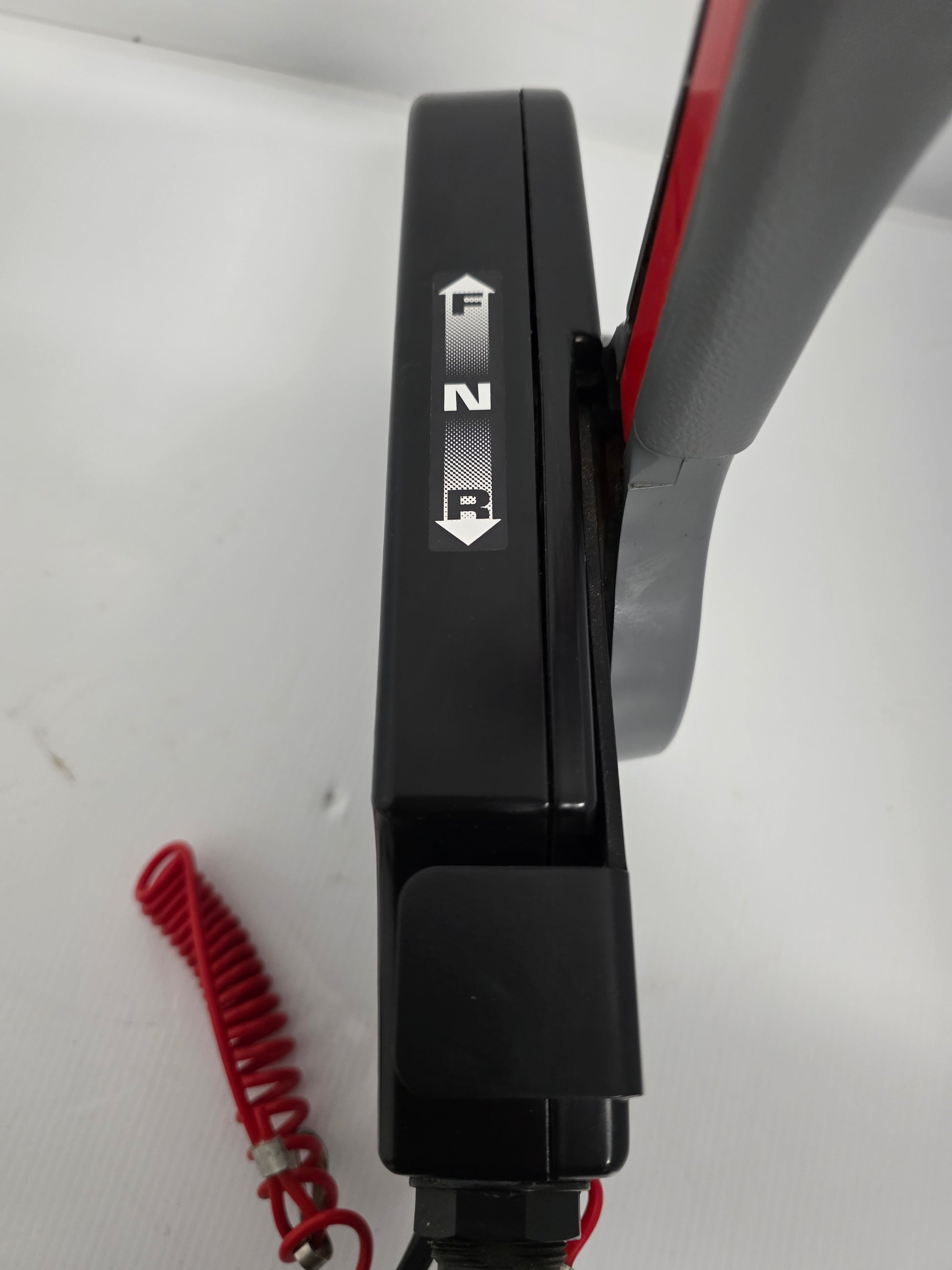

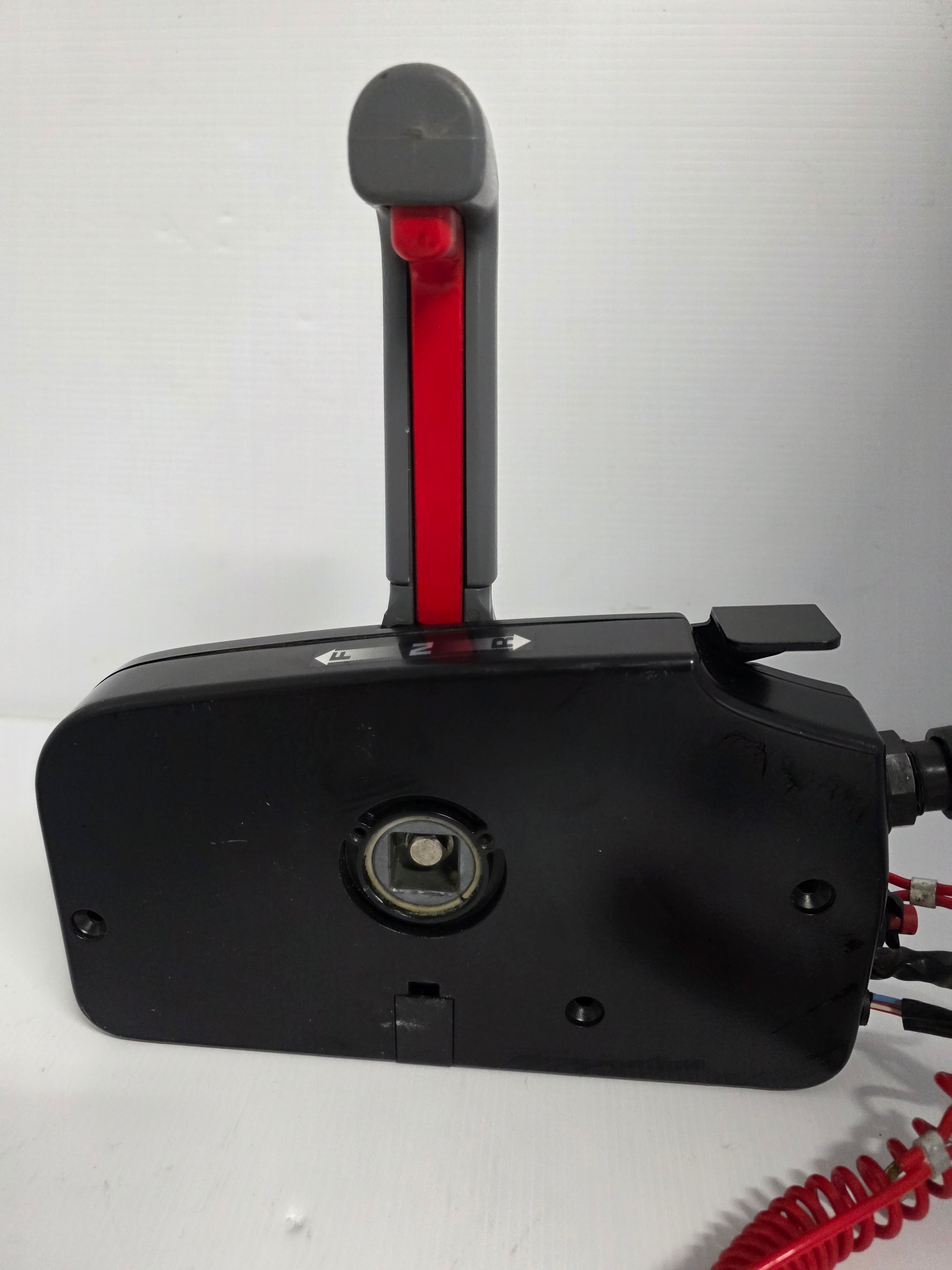

Genuine Suzuki NA27S Side-Mount Remote Control Box - Part Number: 67200-93J03

A genuine used Suzuki NA27S side-mount control box for mechanically controlled four-stroke outboards.

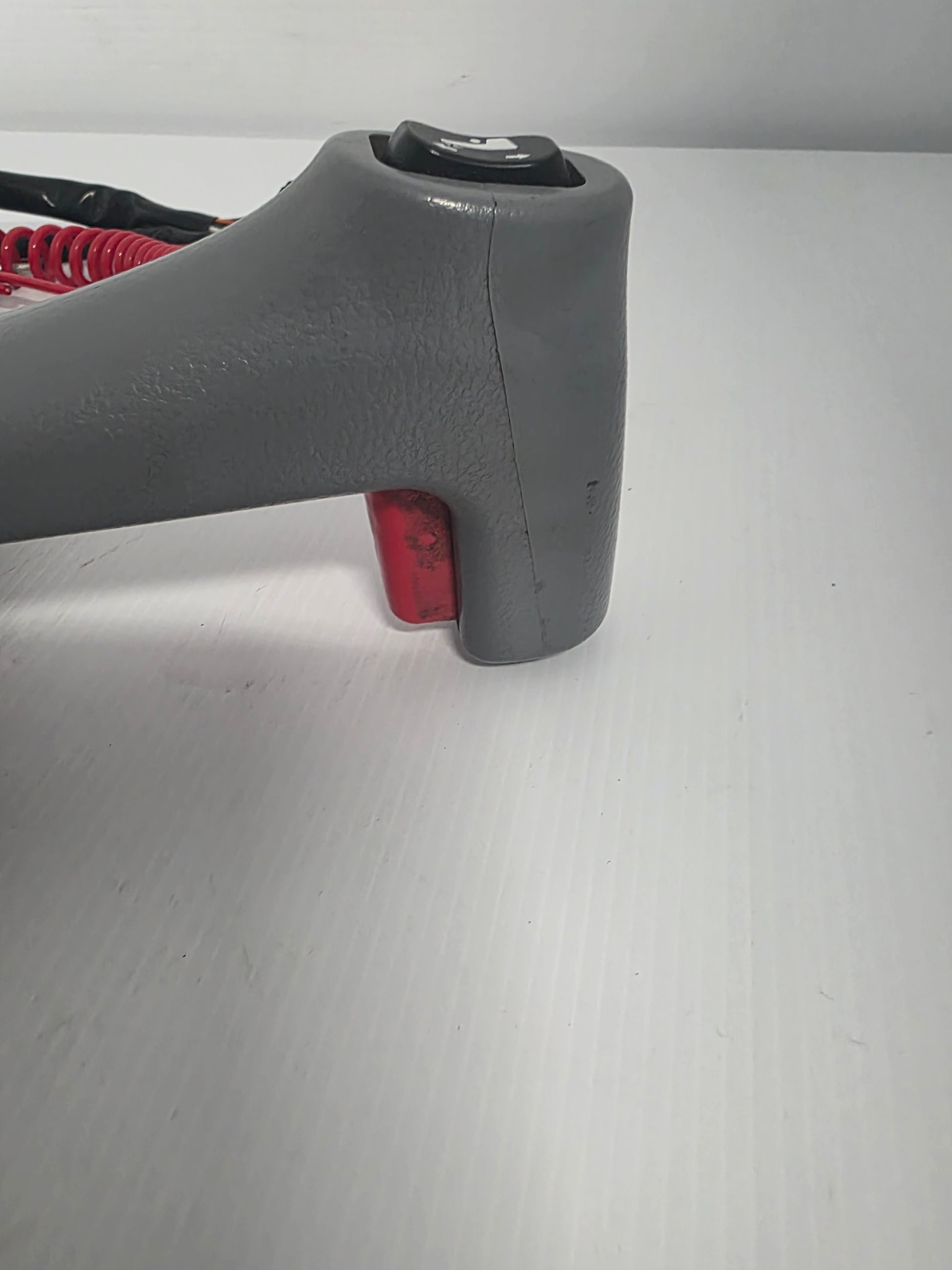

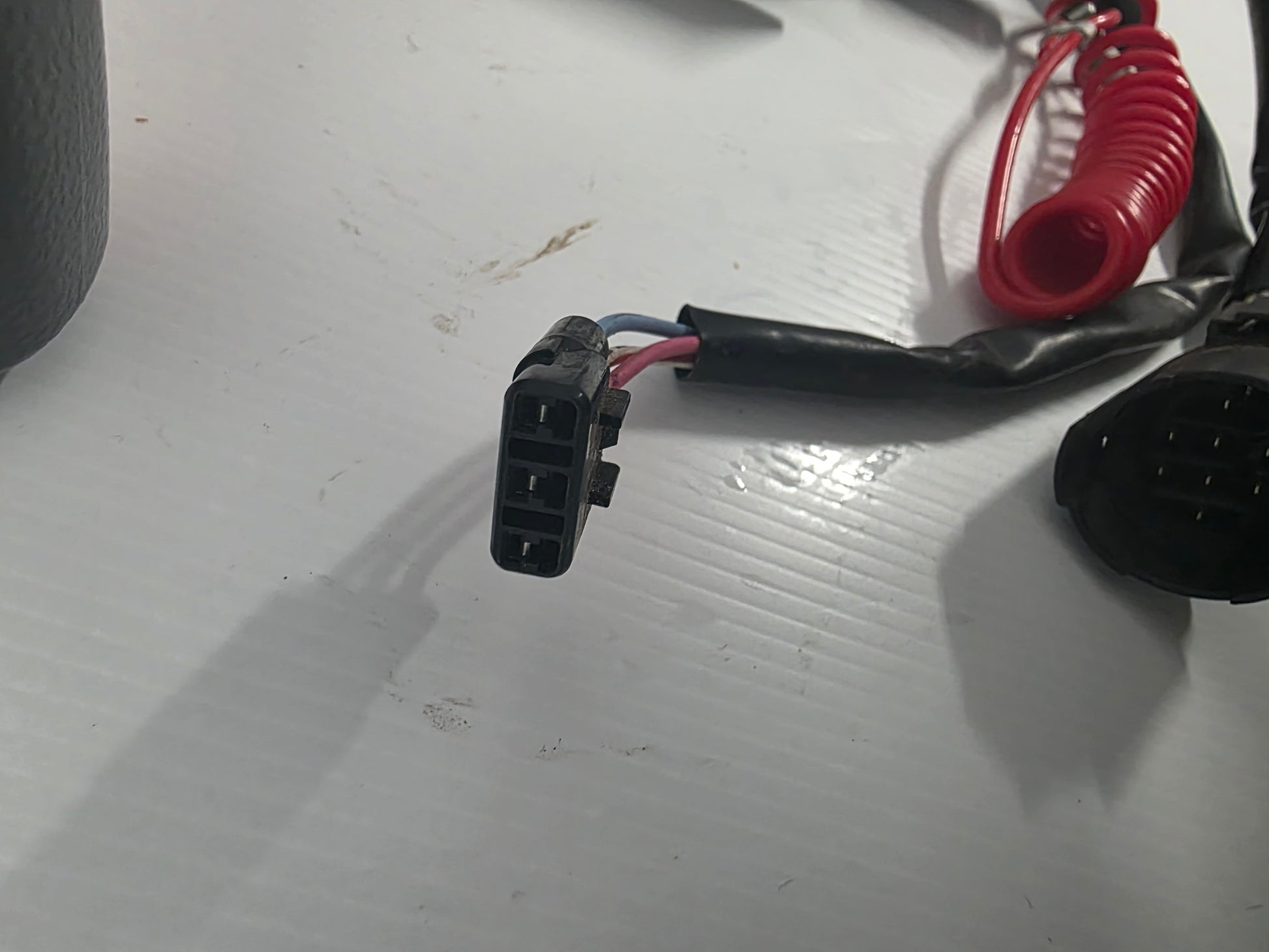

The assembly uses a push-to-open throttle arrangement, eight-pin electrical connection, ignition key, emergency-stop switch, fast-idle lever and handle-mounted power trim and tilt switch.

⚙️ Key Features

• Genuine used Suzuki Marine control box
• Correct part number 67200-93J03

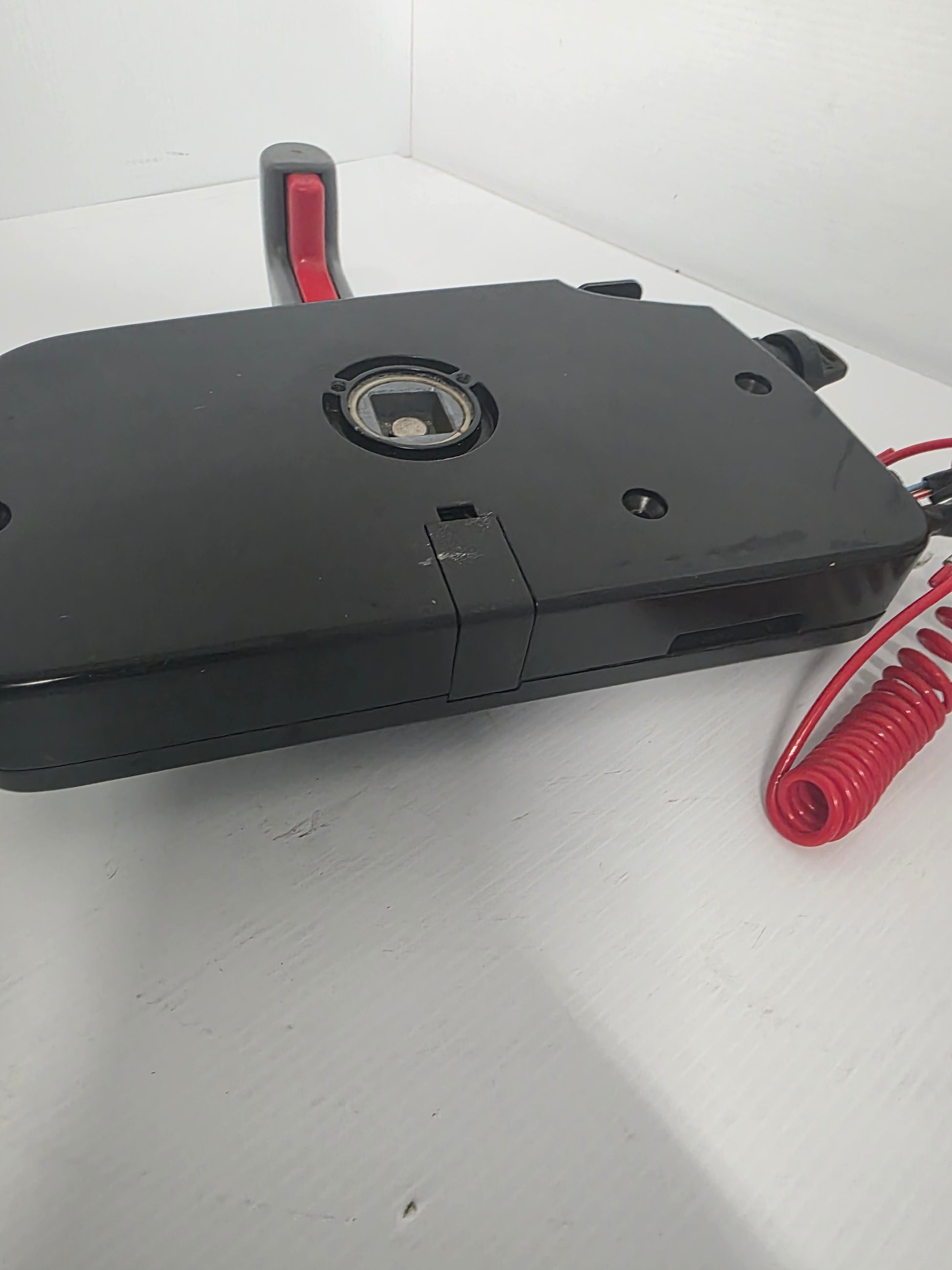

• NA27S side-mount configuration

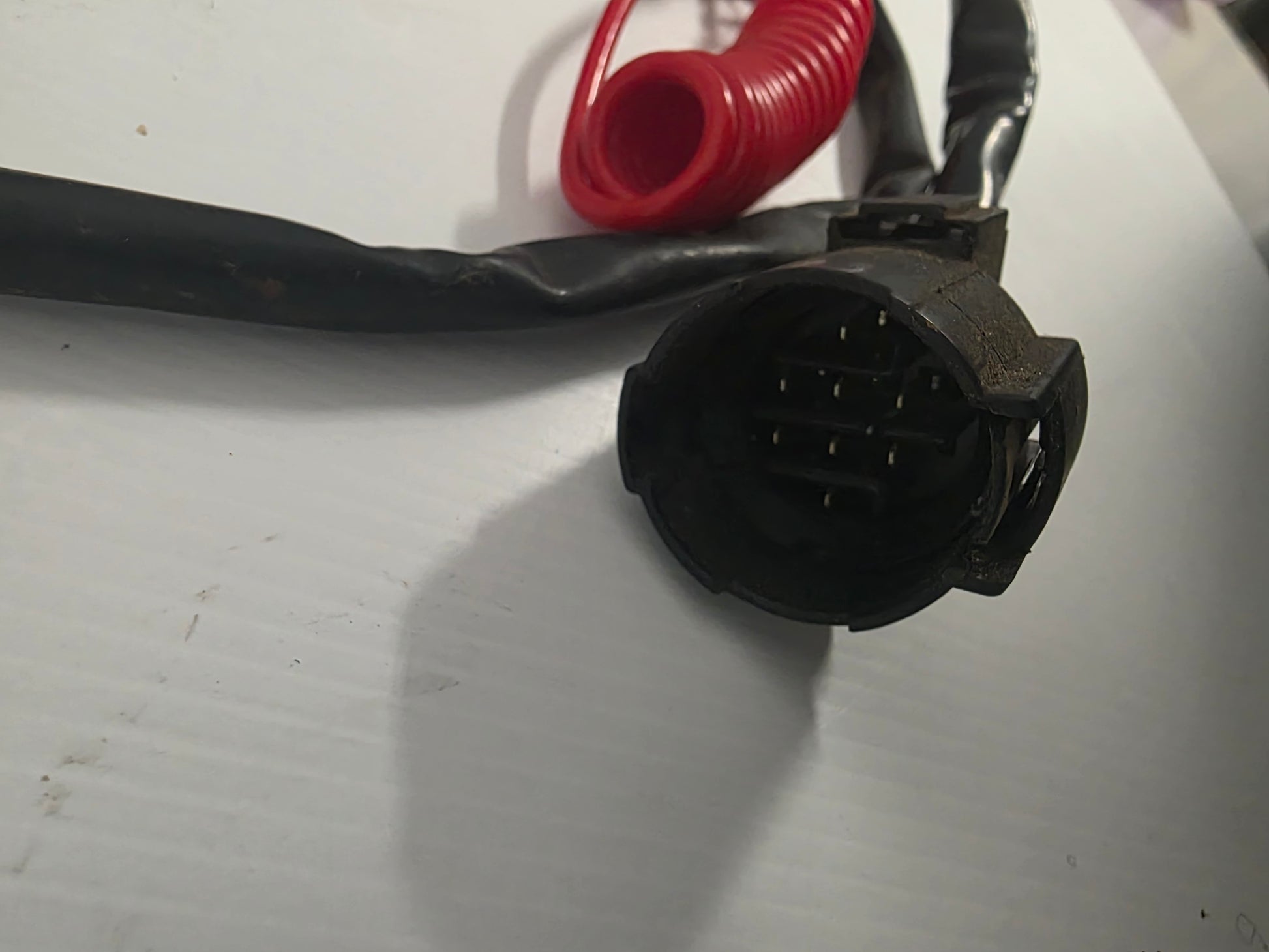

• Push-to-open mechanical control with eight-pin connector

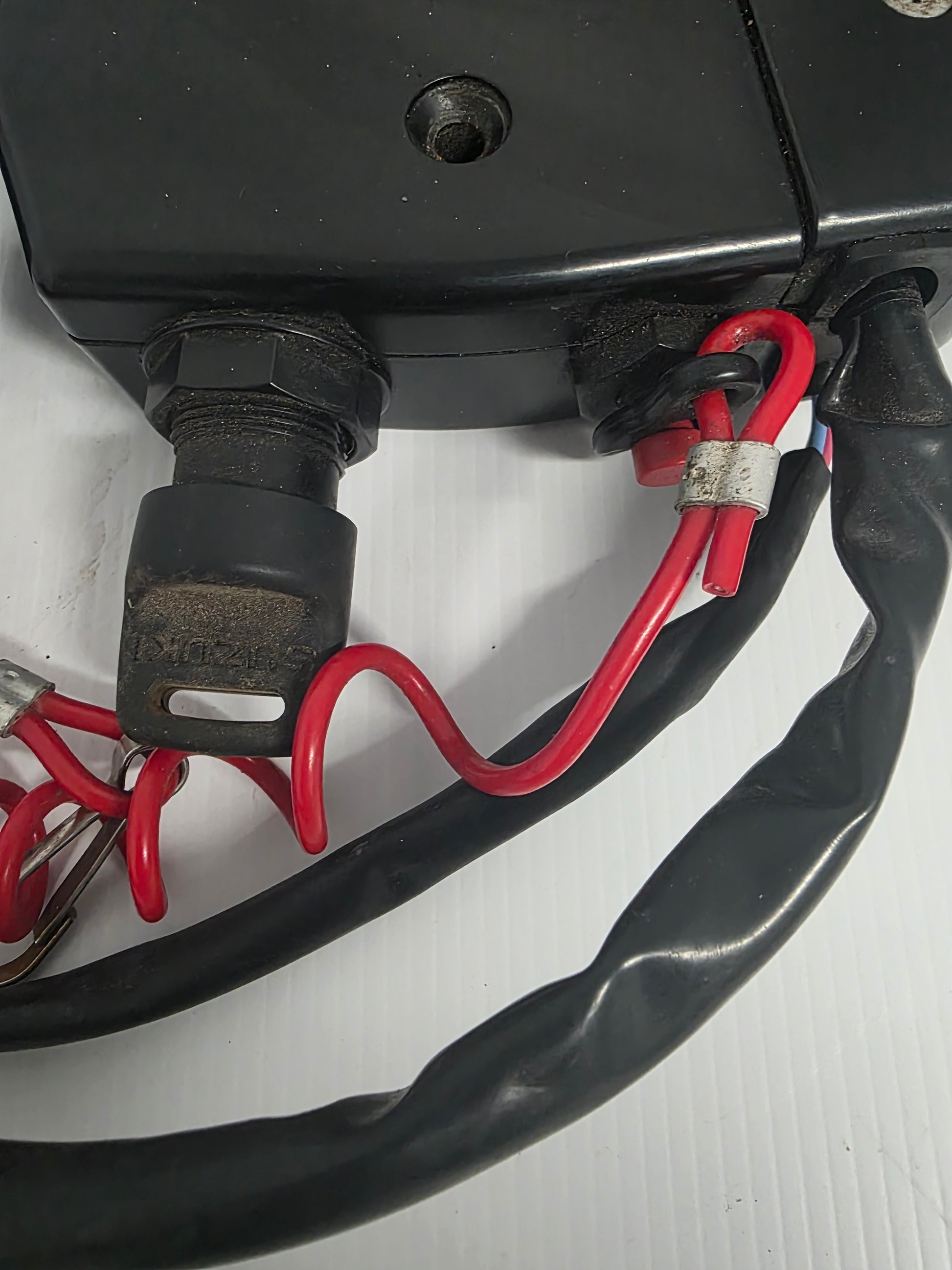

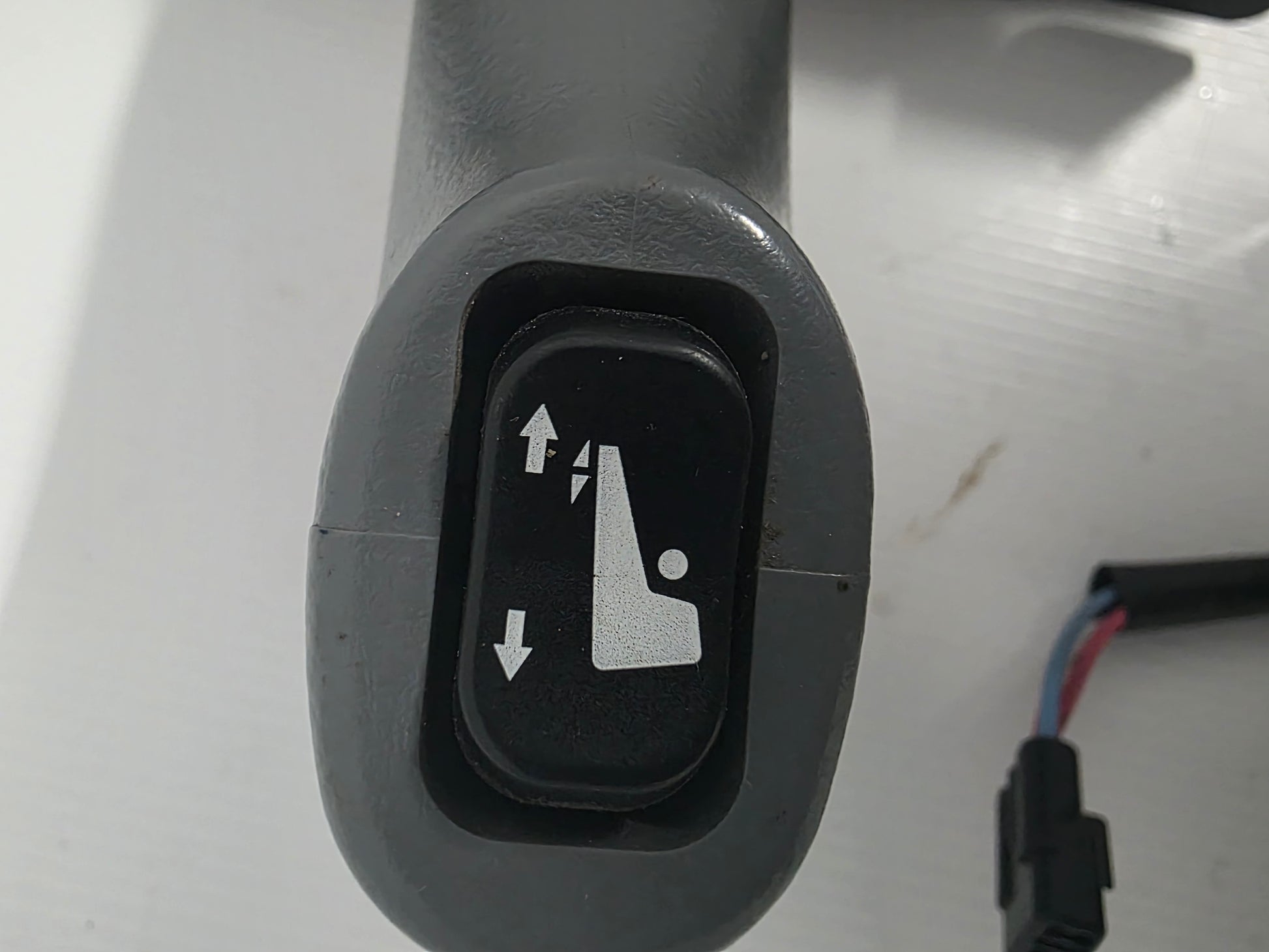

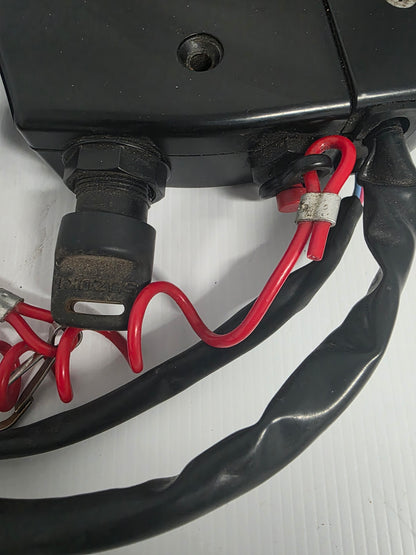

• Integrated key, lanyard, fast idle and trim switch

🚤 Compatibility

Commonly used on

• Suzuki mechanically controlled DF-series four-stroke outboards
• Single-engine installations using the eight-pin Suzuki harness

Typically suits

• Engine models:
• Suzuki DF9.9B - 2012
• Suzuki DF15 - 2012
• Suzuki DF20 - 2014
• Suzuki DF25 - 2000-2006
• Suzuki DF30 - 2000-2007
• Suzuki DF40 - 2005-2018
• Suzuki DF50 - 2005-2018
• Suzuki DF60 - 1998-2018
• Suzuki DF70 - 1998-2018
• Suzuki DF80 - 2010-2018
• Suzuki DF90 - 2005-2018
• Suzuki DF100 - 2016-2017
• Suzuki DF115 - 2005-2018
• Suzuki DF140 - 2005-2018
• Suzuki DF150 - 2006-2021
• Suzuki DF175 - 2006-2021
• Suzuki DF200 - 2004-2021
• Suzuki DF225 - 2004-2021
• Suzuki DF250 - 2004-2021
• Suzuki DF250STL beginning serial 25004F-110001 where 67200-93J03 is specified
• HP Range: 9.9HP - 250HP
• Engine Type: Suzuki mechanically controlled DF-series four-stroke outboard
• Year Range: Approximately 1998-2021

🔌 Function

The control box operates the mechanical throttle and gearbox cables while integrating ignition, neutral-safety, emergency-stop and power-trim electrical functions.

⚠️ Common Signs of Failure

• Lever becomes stiff or develops free play
• Engine does not reach full throttle
• Forward or reverse does not fully engage
• Trim switch fails in one direction
• Key or emergency-stop circuit operates intermittently
• Eight-pin connector terminals are corroded
• Fast-idle lever does not disengage correctly

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 67200-93J04 → Supersedes 67200-93J03
• 67200-93J03 → Supersedes 67200-93J02
• 67200-93J02 → Supersedes 67200-93J01
• 67200-93J01 → Supersedes 67200-93J00

OEM / Related Numbers

• 67200-93J03
• 6720093J03
• 67200-93J00
• 67200-93J01
• 67200-93J02
• 67200-93J04
• 67200-93J06
• 67200-93J50
• 67200-93J51
• 67200-93J70 related later Suzuki side-control assembly
• 36620-93J20 related pre-2005 adapter harness

Aftermarket / Verified Equivalents

• WSM: 905-075
• Offshore Marine: 03-15-075
• Aftermarket Suzuki NA27S push-to-open eight-pin control box

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
