67C-41212-00-00 67C-41241-00-00 Yamaha F40 Accelerator Arm & Link Rod | Genuine Used Part

🔧 Product Description

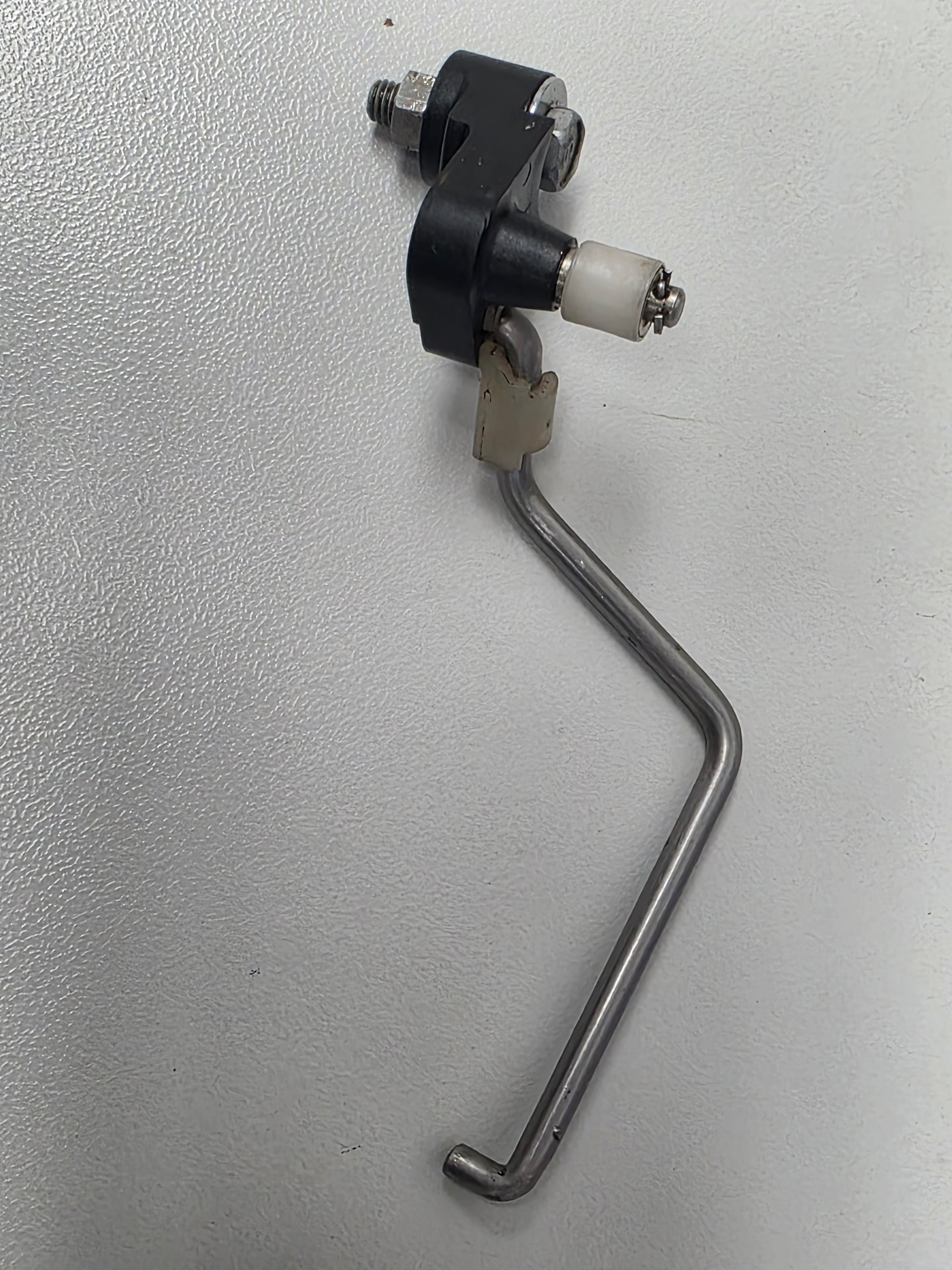

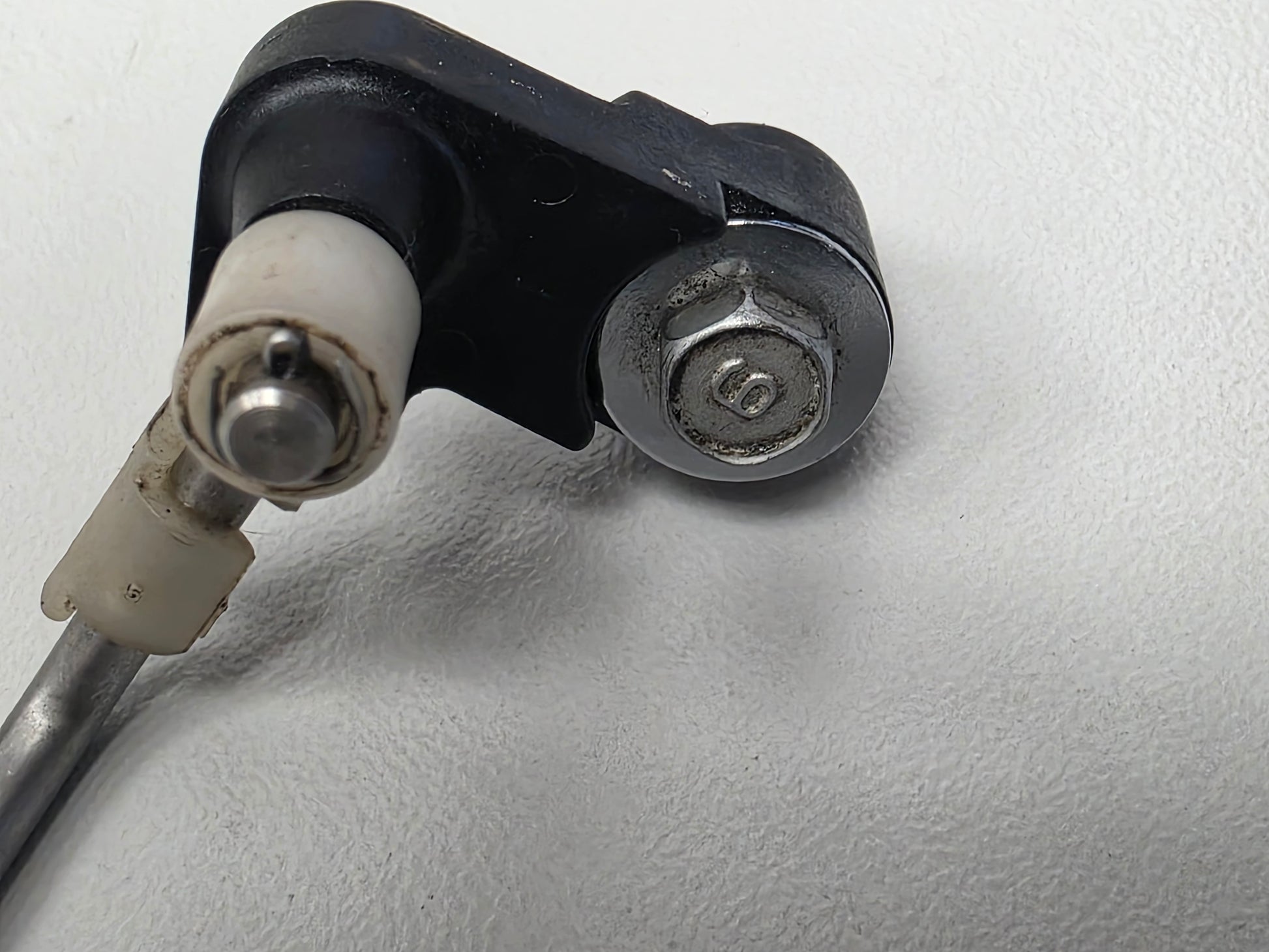

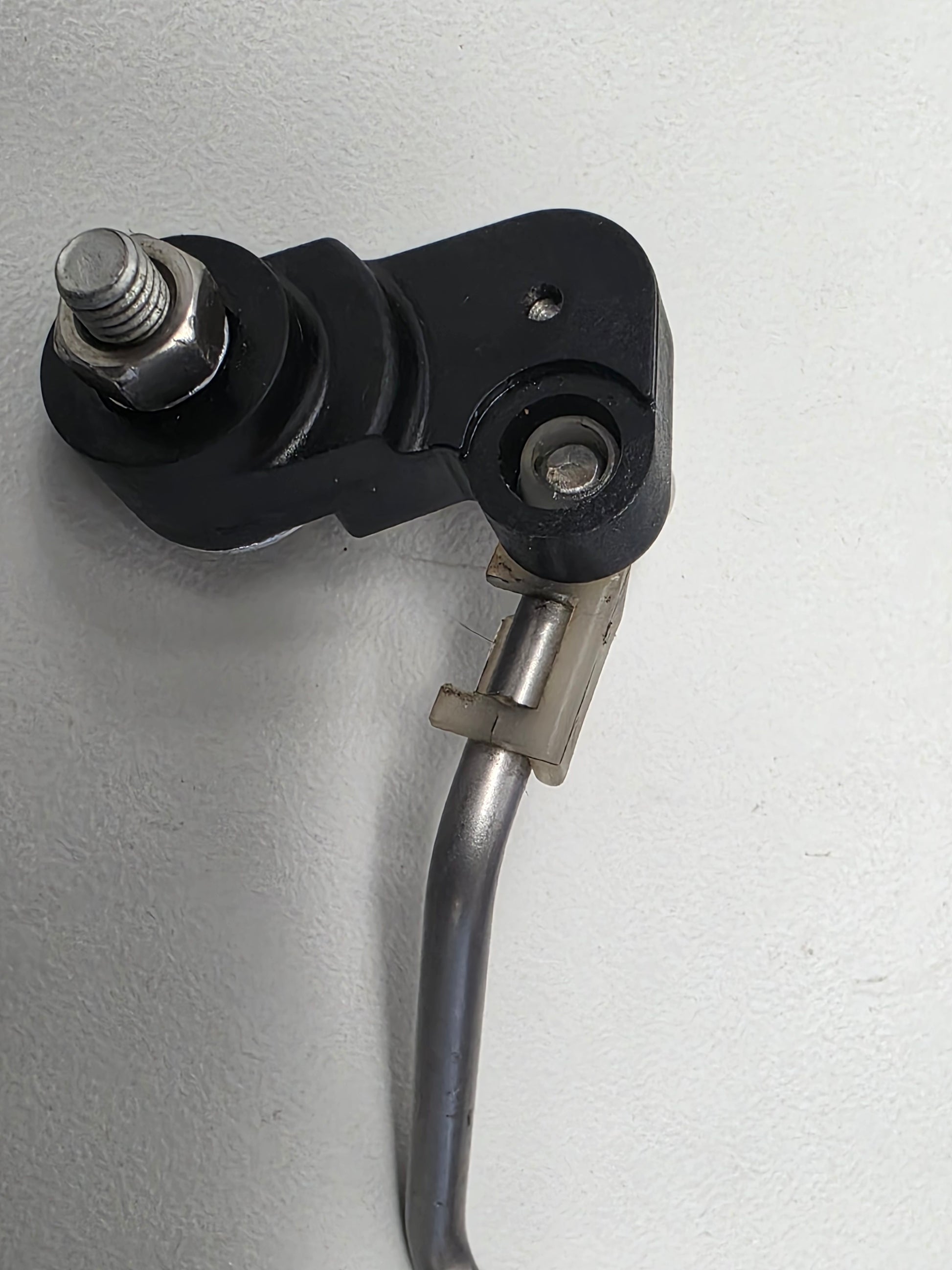

Genuine Yamaha Accelerator Arm and Link Rod Set - Part Number: 67C-41212-00-00 / 67C-41241-00-00

A genuine used Yamaha accelerator-arm and link-rod set for selected F30 and F40 carburetted four-stroke outboards.

The accelerator arm receives movement from the throttle-control linkage, while the link rod transfers that movement to the carburettor accelerator mechanism. Together they coordinate throttle-plate opening across the engine's induction system.

⚙️ Key Features

• Genuine Yamaha OEM accelerator linkage components
• Includes accelerator arm 67C-41212-00-00
• Includes link rod 67C-41241-00-00
• Used on selected F30 and F40 three-cylinder carburetted four-strokes
• Maintains synchronised throttle movement and full operating travel

🚤 Compatibility

Commonly used on

• Yamaha F30 and F40 carburetted throttle-control assemblies
• Three-cylinder four-stroke accelerator and carburettor linkages

Typically suits

• Engine models:
• Yamaha F30TLR
• Yamaha F40MLH
• Yamaha F40MJH
• Yamaha F40MSH
• Yamaha F40ESR
• Yamaha F40TLR
• Yamaha F40EJR
• 2001 model variants F40MLHZ, F30TLRZ, F40TLRZ, F40MSHZ and F40ESRZ
• 2002 model variants F30TLRA, F40ESRA, F40MLHA, F40MJHA and F40TLRA
• HP Range: 30HP - 40HP
• Engine Type: Yamaha carburetted inline three-cylinder four-stroke outboard
• Year Range: Approximately 2001 - 2007

🔌 Function

The accelerator arm converts throttle-control movement into linkage travel, and the connecting rod carries that movement to the carburettor throttle mechanism. Correct geometry is required for smooth acceleration, synchronisation and full-throttle opening.

⚠️ Common Signs of Failure

• Arm or rod is bent, cracked or corroded
• Pivot holes or linkage joints are worn
• Throttle does not return fully to idle
• Carburettors do not open evenly or reach full travel
• Linkage binds or has excessive free play

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 67C-41212-00-00 current known Yamaha accelerator-arm reference
• 67C-41241-00-00 current known Yamaha link-rod reference

OEM / Related Numbers

• 67C-41212-00-00
• 67C412120000
• 67C-41241-00-00
• 67C412410000
• Yamaha description: Arm, Accelerator
• Yamaha description: Rod, Link

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
