67C-43111-10-8D 67C-43111-10-4D Yamaha 40BET Clamp Bracket (Port) | Genuine Used Part

67C-43111-10-8D 67C-43111-10-4D Yamaha 40BET Clamp Bracket (Port) | Genuine Used Part

$150.00 AUD
$150.00 AUD
Sale Sold out
Shipping calculated at checkout.

Out of stock

🔧 Product Description

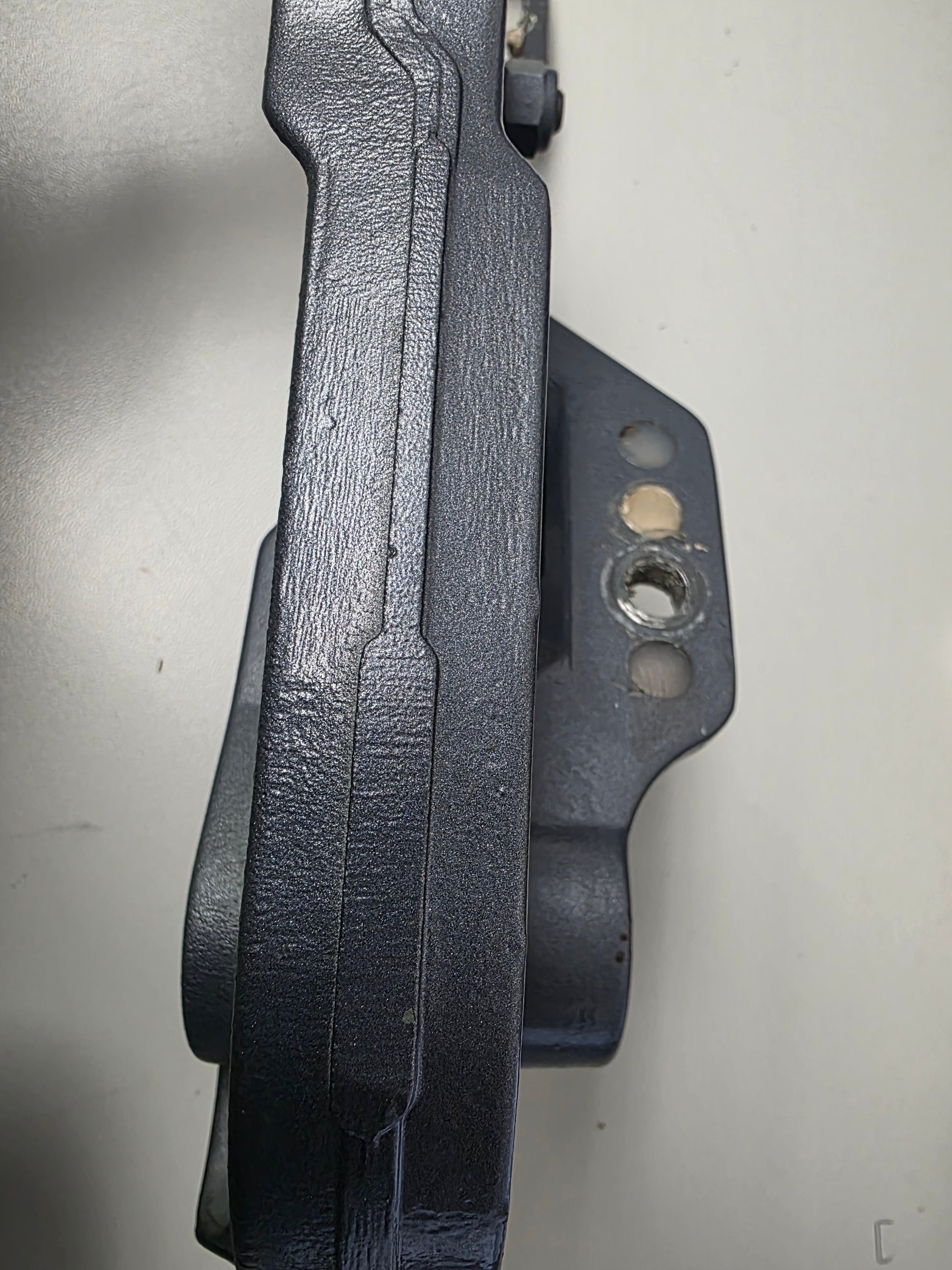

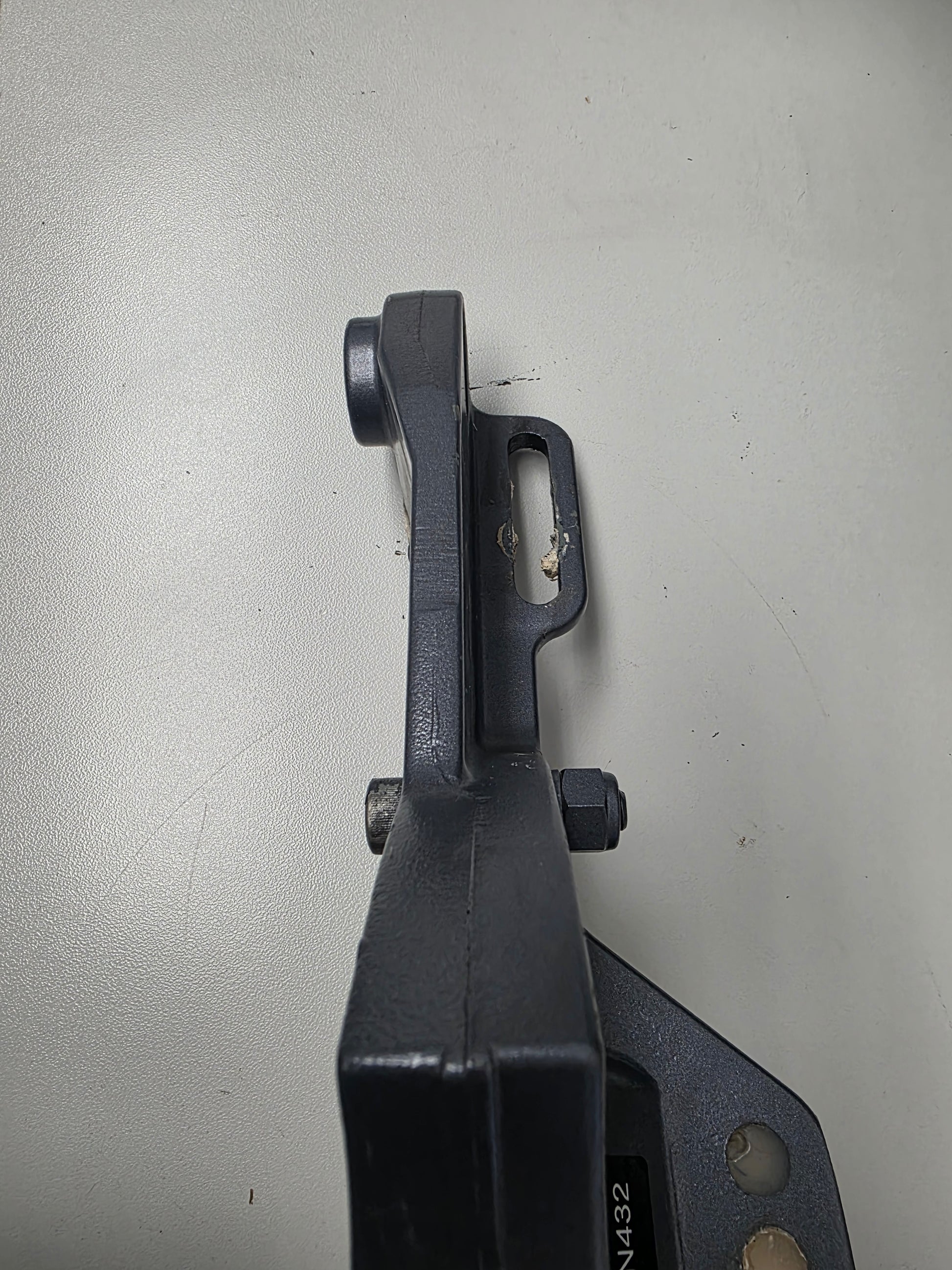

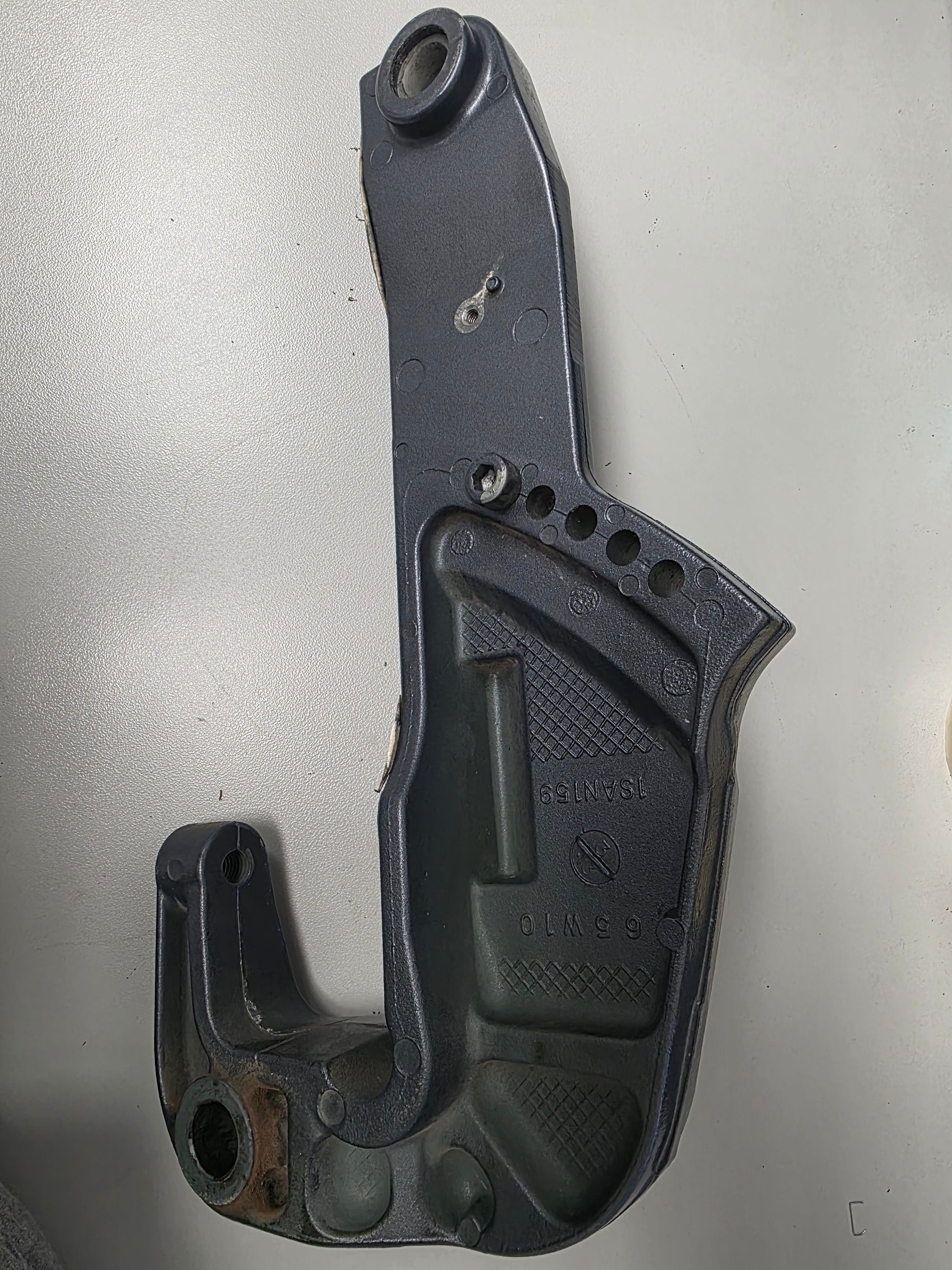

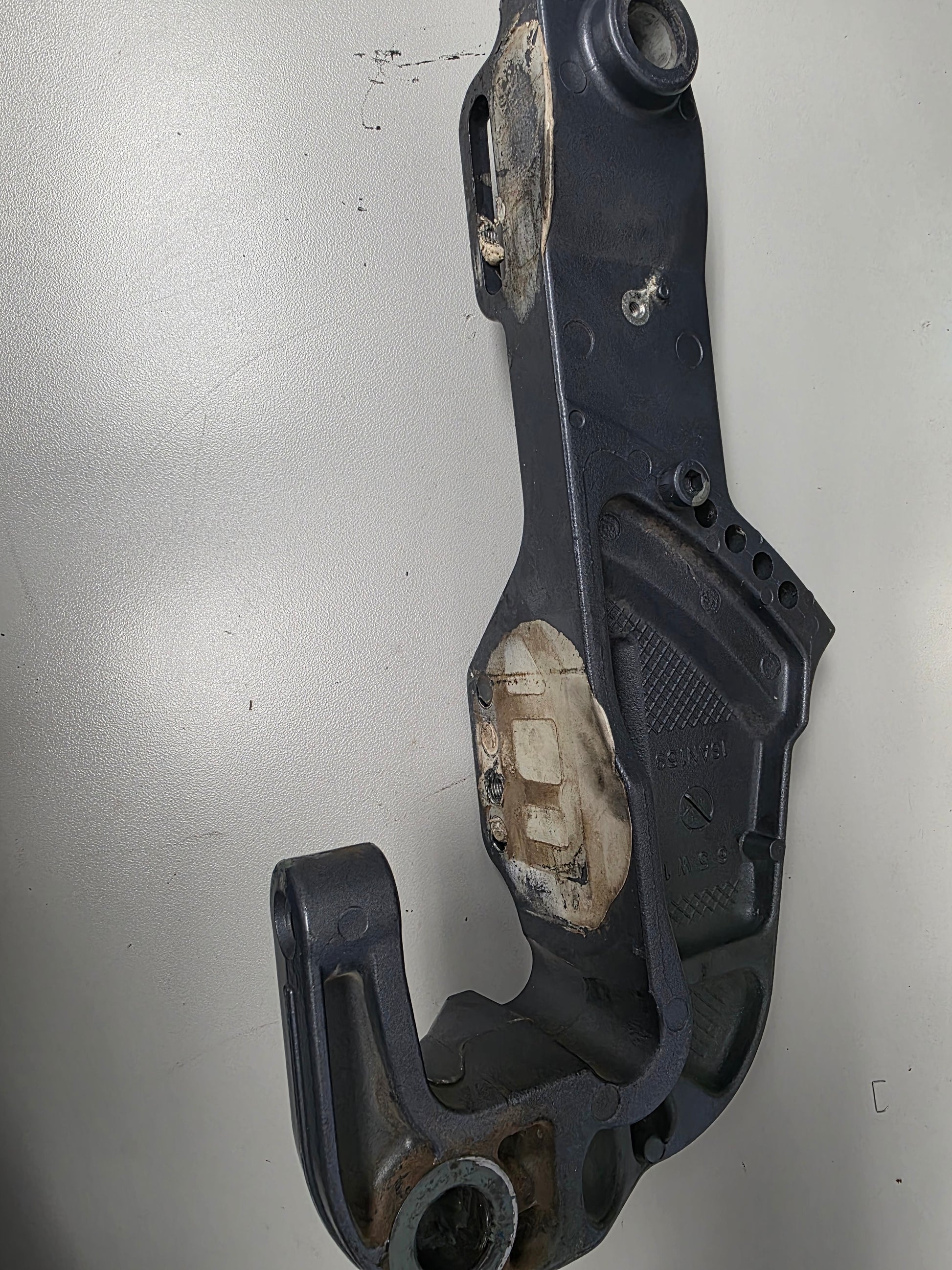

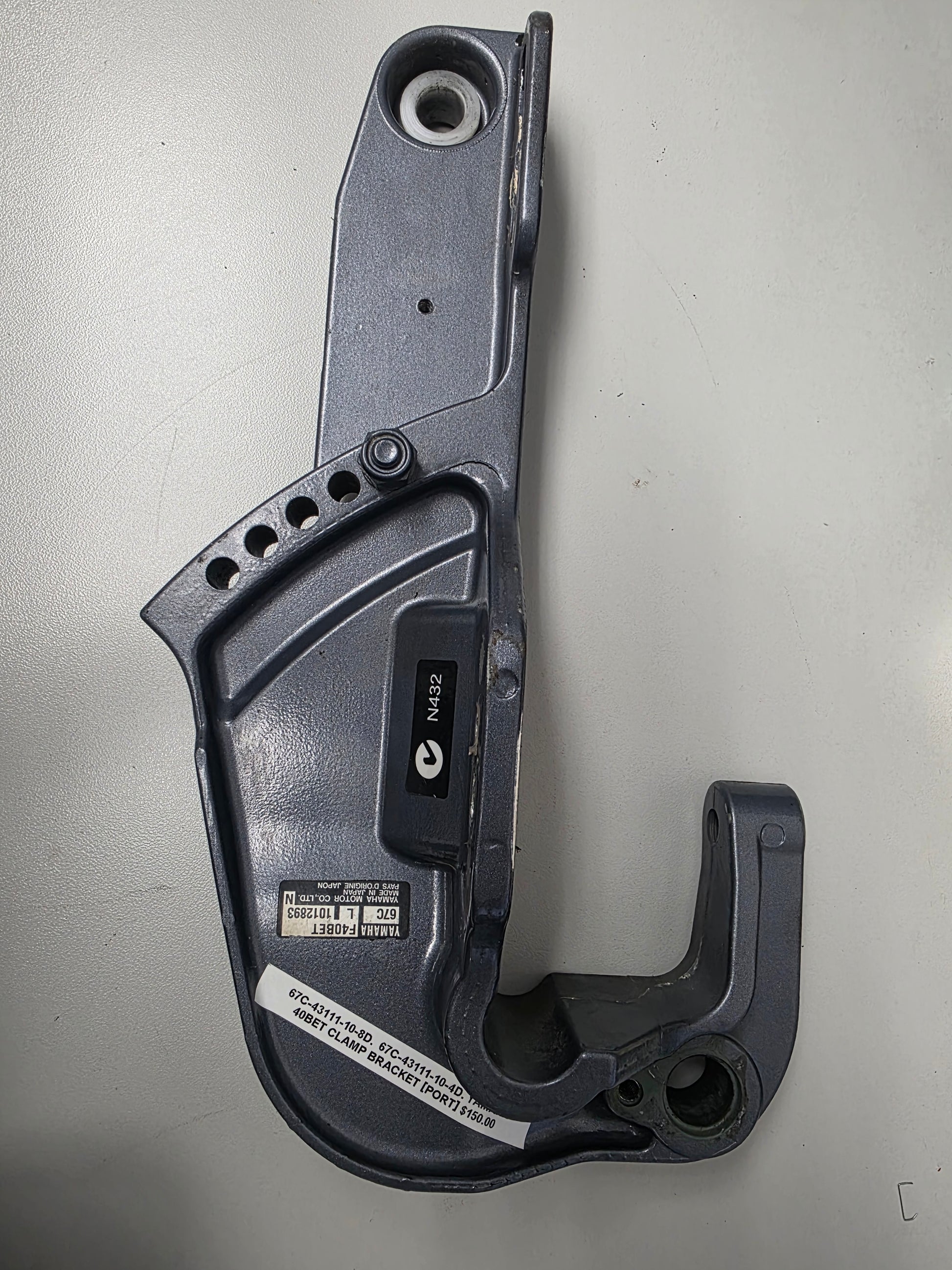

Genuine Yamaha Clamp Bracket No. 1 (Port) - Part Number: 67C-43111-10-8D

A genuine Yamaha clamp bracket No. 1 for selected 25HP, 30HP and 40HP four-stroke outboards.

⚙️ Key Features

  • Genuine Yamaha OEM clamp bracket No. 1
  • Correct current number 67C-43111-10-8D
  • Supersedes 67C-43111-10-4D
  • Port-side member of the matching clamp-bracket pair
  • Used on selected F25, F30 and F40 transom assemblies

🚤 Compatibility

Commonly used on

  • Yamaha F25, F30 and F40 clamp and transom-bracket assemblies
  • Port-side clamp-bracket position

Typically suits

  • Engine models:
  • Yamaha F25 and FT25 applications using the 67C transom family
  • Yamaha F30A / F30TLR
  • Yamaha F40A / F40B / F40F / F40H
  • Yamaha F40EJR / F40TLR
  • Yamaha F40MJH / F40MSH / F40MLH
  • Representative 2000 F40BET / F40BWHT
  • Representative 2001 F30TLR / F40TLR
  • Representative 2002-2008 F30 / F40 bracket diagrams
  • HP Range: 25HP - 40HP
  • Engine Type: Yamaha inline three-cylinder four-stroke outboard
  • Bracket Position: Port clamp bracket No. 1
  • Year Range: Approximately 2000-2015

🔌 Function

The bracket clamps and bolts the port side of the outboard to the transom. It supports the tilt tube, swivel assembly and hydraulic trim loads.

⚠️ Common Signs of Failure

  • Cracks around the transom mounting holes
  • Corroded clamp-screw threads
  • Bent bracket causing engine misalignment
  • Worn tilt-tube bore
  • Excessive bracket movement
  • Damaged trim-unit mounting points

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 67C-43111-10-8D → Supersedes 67C-43111-10-4D
  • 67C-43111-10-4D earlier finish reference

OEM / Related Numbers

  • 67C-43111-10-8D
  • 67C-43111-10-4D
  • 67C-43112-10-8D matching opposite-side clamp bracket
  • 67C-42510-01-8D steering bracket
  • 67C-43800-series trim assembly
  • Yamaha F30 / F40 clamp-screw and transom-bolt hardware

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
