67C-43800-01-8D 67C-43800-00-4D Yamaha 40BET Power Trim & Tilt Assy | Genuine Used Part

🔧 Product Description

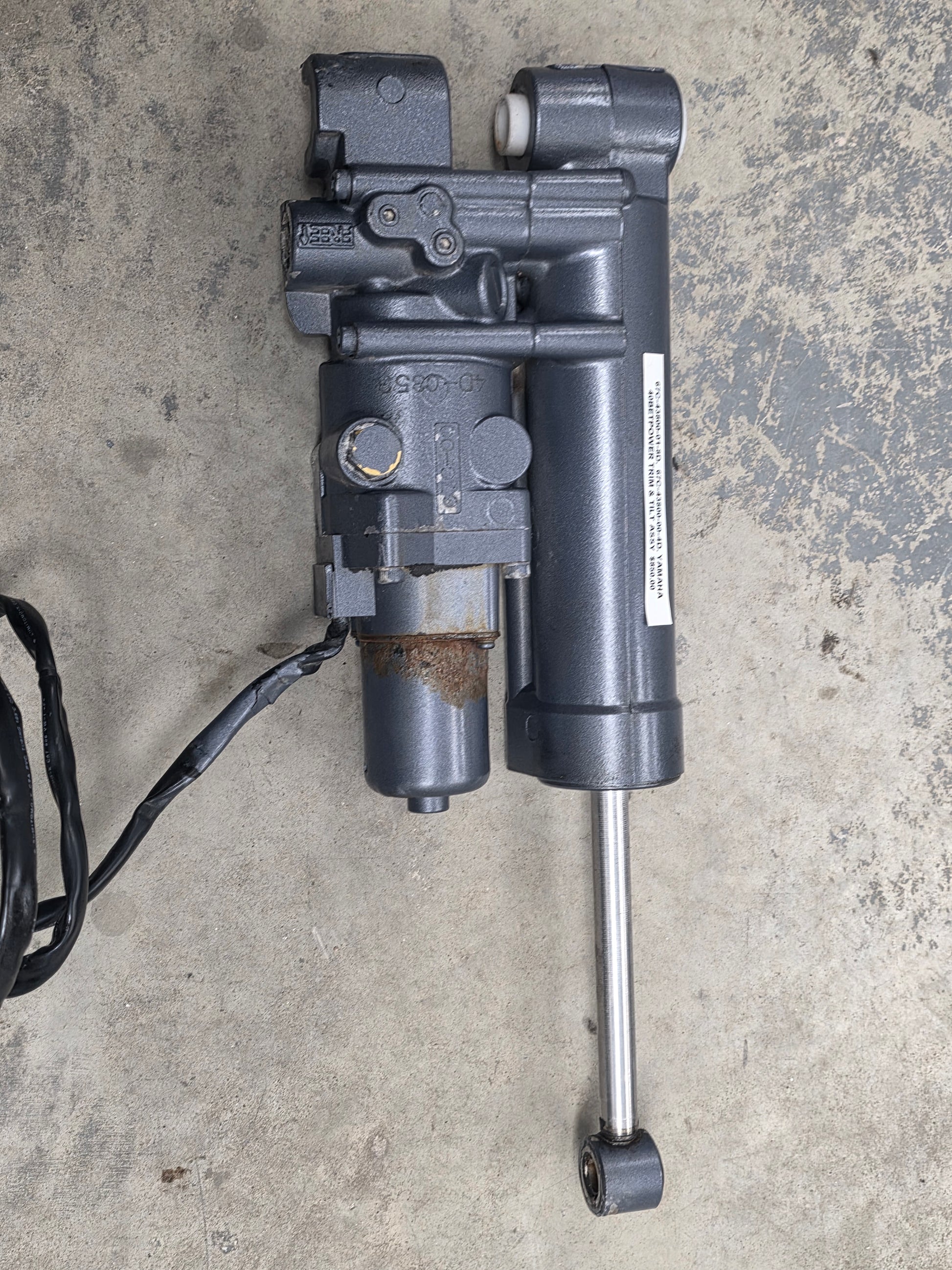

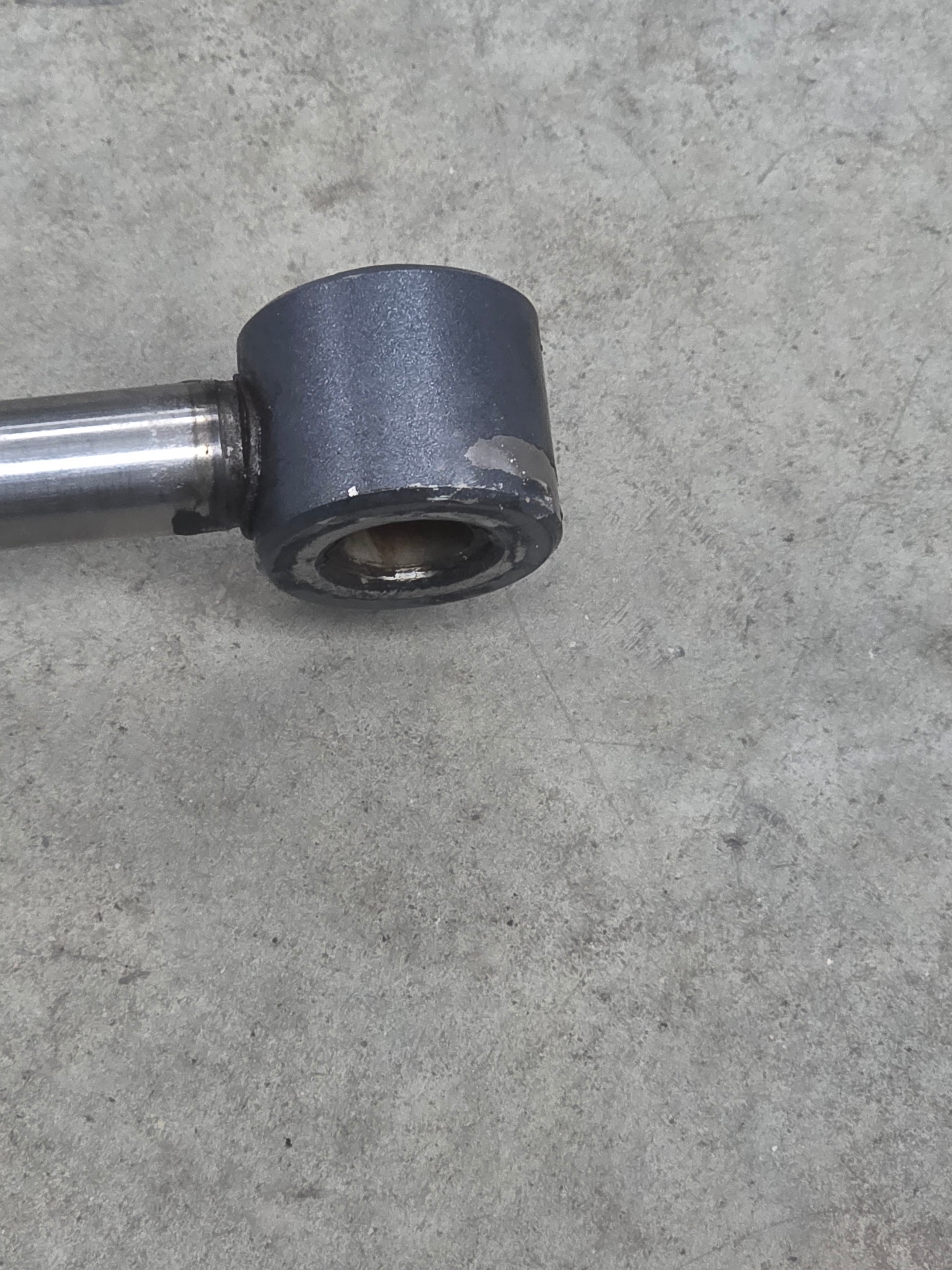

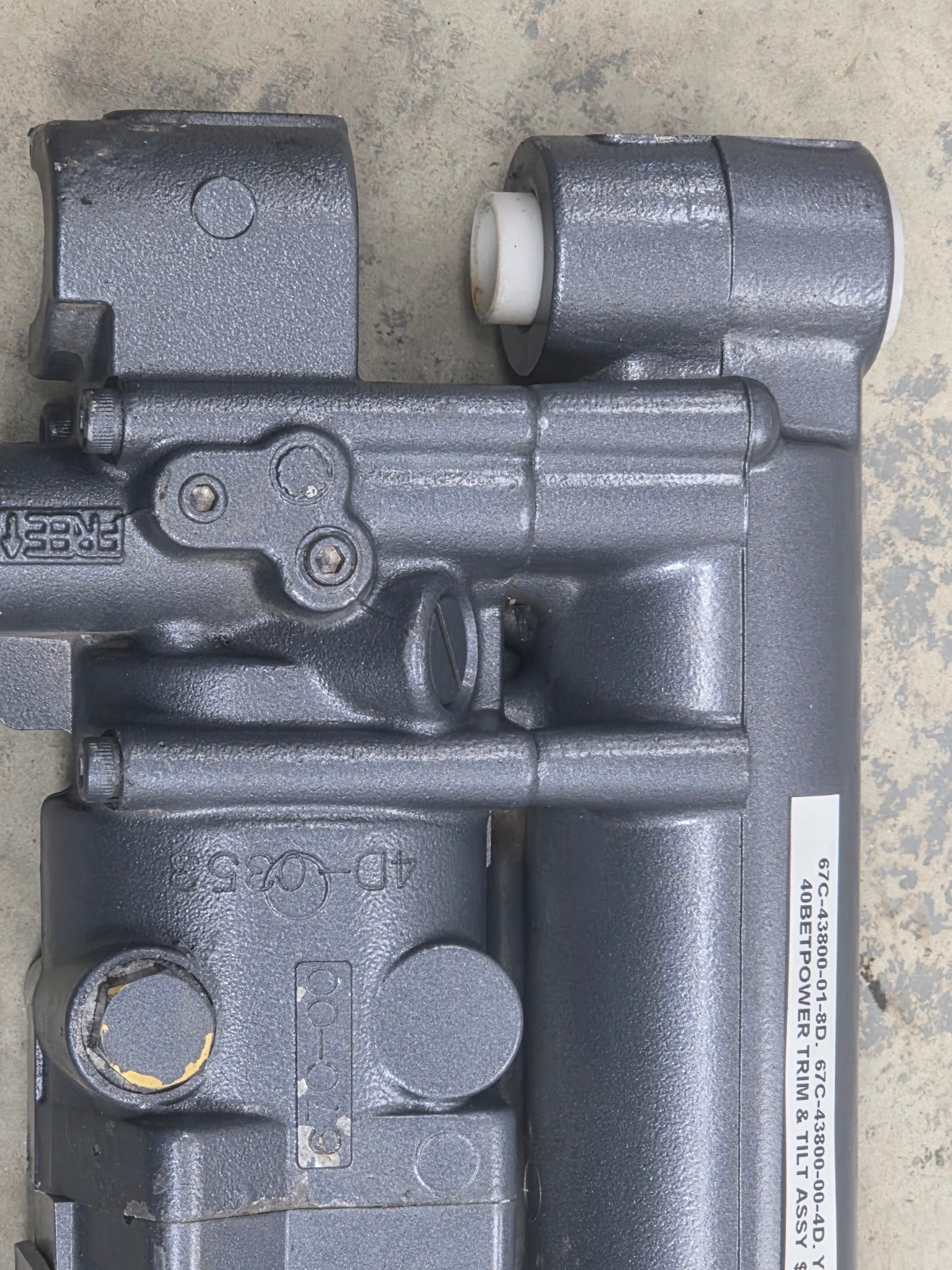

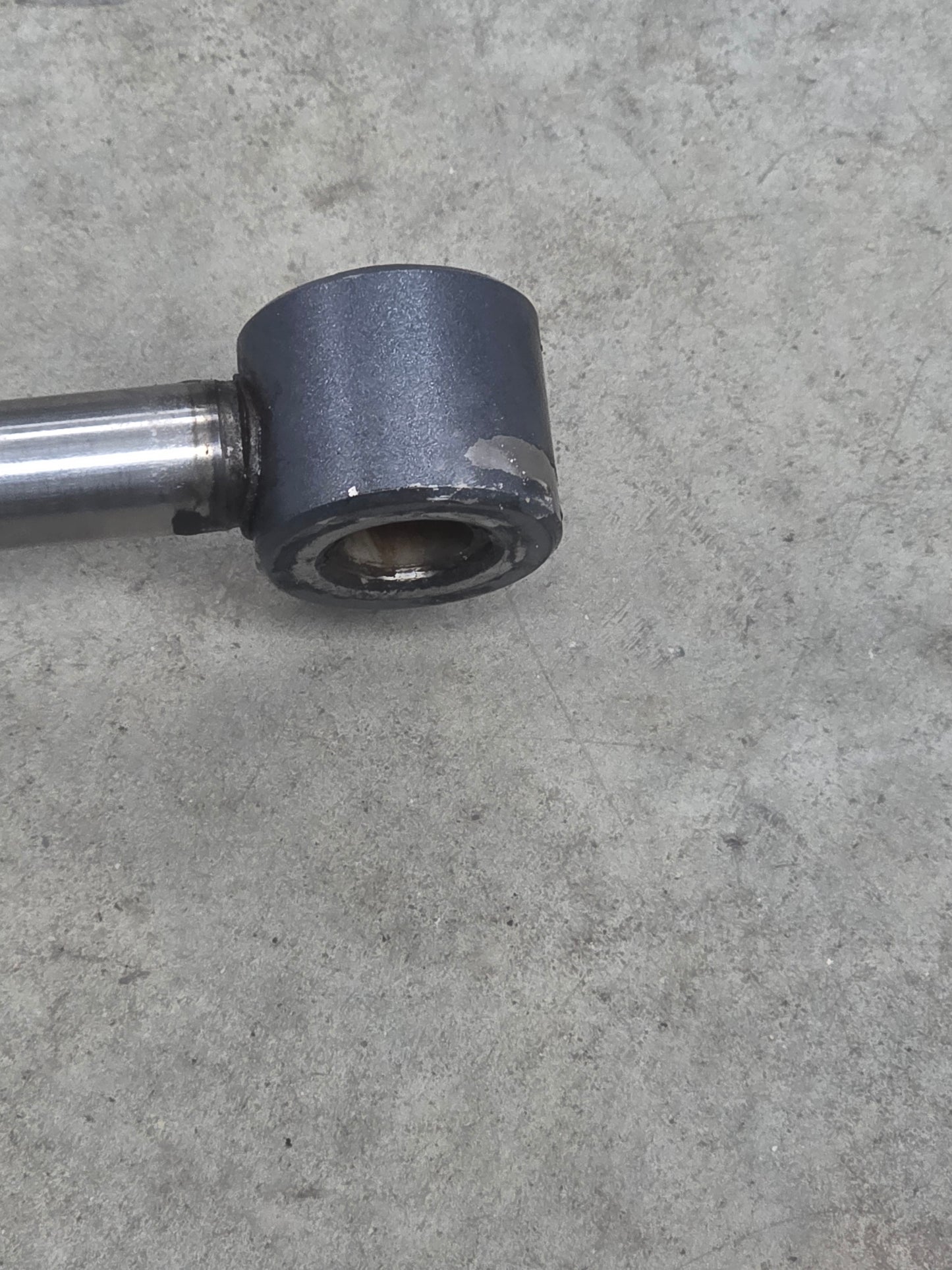

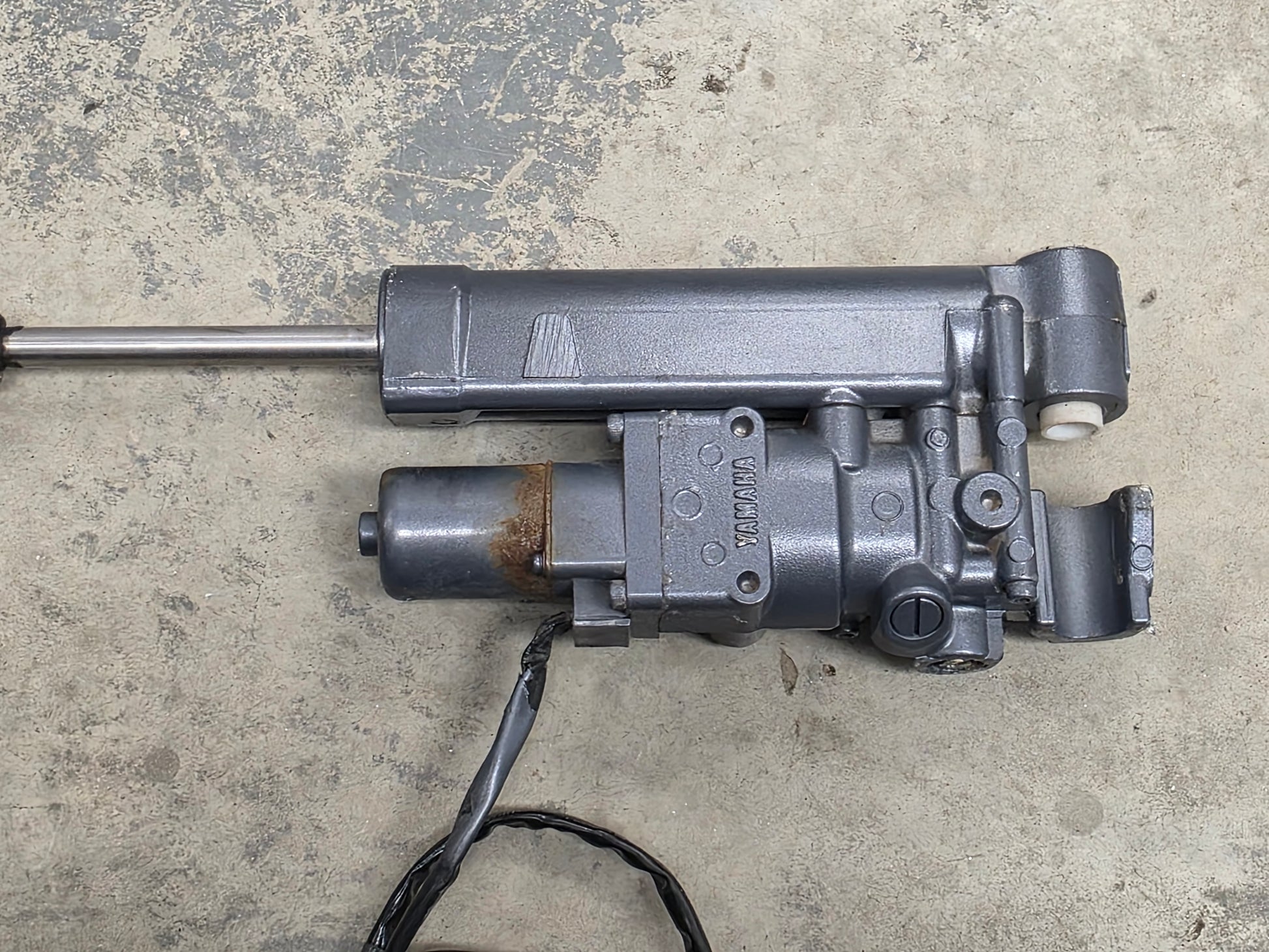

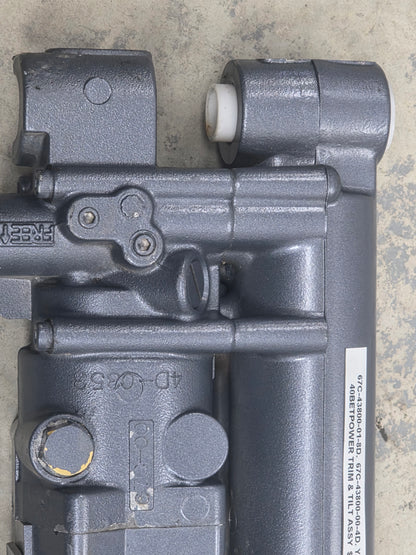

Genuine Yamaha F30 / F40 Power Trim and Tilt Assembly - Part Number: 67C-43800-01-8D

A genuine Yamaha hydraulic power trim and tilt assembly for selected F30 and F40 four-stroke outboards. The 01-8D assembly is the later dark-bluish-grey revision replacing the earlier 00-4D unit.

⚙️ Key Features

• Genuine Yamaha OEM power-trim assembly
• Current listing number 67C-43800-01-8D
• Supersedes 67C-43800-00-4D
• Compact electric-hydraulic tilt and running-trim unit
• Used on selected F30 and F40 remote-control engines

🚤 Compatibility

Commonly used on

• Yamaha F30 and F40 transom-bracket assemblies
• Remote-control and electric-trim four-stroke outboards using the 67C power unit

Typically suits

• Engine models:
• Yamaha F30AET / F30BET / F30TLR
• Yamaha F40AET / F40BET
• Yamaha F40FET / F40FETL
• Yamaha F40FED
• Yamaha F40TLR
• Representative 2000-2008 F30 / F40 model families
• Representative 2010 F30BET, F40FET and F40FED
• F40F and related European trim diagrams listing 67C-43800-01-8D
• HP Range: 30HP - 40HP
• Engine Type: Yamaha inline three-cylinder four-stroke outboard
• Year Range: Approximately 2000-2013

🔌 Function

The electric motor drives a hydraulic pump that raises, lowers and trims the outboard. Internal valves hold the engine at the selected angle and allow manual release when required.

⚠️ Common Signs of Failure

• Unit will not lift the engine
• Motor runs without hydraulic movement
• Engine settles after trimming
• Oil leaking from the ram or reservoir
• Slow operation
• Trim works in only one direction
• Corroded motor housing or damaged wiring

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 67C-43800-01-8D → Supersedes 67C-43800-00-4D
• 67C-43800-00-4D earlier OEM power-trim assembly
• 67C-43800-13-8D later related trim unit on selected F25 / F30 configurations

OEM / Related Numbers

• 67C-43800-01-8D
• 67C-43800-00-4D
• 67C-43800-13-8D
• 67C-43880-01 related trim motor
• 67C-42510-series steering bracket
• 67C-43111 / 43112 clamp-bracket pair

Aftermarket / Verified Equivalents

• Professional hydraulic rebuild service for 67C-series trim units
• Aftermarket Yamaha 67C trim motors
• Aftermarket seal and O-ring kits for 67C-43800 assemblies

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
