67C-45111-00-4D Yamaha 40BET Upper Casing | Genuine Used Part
67C-45111-00-4D Yamaha 40BET Upper Casing | Genuine Used Part
🔥 50% off all Used Parts - Limited Time 🔥
Low stock: 1 left
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide
🔧 Product Description

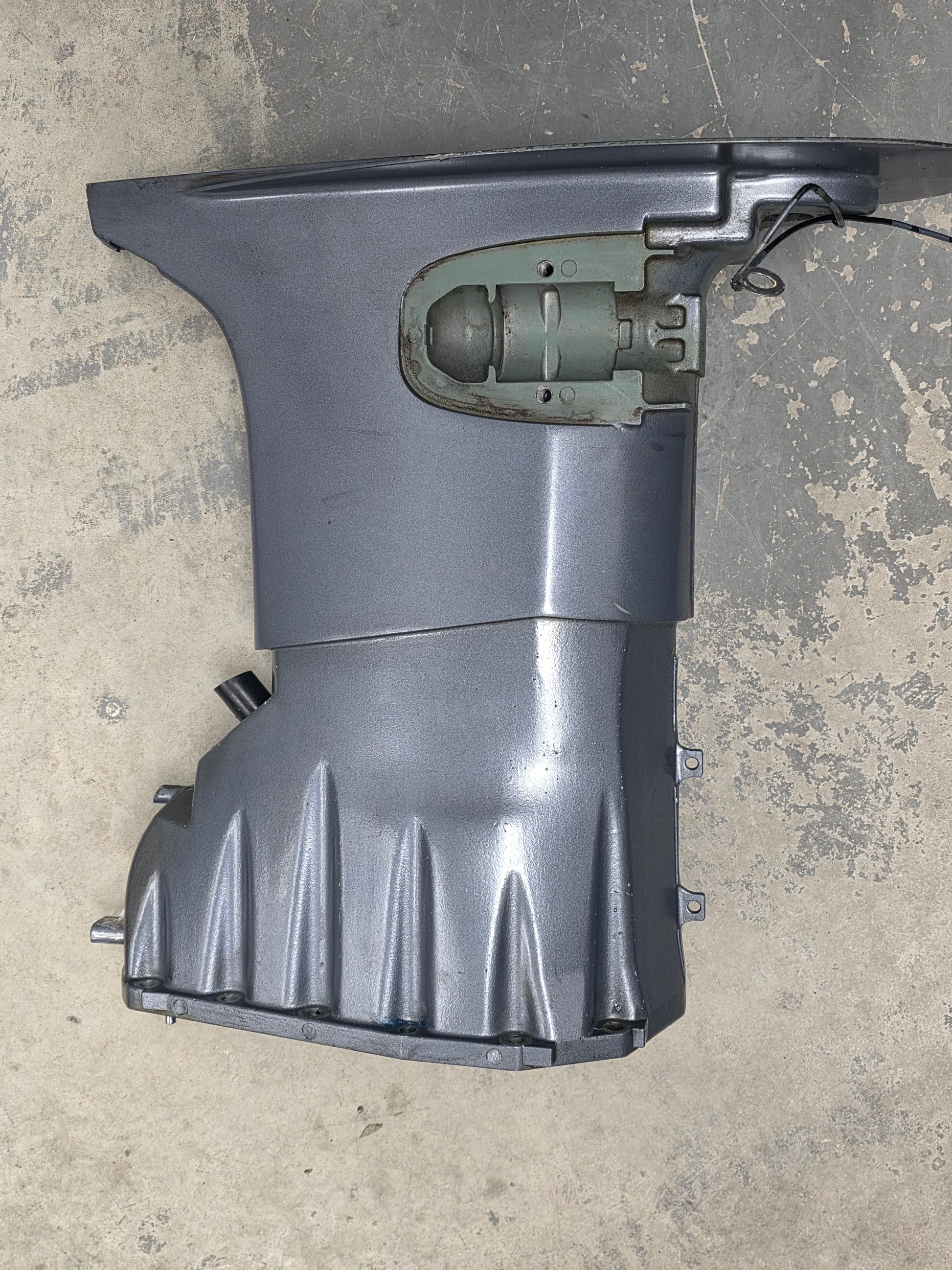

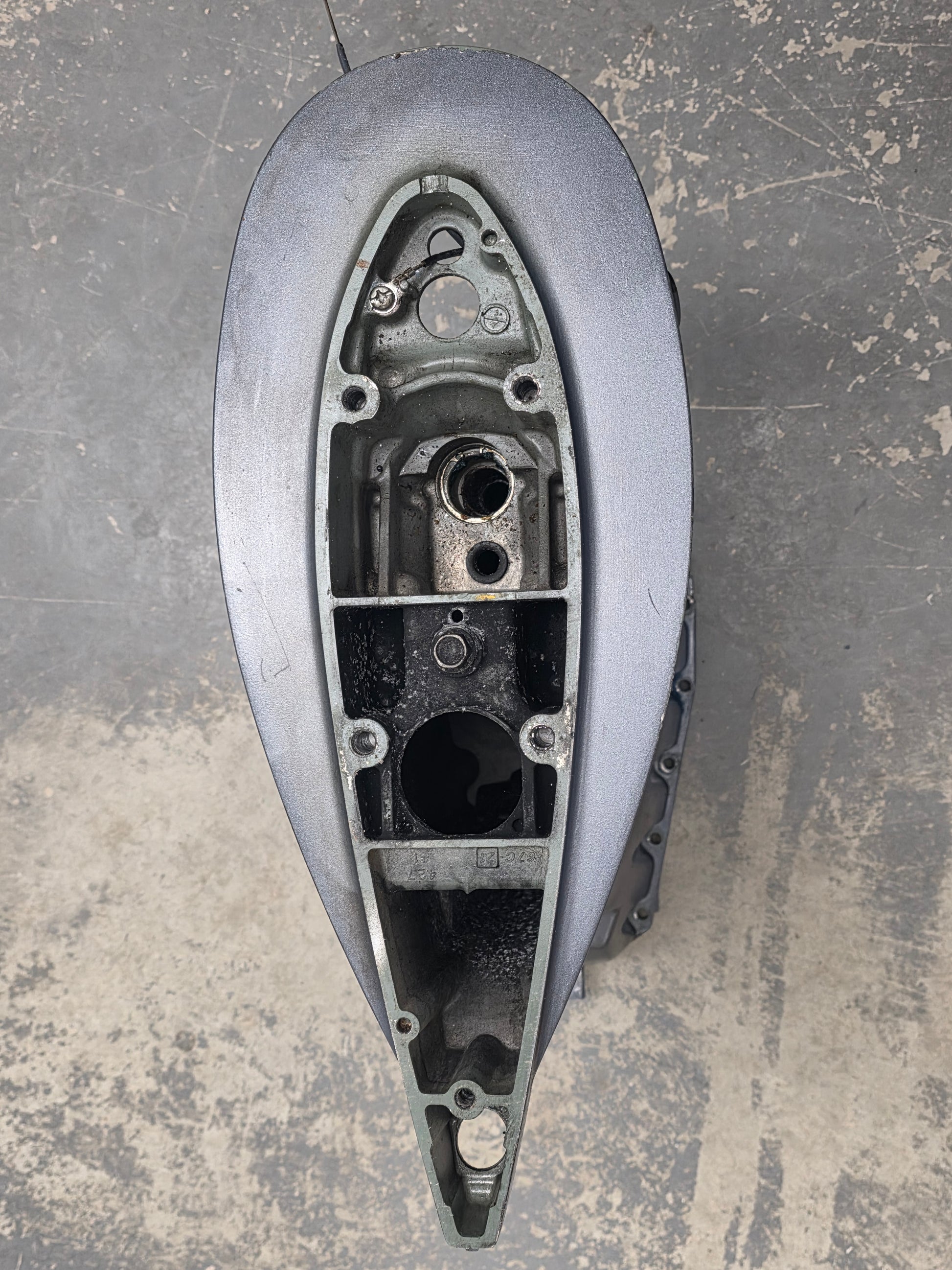

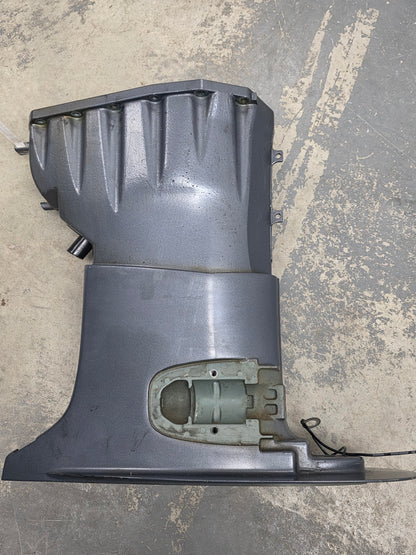

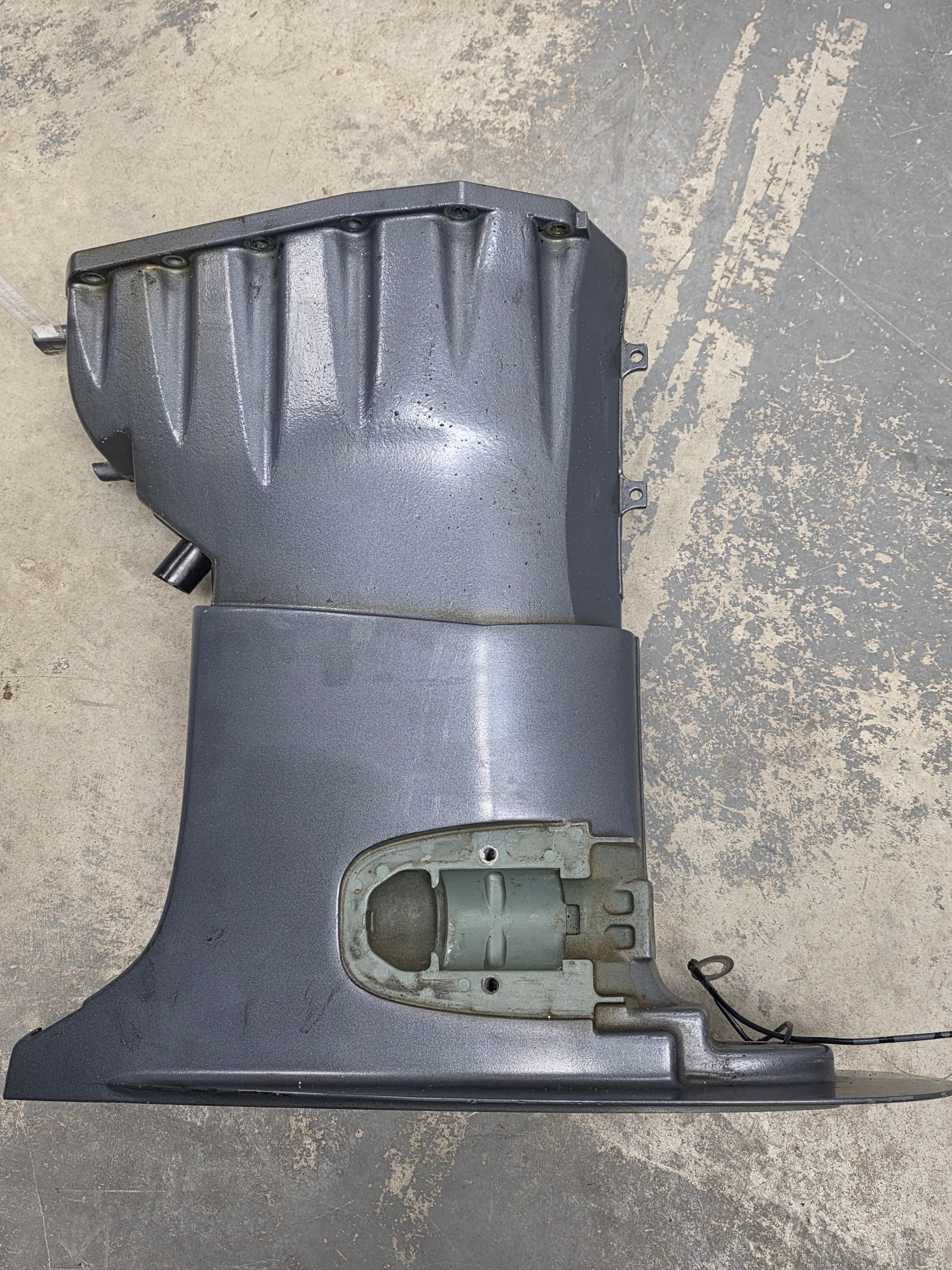

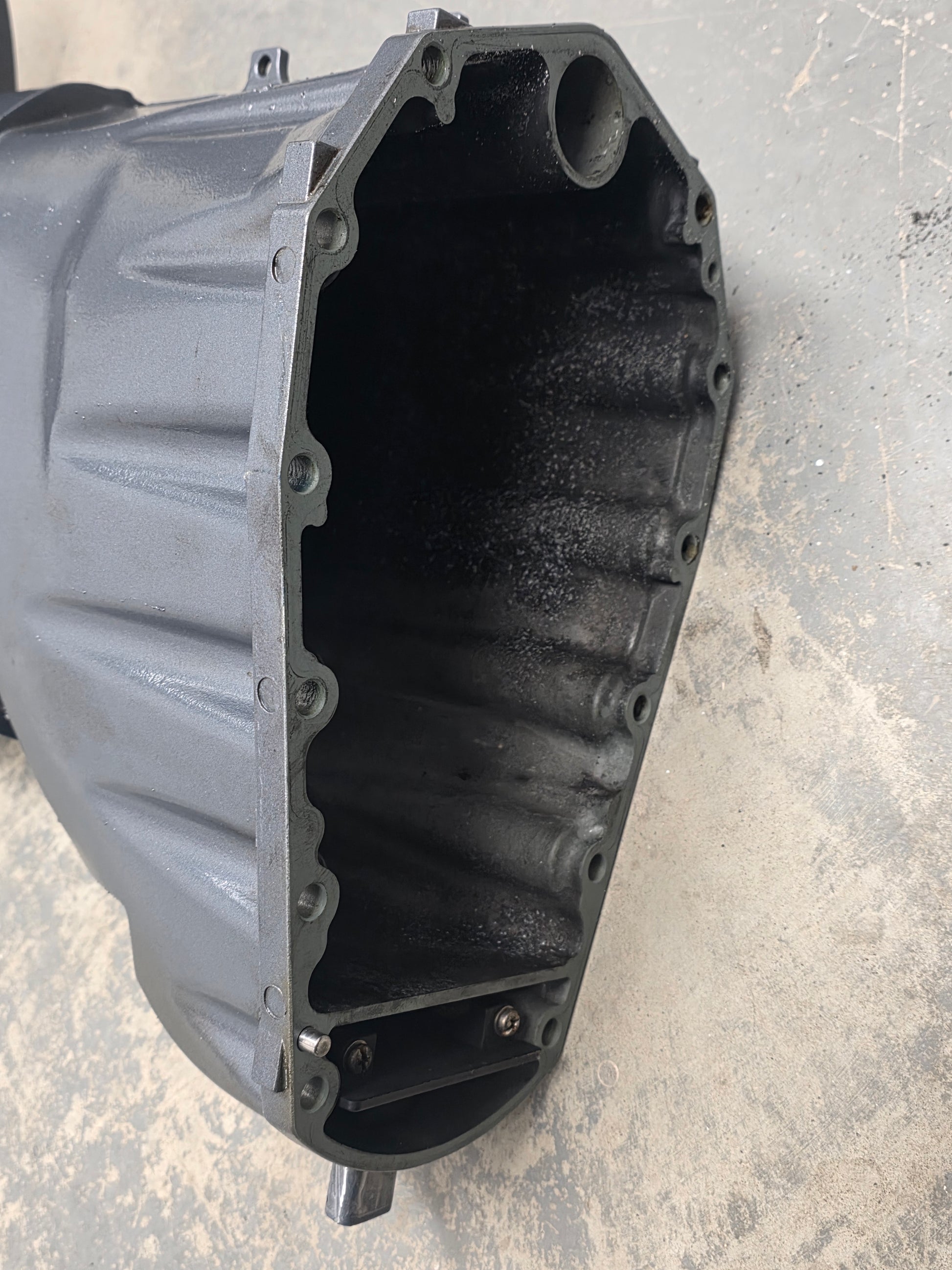

Genuine Yamaha F30 / F40 Short-Shaft Upper Casing - Part Number: 67C-45111-00-4D
A genuine Yamaha short-shaft upper casing for selected F30 and F40 three-cylinder four-stroke outboards.
The casing forms the outboard midsection between the powerhead and gearcase. It encloses the driveshaft, exhaust and cooling-water tube while supporting the lower engine mounts and gearcase connection.
This version is the short 16.1-inch casing configuration.
⚙️ Key Features
- Genuine Yamaha OEM upper casing
- Correct part number 67C-45111-00-4D
- Short-shaft 16.1-inch configuration
- Used on selected Yamaha F30 and F40 four-stroke outboards
- Supports the driveshaft, exhaust, cooling tube and lower mounts
🚤 Compatibility
Commonly used on
- Yamaha 67C-series F30 and F40 four-stroke midsections
- Short-shaft tiller, remote-control and Jet Drive configurations
Typically suits
- Engine models:
- Yamaha F30A short-shaft models
- Yamaha F30AMHD
- Yamaha F40B short-shaft models
- Yamaha F40BET short-shaft configurations
- Yamaha F40BMH
- Yamaha F40BMHD
- Yamaha F40BEJR
- Yamaha F40EJR
- Yamaha F40MJH
- Yamaha F40BMJH
- HP Range: 30HP - 40HP
- Engine Type: Yamaha inline three-cylinder four-stroke outboard
- Shaft Length: Short / approximately 16.1 inches
- Year Range: Approximately 2000 - 2008
🔌 Function
The upper casing establishes the correct engine height and houses the driveshaft, exhaust and cooling-water transfer components between the powerhead and gearcase.
⚠️ Common Signs of Failure
- Corrosion around exhaust passages
- Casing cracked after impact
- Lower-unit mounting threads damaged
- Lower engine-mount locations worn
- Driveshaft or water-tube alignment affected by distortion
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 67C-45111-00-4D current documented short-shaft upper-casing reference
OEM / Related Numbers
- 67C-45111-00-4D
- 67C45111004D
- 67C-45111-00
- 67C-45113-00-00 related upper-casing gasket
- Related exhaust guide, water tube and lower mounting components
Aftermarket / Verified Equivalents
- No aftermarket equivalent
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
