67D-W0093-00 Aftermarket Yamaha Carburetor Kit F4A/MSHAC/AMH/MLHB-S/MH/MLHE (2002-09) | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket Yamaha F4 carburettor repair kit - Replacement Part Number: 67D-W0093-00

A complete service kit for early Yamaha F4 four-stroke carburettors. The exact component list below applies to 67D-W0093-00. Later F4 model years commonly use 67D-W0093-01, so the original kit number must be checked before ordering.

⚙️ Key Features

• Exact OEM service-component numbers listed below

• Includes float, needle valve, float pin and bowl gasket

• Designed for early Yamaha F4 four-stroke carburettors

• Cross-references to Sierra, Mallory and Recmar kits

• Later F4 applications may require 67D-W0093-01

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 67D-W0093-01 → Later F4 service kit related to 67D-W0093-00

OEM / Related Numbers:

• 67D-W0093-00

• 67D-W0093-01

Aftermarket / Verified Equivalents:

• Sierra: 18-7736

• Mallory: 9-37511

• Recmar: REC67D-W0093-00

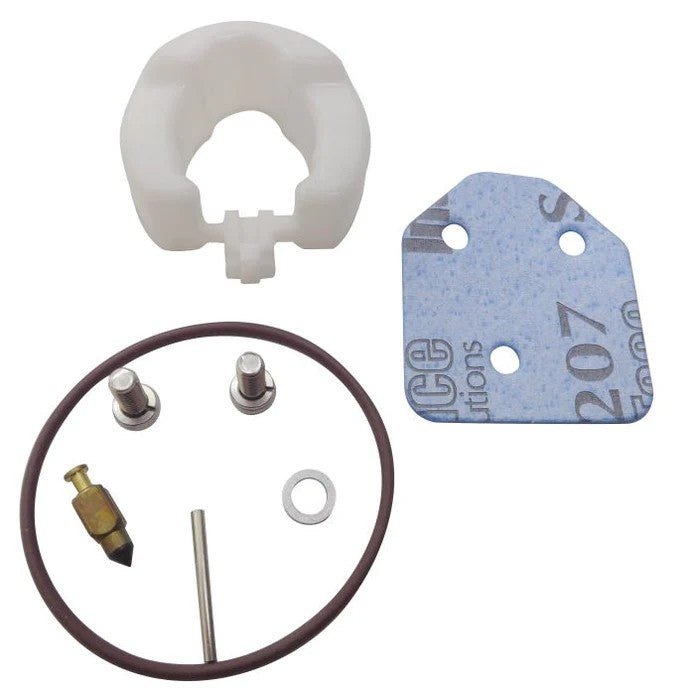

Included Components:

• 1 × Float - Part Number: 67D-14385-00-00

• 1 × Float pin - Part Number: 67D-14386-00-00

• 1 × Needle valve - Part Number: 67D-14546-00-00

• 1 × Float gasket - Part Number: 67D-14984-00-00

• 1 × Gasket - Part Number: 6J8-14995-00-00

• 2 × Screws with washers - Part Number: 97980-04112-00

• 1 × Gasket - Part Number: 67D-14536-00-00

🚤 Compatibility

Commonly used on:

• Yamaha carburetted outboards using the listed OEM carburettor service kit

Typically suits:

• Engine models:

• Yamaha F4A

• Yamaha F4MSHAC

• Yamaha F4AMH

• Yamaha F4MLHB-S

• Yamaha F4MH and F4MLHE

• HP Range: 4HP

• Engine Type: Carburetted four-stroke outboard

• Year Range: Direct 67D-W0093-00 applications are primarily around 2002; later 2003-2009 models commonly use 67D-W0093-01

• Quantity Required: One kit per carburettor

🔌 Function

The kit renews the carburettor's float-control, inlet-valve and sealing components. Correct rebuilding restores fuel-bowl level, prevents air and fuel leaks and stabilises the mixture from starting through full-load operation.

Common signs of failure:

• Hard starting or excessive choke/enrichment required

• Rough idle, hunting or repeated low-speed stalling

• Hesitation, flat spots or intake backfire during acceleration

• Fuel leakage, flooding or an incorrect float-bowl level

• Lean surging, reduced power or fuel starvation under load

• Rich running, smoke, spark-plug fouling or excessive fuel consumption

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
