67F-43880-00 Aftermarket Yamaha Trim Motor | Sawley's Select Marine Parts

🔧 Product Description

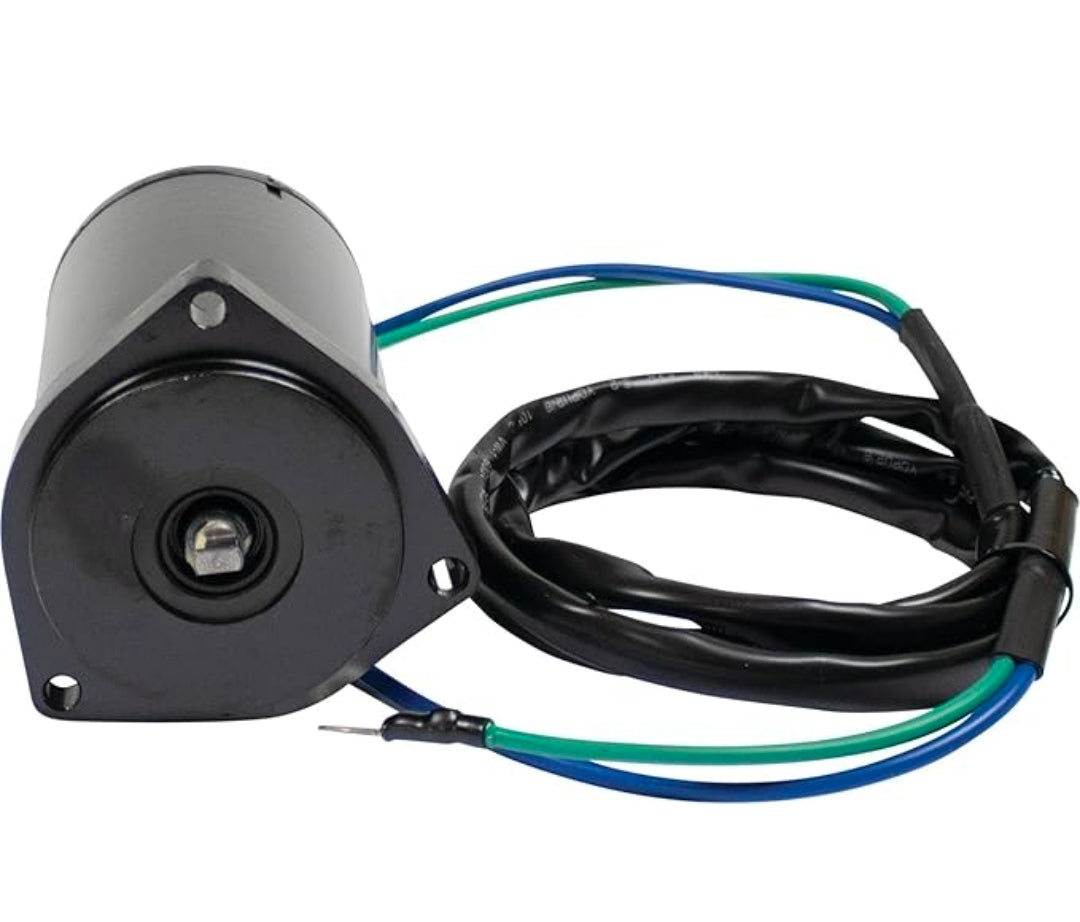

Aftermarket replacement Yamaha F75/F80/F90/F100 Trim Motor - Replaces Part Number: 67F-43880-00

New aftermarket reversible trim motor replacing Yamaha 67F-43880-00. It is supplied as the motor-only replacement for the matching Yamaha hydraulic power trim unit.

⚙️ Key Features

• Direct replacement for the listed Yamaha motor number

• Two-wire reversible motor

• Four-bolt flange with approximately 25mm drive shaft

• Marine corrosion-resistant motor housing

• Motor-to-pump seal renewed during installation

🧰 Kit / Assembly Contents

• 1 × Complete trim/tilt motor - P/N 67F-43880-00

• 1 × Integrated electrical leads or connector

• 1 × Motor-to-pump seal - supplied according to manufacturer package

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 67F-43880-00 (Yamaha OEM motor reference)

OEM / Related Numbers:

• 67F-43880-00

Aftermarket / Verified Equivalents:

• Sierra: 18-6787

• Recmar: REC67F-43880-00

🚤 Compatibility

Commonly used on:

• Yamaha outboard electric-hydraulic power trim systems

Typically suits:

• Engine / Drive models:

• F75, F80, F90 and F100 four-stroke outboards

• HP / Drive Range: 75HP - 100HP

• System Type: Outboard electric-hydraulic power trim motor

• Year Range: Approximately 1999-2004 on principal applications

• Serial / Component Identification: Confirm wire count, mounting-bolt pattern, drive-shaft length and connector before ordering.

🔌 Function

The reversible 12-volt trim motor drives the hydraulic pump in both directions so the outboard or sterndrive can be raised, lowered and trimmed under load.

Common signs of failure / service requirement:

• Trim or tilt does not operate in either direction

• Motor clicks, turns slowly or draws excessive current

• Intermittent operation caused by worn brushes or corroded wiring

• Pump works only after the motor is struck or cooled

• Water intrusion, corrosion or a burnt electrical smell

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
