67h-83672-02 Yamaha Trim Sender | Genuine OEM Yamaha Outboard Part

67h-83672-02 Yamaha Trim Sender | Genuine OEM Yamaha Outboard Part

$280.58 AUD
$280.58 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

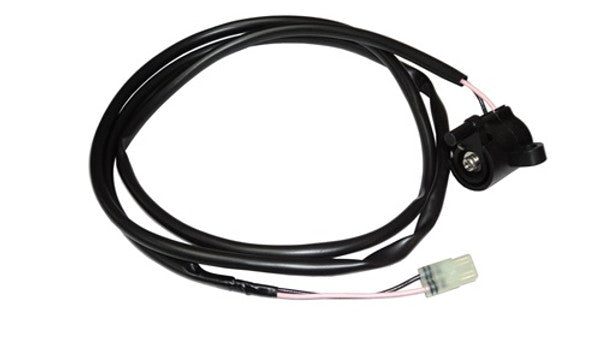

Genuine Yamaha Two-Wire Trim Sender - Part Number: 67H-83672-02

A genuine Yamaha trim-position sender for selected two-stroke, HPDI, four-stroke and VMAX SHO outboards.

The sender converts the engine's trim angle into an electrical resistance signal for the dashboard trim gauge or digital instrumentation system.

⚙️ Key Features

  • Genuine Yamaha OEM two-wire trim sender
  • Correct Yamaha part number 67H-83672-02
  • Reports engine trim position to the helm display
  • Used across Yamaha 30HP to 300HP outboard families
  • Recmar aftermarket replacement available

🚤 Compatibility

Commonly used on

  • Yamaha two-stroke, HPDI, four-stroke and VMAX SHO trim systems
  • Two-wire Yamaha trim-gauge installations

Typically suits

  • Engine models:
  • Yamaha F30 four-stroke
  • Yamaha F40 four-stroke
  • Yamaha F50 and T50 four-stroke
  • Yamaha F60 and T60 four-stroke
  • Yamaha F70 four-stroke
  • Yamaha F75 and F90 four-stroke
  • Yamaha F115 and LF115 four-stroke
  • Yamaha F135 four-stroke
  • Yamaha F150 and LF150 four-stroke
  • Yamaha F175 inline-four four-stroke
  • Yamaha 115HP and 130HP two-stroke
  • Yamaha 150HP, 175HP and 200HP two-stroke
  • Yamaha Z150, Z175 and Z200 HPDI
  • Yamaha Z250 and Z300 HPDI
  • Yamaha VMAX SHO VF150, VF175, VF200, VF225 and VF250 applications using the 67H sender
  • Yamaha VF250LB 2024
  • Yamaha LF115XB2 2025
  • HP Range: 30HP - 300HP
  • Engine Type: Yamaha two-stroke, HPDI, four-stroke and VMAX SHO outboard
  • Year Range: Approximately 2004 onward, dependent on bracket and sender-cam design

🔌 Function

The trim sender converts the physical engine angle into an electrical signal for the trim gauge or digital display.

⚠️ Common Signs of Failure

  • Trim gauge remains at full up or full down
  • Displayed trim angle does not match engine position
  • Gauge movement is erratic or intermittent
  • Sender wiring is corroded, broken or damaged
  • Sender arm or trim cam binds or wears

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 67H-83672-02 → Supersedes 67H-83672-01
  • 67H-83672-01 → Supersedes 67H-83672-00
  • 67H-83672-00 earlier Yamaha trim-sender reference

OEM / Related Numbers

  • 67H-83672-02
  • 67H-83672-02-00
  • 67H836720200
  • 67H-83672-01
  • 67H-83672-00
  • 64E-43139-11 related trim-sender cam
  • 97985-06216 related mounting screw

Aftermarket / Verified Equivalents

  • Recmar: REC67H-83672-02
  • Direct-replacement two-wire sender: 67H-83672-02

📦 Condition

  • Genuine Yamaha part
  • Brand new
  • Supplied in original or equivalent packaging
